SSL UMD192 High Capacity Digital Audio Interface
Powerful and portable USB audio interface designed to meet the demands of professional live sound.
FREE UK Delivery
Earn 2399 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: UMD192
You Might Also Like
Product Description
The SSL UMD192 is a high-capacity USB, MADI and Dante digital audio interface designed for demanding live sound, broadcast and studio environments. Delivering up to 192 channels of audio in a compact ½ rack unit, it excels as both a primary computer interface and a powerful format bridge, keeping complex systems flexible, efficient and future-ready.
With full support for Dante AoIP (including AES67 and ST 2110 with DDM), six pairs of MADI BNC connections and a class-compliant USB 3.0 interface, the UMD192 makes it easy to move large channel counts between consoles, recorders, DAWs and networks. Flexible clocking, ultra-low Dante latency and multiple power options help ensure rock-solid performance in mission-critical workflows.
High-Capacity Format Bridging
At the heart of the UMD192 is its ability to route large numbers of channels between USB, MADI and Dante. Any two formats can exchange audio bidirectionally, while the third can receive a split feed, making it ideal for simultaneously feeding a Dante network, MADI devices and a recording computer. Whether you are capturing a full festival stage, routing stems in a broadcast truck or handling high-channel-count studio sessions, the UMD192 keeps everything connected with minimal fuss.
Optimised for Live, Broadcast and Studio Workflows

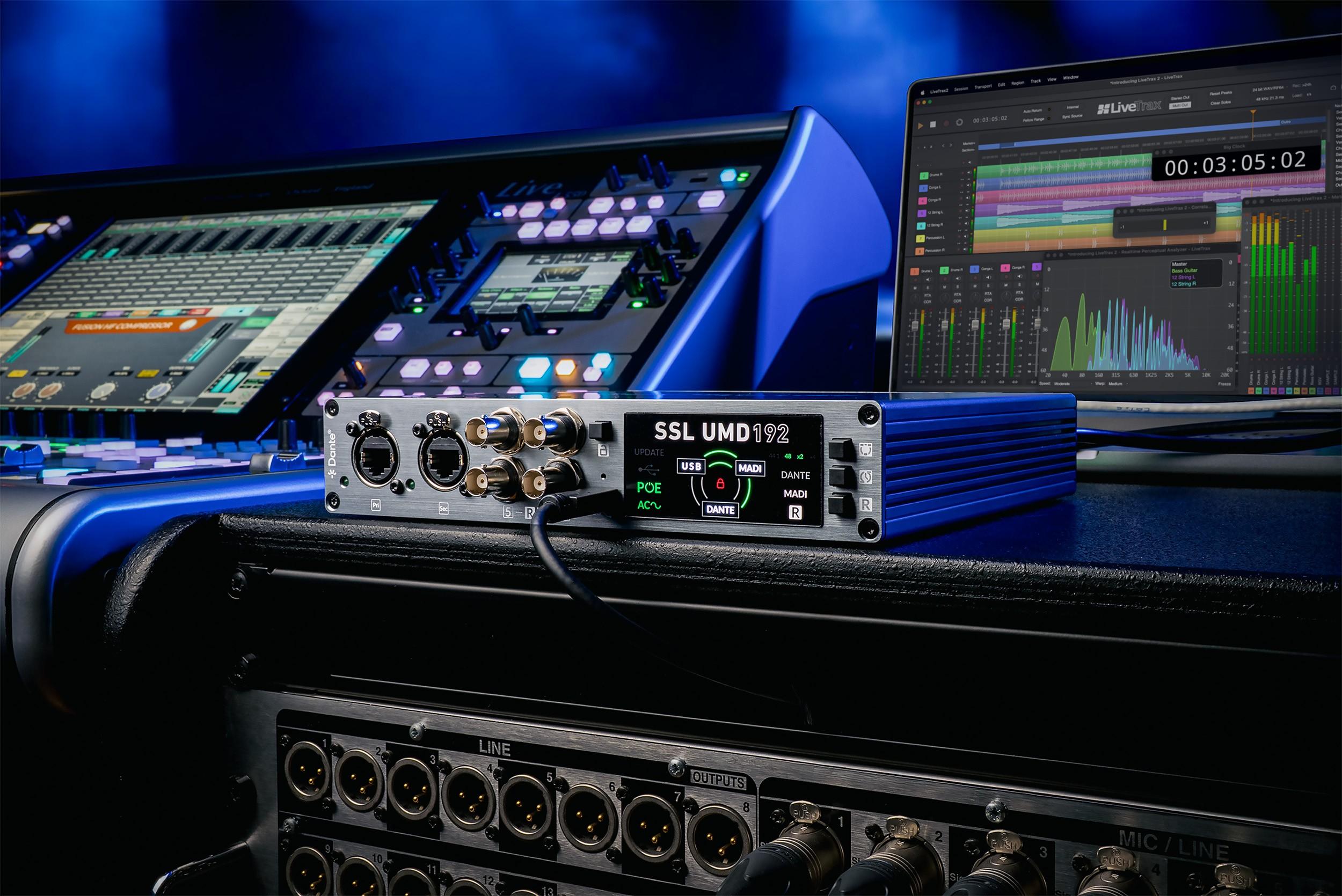

The UMD192 is equally at home beside a live console, in a broadcast control room or in a high-spec studio. It integrates seamlessly with SSL System T for broadcast music recording and mixing, works as an ideal computer interface for Harrison 32Classic systems with Dante, and partners perfectly with SSL Oracle or ORIGIN setups using Dante or MADI conversion. It is also a powerful solution for non-SSL console users who need a reliable, format-agnostic hub for live sound, postproduction and studio work.
Robust Network and Clocking Options
On the network side, the UMD192 delivers fully interoperable Dante audio over IP with support for AES67 and ST 2110 (with DDM). Dante latency can be set as low as 0.25 ms, keeping monitoring tight and responsive. Flexible clocking from either MADI or Dante covers sample rates from 44.1 kHz up to 192 kHz, while six MADI BNC pairs can be configured in redundant mode to provide three dual-redundant MADI connections for mission-critical live and broadcast applications.
Intuitive Front Panel and Flexible Power

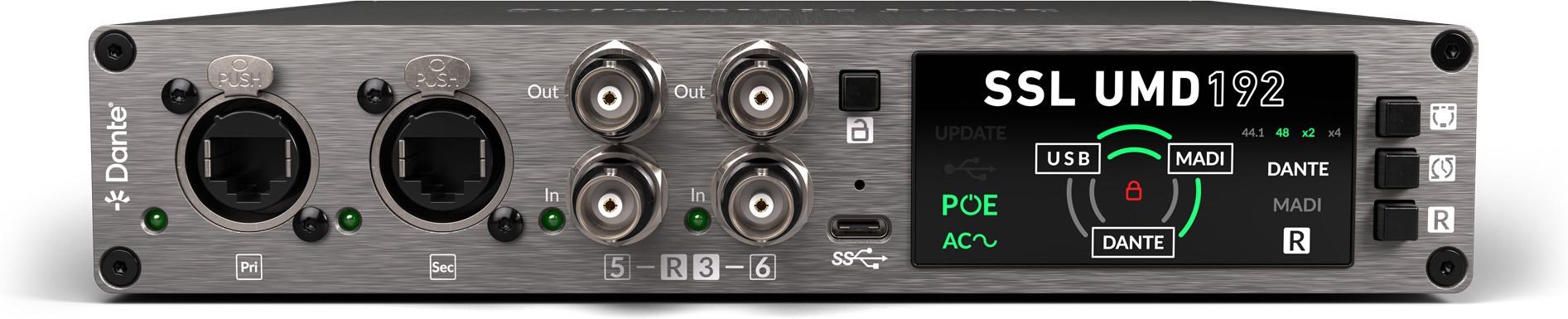

The UMD192 front panel provides clear visual feedback on signal flow, sample rate sync, power and network status, so you can confirm system health at a glance. Controls are locked by default to protect your configuration, with a simple press-and-hold on the lockout button to make changes to mode, clock source or MADI redundancy. Power options include AC mains, Power over Ethernet and USB, with the ability to combine PoE and an external PSU for redundancy, giving engineers the confidence to deploy the UMD192 in critical environments.
Mac and Windows Compatible
As a class-compliant USB 3.0 interface, the UMD192 works natively with macOS Core Audio without additional drivers, allowing guest engineers to plug in and get to work quickly. On Windows, the dedicated SSL ASIO driver (available from the Solid State Logic support portal) enables multi-client operation, so multiple ASIO applications can access the interface at the same time. This makes the UMD192 a flexible choice for complex production setups where several software tools need simultaneous access to the same audio I/O.
Features
- Massive Channel Counts at Professional Sample Rates - Handle up to 192 channels at 48 or 44.1 kHz, 192 channels at 96 or 88.2 kHz, and 128 channels at 192 or 176.4 kHz. This gives you the headroom to capture full shows, large ensembles or multi-room sessions without compromising on sample rate or running out of I/O.
- Triple-Format USB, MADI and Dante Connectivity - With class-compliant USB 3.0, six MADI BNC pairs and fully interoperable Dante AoIP (including AES67 and ST 2110 with DDM), the UMD192 is a powerful bridge between computer-based systems, MADI infrastructure and modern IP networks, simplifying complex routing and future-proofing your setup.
- Redundant MADI and Flexible Clocking - Configure the six MADI BNC pairs in redundant mode to create three dual-redundant MADI connections, ideal for broadcast and live environments where continuity is critical. Clock the system from either MADI or Dante across all standard professional sample rates, ensuring stable, predictable performance.

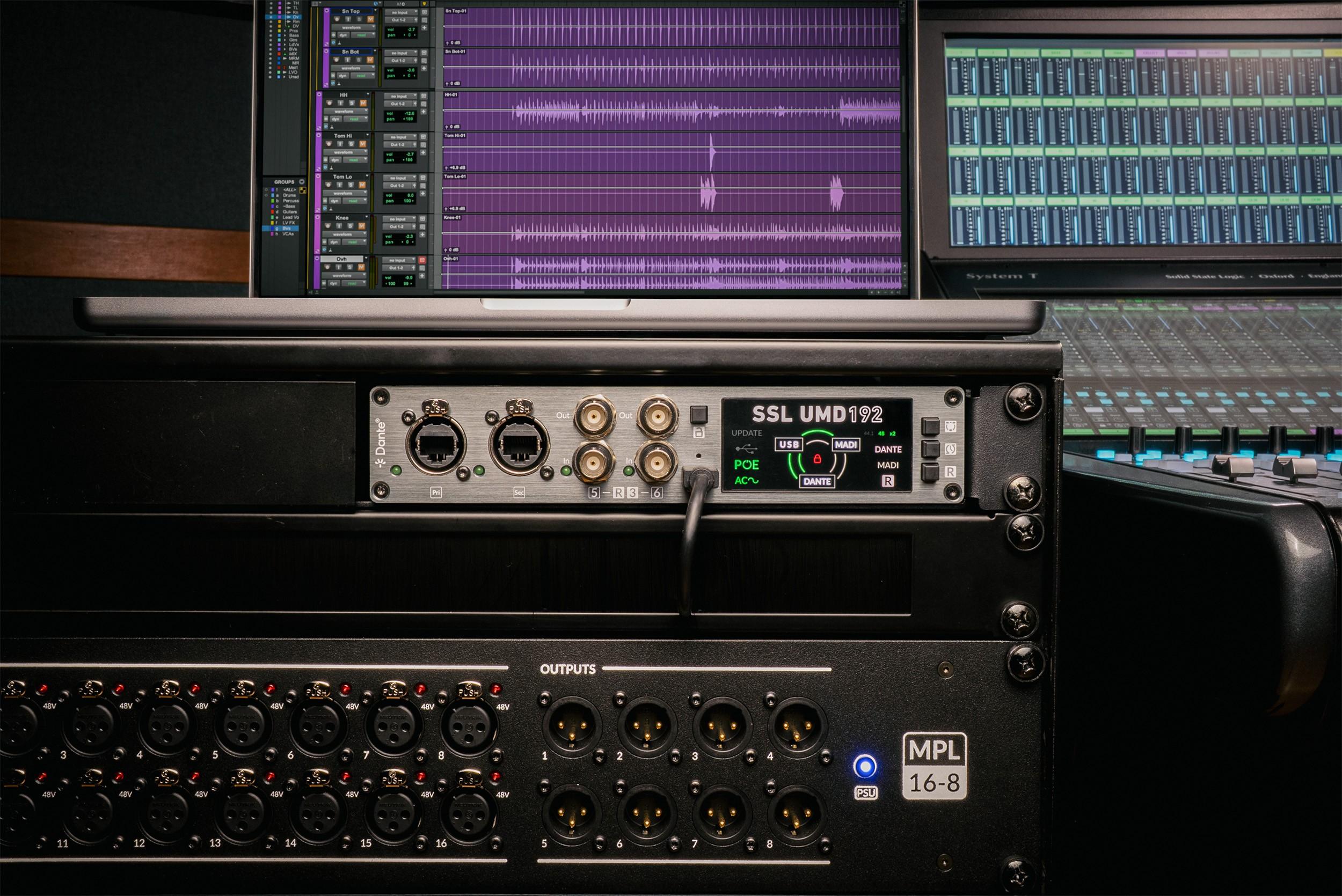

- Rugged, Portable Design with Multi-Source Power - The compact ½ rack form factor is suitable for desktop, console-side or rack-mounted use, while ruggedised Ethernet ports with link and activity LEDs are built for life on the road. Multiple power options via AC, PoE or USB, with redundancy support, make the UMD192 easy to deploy in a wide range of professional scenarios.
Specifications
General
- Product: Solid State Logic UMD192 High Capacity Digital Audio Interface
- Form Factor: ½ rack unit, portable design
- Use Cases: Live sound, broadcast, studio, postproduction
Audio Performance
- Channel Count: 192 channels at 48/44.1 kHz
- Channel Count: 192 channels at 96/88.2 kHz
- Channel Count: 128 channels at 192/176.4 kHz
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Clock Sources: MADI or Dante
USB
- Connection: USB 3.0
- Type: Class-compliant digital audio interface
- macOS: Native Core Audio support, no additional driver required
- Windows: SSL ASIO driver required (multi-client capable)
MADI
- Connectors: 6 x MADI BNC pairs
- MADI Redundancy: Configurable redundant mode for 3 x dual-redundant MADI connections
Dante and Network
- Protocol: Dante audio over IP
- Compatibility: AES67 and ST 2110 (with DDM) support
- Dante Latency: As low as 0.25 ms
- Ethernet Ports: Ruggedised, 2 x Primary, 2 x Secondary
- Indicators: Link and activity LEDs on Ethernet ports
Front Panel Control and Indicators
- Lockout Button: Press and hold to unlock front panel controls
- Mode Button: Cycles through signal flow modes (when unlocked)
- Clock Source Button: Toggles between Dante and MADI clock (when unlocked)
- MADI Redundancy Button: Enables or disables MADI redundancy (when unlocked)
- Indicators: Signal flow, sample rate sync, power status, network connectivity, lock status
Power
- Power Options: AC mains, Power over Ethernet (PoE), USB
- Redundancy: PoE can be combined with external PSU for redundant power
Included Accessories
- USB-C to USB-C cable
- USB-A to USB-C adapter
- IEC power cable
