Rockboard Mini Mounting MOD DC
UK Delivery - From £5.99
Earn 14 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: RBO-B-MOD-MINI-DC
You might also need
Product Description
Here's what Rockboard say about the Rockboard Mini Mod DC:

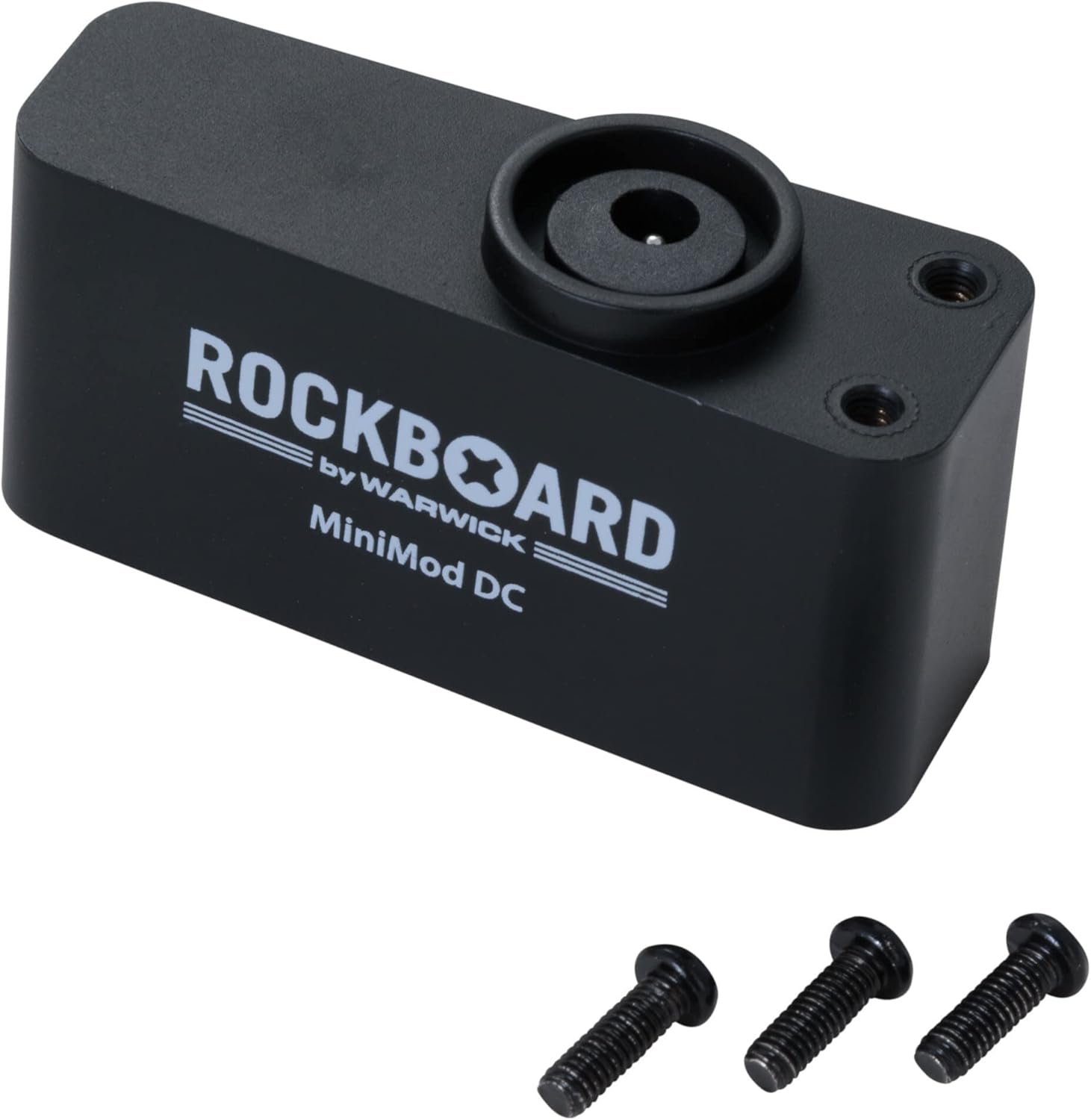

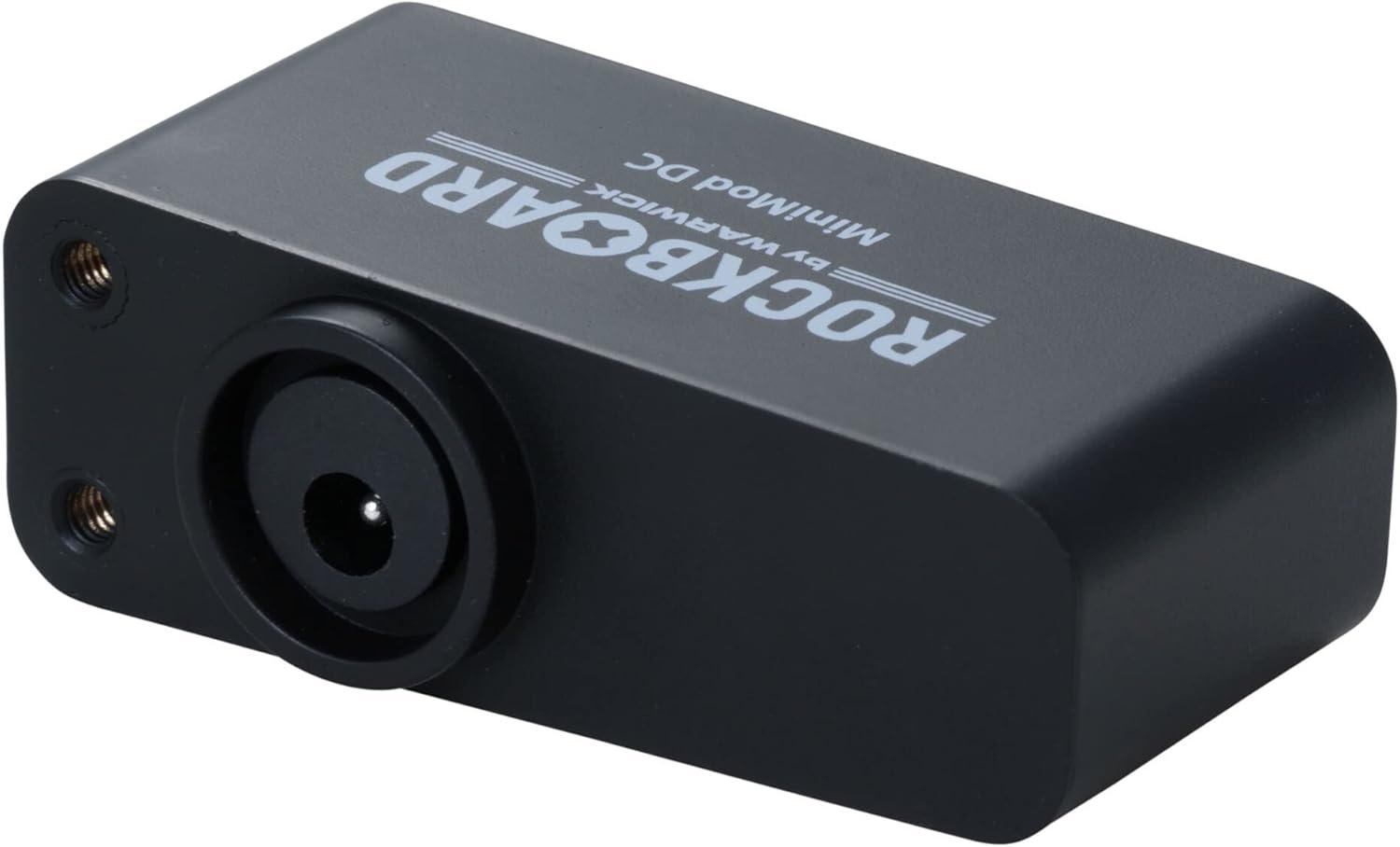

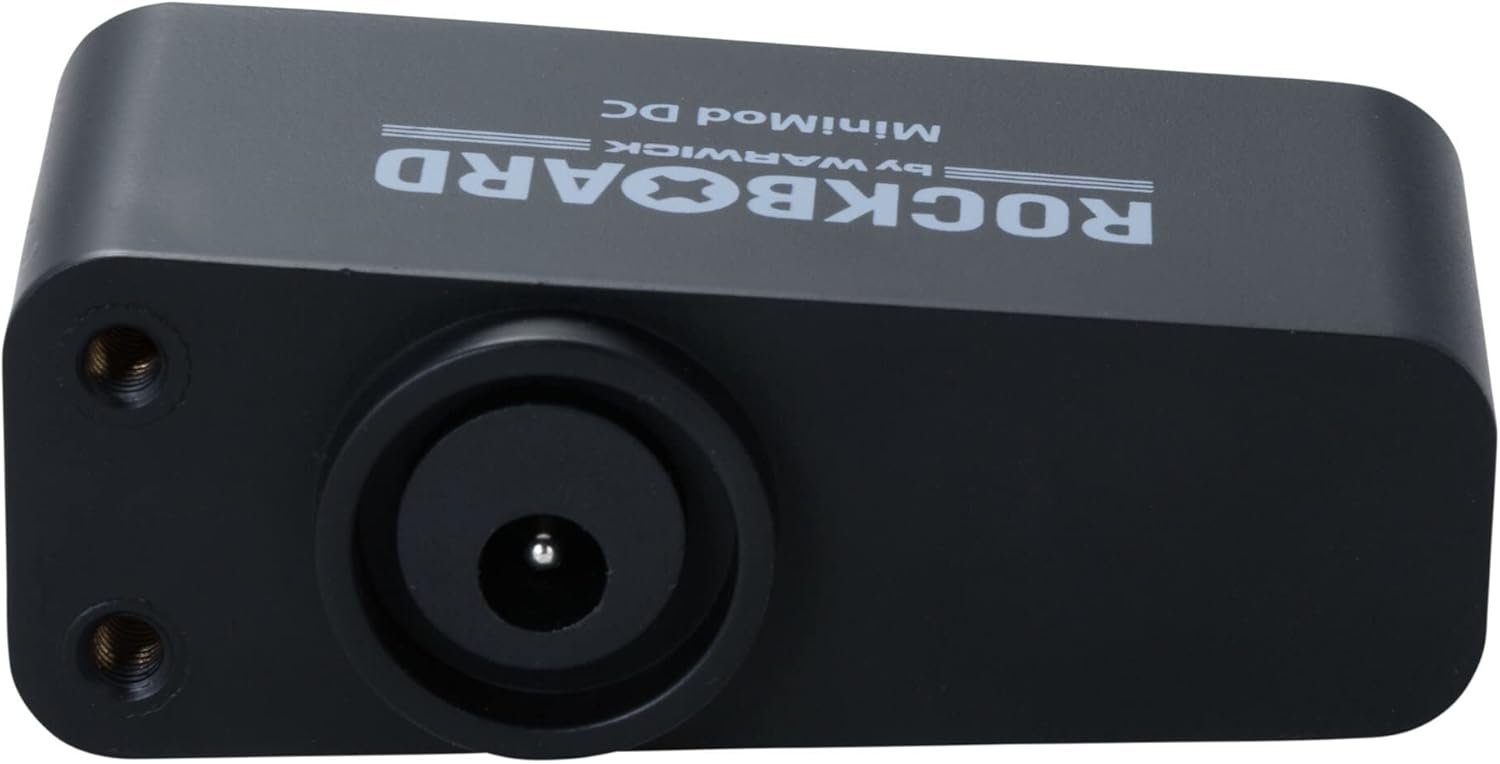

The Mini Mounting MOD DC provides convenient access to the setup's multi power supply without the hassle of routing the power cable under the pedalboard. It fits perfectly into the mounting holes of the LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards.

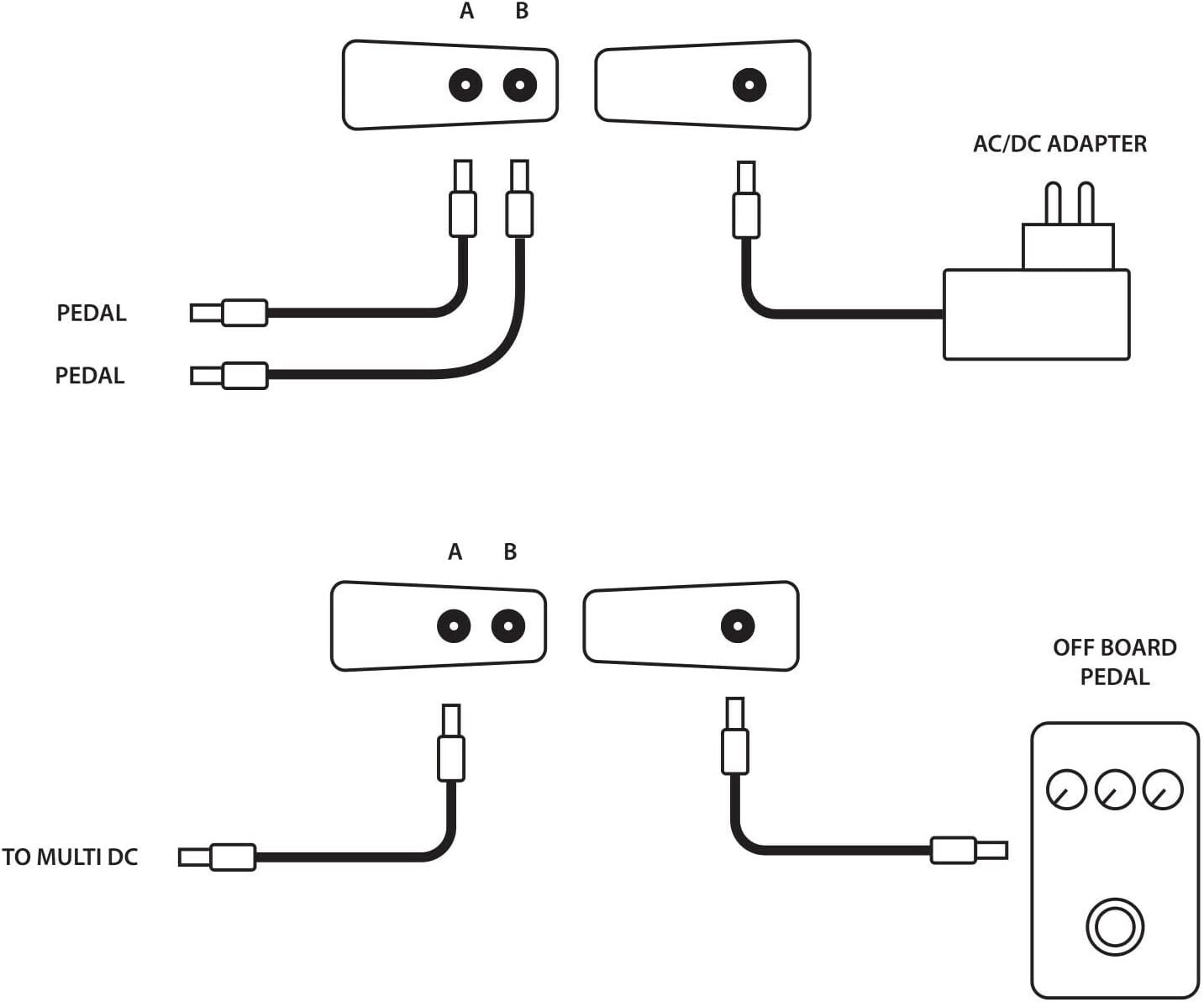

Central access to the power supply is provided by through-connected 2.1 x 5.5 mm DC jacks. Since the power connections are through jacks, it is also possible to power external pedals, such as a Wah, in the opposite direction. Instead of a multi-power supply, DC power cables or "daisy chain" distributors can be used to distribute power to the pedals. (Outputs A and B are wired in parallel).
*Note: The total current draw of all devices on the board should not exceed the output current of the connected multi-power supply or "daisy chain" connections to avoid damage to individual components. Make sure the voltage and polarity of the external power supply matches the requirements of the Multi Power Supply/Pedals.
The Mini Mounting MOD TRS provides convenient access to the signal supply of the pedals on the board. It fits perfectly into the mounting holes of the RockBoard® LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards. Central access to the signal supply is provided by a 6.3 mm TRS stereo jack. Since the TRS jacks are pass-through jacks, it is also possible to route signals in the opposite direction to external pedals, such as a Wah. Using TRS stereo jacks also makes it easy to implement "send/return" applications (A- = tip and B- = ring).
