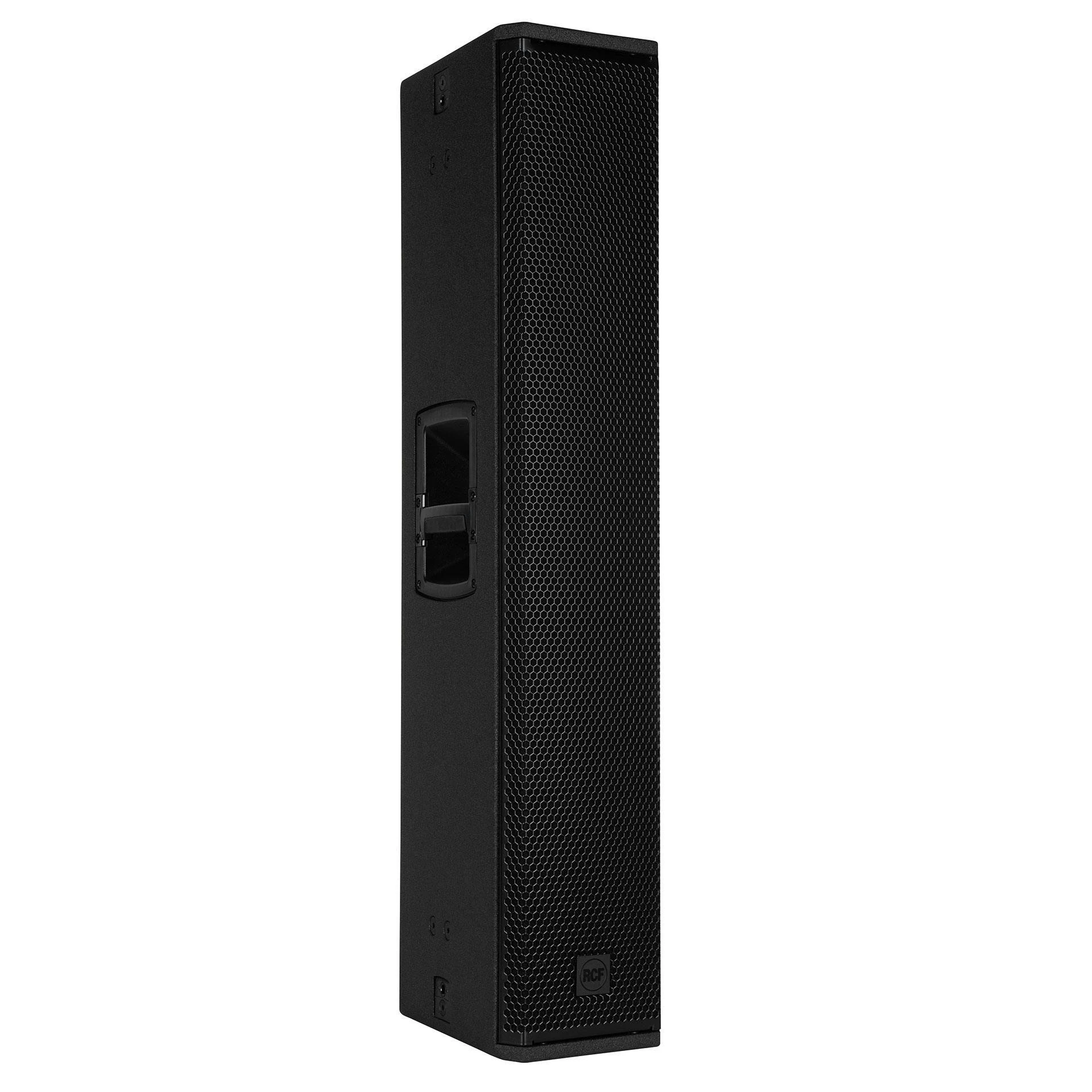

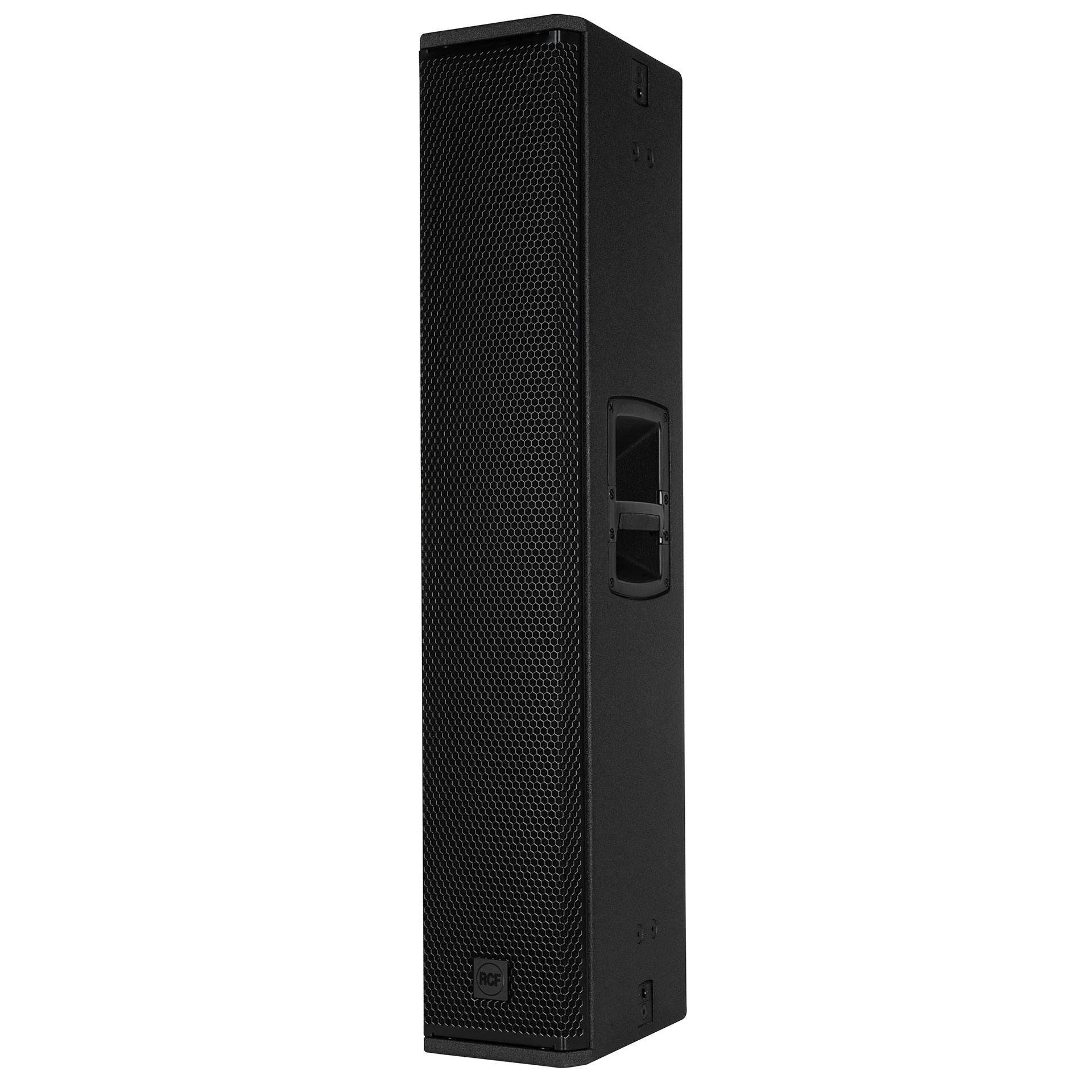

RCF NXL 24-A MK2 Active 2-Way Array, 4x6" Woofers + 2.5" v.c., 1050Wrms, 2100Wpeak

The RCF NXL 24-A MK2 is a powerful active two-way column array designed to deliver clear, consistent coverage in a compact, easy-to-deploy format. With a 2100 W peak Class D amplifier, four 6 inch neodymium woofers and a 3 inch titanium compression driver, it provides up to 132 dB of articulate sound for live music, corporate events, houses of worship and rental applications.

Engineered as a complete, self-powered solution, the NXL 24-A MK2 combines high output with precise directivity. Its 100 x 30 degree constant coverage pattern focuses sound where you need it, reducing unwanted reflections and helping you achieve a more controlled mix in challenging rooms. Advanced DSP, including FiRPHASE and Bass Motion Control, keeps the response linear from 60 Hz up to 20 kHz, so every detail of your performance is reproduced with clarity and impact.

The column-style format offers a slim, unobtrusive look that is easy to integrate on stage or in fixed installations. Despite its compact footprint, the four high power 6 inch woofers deliver impressive low-mid punch, while the neodymium compression driver ensures smooth, extended highs. Multiple rigging points and quick lock fittings provide flexible mounting options, making it well suited to scalable systems and flown arrays.

Whether used as a main PA in smaller venues or as part of a larger system, the NXL 24-A MK2 is built to work hard, night after night. The efficient Class D amplifier keeps weight down while delivering serious headroom, and the integrated DSP optimises performance without the need for external processing. For users who need professional sound quality, controlled coverage and straightforward setup, this active array is a highly practical choice.

High Output, Compact Footprint

With a peak output of up to 132 dB, the NXL 24-A MK2 delivers the level you need for demanding live sound applications while remaining slim and easy to position. The column design saves stage space and keeps sightlines clear, ideal for venues where aesthetics and practicality are both important.

Precision Coverage Control

A 100 x 30 degree constant directivity pattern focuses sound on the audience area, improving intelligibility and reducing spill onto walls and ceilings. This helps you achieve a more even listening experience across the room, with fewer hot spots and dead zones.

Advanced DSP for Linear Response

FiRPHASE processing and Bass Motion Control work together to maintain a linear frequency response from 60 Hz to 20 kHz. The result is tight, controlled low end, natural mids and detailed highs, so mixes translate accurately and performers can hear themselves clearly.

Integrated Power and Rigging Flexibility

The built-in 2100 W Class D amplifier is matched precisely to the drivers for maximum efficiency and reliability, removing the need for external amps. With four M8 rigging points and four quick lock fittings, the NXL 24-A MK2 can be deployed in a variety of configurations to suit different venues and system designs.

• Up to 132 dB Sound Pressure Level - Provides substantial headroom for live bands, DJs and speech reinforcement, ensuring clean, undistorted sound even at higher volumes.
• 2100 W Peak Class D Amplifier - The efficient onboard amplifier delivers powerful performance in a lightweight package, simplifying setup and reducing the amount of external equipment required.
• 100 x 30 Degree Constant Directivity - Controlled horizontal and vertical dispersion keeps coverage consistent across the audience, helping you achieve a more balanced sound in a wide range of acoustic spaces.
• FiRPHASE and Bass Motion Control DSP - Advanced processing optimises phase response and low frequency behaviour, resulting in a more natural sound with improved clarity and definition throughout the frequency range.

Acoustic

• Maximum Sound Pressure Level: Up to 132 dB
• Frequency Response: 60 Hz to 20000 Hz (linear)
• Crossover Type: Two-way active

Transducers

• High Frequency Driver: 3 inch titanium neodymium compression driver
• Low Frequency Drivers: 4 x 6 inch high power neodymium woofers

Amplifier and Processing

• Amplifier Power: 1050 W RMS
• Amplifier Power (Peak): 2100 W
• Amplifier Type: Class D
• Processing: FiRPHASE
• Low Frequency Management: Bass Motion Control

Coverage and Mechanics

• Coverage Angle: 100 x 30 degrees (constant directivity)
• Rigging: 4 x M8 rigging points
• Quick Lock Fittings: 4 x quick lock
