RANE System One Motorized Standalone DJ System

RANE System One is a professional all-in-one standalone DJ system with high-torque motorised platters, giving you the unmistakable feel of real turntables without needing a laptop. Powered by Engine DJ and packed with deep Serato integration, advanced Stems control, powerful FX and pro-grade connectivity, it is built for open-format DJs who demand club-ready sound, rock-solid reliability and creative freedom in a single unit.

With OmniSource architecture, System One lets you move effortlessly between USB, SD, internal drive, streaming services and computer software, while the 7 inch HD touchscreen, RGB pads with OLED displays and onboard lighting control keep every aspect of your performance at your fingertips. From bar residencies and mobile work to livestreams and club sets, this is a flagship RANE experience in a portable, laptop-free format.

Motorised Turntable Feel, Standalone Freedom

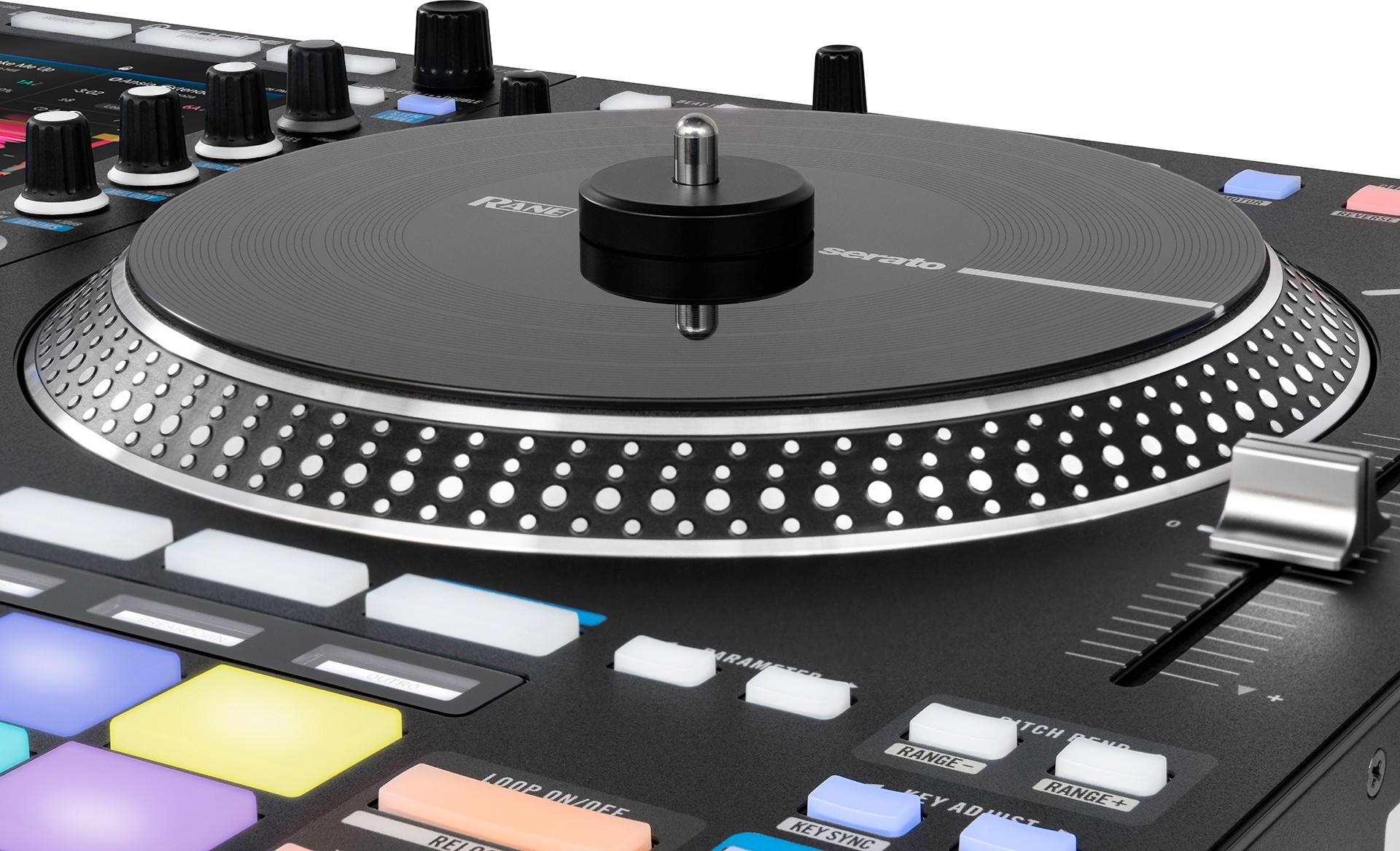

At the heart of System One are a pair of 7.2 inch aluminium motorised platters that deliver the torque, inertia and precision that turntablists and open-format DJs rely on. Combined with the embedded Engine DJ operating system, you get the tactile feel of vinyl-style control with the freedom to perform completely laptop-free, ideal for tight booths, fast changeovers and streamlined mobile rigs.

OmniSource Media and Streaming Flexibility

System One is designed to work the way you do, not the other way round. OmniSource architecture lets you mix between music on USB drives, SD cards, an optional internal SATA drive, cloud storage and a wide range of streaming platforms including Apple Music, Amazon Music Unlimited, Beatport, Beatsource, TIDAL, SoundCloud Go+ and Dropbox. When you want to plug into a computer, Serato DJ and Algoriddim djay integration provide even more flexibility.

Next-Level Stems and FX Performance

Standalone Stems tools let you create instant acapellas, instrumentals and live mashups directly on the hardware, with dedicated Stems pad modes, Stem Level EQ and Stem FX for detailed control. Over 25 onboard Main FX, plus Sweep FX, Touch FX and Fader FX, give you a full studio of creative processing on the mixer, while Serato software FX support opens up even more options for signature transitions and routines.

Visual Control and Integrated Lighting

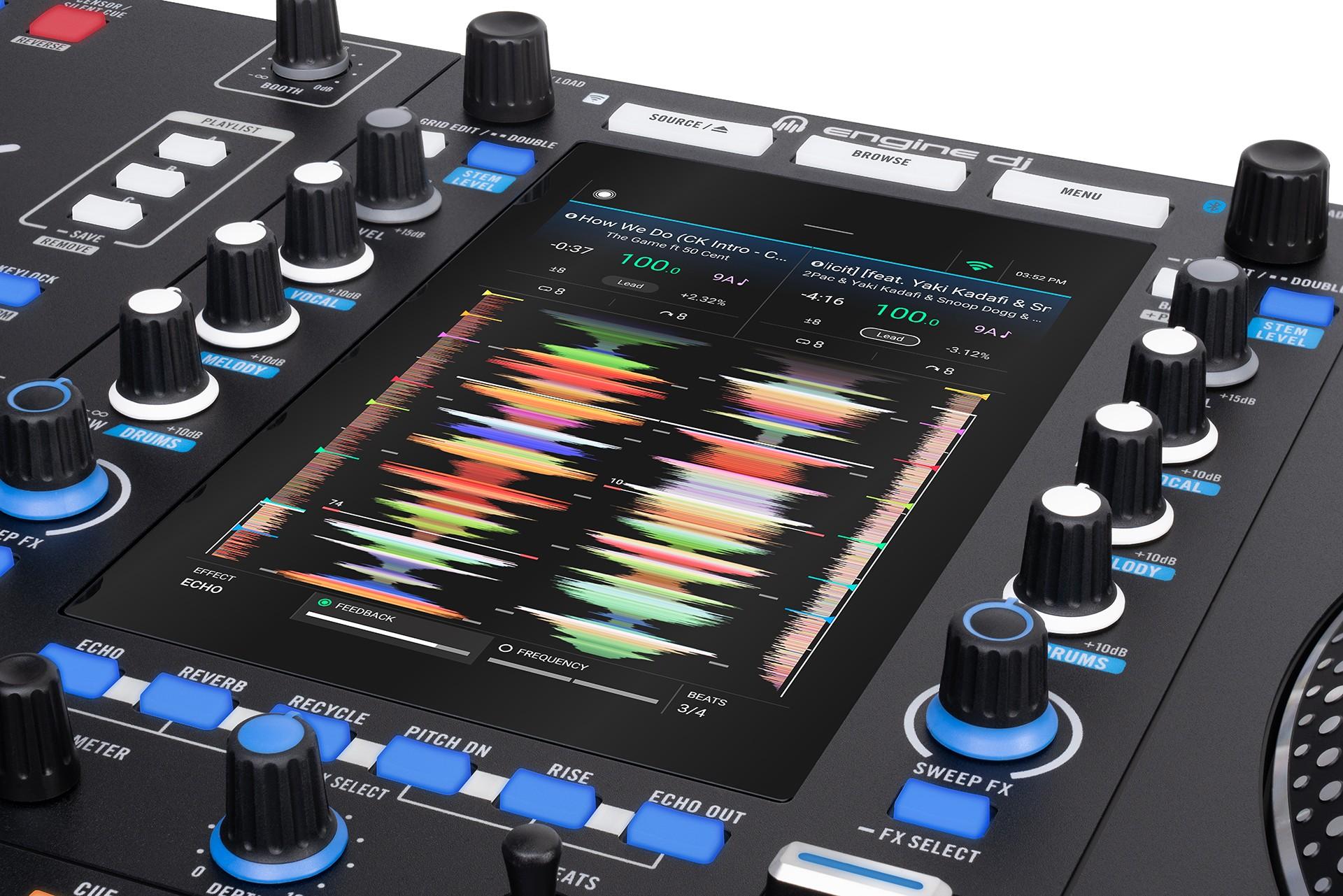

The 7 inch HD vertical touchscreen with RGB waveforms makes browsing, cueing and mixing intuitive, with customisable layouts and a Day Mode for bright environments. Eight RGB performance pads per deck with OLED displays keep cues, loops, rolls, samples and Stems clearly visible. Built-in SoundSwitch lighting control lets you run smart lighting from Philips Hue and Nanoleaf, or DMX fixtures via SoundSwitch hardware, for fully synchronised shows from a single device.

Signature RANE Sound and Pro Connectivity

System One delivers RANE’s renowned high-fidelity audio with 24-bit converters, detailed EQ and a full suite of pro I/O. XLR and RCA main outputs, dedicated booth outs, dual mic inputs with processing, Bluetooth in and out, and flexible headphone monitoring ensure you are ready for any venue or setup. Precision Feel channel faders and the MAG FOUR crossfader with full adjustability make it equally at home for club mixing and performance scratching.

• Motorised 7.2 Inch Platters with Turntable Feel - High-torque aluminium motorised platters give you the familiar resistance, accuracy and responsiveness of a traditional deck, making scratching, backspins and tight cue hits feel natural while keeping the convenience of an all-in-one system.
• OmniSource Standalone and Software Flexibility - Mix from USB, SD, internal drive, cloud and multiple streaming services, or switch to Serato DJ and Algoriddim djay when needed. This flexibility means you can handle requests, different event types and changing workflows without reconfiguring your entire setup.
• Advanced Stems and Multi-Layer FX Engine - Instant Acapella and Instrumental buttons, Stems pad mode, Stem Level EQ and Stem FX let you deconstruct and rebuild tracks live. Combined with Main FX, Sweep FX, Touch FX and Fader FX, you can craft unique transitions, edits and routines that stand out from standard two-track mixing.
• Pro-Grade Audio, Faders and Connectivity - RANE’s 24-bit converters, 10 band output EQ, dual mic inputs with FX, Bluetooth I/O and multiple balanced and unbalanced outputs ensure your sound is clean and powerful in any environment. Precision Feel channel faders and the MAG FOUR crossfader provide the control and durability required by serious performance DJs.

General

• Product Type: All-in-one standalone DJ system
• Operating System: Embedded Engine DJ
• Processor: Quad-core ARM
• RAM: 4 GB
• Dimensions (W x D x H): 73.66 x 40.30 x 14.47 cm
• Weight: 13.33 kg

Decks and Controls

• Platters: 2 x 7.2 inch high-torque motorised aluminium platters
• Main Display: 7 inch HD full colour vertical touchscreen with RGB waveforms
• Waveform Views: Vertical or horizontal, with or without track list, Day Mode option
• Performance Pads: 16 total RGB pads (8 per deck), multi colour backlit
• Pad Displays: 8 x 128 x 32 monochrome OLEDs
• Pad Modes: Hot Cues, Loops, Rolls, Sampler, Stems and more (via Engine DJ)
• Embedded Sampler: Standalone sampler with dedicated pad mode and front panel volume control
• Playlist Banks: 3 dedicated Playlist Bank buttons for quick access to favourite playlists or crates

Stems and FX

• Standalone Stems: Instant Acapella and Instrumental buttons
• Stems Pad Mode: Dedicated pad mode for Stems control
• Stem Level EQ: Stem Level EQ mode for isolating elements
• Stem FX: Dedicated Stem FX processing
• Main FX: Over 25 onboard Main FX across 6 assignable slots with paddle style activation
• Sweep FX: 5 knob controlled Sweep FX
• Touch FX: 10 on screen Touch FX
• Fader FX: 4 fader activated Fader FX
• Software FX: Access to Serato DJ software FX when used with Serato DJ Pro

Faders and Crossfader

• Channel Faders: 2 Precision Feel faders with tension adjust, contour control and reverse switches
• Crossfader: MAG FOUR crossfader with front panel tension adjust, contour control, reverse switch and on screen calibration and cut in settings

Audio and Digital Processing

• Digital Signal Processing: 32 bit floating point, double precision
• Converters: Cirrus Logic 24 bit PCM, 44.1 kHz

Main Outputs

• Connectors: XLR (balanced), RCA stereo pair (unbalanced)
• DAC: 24 bit
• Dynamic Range: 117 dB
• Max Output Level (XLR): 8 Vrms
• Max Output Level (RCA): 4 Vrms
• Frequency Response: 20 Hz to 20 kHz, +0, -1 dB
• THD+N: 0.002 percent at 1 kHz, 4 Vrms
• Channel Separation: greater than 80 dB
• Input Gain Trim Range: Off to +12 dB
• Output Level Range: Off to 0 dB

Booth Output

• Connector: 2 x 6.35 mm TRS jacks (balanced)
• DAC: 24 bit
• Dynamic Range: 117 dB
• Max Output Level: 8 Vrms
• Frequency Response: 20 Hz to 20 kHz, +0, -1 dB
• THD+N: 0.002 percent at 1 kHz, 4 Vrms
• Channel Separation: greater than 80 dB
• Input Gain Trim Range: Off to +12 dB
• Output Level Range: Off to 0 dB

Headphone Output

• Connectors: 6.35 mm stereo jack, 3.5 mm stereo mini jack
• Output Type: Stereo TRS
• DAC: 24 bit
• Dynamic Range: 117 dB
• Cue Features: Cue and Split Cue
• Max Output Level (no load): 4 Vrms
• Max Power Output at 50 ohms: 150 mW
• Frequency Response: 20 Hz to 20 kHz, +0, -1 dB
• THD+N at 1 kHz, 4 Vrms (no load): 0.002 percent
• THD+N at 1 kHz, full power at 50 ohms: 0.08 percent
• Channel Separation: greater than 80 dB
• Level Control Range: Off to 0 dB

Microphone Inputs

• Connectors: 2 x XLR and 6.35 mm TRS combo jacks (Mic 1, Mic 2)
• ADC: 24 bit, 115 dB dynamic range
• Input Type: Balanced XLR/TRS combo
• Max Input Level: 110 mV
• Analogue Gain: 25 dB
• Max System Gain: 60 dB
• Frequency Response at 20 Hz: -2.5 dB
• Frequency Response at 20 kHz: -5 dB
• THD+N at 0.1 Vin, gain 25 dB: 0.015 percent (100 Hz to 20 kHz)
• Dynamic Range (A weighted), gain 25 dB: 102 dB
• Dynamic Range (A weighted), gain 60 dB: 72 dB
• Internal Noise (A weighted), gain 60 dB: -132 dB
• Internal Noise (20 Hz to 20 kHz), gain 60 dB: -130 dB
• Mic Processing: EQ, Echo FX, Reverb FX, Duck/Talkover, Anti Feedback

Auxiliary Input

• Connector: RCA stereo pair
• ADC: 24 bit, 115 dB dynamic range (A weighted)
• Input Type: Unbalanced RCA
• Max Input Level: 4 Vrms
• Frequency Response: 20 Hz to 20 kHz, +0, -1 dB
• THD+N at 3 Vrms, unity gain: 0.005 percent (20 Hz to 20 kHz)
• Gain Range: Off to +12 dB
• Dynamic Range (A weighted), unity gain: 108 dB
• Crosstalk: less than or equal to -90 dB

Bluetooth

• Bluetooth Version: 5.4
• Bluetooth Inputs: Selectable Bluetooth Aux input
• Bluetooth Outputs: Bluetooth audio output with on screen volume control
• Additional Bluetooth: Connectivity for external keyboards

Networking and Wi-Fi

• Wi-Fi Bands: 2.4 GHz and 5 GHz
• Standards: 802.11 a/b/g/n/ac (Wi-Fi 5)
• Use: Access to supported music streaming platforms and cloud services

Media and Storage

• USB Ports (Media): 3 x USB Type A (USB 2.0 High Speed and USB 3.0 SuperSpeed), 1 x USB Type C (USB 3.0 SuperSpeed)
• USB to Computer: 1 x USB Type C (USB 3.0 SuperSpeed)
• SD Media: SD, SDHC, SDXC
• Internal Drive: SATA 3.0 slot (drive not included)
• Supported File Systems: exFAT (recommended), FAT32
• Supported Audio Formats: AAC/M4A, AIF/AIFF (44.1 to 192 kHz, 16 to 32 bit), ALAC, FLAC, MP3 (32 to 320 kbps), MP4, Ogg Vorbis, WAV (44.1 to 192 kHz, 16 to 32 bit)

Streaming and Cloud Services

• Onboard Streaming Platforms (subscription required): Amazon Music Unlimited, Apple Music, Beatport, Beatsource, SoundCloud Go+, TIDAL
• Cloud Storage: Dropbox

Lighting Control

• Onboard Smart Lighting: Philips Hue, Nanoleaf
• Supported DMX Interfaces: SoundSwitch DMX Micro, SoundSwitch Control One
• Lighting Features: Beat synchronised Auto Loops and on screen override controls (with SoundSwitch hardware)

Software Integration

• Engine DJ Desktop: Full import of Serato DJ libraries including crates, hot cues, loops, BPM, key and metadata
• Serato DJ Pro: Unlocks Serato DJ Pro without additional subscription
• Algoriddim djay: Integration planned (coming early 2026)
• Additional Integrations: Serato DJ and Algoriddim djay with Spotify support planned (coming early 2026)

Power

• Power Input: Locking IEC
• Input Voltage: 100 to 240 VAC
• Frequency: 50/60 Hz
• Power Consumption: 150 W
