LD Systems U308 BPH2 Wireless Headset Microphone System

The LD Systems U308 BPH2 is a dual wireless headset system designed for clear, reliable speech in presentations, fitness classes, worship, education and corporate events. With two bodypack transmitters and two comfortable headset microphones included, it gives you instant, hands-free freedom for two performers or presenters at once, operating in licence-free frequency ranges for hassle-free use across much of Europe.

Engineered for simple setup and dependable performance, the U308 BPH2 delivers crisp, intelligible audio with up to 100 metres of operating range in ideal conditions. Automatic channel scanning, infrared synchronisation and a clear front-panel display make it quick to get up and running, while selectable output levels and squelch settings help you tailor the system to your environment.

Whether you are running a busy class, leading a service or hosting an event, the lightweight headsets keep the microphones close to the mouth for consistent level and clarity, even when you move. The dual-channel receiver lets you manage both presenters from a single unit, saving rack space and simplifying your setup.

With robust construction, flexible power options and operation in the 823 to 832 MHz and 863 to 865 MHz bands, the LD Systems U308 BPH2 is a practical, cost-effective solution when you need two reliable wireless headsets in one tidy package.

Effortless Dual Presenter Setup

The U308 BPH2 includes two bodypack transmitters and two headset microphones, all working with a single 2 channel receiver. This gives you an immediate solution for two presenters, instructors or performers without having to match and manage separate systems, keeping your rig compact and easy to control.

Licence Free Operation

Operating in the 823 to 832 MHz and 863 to 865 MHz ranges, the U308 BPH2 is designed for use in licence free bands in many European regions. This helps you avoid ongoing licensing costs and simplifies deployment in venues where you need to set up quickly and get straight to work.

Clear, Stable Wireless Performance

With up to 100 metres of operating range in ideal conditions and 8 selectable channels per band, the U308 BPH2 is built for stable, interference resistant performance. True diversity reception with dual antennas helps maintain a strong signal, reducing dropouts and keeping your audio consistent as you move.

Simple, Fast Configuration

Automatic channel scanning and infrared synchronisation make it quick to pair each bodypack with the receiver. Clear status LEDs and an easy to read display keep you informed about channel selection and signal, so you can focus on your event rather than wrestling with complex menus.

• Complete Dual Headset System - Supplied with two bodypack transmitters and two headset microphones, the U308 BPH2 gives you everything you need for two wireless presenters in a single box. This saves time and money compared to buying separate components and ensures all parts are optimised to work together.
• Licence Free Frequency Ranges - Operating in the 823 to 832 MHz and 863 to 865 MHz bands, the system is designed for licence free use in many territories. This makes it ideal for mobile DJs, hire companies, schools and houses of worship that need straightforward, compliant wireless operation.
• True Diversity Receiver - The dual antenna, true diversity design continuously selects the stronger of two received signals, helping to minimise dropouts and noise. This gives you more reliable audio, particularly in challenging RF environments or when presenters move around the stage or room.
• User Friendly Controls and Display - Front panel controls, status LEDs and a clear display make it easy to set channels, monitor RF and audio levels, and check which transmitters are active. Even less experienced users can configure the system quickly, reducing setup time before events.

System

• Product Type: Wireless microphone system
• System Type: UHF analogue
• Frequency Range: 823 to 832 MHz, 863 to 865 MHz
• Number of Channels: 8 selectable channels per band
• Transmission Type: FM
• Operating Range: Up to 100 m (ideal conditions)

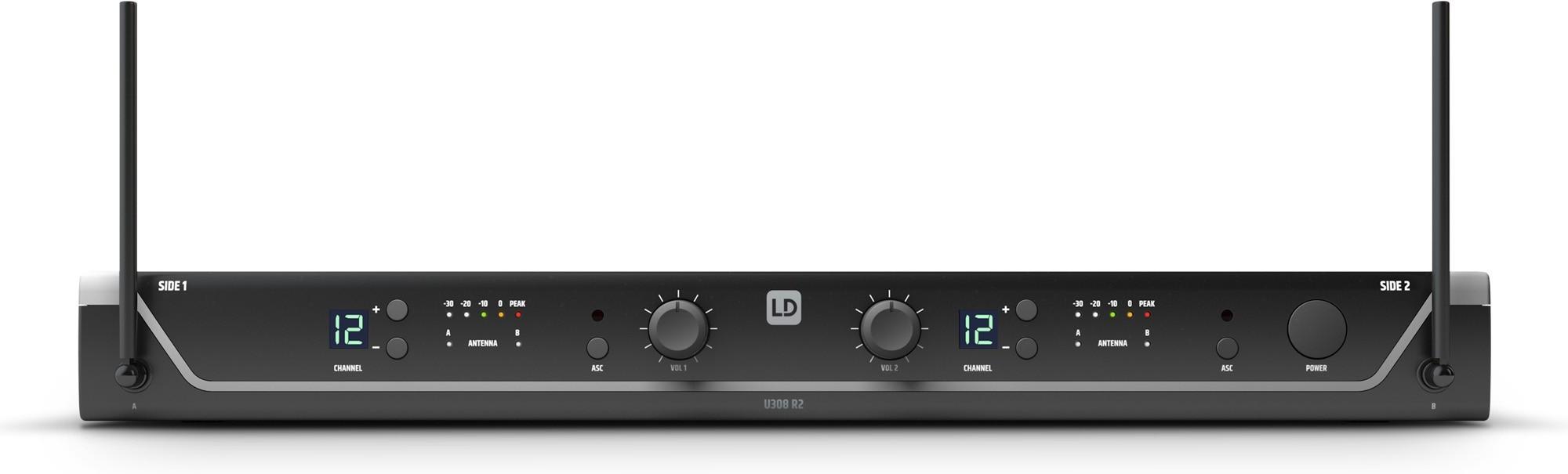

Receiver

• Type: Dual channel UHF receiver
• Antenna Configuration: True diversity with dual antennas
• Audio Outputs: Balanced XLR outputs, unbalanced 6.3 mm jack output
• Controls: Channel selection, volume controls, power
• Indicators: RF and AF LEDs, channel and status display
• Power Supply: External power adaptor

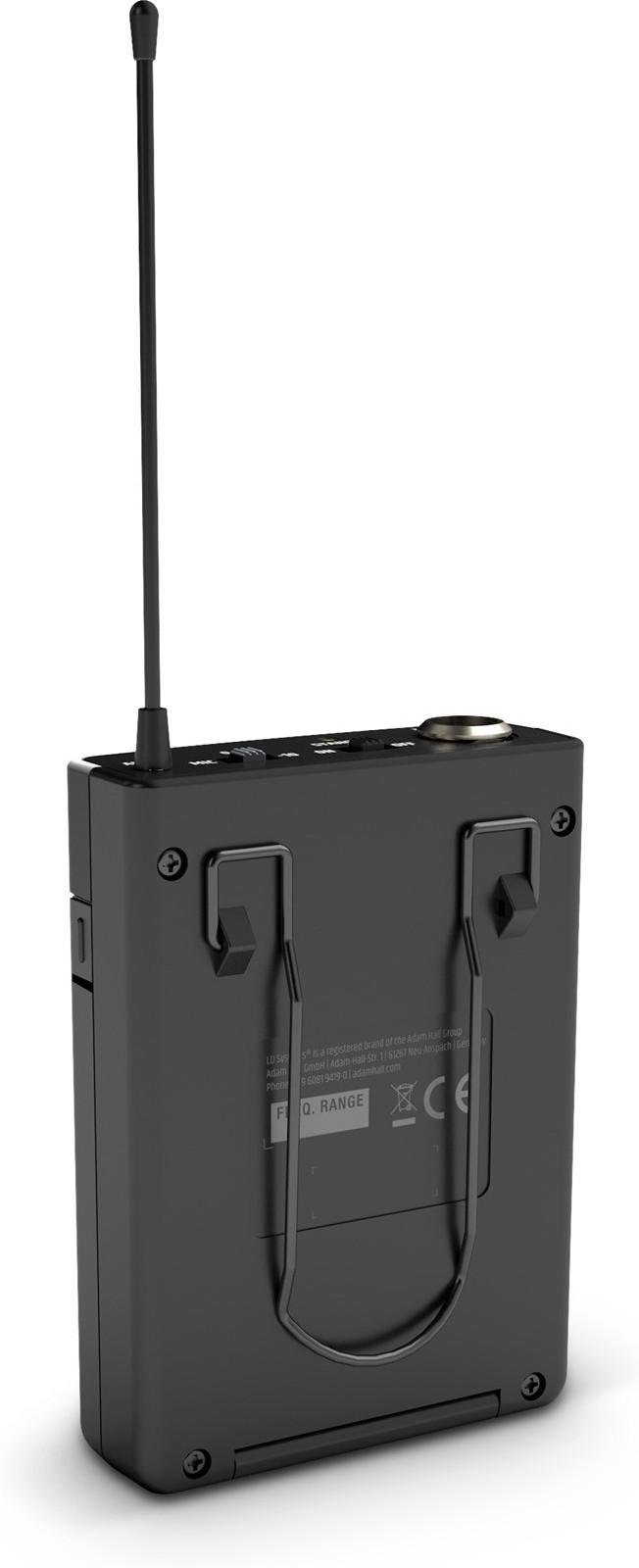

Bodypack Transmitters

• Quantity: 2
• Type: UHF bodypack transmitter
• Input Connector: Miniature connector for headset microphone
• Power: Battery powered
• Controls: Power, mute, channel selection

Headset Microphones

• Quantity: 2
• Type: Headworn condenser microphone
• Polar Pattern: Cardioid
• Connection: Compatible with supplied bodypack transmitters
