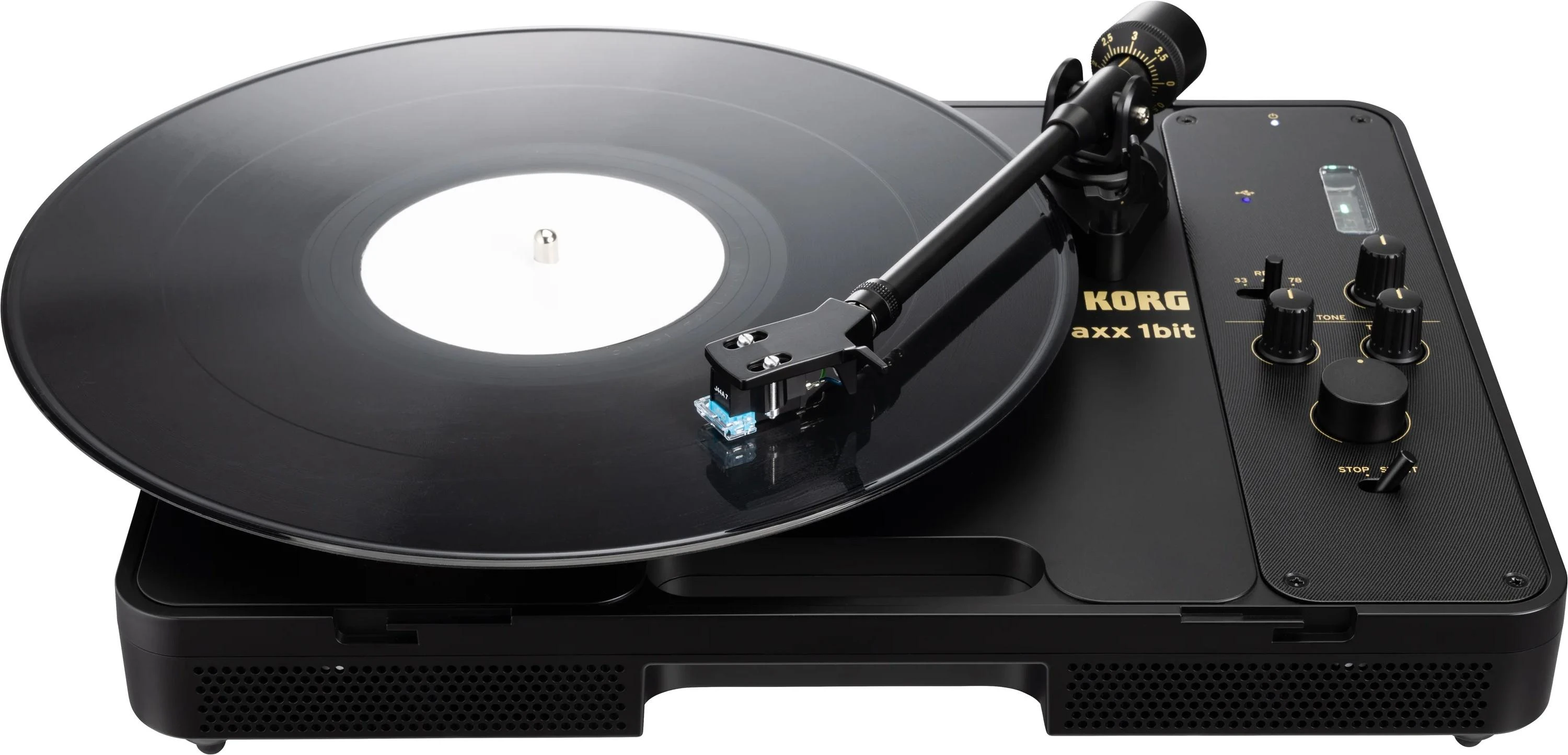

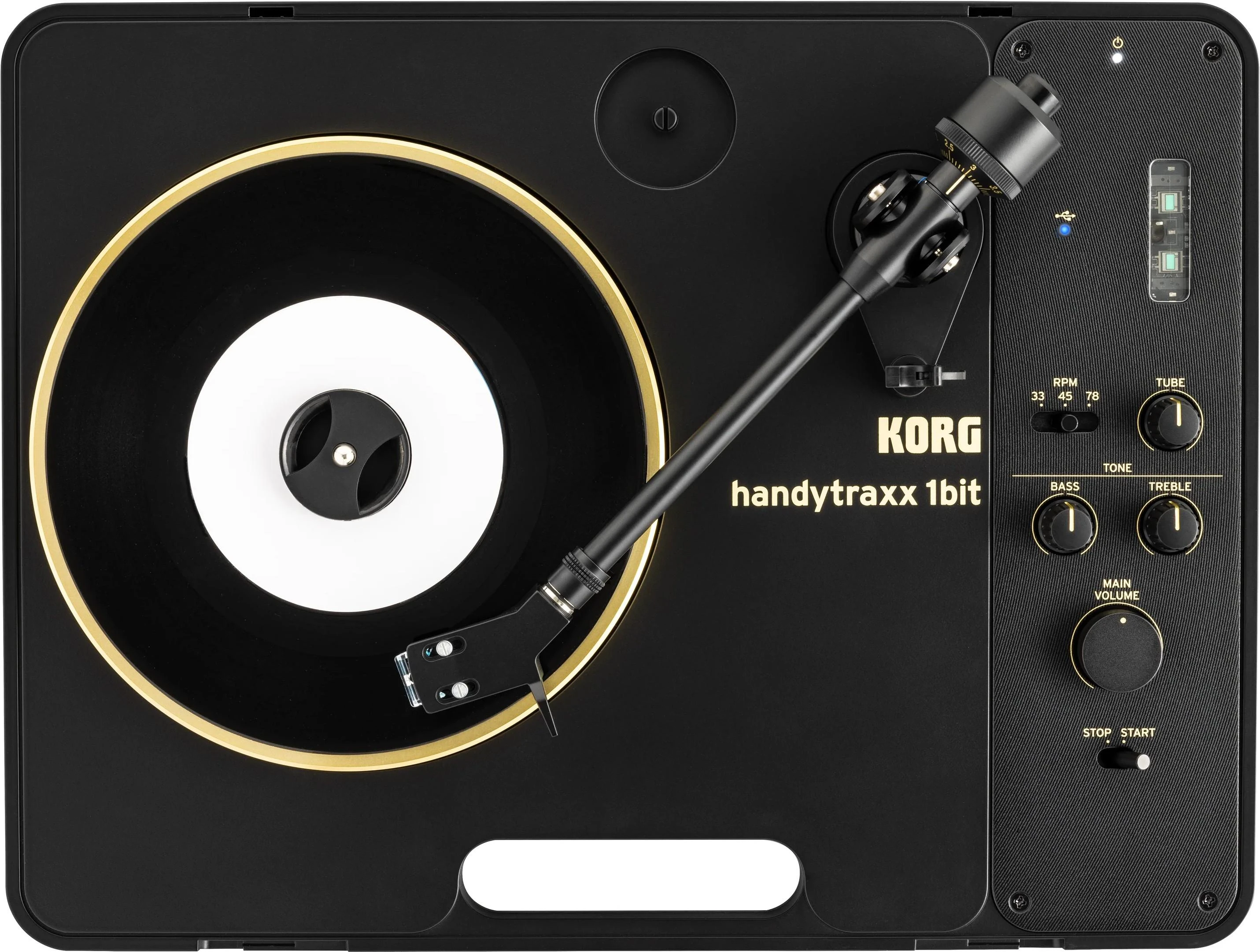

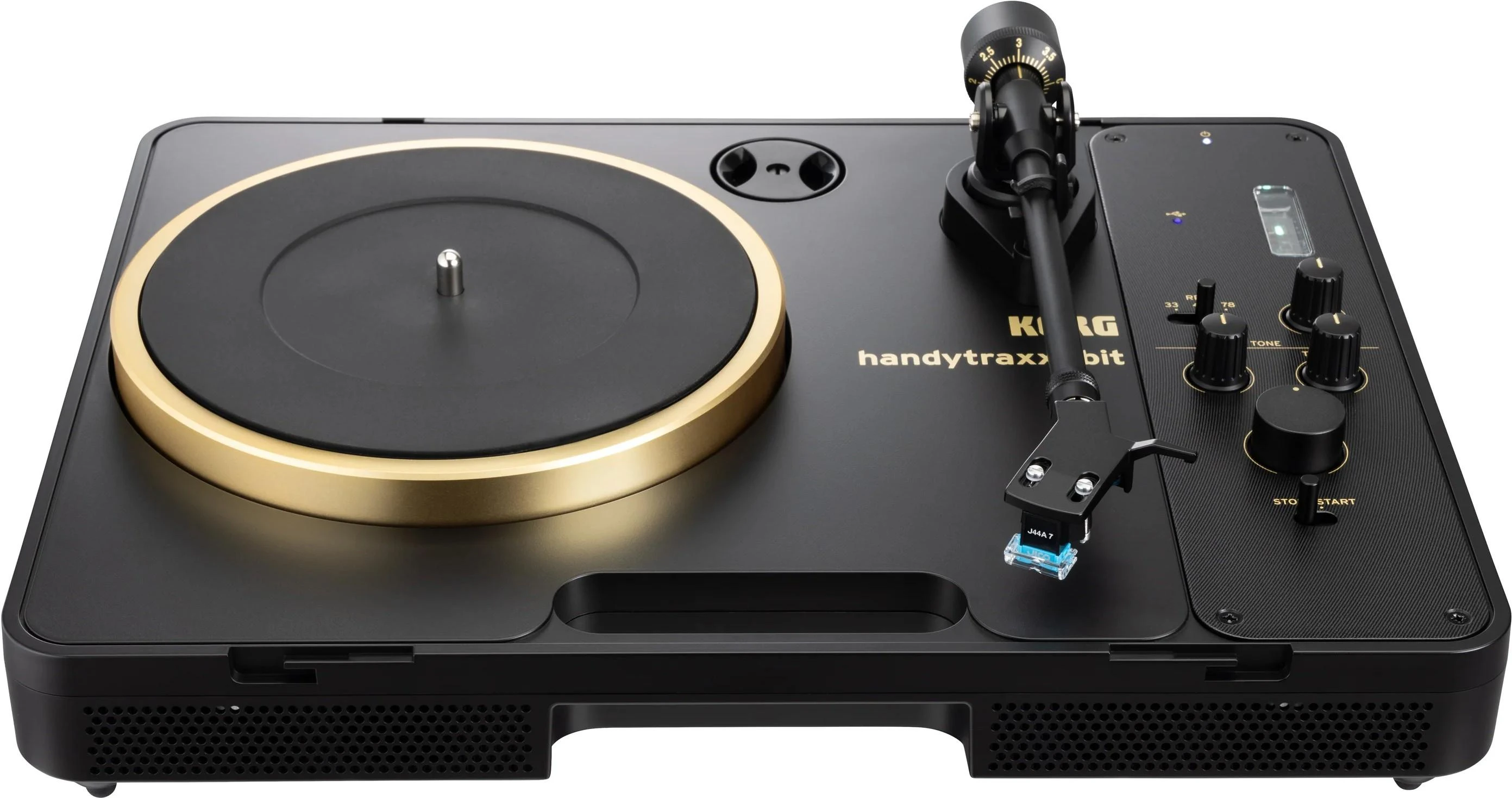

Korg Handytraxx 1bit DJ Deck

The Korg Handytraxx 1bit is a premium portable DJ deck and turntable for vinyl lovers who want their records to sound as good on the move as they do at home. Combining a high quality belt drive deck, built in stereo speakers and a cutting edge 5.6 MHz 1 bit DSD recording interface, it lets you listen, digitise and archive your collection in stunning detail. With the included AudioGate 4 software you can capture your favourite records in high resolution DSD or PCM, then enjoy them anywhere on your computer, portable player or smartphone.

Designed as the flagship model in the Handytraxx series, this compact unit is packed with serious audio technology. A die cast aluminium platter, universal tonearm with interchangeable headshell and pre installed JICO J44A 7 MM cartridge deliver stable rotation and punchy, musical sound. Onboard Nutube phono equalisation adds authentic valve style warmth and depth, while flexible outputs let you integrate the Handytraxx 1bit into a wide range of listening setups.

Whether you are preserving a priceless vinyl library, spinning records at a small vinyl night or simply enjoying albums on the sofa, the Handytraxx 1bit makes it easy to experience your records at their best. Archive them in high resolution, tweak the sound with dedicated bass, treble and tube controls, and enjoy the tactile, immersive nature of vinyl with a modern, portable twist.

High Resolution Vinyl Archiving

The Handytraxx 1bit is built for serious digitisation. Its integrated USB audio interface records at up to 5.6 MHz, 1 bit DSD, capturing 5.6 million samples per second for exceptional clarity and nuance. With support for both 5.6 MHz and 2.8 MHz DSD plus PCM up to 192 kHz / 24 bit, you can create faithful, future proof backups of your collection that preserve the character of the original pressings.

AudioGate 4 Recording Workflow

Included AudioGate 4 software from Korg turns the Handytraxx 1bit into a complete high resolution recording system. Connect via USB to your Mac or PC and you can record, play back and convert in DSD and PCM formats, including FLAC and WAV. AudioGate 4 also lets you create lighter MP3 versions for everyday listening, so you can keep pristine masters archived while carrying portable copies on your phone or music player.

Portable Deck with Serious Hardware

Despite its compact footprint, the Handytraxx 1bit is engineered like a proper turntable. A belt drive system with CPU controlled rotation compensation keeps 33 1/3, 45 and 78 RPM speeds stable, while the aluminium die cast platter ensures smooth, accurate rotation. The universal tonearm with interchangeable headshell and adjustable counterweight (up to 4 g) allows precise tracking, and the factory fitted JICO J44A 7 MM cartridge delivers dynamic, powerful sound straight out of the box.

Nutube Phono Equaliser and Flexible Outputs

At the heart of the Handytraxx 1bit is a Nutube powered phono equaliser that brings valve like warmth, depth and overtones to your records. A dedicated TUBE control lets you dial in the amount of harmonic richness to taste, while separate bass and treble controls offer further tonal shaping. With both line and phono outputs available, you can connect directly to standard hi fi systems or use your own external phono stage, tailoring the playback chain to your preferences.

Take Vinyl Anywhere

Weighing just 2.8 kg and roughly the size of an A3 sheet of paper, the Handytraxx 1bit is easy to move between rooms, studios and venues. Built in stereo speakers mean you can listen without any extra gear, while the headphone output offers private monitoring. Powered by the included AC adaptor or six AA batteries, it delivers up to approximately 11 hours of playback with speakers on, making it a practical option for travel, pop up DJ sets and listening sessions away from mains power.

• 5.6 MHz 1 Bit DSD Recording - Capture your vinyl in ultra high resolution 5.6 MHz DSD, preserving every detail and nuance of your records. With support for both 5.6 MHz and 2.8 MHz DSD plus PCM up to 192 kHz / 24 bit, you can create archival quality digital masters ready for long term storage and high fidelity playback.
• AudioGate 4 High Resolution Software - The included AudioGate 4 software provides a professional grade workflow for recording, converting and managing your digitised vinyl. Record directly from the Handytraxx 1bit over USB, then export in DSD, FLAC, WAV or convert to MP3 for portable listening, all within a single, integrated environment.
• Portable Turntable with Quality Components - A belt drive system with CPU controlled rotation, aluminium die cast platter and universal tonearm ensure stable, musical playback wherever you are. The pre installed JICO J44A 7 MM MM cartridge and adjustable counterweight deliver confident tracking and punchy sound without needing immediate upgrades.
• Nutube Phono EQ with Tone Shaping - Korg’s Nutube technology brings valve style warmth and harmonic richness to your records, controllable via the dedicated TUBE knob. Combined with separate bass and treble controls, plus both line and phono outputs, you can fine tune the sound and integrate the Handytraxx 1bit into a wide variety of listening and DJ setups.

Drive System

• Drive System: Belt drive system (with CPU controlled rotation compensation function)
• Drive Motor: DC servo motor
• Rotation Speed: 33 1/3, 45, 78 RPM
• Platter: Aluminium die cast
• Wow and Flutter: < 0.15% (WTD) at 3 kHz
• Signal to Noise Ratio: > 60 dB (DIN B)

Tonearm and Cartridge

• Cartridge Type: MM type stereo cartridge (JICO J44 A7)
• Needle Pressure: 1.5 g to 3.0 g
• Effective Tonearm Length: 190 mm

Outputs and Amplification

• Output Level (Phono): 420 to 7500 mV (Gain MAX, TUBE VR MIN)
• Output Level (Line): Max 14.75 dBu, THD 1%
• Headphones Output: Max 70 mW (32 ohms), THD 1%
• Speaker Output: Max 2.5 W (THD 1%, 4 ohms) x 2
• Phono Preamp Gain: Standard value 38 dB
• Equaliser Characteristics: RIAA
• Tone Control (Bass): 130 Hz, ±8 dB
• Tone Control (Treble): 5.5 kHz, ±8 dB
• Tube Control Gain: 0 to 6 dB

USB Audio

• DSD: 2.8224 MHz / 5.6448 MHz, 1 bit
• PCM Sample Rates: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz
• PCM Bit Depth: 16 bit / 24 bit

Power

• Power Supply: AC adaptor, six AA batteries (alkaline or nickel metal hydride)
• Battery Life: Approximately 11 hours (speaker ON, main volume knob centre, using alkaline batteries)

Dimensions and Weight

• External Dimensions: 370 x 286 x 118 mm (including lid)
• Weight: 2.8 kg

Included Items

• AC adaptor
• AC adaptor replacement plugs (5 types)
• Dust cover
• Platter
• Belt
• Record mat
• EP adaptor
• Headshell
• Cartridge (pre installed on headshell)
• Counterweight
• Platter securing cap
