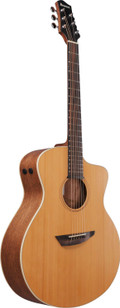

Ibanez PA230E-NSL Electro Acoustic Guitar

The Ibanez PA230E-NSL is a purpose-built electro acoustic for modern percussive players, singer-songwriters and solo performers who need a responsive, stage-ready instrument. Its asymmetrical jumbo body, solid Cedar top and dual pickup system combine to deliver a warm, articulate voice that translates every tap, slap and harmonic with clarity, while the Natural Satin finish keeps it feeling fast, comfortable and distraction-free.

Designed from the ground up for contemporary acoustic techniques, this guitar blends traditional tonewoods with clever ergonomics and advanced electronics. Modified X-M bracing and a long 655 mm scale length give you huge dynamic range and piano-like sustain, while the AP11 magnetic pickup and contact transducers capture both the body resonance and string detail for a rich, mix-ready sound at the touch of a fader.

The 5-piece African Mahogany and Pau Ferro neck offers rock-solid stability and a smooth, familiar feel, complemented by a Macassar Ebony fretboard that adds snap, focus and sustain. A top-loading Macassar Ebony bridge makes string changes quick and fuss-free, perfect if you are experimenting with alternate tunings or swapping gauges between gigs.

Whether you are building intricate percussive arrangements, looping layers live or simply want an acoustic that responds beautifully to both a light touch and a heavy strum, the PA230E-NSL delivers a powerful, expressive platform that is ready for the studio and the stage.

Asymmetrical Jumbo Body for Modern Techniques

The asymmetrical jumbo body shape is voiced to give you a strong, supportive low-end while keeping the upper bout compact and comfortable. This makes it easier to reach over the top for body taps and slaps, and helps reduce fatigue during long sets. The larger bass side moves plenty of air for a full, room-filling sound, while the ergonomic contouring keeps the guitar feeling balanced whether you are seated or standing.

Solid Cedar Top with Okoume Back and Sides

A solid Cedar top provides a warm, full and highly responsive tone that reacts instantly to even the most delicate fingerstyle passages. Cedar excels at bringing out nuance and overtones, making it ideal for expressive, dynamic playing. Okoume back and sides add a woody warmth and a focused, projecting high-mid presence, helping your parts cut through a mix without sounding harsh.

Dual Pickup System with Independent Controls

The PA230E-NSL features a dual pickup system comprising an AP11 magnetic pickup and contact transducers, all managed by Ibanez Custom Electronics. Independent volume controls for the magnetic and contact sources let you blend in as much body resonance or direct string detail as you need. Dial in a bright, punchy sound for strumming, a more percussive, body-heavy tone for tapping, or a balanced blend that sits perfectly in a band or solo context.

Stable 5-piece Neck and Fast Hardware

The 5-piece African Mahogany and Pau Ferro neck is built for durability and long-term stability, especially important if you use alternate tunings or travel frequently. The Macassar Ebony fretboard contributes tight lows, strong attack and long sustain, ideal for clear note separation in complex arrangements. A Macassar Ebony top-loading bridge speeds up string changes and adjustments, while the unbleached oil-impregnated bone nut and chrome hardware help maintain tuning stability and tonal consistency.

• Asymmetrical Jumbo Body - The unique body shape delivers powerful low-end response while keeping the upper bout compact and comfortable. This makes percussive techniques, extended reaches and long playing sessions easier, all while retaining the projection and presence of a full-size acoustic.
• Solid Cedar Top with Okoume Back and Sides - A solid Cedar top offers a warm, rich and highly responsive character that flatters fingerstyle and percussive playing. Okoume back and sides add woody warmth and clear high-mids, ensuring your tone remains articulate and present in both solo and ensemble settings.
• Dual Pickup System with Ibanez Custom Electronics - The combination of an AP11 magnetic pickup and contact transducers, controlled by Ibanez Custom Electronics, gives you a wide tonal palette. Independent volume controls let you blend body resonance and string clarity on the fly, making it easy to tailor your sound for different songs, venues and playing styles.
• 5-piece Neck and Macassar Ebony Hardware - The African Mahogany/Pau Ferro 5-piece neck provides enhanced strength and stability, ideal for demanding modern playing. A Macassar Ebony fretboard and top-loading bridge add attack, sustain and quick, pinless string changes, so you can focus on performance rather than maintenance.

Body

• Body Shape: Asymmetrical Jumbo
• Top Wood: Solid Cedar
• Back and Sides Wood: Okoume
• Colour: Natural
• Finish: Satin Polyurethane
• Length: 1065 mm
• Width: 431 mm
• Depth: 122 mm
• Series: PA

Neck

• Neck Wood: African Mahogany/Pau Ferro 5-piece
• Scale Length: 655 mm
• Number of Frets: 20
• Fingerboard: Macassar Ebony
• Nut: Unbleached Oil-impregnated Bone
• Number of Strings: 6

Hardware

• Bridge: Macassar Ebony top loading
• Hardware Colour: Chrome

Electronics

• Pickup System: AP11 magnetic pickup and contact transducers
• Electronics: Ibanez Custom Electronics with independent magnetic/contact volume controls
• Batteries Required: 1 x 9V

Included Accessories

• Case: Gig bag included

Weights

• Net Weight: 4.99 kg
• Packaged Weight: 7.1 kg
