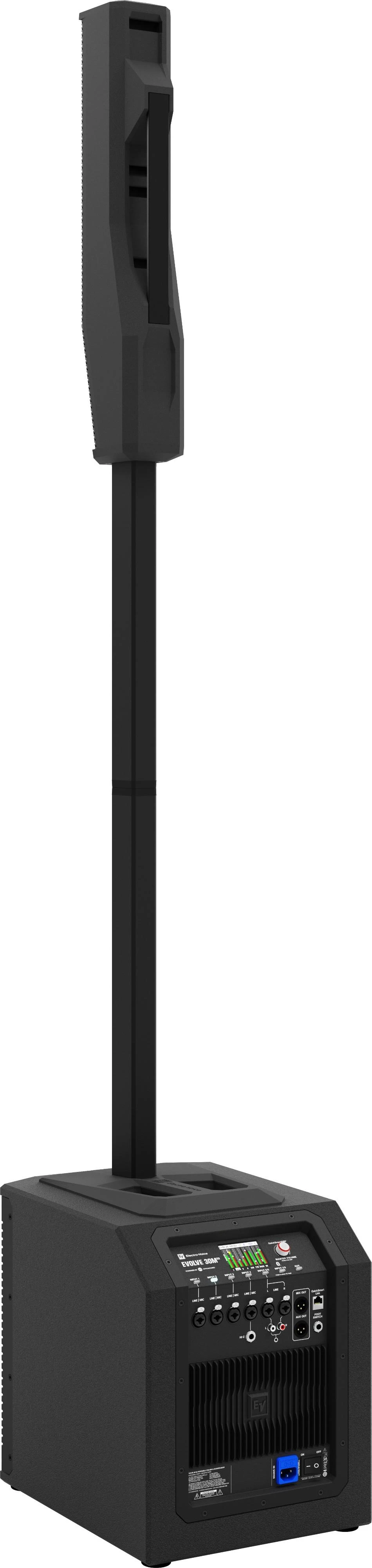

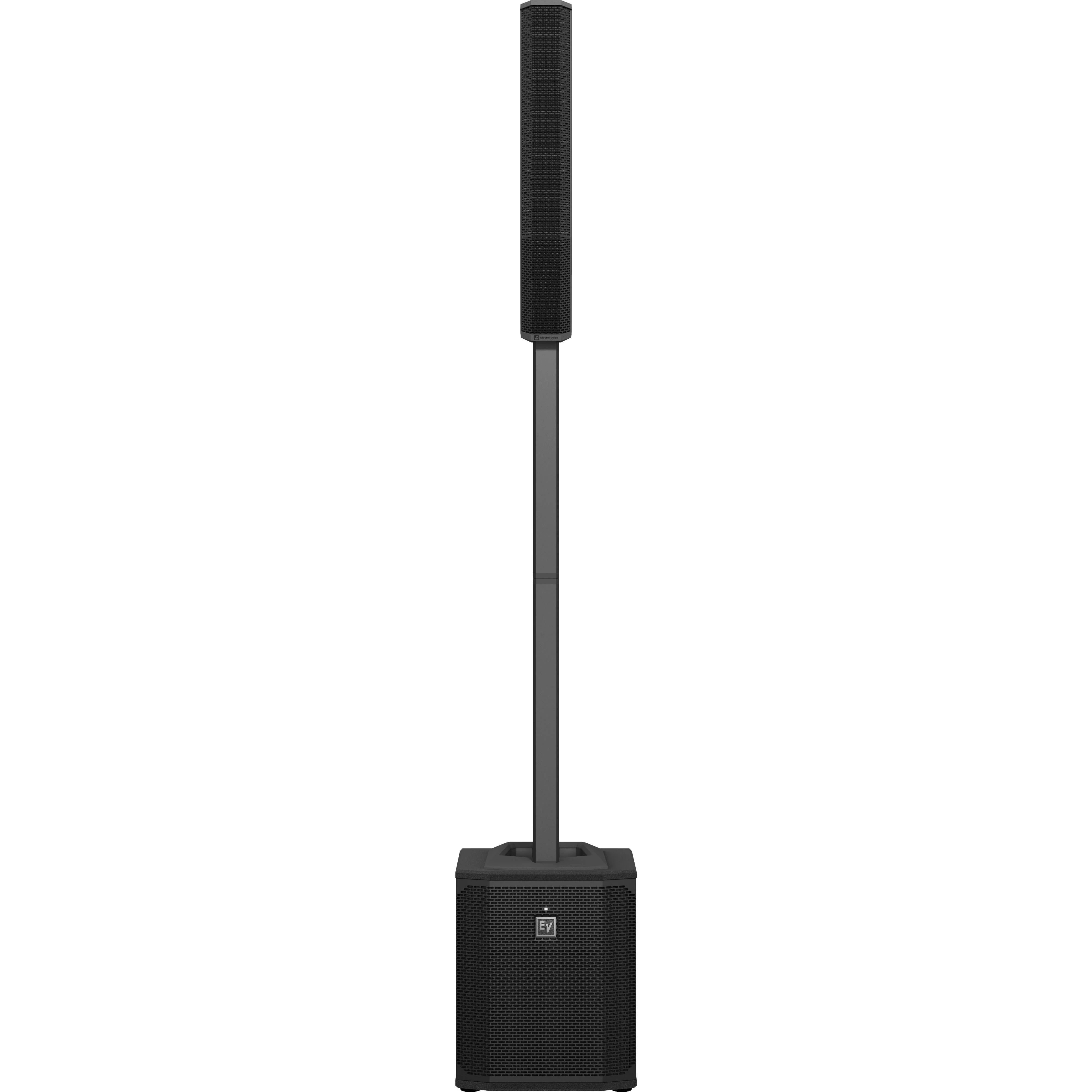

Electro Voice EVOLVE 30M G2 - Black Column PA System With Integrated Mixer

The Electro Voice EVOLVE 30M G2 is a compact, all-in-one column PA system that packs a powerful 10 inch subwoofer, six high performance column drivers and a fully featured 8 channel digital mixer into a sleek, ultra portable format. Designed for solo performers, small bands, mobile DJs and corporate events, it delivers up to 125 dB of clean, even sound with wide 120 degree horizontal coverage, simple setup and deep onboard processing that lets you shape your mix without extra outboard gear.

With four mic or line inputs, a dedicated Hi Z instrument input, stereo line options and Bluetooth TWS streaming, the EVOLVE 30M G2 is ready to handle a full performance on its own. Two FX sends, 37 combinable effects, channel EQ, compression and ducking, plus a 7 band main EQ or PEQ, give you precise control over your sound, while the colour LCD and QuickSmart App 3.0 make it easy to adjust from the stage or out in the room.

Compact Column System with Big, Even Coverage

The EVOLVE 30M G2 combines a 10 inch low frequency driver in a discreet subwoofer base with six 2.8 inch neodymium drivers in the column array to deliver full range sound from 45 Hz to 20 kHz. Its waveguide formed design provides 120 degree horizontal by 40 degree vertical coverage, helping your mix stay consistent across the audience area while keeping unwanted spill off ceilings and floors. The result is a clear, controlled soundstage that belies the system's small footprint.

Integrated 8 Channel Digital Mixer

At the heart of the EVOLVE 30M G2 is a built in 8 channel digital mixer that removes the need for a separate desk in many situations. Four XLR or TRS inputs with 48 V phantom power handle microphones or line sources, with channel 4 offering a Hi Z option for directly connecting instruments. Channels 5 and 6 provide flexible stereo connectivity via XLR or TRS, RCA and 3.5 mm inputs, while Bluetooth TWS streaming lets you play backing tracks or interval music straight from your device.

Powerful DSP, Effects and Control

The onboard processing gives you the tools to refine your sound quickly and accurately. Each channel benefits from EQ, compression and ducking, while two FX sends feed a selection of 37 combinable effects so you can add reverb, delay and more without external processors. A 7 band main GEQ or PEQ lets you tailor the overall system response to the room, and everything is controlled via a clear colour LCD on the sub or wirelessly through the QuickSmart App 3.0 for convenient adjustments during the show.

Flexible Connectivity for Real World Gigs

Thoughtful input and output options make the EVOLVE 30M G2 easy to integrate into different setups. A Mix Out XLR can be configured for mono or stereo feeds to additional speakers or recording devices, while an AUX Out XLR with pre or post selection allows for separate monitor mixes or zone feeds. QuickSmart Link enables connection to compatible systems, and a footswitch input offers hands free control of key functions, helping you stay focused on your performance.

• Compact Column PA with 10 inch Subwoofer - The combination of a 10 inch low frequency driver and six 2.8 inch column drivers delivers up to 125 dB SPL with a wide 45 Hz to 20 kHz frequency range, giving you full, punchy sound from a system that is easy to transport and set up in tight spaces.
• 8 Channel Digital Mixer with Versatile Inputs - Four mic or line channels with 48 V phantom power, a Hi Z instrument input and multiple stereo line options let you connect microphones, instruments, playback devices and more directly to the system, reducing the need for extra hardware and simplifying your rig.
• Advanced DSP, FX and Wireless Control - Channel EQ, compression, ducking, two FX sends and 37 combinable effects, plus a 7 band main GEQ or PEQ, provide detailed tone shaping, while the colour LCD and QuickSmart App 3.0 make it straightforward to control your mix from the stage or out in the audience.
• Flexible Outputs and Integration Options - Mix Out and AUX Out XLR connections with mono or stereo and pre or post options, along with QuickSmart Link and a footswitch input, allow you to expand the system, feed external gear and tailor your setup to different venues and applications.

System

• Type: Portable column PA system with integrated subwoofer
• Configuration: 1 x 10 inch LF driver, 6 x 2.8 inch HF column drivers
• Maximum SPL: 125 dB
• Frequency Range: 45 Hz to 20 kHz
• Crossover: Internal
• Coverage Pattern: 120 degree horizontal x 40 degree vertical (waveguide formed)
• Colour: Black

Mixer

• Type: 8 channel digital mixer
• Inputs 1 to 4: XLR or TRS combo with 48 V phantom power
• Channel 4: Switchable Hi Z instrument input
• Channels 5 and 6: Stereo input via XLR or TRS, RCA and 3.5 mm
• Bluetooth: TWS streaming

DSP and Effects

• Channel Processing: EQ, compressor, ducker
• Main Processing: 7 band GEQ or PEQ on main output
• FX Sends: 2 independent FX sends
• Effects: 37 combinable onboard effects

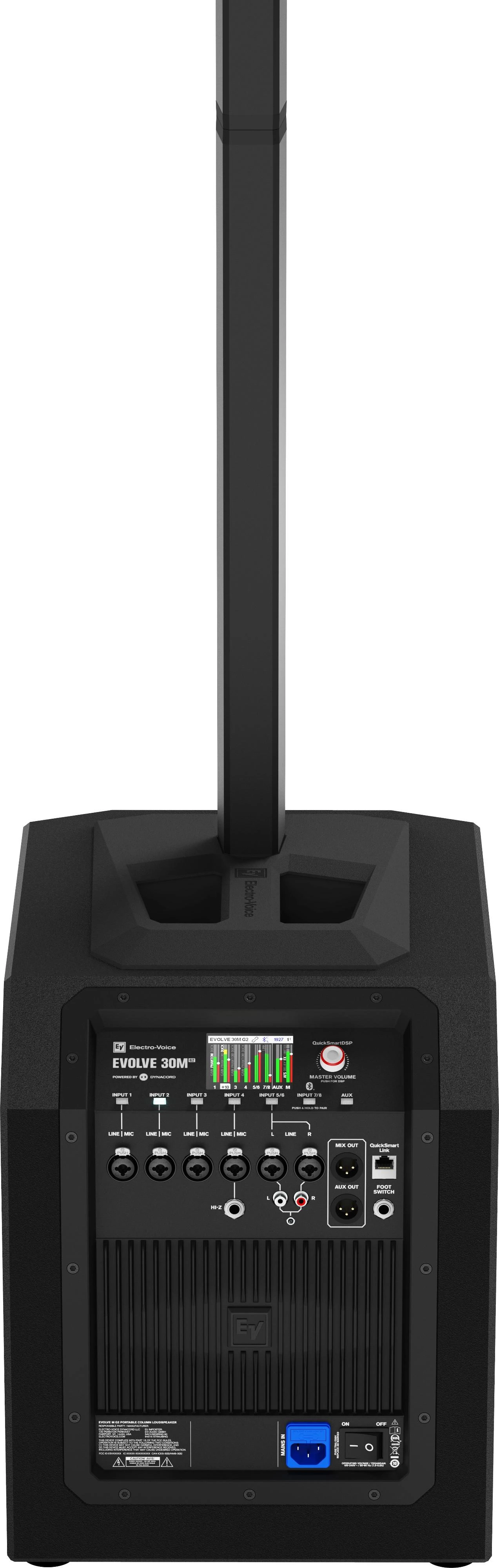

Inputs and Outputs

• Mix Out: XLR, mono or stereo selectable
• AUX Out: XLR, pre or post selectable
• Control and Linking: QuickSmart Link
• Footswitch: Footswitch input

Control

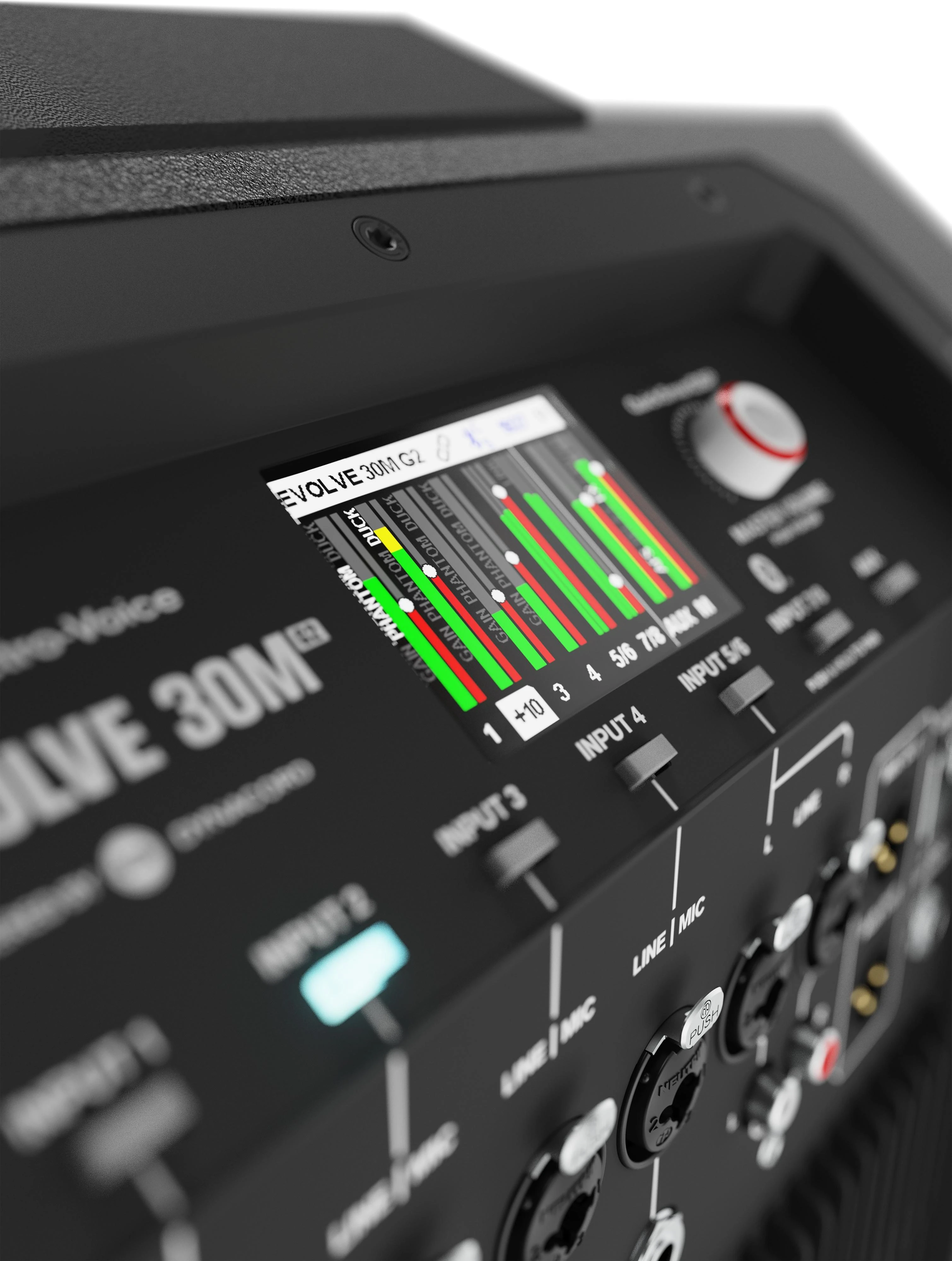

• Onboard Interface: Colour LCD display
• Remote Control: QuickSmart App 3.0
