DPA 4066 CORE+ Omni Headset Mic, Beige, TA4F Mini-XLR

The DPA 4066 CORE+ Omnidirectional Headset Microphone is a premium, ultra-discreet headset solution that delivers pristine, broadcast-ready audio with exceptional headroom and reliability. Finished in beige and fitted with a TA4F mini-XLR connector, it is ideal for use with compatible wireless systems in theatre, broadcast, corporate presentations, houses of worship and live events where natural, intelligible speech is essential.

Built around DPA’s renowned 5.4 mm pre-polarised condenser capsule, the 4066 CORE+ offers a clean, transparent sound signature with a huge dynamic range and extremely low distortion. The updated CORE+ amplifier technology keeps your signal smooth and consistent across the entire level range, while the robust headset design and MicroLock connector ensure dependable performance in demanding professional environments.

With an omnidirectional pickup pattern, the 4066 captures speech evenly and naturally, even with head movement, making it a long-standing favourite on Broadway stages, in broadcast studios and in auditoriums worldwide. Its lightweight construction, flexible boom and neutral beige finish help it sit comfortably and unobtrusively on the performer, allowing the audience to focus on the performance, not the microphone.

Engineered for real-world use, the 4066 CORE+ maintains clarity at very high sound pressure levels, offers low self-noise for quieter sources and can be run over long cable distances when used with the appropriate DPA adapter. For professionals who need a headset microphone that simply works day in, day out, this is a trusted, industry-standard choice.

CORE+ Clarity and Headroom

DPA’s CORE+ technology refines the internal amplifier of the 4066 capsule to minimise distortion across the entire dynamic range. This means your signal stays clean and detailed from the quietest whisper up to extremely loud speech or vocals, reducing the risk of harshness or breakup and giving engineers more freedom to work with dynamics in the mix.

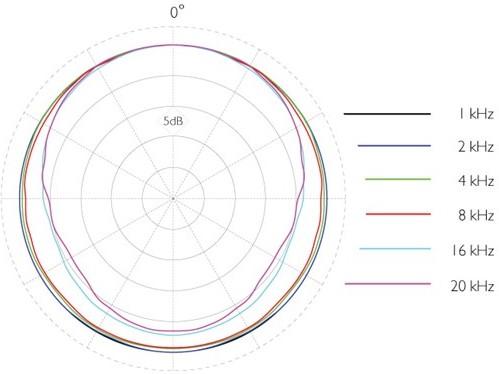

Natural Omnidirectional Pickup

The omnidirectional polar pattern provides an open, natural sound that remains consistent even when the wearer turns their head. This makes it ideal for presenters, actors and performers who move freely on stage, helping to maintain intelligibility and tonal balance without constant mic repositioning.

Discreet, Comfortable Headset Design

Weighing just 14 g including cable and connector, the 4066 CORE+ is designed to be worn for long periods without fatigue. The slim 5.4 mm capsule, flexible boom and beige finish help it blend with skin tones and stage make-up, keeping the focus on the performance while still delivering full-range, studio-quality sound.

TA4F MicroLock Connectivity

This version of the 4066 CORE+ is fitted with a TA4F mini-XLR connector featuring DPA’s MicroLock system for a secure, dependable connection to compatible wireless transmitters. MicroLock gives you reassuring mechanical stability and easy, repeatable attachment, reducing the risk of accidental disconnection during demanding live use.

• CORE+ Low-Distortion Technology - The integrated CORE+ amplifier stage neutralises distortion across the full dynamic range, preserving detail and nuance at all levels. This results in a smoother, more accurate sound that is easier to mix and less prone to artefacts when signals get loud.
• Omnidirectional 5.4 mm Capsule - The pre-polarised condenser capsule offers a 20 Hz to 20 kHz frequency response with optional soft and high boost grids. Its omnidirectional pattern captures consistent, natural speech and vocals, even with significant head movement, making it ideal for theatre and broadcast.
• High SPL Handling and Wide Dynamic Range - With a typical dynamic range of 111 dB and the ability to handle up to 144 dB SPL peak at 10 percent THD, the 4066 CORE+ copes effortlessly with powerful vocalists and energetic performers while maintaining clarity and definition.
• TA4F Mini-XLR with MicroLock - The TA4F mini-XLR connector with MicroLock provides a secure, professional-grade connection to compatible wireless systems. It offers both flexibility and reliability, ensuring the microphone stays connected throughout demanding shows, broadcasts and events.

Microphone

• Model: DPA 4066 CORE+ Omnidirectional Headset Microphone
• Directional Pattern: Omnidirectional
• Principle of Operation: Pressure
• Cartridge Type: Pre-polarised condenser

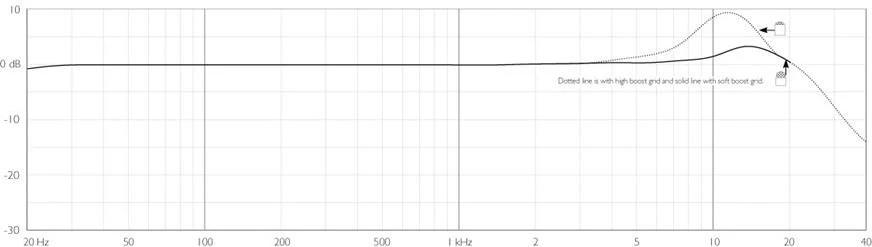

• Frequency Response: 20 Hz to 20 kHz
• Effective Frequency Range, Soft Boost Grid: 40 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz
• Effective Frequency Range, High Boost Grid: 40 Hz to 20 kHz, 10 dB boost at 12 kHz
• Sensitivity (nominal, ±3 dB at 1 kHz): 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent Noise Level, A-weighted: Typical 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent Noise Level, ITU-R BS.468-4: Typical 38 dB (max. 40 dB)
• THD < 0.5 percent: 133 dB SPL RMS, 136 dB SPL peak
• THD < 1 percent: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic Range: Typical 111 dB
• Max SPL (10 percent THD): 144 dB SPL peak
• Rated Output Impedance: 30 to 40 Ω
• Cable Drive Capability: Up to 300 m with DAD9001-BC XLR adapter
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin

Connectivity and Power

• Connector: TA4F mini-XLR with MicroLock
• Other Compatible Connector Types (model family): MicroLock, MicroDot, 3-pin LEMO, mini-jack
• Power Supply for Wireless Systems: Min. 5 V to max. 10 V through DPA adapter
• Power Supply with DAD6001-BC: P48 phantom power, will work from 12 V
• Current Consumption: Typical 1.5 mA (microphone), 3.5 mA with DAD9001-BC XLR adapter

Physical

• Colour: Beige
• Weight: 14 g including cable and MicroLock connector
• Microphone Diameter: 5.4 mm
• Cable Length: 1.2 m
• Cable Diameter: 1.6 mm

Environmental

• Operating Temperature Range: -40°C to 45°C
• Relative Humidity: Up to 90 percent
