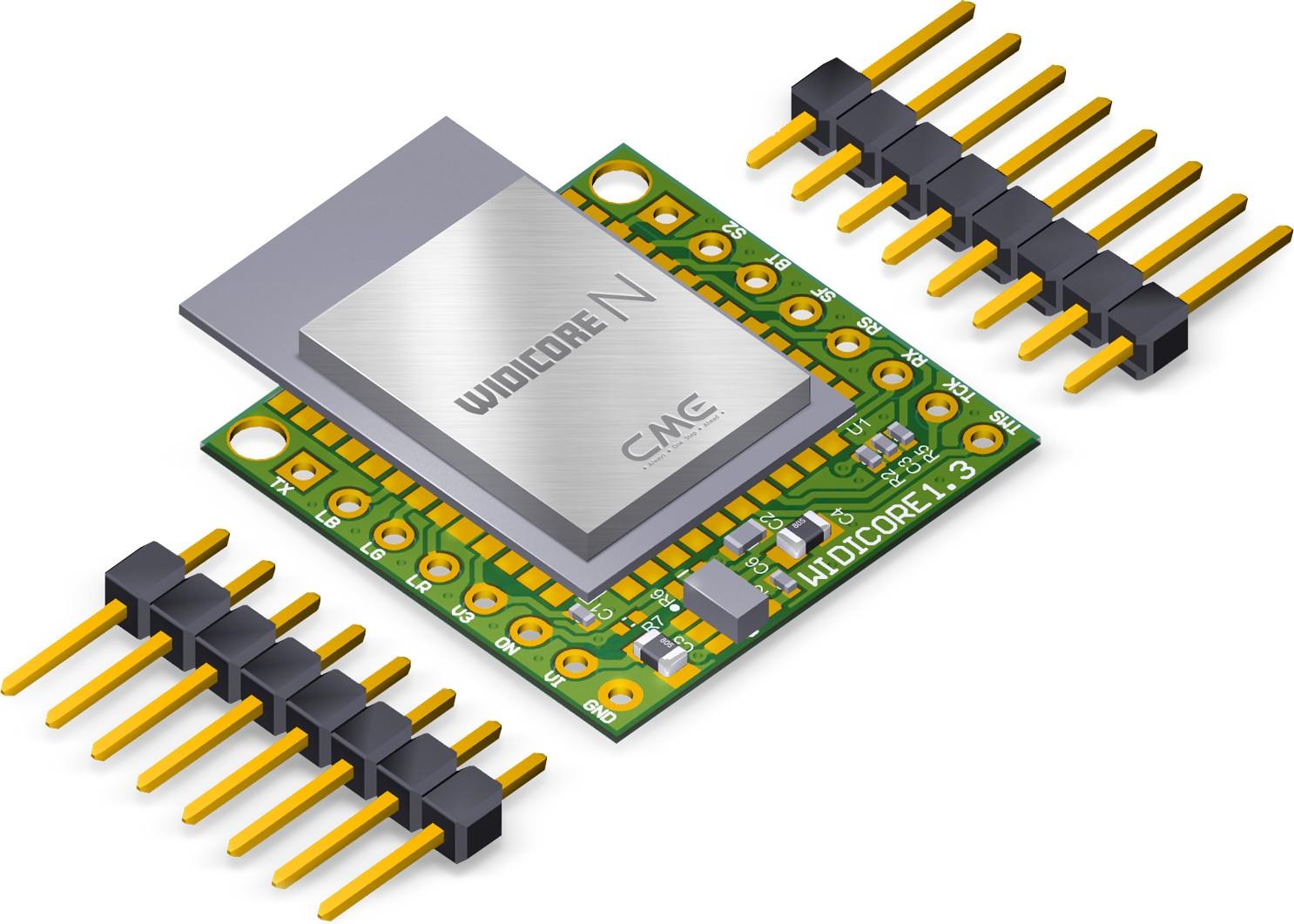

CME WIDI Core Breakout Board (onboard PCB Antenna, Populated)
Replacement wireless chip.
UK Delivery - From £2.99
Earn 26 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: S-WC00B11
You Might Also Like
Product Description
The CME WIDI Core Breakout Board is a compact smart BLE module that brings wireless Bluetooth MIDI connectivity to compatible CME WC series USB MIDI hardware. Featuring an onboard PCB antenna and populated pin header, it is designed to drop straight into supported devices and unlock cable free MIDI communication with minimal setup.
Built around CME’s WIDI technology, this breakout board lets you integrate Bluetooth MIDI into your existing workflow without redesigning your hardware from the ground up. Once installed in a compatible host device, it enables low latency, bi-directional MIDI over Bluetooth, so you can connect wirelessly to other WIDI devices, Bluetooth MIDI controllers, computers and mobile devices that support the standard.
For builders and integrators working with CME’s WC series, the WIDI Core Breakout Board offers a neat, reliable way to add modern wireless functionality. The onboard PCB antenna keeps the footprint small and self-contained, while the populated pin header simplifies installation into supported designs. The result is a clean, modular upgrade path that keeps your rig flexible and future ready.
Whether you are developing custom MIDI solutions or expanding an existing CME WC based setup, this board gives you the benefits of WIDI connectivity in a tidy, purpose built format. No extra dongles, no messy external wiring – just integrated Bluetooth MIDI where you need it.
Smart BLE WIDI Technology
At the heart of the breakout board is CME’s WIDI (Wireless MIDI over Bluetooth) technology, providing stable, low latency MIDI communication over BLE. This allows compatible devices to talk wirelessly with other WIDI products and Bluetooth MIDI hosts, helping you declutter your setup and position gear more freely in the studio or on stage.
Onboard PCB Antenna
The integrated PCB antenna keeps the module compact and self-contained, removing the need for external antenna hardware. This makes it easier to integrate into compatible devices while maintaining a clean internal layout and reducing the number of separate components you need to manage.
Populated Pin Header
With a populated pin header already fitted, the WIDI Core Breakout Board is ready to plug into supported CME WC series hardware designs. This saves assembly time and reduces the risk of soldering errors, making it a more straightforward option for builders and integrators working within the CME ecosystem.
Designed for CME WC Series Devices
The board is specifically designed to work with compatible CME WC series USB MIDI hardware devices, including MIDI Thru5 WC, U4MIDI WC and H4MIDI WC. This focused compatibility ensures that when used with the correct host hardware, integration is streamlined and behaviour is consistent with CME’s wireless MIDI ecosystem.
Features
- Smart BLE WIDI Connectivity - Built on CME’s WIDI Bluetooth MIDI technology, the board delivers wireless MIDI communication over BLE, helping you cut down on cabling while maintaining responsive performance in compatible setups.
- Onboard PCB Antenna - The integrated PCB antenna keeps everything on a single compact board, simplifying installation inside compatible devices and avoiding the need for separate antenna mounting or cabling.
- Populated Pin Header - Supplied with a populated pin header, the breakout board is ready to connect into supported CME WC series hardware designs, reducing build time and making integration more convenient.
- Compatible with CME WC Series USB MIDI Hardware - Designed to work with specific CME WC series devices such as MIDI Thru5 WC, U4MIDI WC and H4MIDI WC, providing a clear and reliable path to add Bluetooth MIDI functionality within that ecosystem.
Specifications
General
- Product Type: Smart BLE breakout board with WIDI (Bluetooth MIDI by CME)
- Model: WIDI Core Breakout Board
- SKU: S-WC00B11
Wireless
- Technology: WIDI Bluetooth MIDI (BLE)
- Antenna: Onboard PCB antenna
Connectivity
- Interface: Populated pin header
- Compatibility: CME WC series USB MIDI hardware devices
- Supported Host Devices: MIDI Thru5 WC, U4MIDI WC, H4MIDI WC
