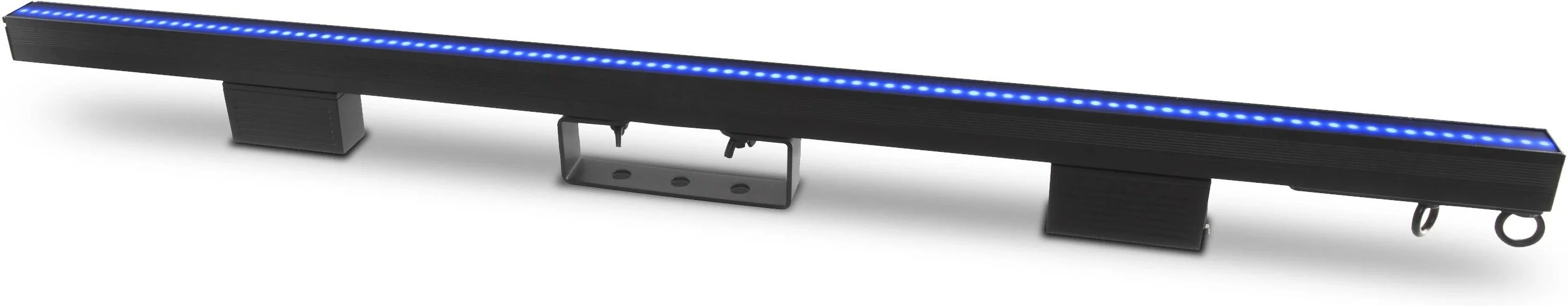

Chauvet Professional EPIX Strip IP Pixel Mapping Bar

The Chauvet Professional Épix Strip IP is a rugged, IP65-rated 1-metre pixel-mapping LED bar designed for high-impact visual effects in outdoor and indoor environments. With 100 individually controllable RGB LEDs, multiple filter options and support for Art-Net, Kling-Net and sACN, it is ideal for festivals, touring productions and fixed installations that demand flexible, video-style visuals with fast, reliable setup.

Working in conjunction with the Épix Drive 2000 IP, the Épix Strip IP lets you build anything from subtle architectural glows to full-blown motion graphics and low-resolution video walls. Alternate control personalities and included filters mean you can tailor the fixture to the demands of each show, whether you need quick, simple looks or detailed pixel-level mapping.

Outdoor-Ready Pixel Mapping

Épix Strip IP is IP65-rated for temporary outdoor and wet use, making it a strong choice for festival stages, outdoor events and exposed installations. The robust aluminium housing and sealed design help protect the 100 tri-colour RGB SMD LEDs from dust and moisture, so you can confidently deploy complex pixel rigs in challenging environments without compromising on reliability or visual impact.

Flexible Filters and Viewing Angles

Out of the box, the fixture ships with a square milky filter installed for smooth, diffused output that softens hotspots and enhances camera-friendliness. A round milky dome filter is included to increase the viewing angle and create a more pronounced, bulb-like appearance, while the black stealth filter tightens contrast and helps the bar visually disappear when not in use. This flexibility lets you match the look of the strip to different stage designs and sightlines.

Versatile Control and Personalities

Control is handled via the Épix Drive 2000 IP using Art-Net, Kling-Net or sACN, giving you seamless integration with modern lighting networks and media servers. Multiple channel and section personalities allow you to choose between quick, low-channel-count operation or full pixel-level control. This reduces programming time when you need simple chases and colour effects, while still offering the depth required for sophisticated video and motion graphics.

Tour-Ready Connectivity and Linking

Designed for the touring, rental and installation markets, Épix Strip IP uses 4-pin XLR data connections and supports linking up to 10 strips inline per port of the Épix Drive 2000 IP. Generous maximum cable runs with both shielded and unshielded cables provide flexibility when laying out large systems across stages, trusses or architectural features, helping you keep rigs tidy and efficient without sacrificing performance.

• IP65-Rated 1-Metre Pixel Strip - A 1-metre LED bar with 100 tri-colour RGB pixels and an IP65 rating for temporary outdoor and wet use, ideal for festivals, touring rigs and exposed installations that need reliable, high-impact visuals.
• Multiple Filters for Custom Looks - Supplied with a square milky filter (installed), round milky dome filter and black stealth filter, allowing you to switch between soft diffusion, wide viewing angles or high-contrast output to suit different designs and viewing positions.
• Art-Net, Kling-Net and sACN Control - Compatible with Art-Net, Kling-Net and sACN via the Épix Drive 2000 IP, ensuring smooth integration with lighting consoles and media servers and making it easy to run anything from simple colour chases to complex video content.
• Flexible Personalities and Section Control - Alternate DMX personalities with different channel counts and section groupings let you reduce programming time for straightforward shows or unlock detailed pixel mapping when you need precise control over every LED.

Optical

• Light Source: 100 LEDs (tri-colour RGB) SMD 5050
• LED Life Expectancy: 50,000 hours
• Pixels: 100 x 1
• Pixel Pitch: 10 mm
• Viewing Angle (with installed square milky filter): 160°
• Viewing Angle (with optional dome filter): 160°
• Refresh Rate: 4800 Hz

Construction / Physical

• Dimensions (with installed square milky filter): 39.37 x 3.93 x 1.33 in (1000 x 100 x 34 mm)
• Dimensions (with included black stealth filter): 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
• Dimensions (with optional dome filter): 39.37 x 5.03 x 1.77 in (1000 x 128 x 45 mm)
• Weight: 6 lb (2.7 kg)
• Exterior Colour: Black
• Housing Material: Aluminium

Connections and Linking

• Data Connectors: 4-pin XLR
• Physical Linking: Up to 10 inline Épix Strip IP per port of Épix Drive 2000 IP
• Total max. cable length (shielded) between Épix Drive 2000 IP and last Épix IP fixture: 210 ft (64 m)
• Max. cable length (shielded) between Épix Drive 2000 IP and first Épix IP fixture: 65 ft (20 m)
• Max. cable length (shielded) between Épix IP fixtures: 60 ft (18 m)
• Total max. cable length (unshielded) between Épix Drive 2000 IP and last Épix IP fixture: 300 ft (91 m)
• Max. cable length (unshielded) between Épix Drive 2000 IP and first Épix IP fixture: 150 ft (45 m)
• Max. cable length (unshielded) between Épix IP fixtures: 100 ft (30 m)

Control

• Control Protocols: Art-Net, Kling-Net, sACN
• Control Channels (Art-Net, sACN): 7, 8, 15, 30, 60, or 300
• Required Driver: Épix Drive 2000 IP

Electrical

• Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
• Power and Current: 44 W, 0.210 A @ 208 V, 60 Hz
• Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz

Certifications and Environmental

• Certifications: CE, MET
• IP Rating: IP65, temporary outdoor/wet use
• Ambient Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
