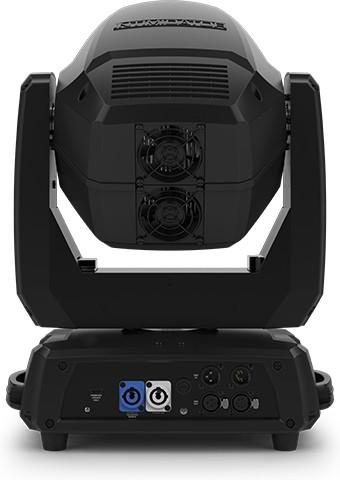

Chauvet Intimidator Spot 475ZX Stage Lighting

The Chauvet Intimidator Spot 475ZX is a compact yet seriously powerful 250W LED moving head, purpose-built for large events, installs and precise stage work. With motorised zoom and focus, dual gobo wheels, dual rotating prisms and both 3- and 5-pin DMX, it delivers crisp, punchy beams and flexible coverage whether you are lighting a tight stage or a wide dancefloor.

Designed to integrate quickly into modern rigs, the Intimidator Spot 475ZX features an onboard USB-C port for hassle-free software updates, a built-in RF receiver for wireless remote control, and powerCON-compatible in and out to streamline power distribution. Add in its innovative Totem mode, new smoother home position and bright 5,700 K output, and you have a workhorse fixture that is equally at home in touring rigs, venues, clubs and houses of worship.

Bright, Precise Output for Any Stage

At the heart of the Intimidator Spot 475ZX is a cool white 250W LED engine delivering up to 10,710 lumens, with a motorised zoom range from 13° to 28°. This lets you tighten the beam for punchy mid-air effects or widen it out to cover larger areas, while motorised focus keeps gobos razor sharp at a wide range of throw distances. The result is a clean, professional look that holds up on camera and in larger rooms.

Creative Gobo and Prism Effects

Dual gobo wheels and dual rotating prisms give you a huge palette of looks from a single fixture. Rotating, interchangeable gobos with indexing and slot-n-lock mounting make it easy to create evolving textures, logos and breakups, while the 5-facet linear and 6-facet round prisms split the beam for wide, immersive aerial effects. Variable-speed scrolling on both gobos and prisms means you can move seamlessly from subtle movement to high-energy chases.

Fast Setup and Flexible Control

The Intimidator Spot 475ZX is designed to drop straight into professional rigs. Both 3- and 5-pin XLR connectors support 10 or 16-channel DMX modes, while the built-in RF receiver works with optional RFC and RFC-XL remotes for cable-free control when needed. A quarter-turn hanging bracket offers single or dual clamp mounting options, and powerCON-compatible in and out connections help reduce cable clutter and speed up load-ins.

Installer and Operator Friendly

For permanent installs and busy operators, the 475ZX includes thoughtful touches that save time. A new home position allows for smoother, more predictable programming, while Totem mode keeps beams locked on the dancefloor or performance area, avoiding unwanted ceiling or audience hits. You can also set, save and recall a scene directly from the full-colour LCD display, making it easy to store a house look or simple show without a controller.

• 250W LED with Motorised Zoom and Focus - A powerful cool white 250W LED and 13° to 28° motorised zoom deliver bright, flexible beams for both short and long throws, while motorised focus ensures gobos stay crisp and legible across different distances.
• Dual Gobos and Dual Rotating Prisms - Two gobo wheels plus 5-facet linear and 6-facet round rotating prisms unlock a wide range of aerial and projection effects, from tight mid-air beams to wide, multi-faceted looks that fill larger spaces.
• Totem Mode and New Home Position - The innovative Totem mode keeps beams focused on the dancefloor or stage, and the updated home position makes movements smoother and programming more predictable for polished, professional shows.
• Pro Connectivity with RF and USB-C - 3- and 5-pin DMX, a built-in RF receiver for optional RFC/RFC-XL remotes, and a USB-C port for quick software updates make the 475ZX easy to integrate, maintain and control in modern lighting systems.

Optics

• Light Source: 1 LED (cool white) 250 W (10 A), 50,000 hours life expectancy
• Zoom Angle (motorised): 13° to 28°
• Colour Temperature (CTO): 5,700 K
• Illuminance (13°): 90,979 lux @ 2 m
• Illuminance (28°): 24,565 lux @ 2 m
• Illuminance (13°): 14,557 lux @ 5 m
• Illuminance (28°): 3,930 lux @ 5 m
• Lumens: 10,710
• Strobe Rate: 0 to 20 Hz

Colour and Gobos

• Colours: 7 + white, split colours, continuous scroll at variable speeds
• Gobos (wheel): 7 + open (6 aluminium + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Additional Gobos: 8 + open, indexing, continuous scroll at variable speeds
• Gobo Size: 25.7 mm outside, 21 mm image, 1.3 mm max thickness

Prisms

• Prism 1: 5-facet linear, bi-directional at variable speeds
• Prism 2: 6-facet round, bi-directional at variable speeds

Movement

• Pan: 540°
• Tilt: 270°
• Pan Ranges: 540°, 360°, 180°
• Tilt Ranges: 270°, 180°, 90°

Control

• DMX Channels: 10 or 16
• DMX Connectors: 3-pin XLR, 5-pin XLR
• Onboard RF Receiver: Compatible with RFC and RFC-XL optional remotes
• Onboard USB-C Port: For software updates
• Onboard Control: Full-colour LCD display with scene set, save and recall

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 378 W, 3.4 A @ 120 V, 60 Hz
• Power and Current: 372 W, 1.9 A @ 230 V, 50 Hz
• Power Linking: 3 units @ 120 V; 7 units @ 230 V
• Power Connections: powerCON-compatible input/output

Physical

• Dimensions: 363 x 250 x 531 mm (14.3 x 10 x 21 in)
• Weight: 16.5 kg (36.2 lb)
• Mounting: Quarter-turn hanging bracket for single or dual clamp mounting options

Approvals

• Certifications: CE, UKCA, RoHS, MET

Included Items

• Fixture
• Power cord
• PowerCON to bare end (EU only)
• Hanging bracket
• Quick Reference Guide
