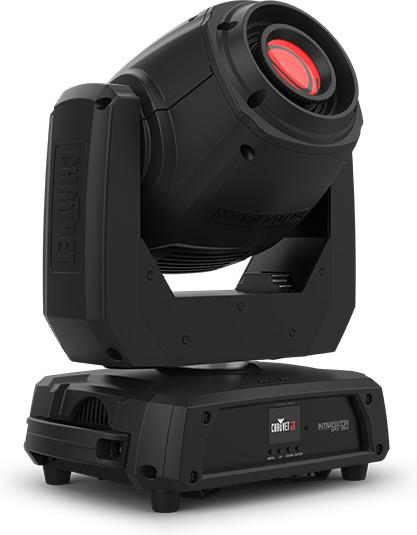

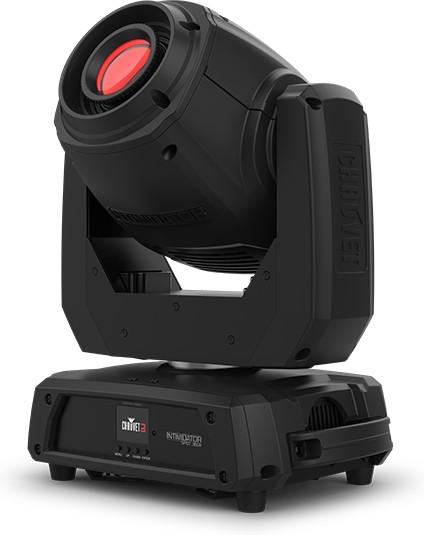

Chauvet Intimidator Spot 360X Stage Lighting

The Chauvet Intimidator Spot 360X is a compact, professional moving head designed to bring serious punch and polish to mobile events, small venues and touring rigs. With a powerful 100 W cool white LED, dual rotating prisms, motorised focus and manual zoom, it delivers crisp gobos, bold beams and wide coverage, all in a road-ready fixture that is fast to set up and simple to control.

Built-in RF wireless control via optional RFC or RFC XL remotes puts key functions at your fingertips without touching a DMX controller, while an updated home position and CTO colour wheel make programming smoother and looks more refined. Innovative Totem mode keeps beams locked on the dancefloor, and you can even set, save and recall a custom scene directly from the full-colour LCD display for quick, cable-free operation when needed.

Whether you are lighting weddings, corporate events, club nights or live bands, the Intimidator Spot 360X offers the flexibility to handle short or long throws, subtle ambience or high-energy aerial effects. Its powerCON compatible in and out connections and quarter-turn hanging bracket help streamline your rigging and power runs, so you spend less time setting up and more time creating a show.

Compact Moving Head with Serious Output

At the heart of the Intimidator Spot 360X is a 100 W cool white LED engine delivering up to 3,967 lumens and impressive illuminance at both 12° and 17° zoom settings. This gives you bright, punchy beams that cut through haze and stage wash, even in demanding environments. Despite its compact footprint, the fixture offers 540° pan and 270° tilt, so you can cover large areas from a single position.

Flexible Optics for Any Room

The combination of motorised focus and manual zoom lets you tailor the beam to the space. Zoom from 12° for tight, concentrated beams and long throws, out to 17° for broader coverage in smaller rooms. Motorised focus ensures your gobos stay razor sharp at almost any distance, so logos, patterns and textures always look professional and defined.

Creative Effects with Dual Rotating Prisms

Dual rotating prisms a 5 facet linear and a 3 facet round split the beam into multiple rays, adding depth and movement to your looks while covering a wider area with fewer fixtures. Both prisms are bi directional with variable speeds, allowing everything from slow, elegant sweeps to fast, energetic effects that transform a simple gobo into a dynamic centrepiece.

Wireless Control and Totem Mode

The built-in RF receiver works with optional RFC and RFC XL remotes, giving you wireless access to key functions without running DMX cables. An updated home position makes programming smoother, while Totem mode keeps beams focused on the dancefloor or stage, preventing light from drifting onto ceilings or walls. You can also set, save and recall a single scene directly from the full-colour LCD, ideal for quick setups or simple shows.

• Compact 100 W Moving Head - A powerful 100 W cool white LED delivers up to 3,967 lumens in a compact housing, giving you professional-level brightness and coverage without taking up excessive space in your rig or vehicle.
• Manual Zoom with Motorised Focus - Adjust the zoom between 12° and 17° to suit short or long throws, while motorised focus keeps gobos crisp at almost any distance, ensuring patterns, logos and textures always look sharp and clear.
• Dual Rotating Prisms for Wide Coverage - A 5 facet linear prism and 3 facet round prism, both bi directional with variable speeds, split the beam into multiple rays for eye catching aerial effects and broader coverage from each fixture.
• Built-in RF and Totem Mode - The integrated RF receiver allows wireless control with optional RFC or RFC XL remotes, while Totem mode keeps beams locked on the dancefloor or performance area, making it easy to maintain a focused, professional light show.

General

• Product: Chauvet Intimidator Spot 360X
• Type: Compact LED moving head spot
• Approvals: CE, UKCA, RoHS, MET

Light Source

• LED: 1 x 100 W cool white LED
• LED Current: 4.3 A
• LED Life Expectancy: 50,000 hours
• Colour Temperature (CTO): 5,900 K

Optics

• Zoom Angle: 12° to 17° (manual)
• Focus: Motorised
• Prisms: 5 facet linear, bi directional, variable speed
• Prisms: 3 facet round, bi directional, variable speed
• Illuminance (12°): 41,601 lux @ 2 m
• Illuminance (17°): 22,534 lux @ 2 m

Colour and Gobos

• Colour Wheel: 8 colours + white
• Colour Effects: Split colours, continuous scroll at variable speeds
• Gobos: 7 + open (6 aluminium + 1 glass)
• Gobo Features: Rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness

Movement

• Pan: 540°
• Tilt: 270°
• Selectable Pan Ranges: 540°, 360°, 180°
• Selectable Tilt Ranges: 270°, 180°, 90°

Control

• DMX Channels: 8 or 14
• DMX Connectors: 3 pin XLR
• Wireless Control: Built in RF receiver for RFC and RFC XL optional remotes
• User Interface: Full colour LCD display
• Scene Memory: Set, save and recall 1 scene from the display
• Operating Modes: DMX, Totem mode, standalone options (including scene recall)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
• Power and Current (120 V, 60 Hz): 217 W, 2.6 A
• Power and Current (230 V, 50 Hz): 211 W, 1.5 A
• Power Linking: 5 units @ 120 V; 8 units @ 230 V
• Max Output Current: 12 A (5 units @ 120 V, 8 units @ 230 V)

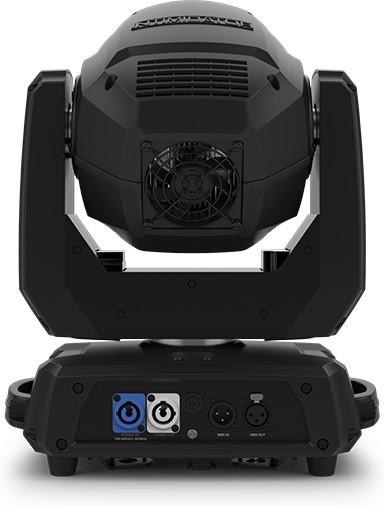

• Power Connections: powerCON compatible input/output

Effects and Performance

• Strobe Rate: 0 to 20 Hz
• Totem Mode: Keeps beams on the dancefloor or performance area

Physical

• Size: 322 x 220 x 423 mm (12.7 x 8.7 x 16.7 in)
• Weight: 11.4 kg (25 lb)
• Mounting: Quarter turn hanging bracket for single or dual clamp mounting options

Included Items

• Fixture
• Power cord
• PowerCON to bare end (EU only)
• Hanging bracket
• Quick Reference Guide
