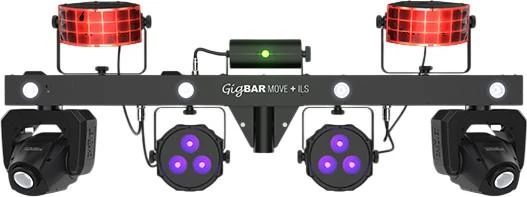

Chauvet GigBAR Move ILS Stage Lighting

Chauvet’s GigBAR Move ILS is an all-in-one, 5-in-1 lighting system that makes it incredibly easy to create a full, synchronised light show from a single bar. With moving heads, derbies, washes, laser and strobe effects all pre-mounted, plus built-in ILS and D-Fi wireless control, it is a compact, powerful solution for DJs, bands and venues who want maximum impact with minimum fuss.

GigBAR Move ILS is designed to be the centrepiece of your lighting rig. It can wirelessly control any other ILS-enabled fixtures in your set-up, giving you a fully coordinated show across the stage without complex DMX programming. Individual control of each effect on the bar means you can keep things simple with built-in shows, or dive deeper and tailor every look to your music and room.

Set-up is fast and straightforward. The system is ready to go out of the box with tripod, RF remote, wireless footswitch and carry bags included, so you can get from load-in to first song in minutes. The full-colour LCD display makes it easy to access the powerful 32-watt moving head functions, while Totem Mode keeps those beams locked on the dancefloor where they have the most impact.

With built-in UV LEDs for blacklight effects, a multi-colour laser, crisp white strobe and rich RGBAW+UV washes, GigBAR Move ILS covers everything from subtle ambience to full-on party mayhem. Whether you are running stand-alone shows, using DMX, or triggering scenes from the wireless footswitch, this is a complete, future-ready lighting solution in a single, portable package.

Integrated Lighting System Control

GigBAR Move ILS sits at the heart of Chauvet’s Integrated Lighting System, letting you control any ILS-enabled fixture, wired or wirelessly, from one bar. The built-in D-Fi transceiver means you can run a fully synchronised, multi-fixture light show without extra cables or complex programming, ideal for mobile performers and venues wanting a professional look with minimal set-up time.

Five Effects on One Bar

This 5-in-1 system combines moving heads, derbies, washes, a laser and strobe on a single bar, dramatically reducing the amount of gear you need to transport and rig. Each effect can be controlled individually, so you can build layered looks, switch between subtle and high-energy scenes, and adapt quickly to different rooms and events.

Powerful Moving Heads with Totem Mode

Each moving head features separate colour and gobo wheels, giving you creative options for beams, patterns and movement. Totem Mode keeps the heads focused on the dancefloor instead of wandering off into the ceiling, ensuring your most eye-catching effects stay where the crowd can see them.

Flexible, Wireless Control Options

Control GigBAR Move ILS the way that suits you: stand-alone with built-in shows, via DMX, using the included RF remote, or from the wireless footswitch. The RF remote does not require line of sight, so you can trigger scenes from anywhere in the room, while the footswitch lets performers change looks hands-free during a set.

• 5-in-1 All-in-One Lighting Bar - Moving heads, derbies, washes, laser and strobe are all pre-mounted on a single bar, giving you a complete light show from one fixture. This saves space, speeds up set-up and pack-down, and keeps your rig tidy and easy to manage.
• ILS and D-Fi Wireless Ecosystem - Built-in ILS compatibility and D-Fi transceiver let GigBAR Move ILS coordinate wirelessly with other ILS fixtures. You can expand your lighting rig while keeping control simple and cable runs to a minimum.
• Creative Moving Head Effects - The 32-watt moving heads offer separate colour and gobo wheels, fast pan and tilt, and Totem Mode. This gives you punchy, focused beams and patterns that can be tailored to match your music and create dynamic, professional-looking shows.
• Multiple Easy Control Methods - Choose between stand-alone operation, DMX, the included RF remote or the wireless footswitch. Whether you are a DJ working from behind the booth or a performer on stage, you can control your lighting in the way that best fits your workflow.

Control

• DMX Channels: 3, 29 or 51
• DMX Connectors: 3-pin XLR
• Control Modes: Stand-alone, DMX, RF remote, wireless footswitch
• ILS Compatibility: Yes
• Wireless: Built-in D-Fi transceiver
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Max Unobstructed Distance (D-Fi): 600 ft (183 m)
• Included Controllers: RF remote, wireless footswitch
• Optional Controllers: RF
• Footswitch Battery: 9 V alkaline
• RF Remote Battery: 23A, 12 V alkaline

Optics and Effects

• Pan and Tilt: 540° / 180°
• Moving Head Colours: 9 + open, split colours, continuous scroll at variable speeds
• Moving Head Gobos: 9 + open, continuous scroll at variable speeds
• Strobe Rate: 0 to 30 Hz
• Beam Angle (moving head): 17°
• Beam Angle (pars): 22°
• Beam Angle (strobe): 30°
• Field Angle (pars): 33°
• Field Angle (strobe): 62°
• Coverage Angle (derby): 131°
• Coverage Angle (laser): 93°
• Built-in UV LEDs for blacklight effects

Light Sources

• Pars: 3 LEDs (hex colour RGBAW+UV), 6 W (2 A), 50,000 hours life expectancy
• Strobe: 4 LEDs (cool white), 5 W (1.2 A), 50,000 hours life expectancy
• Derby: 8 LEDs (2 red, 2 green, 2 blue, 2 white), 6.5 W (2 A), 50,000 hours life expectancy
• Moving Head: 1 LED (cool white), 32 W (3 A), 50,000 hours life expectancy
• Laser: 638 nm / 30 mW (red) laser diode, 520 nm / 20 mW (green) laser diode, 450 nm / 50 mW (blue) laser diode

Output

• Illuminance (pars): 1,205 lux @ 2 m (per par)
• Illuminance (moving head): 5,140 lux @ 2 m (per head)
• Illuminance (strobe): 130 lux @ 2 m

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 250 W, 3 A @ 120 V, 60 Hz
• Power and Current: 248 W, 1.8 A @ 230 V, 50 Hz
• Power Linking: 7 units @ 120 V; 12 units @ 230 V

Physical

• Size (bar only): 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Weight (bar only): 31 lbs (14 kg)
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Fits Tripod Size: 1.5 in (37.4 mm)
• Tripod Thickness: 1.37 in (35 mm)
• Cable Length: 10 ft (3 m)
• Mounting: 3/8 in threaded inserts for truss or ceiling mounting

Compliance

• Approvals: CE, UKCA, RoHS, FCC, FDA

Included Items

• GigBAR Move ILS
• Power cord
• RF remote
• Tripod
• Carry bag
• Tripod carry bag
• Footswitch
• User manual
