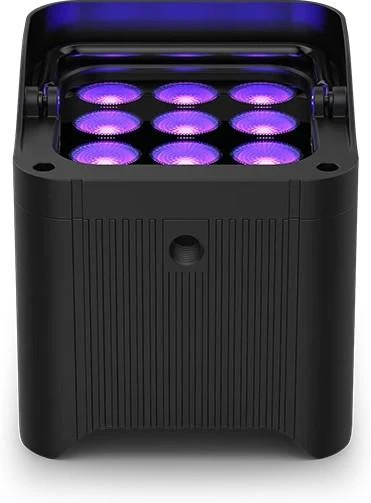

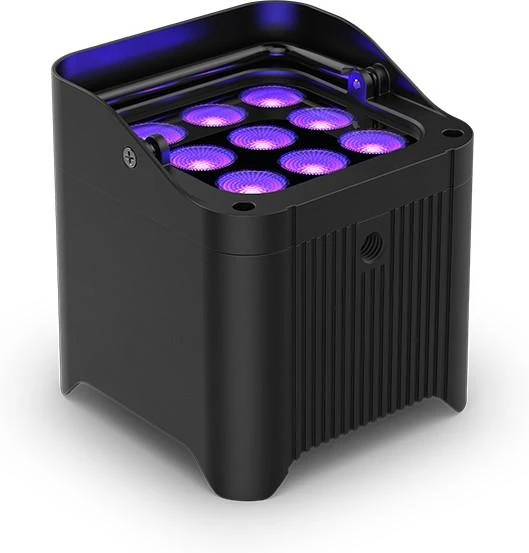

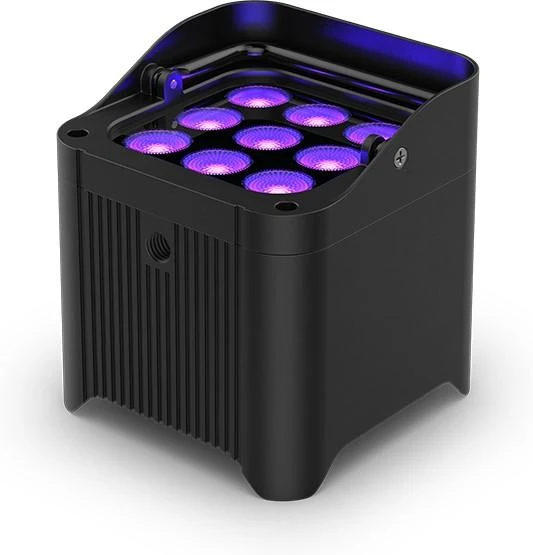

Chauvet Freedom Par H9 IP Stage Lighting

The Chauvet Freedom Par H9 IP is a compact, 100% true wireless, battery-powered hex-colour uplighter designed to handle both indoor and temporary outdoor events with ease. With built-in D-Fi wireless DMX, RF remote compatibility, IP54 protection and powerful RGBAW+UV LEDs, it delivers flexible, cable-free lighting that looks professional in any setting.

Perfect for uplighting stages, marquees, venues and architectural features, the Freedom Par H9 IP combines a robust housing with refined optics for smooth colour mixing and minimal artefacts. Adjustable run times let you match battery life to your event length, while the integrated kickstand and glare shield make it simple to aim and tidy up your beams for a clean, controlled look.

Onboard RF and D-Fi receivers open up multiple control options, from simple handheld remotes to full DMX control, all without running a single data cable. The OLED display with full-text readout makes configuration fast and intuitive, so you can adapt quickly to different venues and requirements.

With its lightweight footprint that fits neatly inside sticks of TRUSST, rapid three-hour recharge time and built-in charge/discharge protection, the Freedom Par H9 IP is a practical, hard-working fixture for DJs, bands, production companies and venues that need reliable, professional lighting with maximum flexibility.

True Wireless, Battery-Powered Flexibility

The Freedom Par H9 IP runs entirely on its internal battery and features a built-in D-Fi transceiver for wireless DMX, so you can deploy fixtures anywhere without worrying about power or data cabling. Adjustable run times (3, 5, 8 or 12 hours) let you balance brightness and battery life to suit each event.

Outdoor-Ready IP54 Housing

A robust IP54-rated enclosure helps protect the fixture from dust and splashes in temporary outdoor environments, giving you the confidence to light gardens, terraces, entrances and outdoor stages in changeable weather conditions.

Smooth Hex-Colour Output with Magnetic Diffuser

Nine 10 W RGBAW+UV LEDs and new secondary optics provide excellent colour blending with virtually no colour separation. The included magnetic diffuser pops on and off quickly, widening the beam and field angles for softer, more even coverage when you need to wash larger areas.

Easy Control with RF, DMX and Onboard OLED

As well as D-Fi wireless DMX, the built-in RF receiver lets you control the fixture using optional RFC or RFC-XL remotes. The clear OLED display with full-text menus makes it straightforward to set modes, dimming curves and run times directly on the unit, speeding up setup and adjustments.

• 100% True Wireless Hex-Colour Uplight - Battery-operated with a built-in D-Fi transceiver, the Freedom Par H9 IP delivers powerful RGBAW+UV output without any power or DMX cables. This keeps stages and venues tidy and dramatically cuts setup and teardown time.
• IP54-Rated, Robust Construction - The durable housing and IP54 rating help protect against dust and splashes in temporary outdoor situations, making it a versatile choice for both indoor shows and outdoor events in less predictable conditions.
• Refined Optics and Magnetic Diffuser - New secondary optics ensure smooth, even colour mixing with minimal artefacts, while the magnetic diffuser quickly widens the beam and softens the output. This gives you the flexibility to create tight uplights or broad washes from the same fixture.
• Flexible Control and Adjustable Run Times - With RF remote compatibility, wireless DMX, built-in dimming curves and selectable run times up to 12 hours, you can tailor both control and battery performance to each event, ensuring reliable operation from start to finish.

Optics

• Light Source: 9 x 10 W hex-colour RGBAW+UV LEDs
• LED Life Expectancy: 50,000 hours
• Beam Angle: 23°
• Field Angle: 46°
• Beam Angle (with diffuser): 40°
• Field Angle (with diffuser): 79°
• Illuminance: 1249 lux @ 2 m
• Illuminance (with diffuser): 432 lux @ 2 m
• Lumens: 1,258
• Strobe Rate: 1 to 25 Hz

Control

• DMX Channels: 6, 8 or 16
• Max Unobstructed Wireless Distance: 600 ft (183 m)
• Built-in D-Fi Wireless DMX Transceiver
• Built-in RF Receiver for RFC and RFC-XL Optional Remotes
• Operating Frequency: 2.412 to 2.484 GHz
• OLED Display with Full-Text Menus
• Built-in Dimming Curves for Smooth Fades

Power & Battery

• Input Voltage: 24 V DC, 1.5 A (external power supply: 24 V DC, 50/60 Hz)
• Power and Current: 50 W, 0.7 A @ 120 V, 60 Hz
• Power and Current: 50 W, 0.4 A @ 230 V, 50 Hz
• Recharge Time: 3 hours
• Run Time (adjustable): 3, 5, 8 or 12 hours
• Onboard Charge and Discharge Protection Circuitry

Physical

• IP Rating: IP54
• Weight: 2.1 kg (4.6 lb)
• Size: 120 x 120 x 126 mm (4.7 x 4.7 x 4.9 in)
• Bracket Mounting Hole: M12
• Built-in Spring-Loaded Kickstand
• Built-in Glare Shield
• Compact Design Fits Inside Sticks of TRUSST

Environmental

• Startup Temperature: -20 °C to 45 °C (4 °F to 113 °F)
• Operating Temperature: -30 °C to 45 °C (-22 °F to 113 °F)

Approvals

• CE
• UKCA
• RoHS
• FCC

Included Items

• Freedom Par H9 IP
• External Power Supply
• Magnetic Diffuser
• Quick Reference Guide
