Chauvet Freedom Flex H9 IP X6 Stage Lighting

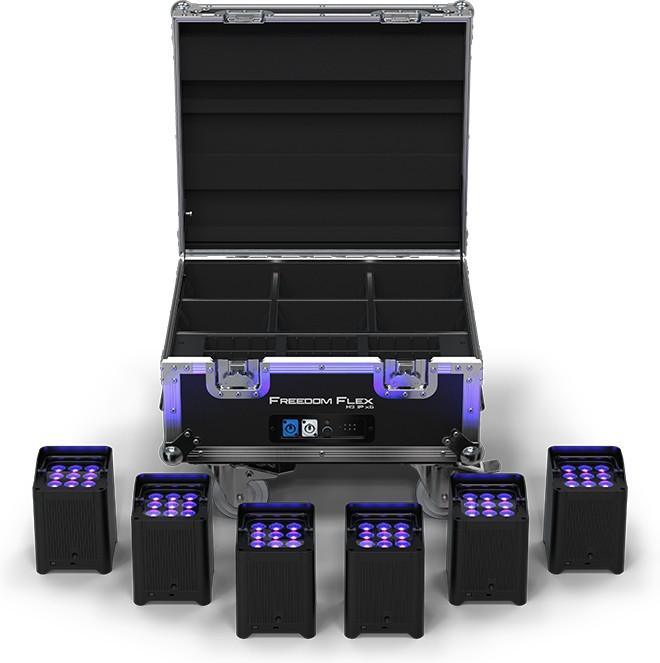

Chauvet’s Freedom Flex H9 IP X6 is a complete, professional uplighting solution designed for events where speed, flexibility and reliability are essential. You get six 100% true wireless, battery-powered RGBAW+UV fixtures in a rugged charging road case, with swappable batteries that keep your lights ready to go at a moment’s notice. With built-in D-Fi wireless, RF remote control, IP54-rated housings and superb colour mixing, this is a powerful all-in-one package for production companies, venues and mobile entertainers.

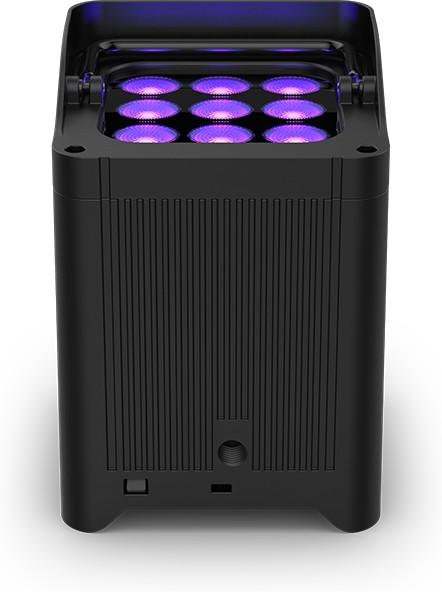

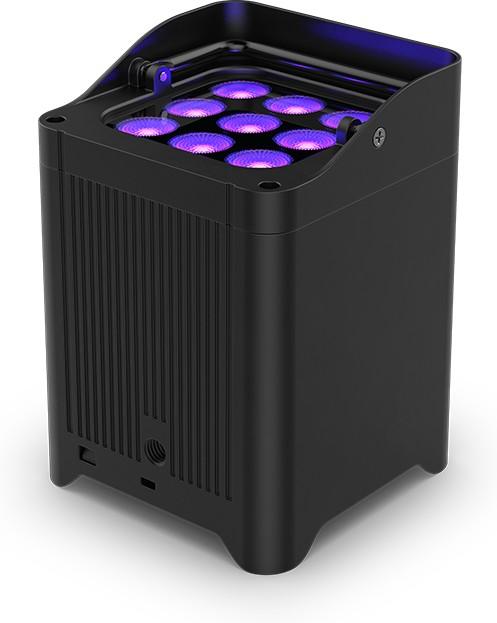

Each Freedom Flex H9 IP fixture is built around nine 10-watt hex-colour LEDs, delivering rich, saturated hues, smooth pastels and punchy UV effects with excellent output. New secondary optics and a magnetic diffuser give you beautifully even colour with minimal artefacts, whether you are uplighting walls, truss or architectural features. Adjustable run times let you tailor battery life to the length of your event, while onboard charge and discharge protection circuitry helps maximise long-term reliability.

Control is as flexible as the fixtures themselves. Built-in D-Fi transceivers allow full DMX integration without extra cabling, while the integrated RF receiver works with the included RFC remote or optional RFC-XL for quick, cable-free operation. A clear OLED display with full text makes setup fast and intuitive, and the spring-loaded kickstand plus built-in glare shield help you aim light precisely where you need it while reducing unwanted spill and eye fatigue.

Designed for temporary outdoor use, the IP54-rated housings repel dust and splashes, opening up creative lighting options for marquees, courtyards, entrances and more. With rapid three-hour recharge time, adjustable run modes up to 12 hours, and a road case that charges six batteries simultaneously, the Freedom Flex H9 IP X6 package keeps your rig streamlined, efficient and ready for demanding professional schedules.

True Wireless Power and Control

Each Freedom Flex H9 IP fixture is completely wireless, with an internal battery and built-in D-Fi transceiver for cable-free DMX. This dramatically speeds up your load-in and de-rig, reduces trip hazards and gives you the freedom to position lights exactly where they look best, not just where the nearest power socket happens to be.

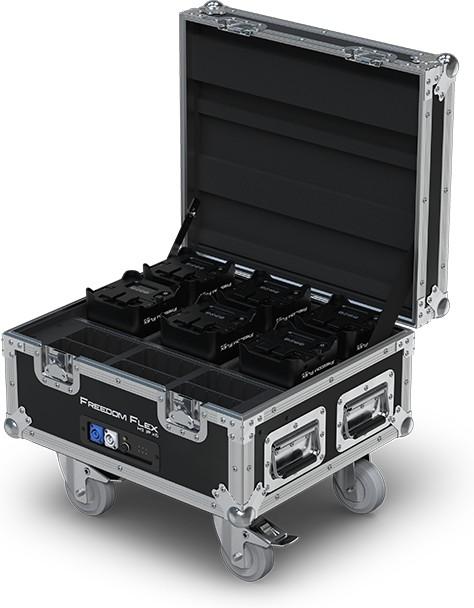

Swappable Batteries and Charging Road Case

The included charging road case holds six fixtures and charges up to six swappable batteries at once. You can keep spare batteries on charge while your lights are in use, ensuring that fixtures are always ready for the next event and helping you run back-to-back shows with minimal downtime.

IP54 Housing for Indoor and Temporary Outdoor Use

Robust IP54-rated housings help protect the fixtures from dust and splashes, making them suitable for indoor use and temporary outdoor situations. This gives you the confidence to light entrances, terraces and marquees in changeable conditions, expanding your creative options without needing separate indoor and outdoor kits.

Beautiful Colour Mixing with Flexible Optics

Hex-colour RGBAW+UV LEDs provide a huge palette of colours, from subtle ambers and warm whites to vivid saturated tones and UV effects. New secondary optics ensure smooth, even colour with minimal artefacts, while the magnetic diffuser widens the beam in seconds, helping you adapt quickly to different spaces and design requirements.

• 100% True Wireless, Battery-Operated Uplighting - Integrated batteries and built-in D-Fi transceivers remove the need for power and data cables, speeding up setup and keeping stages, dancefloors and walkways clean and uncluttered.
• Swappable Battery Packs with Charging Road Case - Swap batteries between shows and charge up to six packs simultaneously in the included road case, so your fixtures are always charged and ready for demanding event schedules.
• IP54-Rated, Robust Housing - Dust- and splash-resistant construction makes the fixtures suitable for indoor and temporary outdoor use, giving you reliable performance in a wide range of event environments.
• Advanced Optics and Magnetic Diffuser - New secondary optics and a quick-fit magnetic diffuser deliver smooth colour blending and flexible beam shaping, helping you achieve professional-looking results with minimal effort.

Optical

• Light Source: 9 LEDs (hex-colour RGBAW+UV, 10 W, 5.7 A)
• LED Life Expectancy: 50,000 hours
• Beam Angle: 28°
• Field Angle: 60°
• Beam Angle (with diffuser): 45°
• Field Angle (with diffuser): 85°
• Illuminance: 1,403 lux @ 2 m
• Illuminance (with diffuser): 602 lux @ 2 m
• Lumens: 2,028
• Strobe Rate: 1 to 25 Hz
• Dimming: Built-in dimming curves for smooth LED fading

Control

• DMX Channels: 6, 8 or 16
• Max Unobstructed Wireless Distance: 600 ft (183 m)
• Wireless System: Built-in D-Fi transceiver
• Built-in RF Receiver: Compatible with included RFC and optional RFC-XL remotes
• Operating Frequency: 2.412 to 2.484 GHz
• Display: Full-text OLED display
• Optional Controllers: RFC-XL, FlareCON

Power and Battery

• Power and Current: 377 W, 3.2 A @ 120 V, 60 Hz
• Power and Current: 365 W, 1.8 A @ 230 V, 50 Hz
• Recharge Time: 3 hours
• Run Time (adjustable): 3, 5, 8 or 12 hours
• Onboard charge and discharge protection circuitry

Construction and Physical

• IP Rating: IP54
• Size: 19.6 x 21.7 x 16.6 in (498 x 552 x 423 mm)
• Weight: 67.4 lbs (30.6 kg)
• Bracket Mounting Hole: M12
• Wheel Size: 3 in (76.2 mm)
• Adjustable spring-loaded kickstand
• Built-in glare shield

Environmental

• Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
• Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)

Approvals

• CE
• ROHS
• UKCA
• RoHS
• FCC

What’s Included

• 6 fixtures
• 6 batteries
• 6 magnetic diffusers
• Charging road case
• RFC remote
• Power cord
• PowerCON to bare end (EU only)
• Quick Reference Guide
