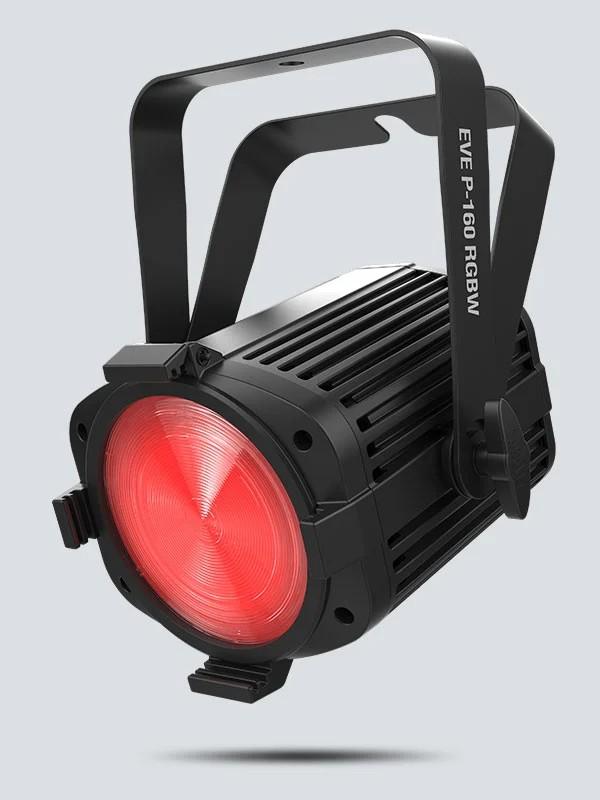

Chauvet EVE P-160RGBW Stage Lighting

The Chauvet EVE P-160 RGBW is a powerful, professional wash fixture designed for stages, venues, houses of worship and content creators who need bright, even coverage with flexible colour control. With 160 watts of RGBW LEDs, interchangeable magnetic lenses and built-in white presets, it delivers everything from rich saturated hues to clean, accurate whites in a compact, road-ready housing.

Equally at home on tour or in a fixed install, the EVE P-160 RGBW is built for modern production environments. High-frequency LED dimming keeps your footage flicker free on camera, while a completely fanless design ensures silent operation in theatres, studios and other noise-sensitive spaces. Add in D-Fi USB compatibility for wireless control and robust powerCON-compatible power linking, and you have a versatile workhorse that slots seamlessly into almost any lighting rig.

Bright, Even RGBW Wash

At the heart of the EVE P-160 RGBW are 61 high-output LEDs delivering a total of 160 watts of red, green, blue and white light. This combination gives you vibrant full-colour output alongside preset white colour temperatures, so you can move effortlessly between bold stage looks and natural, flattering white light for presenters, performers or set pieces. The even field ensures smooth coverage across stages, backdrops and cyc walls.

Flexible Beam Shaping

Included interchangeable magnetic lenses let you quickly adapt the beam angle to suit different applications, from tighter, more focused washes to wide, soft coverage. A built-in gel frame holder and 6.25 inch accessory slot allow you to add barn doors or other modifiers, giving you precise control over spill and shaping your light exactly where you need it.

Silent and Camera Ready

The fanless design of the EVE P-160 RGBW guarantees completely silent operation, making it ideal for theatres, studios, corporate events and any environment where noise must be kept to a minimum. High-frequency LED dimming (25 kHz PWM) ensures flicker-free performance on camera, so your lighting looks smooth and consistent in live streams, broadcasts and recorded content.

Tour-Ready and Easy to Control

A rugged cast aluminium housing keeps the fixture light yet durable enough for life on the road. powerCON-compatible power input and output connections make power linking straightforward, helping you keep cabling tidy on truss or floor packages. With 3- and 5-pin DMX, multiple channel modes and D-Fi USB compatibility, you can integrate the EVE P-160 RGBW into wired or wireless control setups with ease.

• 160 W RGBW LED Engine - A powerful array of 61 LEDs (red, green, blue and white) delivers bright, even washes with both full-colour output and built-in white presets, giving you everything from dramatic colour to clean, usable white light.
• Interchangeable Magnetic Lenses - Quickly switch between different beam angles using the included magnetic lenses, tailoring the spread of light for tight focuses, medium coverage or wide washes without needing extra tools.
• Fanless, Flicker-Free Performance - Silent, fanless cooling keeps operation noise free, while high-frequency LED dimming ensures flicker-free results on camera, perfect for streaming, broadcast and video recording.
• Rugged, Install-Ready Design - A cast aluminium housing, powerCON-compatible power linking and 3- and 5-pin DMX connectivity make the EVE P-160 RGBW robust enough for touring and flexible enough for permanent installations.

Light Source

• LEDs: 61 total (14 red, 13 green, 14 blue, 20 white)
• Total Power: 160 W (3.8 A)
• LED Life Expectancy: 50,000 hours
• Colour Temperature Range: 2700 K to 6500 K
• CRI: 80 (Warm White)

Optics

• Beam Angle: 23°, 35° or 48°
• Field Angle: 50°, 63° or 85°
• Illuminance (23°): 3,442 lux @ 2 m (no lens); 519 lux @ 5 m (no lens)
• Illuminance (35°): 2,414 lux @ 2 m (lens 1); 386 lux @ 5 m (lens 1)
• Illuminance (48°): 1,310 lux @ 2 m (lens 2); 211 lux @ 5 m (lens 2)
• Lumens: 4,880
• Accessory Holder / Gel Frame Size: 6.25 in (159 mm)

Control

• DMX Channels: 4, 6 or 11
• DMX Connectors: 3-pin and 5-pin XLR
• PWM Frequency: 25 kHz
• Strobe Rate: 0 to 33 Hz
• D-Fi USB Compatibility: Yes (for wireless master/slave or DMX control)

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 122 W, 1 A @ 120 V, 60 Hz
• Power and Current: 121 W, 0.5 A @ 230 V, 50 Hz
• Power Linking: 11 units @ 120 V; 21 units @ 230 V
• Power Connections: powerCON-compatible input/output

Physical

• Housing: Cast aluminium
• Weight: 3.6 kg (7.8 lb)
• Size: 220 x 245 x 305 mm (8.6 x 9.7 x 12 in)

Approvals

• Certifications: CE, MET, RoHS

Included Items

• EVE P-160 RGBW fixture
• Power cord
• PowerCON to bare end (EU only)
• 2 lenses
• Gel frame
• Quick Reference Guide
