Chauvet

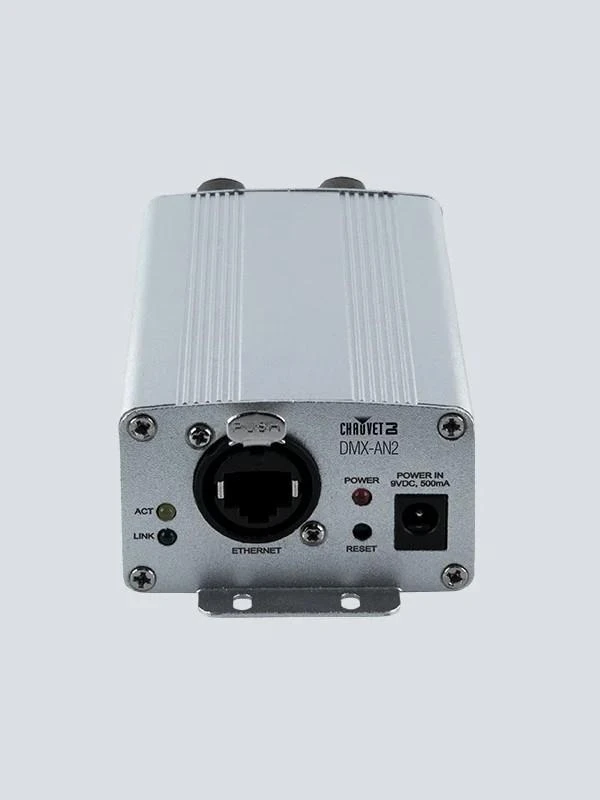

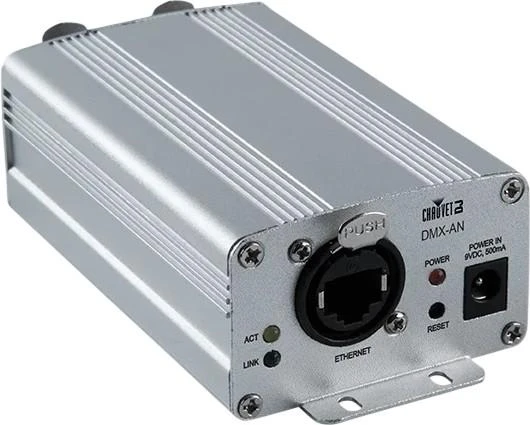

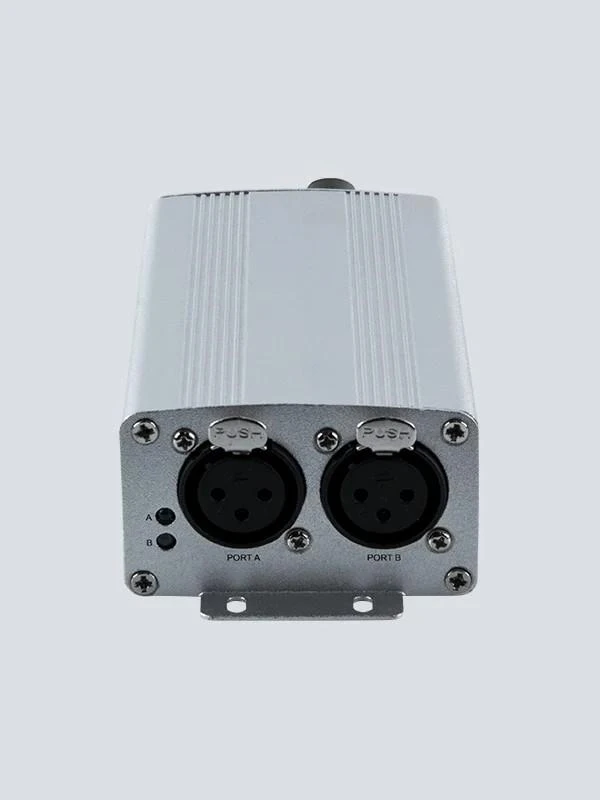

Chauvet DMX-AN2 Node Converter
Multi-purpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes
UK Delivery - From £5.99
Earn 129 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: DMXAN2
You Might Also Like
Product Description
The Chauvet DMX-AN2 is a compact, multi-purpose Art-Net/sACN node that converts a single Ethernet connection into two fully fledged DMX universes. Designed for reliability in demanding live and installation environments, it gives lighting designers a simple, robust way to bridge networked lighting control with traditional DMX fixtures, all in a tidy, easy-to-mount box.
With optical and electrical isolation on board, the DMX-AN2 is built to protect your rig and keep shows running smoothly, even in complex systems. Configuration is handled through a built-in web-based interface, so you can set it up from any compatible device on the same network without extra software. Support for both Power over Ethernet and an external power supply gives you flexible deployment options, while clear LED indicators and an integrated mounting bracket make it straightforward to install and monitor in any venue.
Flexible Art-Net and sACN Conversion
DMX-AN2 is designed to sit at the heart of modern lighting networks, converting one Ethernet line into two independent DMX universes. Each output can be set to either Art-Net or sACN, allowing you to integrate a wide range of consoles, media servers and fixtures. Whether you are running Art-Net to DMX, DMX to Art-Net, or a mix of both, the unit gives you the flexibility to adapt to different show requirements without needing multiple boxes.
Simple Web-Based Configuration
Setup is handled via a built-in web-based GUI, so there is no need for dedicated configuration software or complicated universe and subnet programming. You simply connect the DMX-AN2 to your network, access it through a web browser and adjust your settings. If the IP address changes, the unit automatically redirects the web page, helping you stay connected and in control during setup and maintenance.
Robust Connectivity and Isolation
A durable Neutrik etherCON in/through port ensures a secure, reliable network connection that stands up to touring and repeated patching. Optical and electrical isolation help protect your lighting system from faults and interference, giving you extra confidence when deploying the DMX-AN2 in larger rigs or electrically noisy environments. This focus on robust connectivity makes it a dependable choice for both permanent installs and mobile productions.
Power and Mounting Made Easy
The DMX-AN2 supports Power over Ethernet, allowing you to power the unit directly from a compatible network switch and reduce cable clutter. Alternatively, you can use the included external power adapter if POE is not available. An integrated mounting bracket is supplied, making it quick to secure the node in racks, truss, or other locations, while onboard LED indicators provide at-a-glance status information for fast troubleshooting.
Features
- Two DMX Universes from a Single Ethernet Line - Convert one Ethernet cable into two DMX universes, giving you up to 1024 channels of DMX control from a compact node. This helps streamline cabling and makes it easy to expand your rig without adding multiple interfaces.
- Art-Net and sACN Support on Both Outputs - Each output can be configured for Art-Net or sACN, so you can match the protocol used by your console or control system. This dual-protocol support makes the DMX-AN2 a versatile bridge between different parts of your lighting network.
- Built-In Web-Based GUI - Configure the node from any compatible web browser using the integrated GUI, with no extra software required. Automatic web page redirection if the IP address changes helps keep setup and management straightforward, even on busy networks.
- POE or External Power with Integrated Mounting - Run the DMX-AN2 via Power over Ethernet for a clean, single-cable solution, or use the external power adapter when POE is not available. The integrated mounting bracket and clear LED status indicators make installation and monitoring quick and convenient.
Specifications
General
- Product Type: Art-Net/sACN to DMX Node Converter
- Control Protocols: Art-Net, DMX, sACN
- Art-Net Version: 3
- DMX Channels: 1024
- DMX Connectors: 3-pin XLR
Power
- Input Voltage (DC): 9 V DC, 500 mA
- External Power Supply Input: 100 to 240 V AC, 50/60 Hz
- POE Input: 48 V, 0.4 A
Physical
- Dimensions: 120 x 64 x 39 mm
- Weight: 0.2 kg
- Network Connector: Neutrik etherCON in/through
- Mounting: Integrated mounting bracket
Approvals
- Certification: CE
Included Items
- Chauvet DMX-AN2
- Power Adapter
