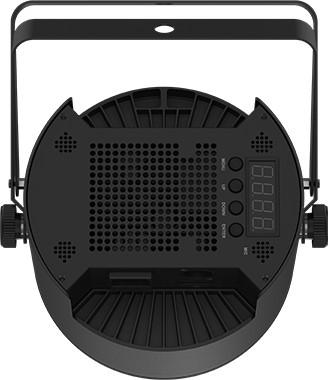

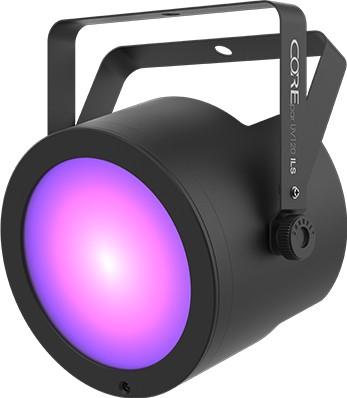

Chauvet COREpar UV 120 ILS Stage Lighting
Stage lighting.
FREE UK Delivery
Earn 232 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose Click and Collect as your delivery option online or, during store opening hours, call our sales team on 01483 456777 for assistance with placing your order.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that stock availability can change quickly both online and in-store, so we would always recommend placing your Click and Collect order as soon as possible to reserve your item.
SKU: COREPARUV120ILS
You Might Also Like
Product Description
COREpar UV 120 ILS is a compact, ultra-wide 120-watt UV wash that delivers powerful blacklight effects in a tough, tour-ready package. Featuring COB (Chip-on-Board) LED technology, ILS compatibility and optional wireless control, it is ideal for DJs, bands, venues and production companies who need punchy, even UV coverage with minimal setup hassle.
With its sit-flat design, side-mounted power and DMX connections and included magnetic Fresnel lens, COREpar UV 120 ILS is built for real-world gigs where speed and flexibility matter. Go from a broad UV flood to a tighter beam in seconds, link multiple units together to cover larger spaces, and enjoy flicker-free performance that looks clean both on stage and on camera.
Powerful COB UV Output
At the heart of COREpar UV 120 ILS is a single 120-watt COB UV LED that delivers a smooth, consistent wash without the hotspots you get from multiple discrete LEDs. The wide coverage makes it perfect for charging UV-reactive paints, fabrics and decor, while the 390 to 400 nm wavelength keeps the effect strong and defined.
ILS and D-Fi USB Compatibility
Built-in ILS compatibility lets COREpar UV 120 ILS slot straight into Chauvet’s ILS ecosystem, so you can create coordinated light shows across different fixture types with ease. Add an optional D-Fi USB and you gain wireless Master/Slave or DMX control, cutting down on cabling and giving you more freedom in how and where you rig your lights.
Magnetic Fresnel Lens for Fast Beam Shaping
The included magnetic Fresnel lens allows you to switch from an ultra-wide wash to a narrower, more focused beam in seconds. Simply snap the lens on for a tighter 21 degree beam and 34 degree field, or remove it for a broad 44 degree beam and expansive 94 degree field that floods the room with UV.
Rugged, Gig-Ready Design
COREpar UV 120 ILS is built to handle life on the road, with a robust housing that stands up to constant loading and unloading. The sit-flat design hugs the floor for low-profile placement, while side-mounted power and DMX sockets keep cabling tidy and accessible, making setup and teardown quicker and more efficient.
Features
- 120 W COB UV Wash - A single 120-watt COB UV LED delivers a powerful, even blacklight wash that is ideal for illuminating UV-reactive materials and creating immersive atmospheres on stage or in the venue.
- ILS and Optional Wireless Control - ILS compatibility lets you integrate the fixture into coordinated multi-light shows, while optional D-Fi USB support enables wireless Master/Slave or DMX control to reduce cable runs and speed up rigging.
- Magnetic Fresnel Lens Included - The supplied magnetic Fresnel lens allows instant switching between ultra-wide coverage and a more focused beam, giving you flexible looks from a single fixture without extra hardware.
- Sit-Flat, Road-Ready Housing - A rugged enclosure with a sit-flat design and side-mounted power and DMX connectors makes the unit easy to position, cable and transport, ideal for mobile entertainers and touring rigs.
Specifications
Light Source
- Type: 1 COB LED (UV)
- Power: 120 W (3.34 A)
- Wavelength: 390 to 400 nm
- LED Life Expectancy: 50,000 hours
Optics
- Beam Angle (with lens): 21°
- Beam Angle (without lens): 44°
- Field Angle (with lens): 34°
- Field Angle (without lens): 94°
- Included Optics: Magnetic Fresnel lens
Control
- DMX Channels: 1 or 5
- DMX Connectors: 3-pin XLR
- Compatibility: ILS
- Wireless Compatibility: D-Fi USB (optional)
- Optional Controllers: IRC-6, D-Fi USB
- Dimming: High-frequency LED dimming for flicker-free video
- Operating Modes: DMX, Master/Slave, sound-activated, automated (via compatible controllers)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 119 W, 1.5 A @ 120 V, 60 Hz
- Power and Current: 118 W, 0.9 A @ 230 V, 50 Hz
- Power Linking: 5 units @ 120 V; 9 units @ 230 V
Physical
- Size: 225 x 185 x 228 mm (8.9 x 7.4 x 9 in)
- Weight: 2.1 kg (4.6 lb)
- Housing: Robust, sit-flat design with side-mounted power and DMX outlets
Performance
- Strobe Rate: 0 to 20 Hz
Approvals
- Certifications: CE, RoHS, UKCA
Included Items
- Fixture
- Power cord
- Magnetic lens
- Quick Reference Guide
