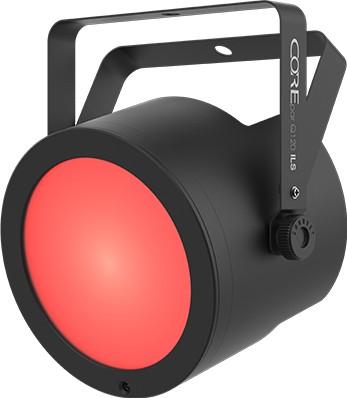

Chauvet COREpar Q120 ILS Stage Lighting

The Chauvet COREpar Q120 ILS is a powerful 120 watt RGBW COB LED wash light designed to deliver rich, even colour with superb mixing and flexible beam control. With ILS and D Fi USB compatibility, a rugged sit flat housing and an included magnetic Fresnel lens, it is a compact all rounder for stages, events, venues and content creators who need reliable, flicker free performance night after night.

At the heart of the COREpar Q120 ILS is a single quad colour COB LED that produces a smooth, shadow free wash with a full spectrum of colour. The included magnetic Fresnel lens lets you switch from a wide, soft wash to a tighter, more focused beam in seconds, making it easy to adapt to different rooms and rigs without changing fixtures. High frequency LED dimming keeps your lighting flicker free on camera, ideal for live streaming, filming performances or capturing promo content.

Connectivity and control are designed to keep your setup fast and tidy. The sit flat housing keeps the unit low profile on stage, with power and DMX connectors on the side so it can sit flush on the floor for uplighting, truss warming or backlighting. With ILS compatibility, you can drop the COREpar Q120 into a wider Chauvet ILS ecosystem for simple, coordinated light shows across multiple fixture types, while optional D Fi USB opens up wireless DMX or Master Slave control to cut down on cabling.

For installers and mobile users alike, the COREpar Q120 ILS is built to handle life on the road. The robust housing is ready for regular transport between gigs, and power linking lets you run multiple fixtures from a single mains outlet to speed up load ins. Onboard controls with an LED display give you direct access to static colours, dimming curves and custom colour creation, and you can add simple point and shoot control with the optional IRC 6 remote.

Flexible Beam with Magnetic Fresnel Lens

The COREpar Q120 ILS ships with a magnetic Fresnel lens that snaps on and off in seconds, giving you instant control over the beam. Use the wide, lens free mode for broad washes and room filling colour, then attach the lens when you need a tighter, more concentrated beam for highlighting performers, backdrops or architectural features.

ILS and D Fi USB Ready

With ILS compatibility built in, the COREpar Q120 ILS integrates seamlessly into Chauvet’s ILS ecosystem so you can create synchronised light shows across different fixtures without complex programming. Add an optional D Fi USB for wireless DMX or Master Slave control, reducing cable runs and giving you more freedom in how and where you position your lights.

Rugged Sit Flat Design

The robust sit flat housing is designed for life on the road and for neat, practical stage layouts. Power and DMX connectors are mounted on the side of the unit so it can sit directly on the floor, perfect for uplighting walls, drapes and truss without needing extra brackets or stands, and making it easier to keep cables tidy.

Flicker Free, Smooth Dimming

High frequency LED dimming ensures flicker free operation on camera, making the COREpar Q120 ILS a strong choice for video work, streaming and photography. Built in dimming curves provide smooth fades and transitions that feel natural on stage, while the onboard LED display lets you dial in custom colours and settings quickly without external controllers.

• 120 W RGBW COB LED Engine - A single quad colour COB LED delivers a full spectrum wash with excellent colour mixing and a smooth, even field, ideal for stages, events and architectural lighting.
• ILS and D Fi USB Compatibility - Integrate effortlessly into Chauvet’s ILS ecosystem for coordinated shows, and add optional D Fi USB for wireless DMX or Master Slave control to cut down on cabling.
• Magnetic Fresnel Lens Included - Quickly switch from an ultra wide wash to a narrower, more focused beam by attaching the included magnetic Fresnel lens, giving you versatile coverage from a single fixture.
• Sit Flat, Road Ready Housing - The low profile, sit flat design with side mounted power and DMX connectors makes floor placement easy and tidy, while the rugged housing is built to withstand regular transport between gigs.

Light Source

• Type: 1 COB LED (quad colour RGBW)
• Power: 120 W (6.9 A)
• LED Life Expectancy: 50,000 hours
• Colour Temperature Range: 2700 K to 6000 K

Optics

• Beam Angle (without lens): 56°
• Beam Angle (with lens): 20°
• Field Angle (without lens): 100°
• Field Angle (with lens): 30°
• Illuminance (without lens): 868 lux @ 2 m
• Illuminance (with lens): 4,639 lux @ 2 m
• Strobe Rate: 0 to 29 Hz

Control and Connectivity

• DMX Channels: 4 or 9
• DMX Connectors: 3 pin XLR
• ILS Compatibility: Yes
• D Fi USB Compatibility: Yes (D Fi USB sold separately)
• Optional Remote: IRC 6 (sold separately)

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
• Power and Current (120 V, 60 Hz): 100 W, 1.3 A
• Power and Current (230 V, 50 Hz): 94 W, 0.7 A
• Power Linking: 6 units @ 120 V; 10 units @ 230 V
• Cable Length: 5 ft (1.5 m)

Physical

• Size: 225 x 188 x 228 mm (8.9 x 7.4 x 9 in)
• Weight: 2.1 kg (4.6 lb)
• Bracket Mounting Hole: 13 mm
• Housing: Robust sit flat design with side mounted power and DMX outlets

Approvals

• Certifications: CE, RoHS, UKCA

Included Items

• Fixture
• Power cord
• Magnetic lens
• Quick Reference Guide
