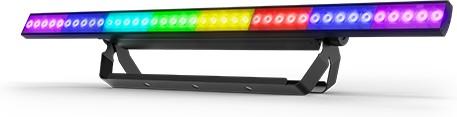

Chauvet COLORstrip Pix ILS Stage Lighting

COLORstrip Pix ILS is a full size RGB LED strip that delivers punchy washes, pixel mapped chases and striking eye candy effects from a single, versatile fixture. With 40 tri colour LEDs, custom lenses and full ILS compatibility, it is built to slot straight into modern, synchronised light shows in seconds.

Whether you are lighting a stage, catwalk, DJ booth or events space, COLORstrip Pix ILS gives you the tools to create bold, dynamic looks without a complicated rig. Use it as a powerful linear wash, a runway chase effect by linking multiple units, or as a pixel bar for animated patterns and graphics. Individual LED control lets you build detailed chases and video style effects, while the slim, lightweight housing makes it easy to position almost anywhere.

Control is just as flexible. Plug into DMX for full programming, drop a D Fi USB into the back for wireless control, or run simple shows with the optional IRC 6 remote. Thanks to fanless, solid state operation, COLORstrip Pix ILS runs silently, making it ideal for theatres, houses of worship and any environment where noise is not an option.

Versatile Strip for Washes and Effects

COLORstrip Pix ILS functions as a bright linear wash, a pixel mapping bar or a pure eye candy effect, so you can cover multiple roles with one fixture. Use it to uplight walls, outline stages or truss, or create bold horizontal and vertical accents that cut through any rig.

ILS Ready for Easy, Coordinated Shows

As part of the ILS ecosystem, COLORstrip Pix ILS can be locked into synchronised shows with other compatible fixtures in a few simple steps. That means coordinated colours, chases and transitions across your entire rig without needing deep DMX knowledge.

Pixel Mapping and Runway Chases

With individual control over all 40 tri colour LEDs, you can build intricate chases, sweeps and animated patterns directly from your lighting desk. Link multiple units together to create long, continuous runs that are perfect for runway effects, stage edges and immersive set pieces.

Silent, Wireless Ready Operation

Fanless design and no moving parts keep operation completely silent, ideal for quiet shows and recording environments. Add an optional D Fi USB for wireless DMX or Master Slave control, or use the optional IRC 6 remote for simple, cable free operation when you do not want to run data lines.

• Full Size RGB LED Strip with Custom Lenses - A long, slim housing loaded with 40 tri colour LEDs and custom optics delivers bright, even washes and crisp, defined pixels. This gives you both coverage and clarity, so colours look rich from a distance and effects remain sharp on camera.
• ILS Ecosystem Compatibility - Built in ILS support lets you integrate COLORstrip Pix ILS into larger, coordinated rigs with other ILS fixtures. You can build complex, synchronised shows quickly, saving programming time and making it easier to achieve professional looking results.
• Individual Pixel Control for Advanced Effects - Each LED can be addressed individually in higher channel modes, opening up detailed animations, sweeps and video style effects. This level of control lets you tailor looks precisely to your music, staging or content.
• Wireless Ready and Silent Running - D Fi USB compatibility enables wireless DMX or Master Slave control without extra cabling, while support for the IRC 6 remote offers simple, hands on control. With no fans or moving parts, the fixture runs silently, keeping your rig clean both visually and acoustically.

Light Source

• LEDs: 40 x tri colour RGB LEDs
• LED Power: 2 W (0.8 A) per LED
• LED Life Expectancy: 50,000 hours
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 14°
• Field Angle: 24°
• Illuminance: 4,967 lux at 2 m
• Lumens: 1,491

Control

• DMX Channels: 3, 8, 120, 122
• DMX Connectors: 3 pin XLR
• Compatibility: ILS ecosystem
• Wireless: D Fi USB compatibility (D Fi USB sold separately)
• Optional Controllers: IRC 6, ILS Command
• Operating Modes: DMX, Master Slave, optional wireless and remote control

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto ranging)
• Power and Current: 79 W, 1.2 A at 120 V, 60 Hz
• Power and Current: 77 W, 0.8 A at 230 V, 50 Hz
• Power Linking: Up to 7 units at 120 V; up to 10 units at 230 V
• Cable Length: 1.52 m (5 ft)

Physical

• Size: 987 x 49 x 157 mm (38.9 x 2 x 6.2 in)
• Weight: 2.8 kg (6.2 lb)
• Bracket Mounting Hole: 13 mm

Approvals

• Certifications: CE, RoHS

Included Items

• Included: COLORstrip Pix ILS fixture
• Included: Power cord
• Included: PowerCON to bare end (EU only)
• Included: Quick Reference Guide
