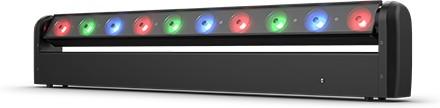

Chauvet COLORband PiX M ILS Stage Lighting

COLORband PiX M ILS is a powerful moving LED strip that combines a full-size linear wash with pixel mapping, sweeping movement and flexible control. With 10 individually controllable tri colour LEDs, built-in motors and full ILS and D-Fi USB compatibility, it is a compact workhorse that can handle wall washes, eye candy, blinders and dynamic stage effects with ease.

Designed to inject instant energy into any event, COLORband PiX M ILS can be used as a moving strip light, static wash or pixel effect bar. Its tight 15 degree beam and wider 27 degree field angle let you create everything from focused mid-air beams to smooth wall coverage, while the 245 degree tilt range means you can sweep light across a stage or audience without moving the fixture itself.

Control is incredibly flexible. You can keep things simple with an RFC or RFC-XL remote via the built-in RF receiver, integrate it into a full ILS ecosystem for synchronised light shows, or take detailed control over every pixel via DMX. Onboard 3-pin and 5-pin DMX connectors, along with D-Fi USB compatibility for wireless DMX or master/slave operation, make it easy to drop into any existing rig.

For touring and installs, powerCON compatible power input and output make power linking straightforward and secure, while the compact, lightweight chassis is easy to rig using the integrated bracket. Whether you are lighting bands, DJs, corporate events or small theatres, COLORband PiX M ILS gives you a huge range of looks from a single, versatile fixture.

Moving Strip with Pixel Control

At the heart of COLORband PiX M ILS are 10 tri colour RGB LEDs that can be controlled individually for detailed pixel mapping. This lets you build chases, patterns, text-like effects and video-style animations across the bar, turning a simple wash light into a creative visual tool that can become a centrepiece of your show.

Flexible Control and ILS Integration

With multiple control paths, the fixture adapts to how you like to work. Use the built-in RF receiver with optional RFC or RFC-XL remotes for quick, cable-free control, or drop it straight into an ILS ecosystem for fully synchronised shows with other compatible fixtures. For more advanced programming, a wide range of DMX channel modes lets you choose between simple operation and deep control.

Wireless Ready with D-Fi USB

D-Fi USB compatibility means you can add an optional D-Fi USB transceiver and run wireless DMX or master/slave control without extra receivers or cabling. This keeps stages clean, speeds up setup and makes COLORband PiX M ILS ideal for mobile rigs, hired systems and venues where running long DMX lines is not practical.

Tour Friendly Connectivity and Design

Onboard 3-pin and 5-pin DMX connectors ensure compatibility with virtually any lighting desk or controller, while powerCON compatible power input and output allow secure connections and easy power linking between fixtures. The robust yet lightweight housing, adjustable bracket and generous tilt range make rigging and focusing fast and straightforward.

• Moving Strip Light with Multiple Roles - Functions as a dynamic sweeping effect, pixel mapping bar, blinder or wall washer, so a single fixture can cover several roles in your lighting design and reduce the amount of gear you need to carry.
• Built-in RF Receiver for Remote Control - Works wirelessly with optional RFC and RFC-XL remotes, letting you trigger looks, adjust settings and run shows without a lighting desk or DMX cables, perfect for quick setups and mobile entertainers.
• ILS and D-Fi USB Compatible - Integrates seamlessly into the ILS ecosystem for easy, synchronised multi-fixture shows, and supports optional D-Fi USB for wireless DMX or master/slave control, giving you a clean, cable-light rig.
• Professional Connectivity and Power Linking - Onboard 3-pin and 5-pin DMX connectors plus powerCON compatible power input and output make it simple to connect to any pro lighting system and daisy-chain power between multiple units for faster, tidier installs.

Light Source

• Light Source: 10 LEDs (tri colour RGB)
• LED Power: 6 W (2 A) each
• LED Life Expectancy: 50,000 hours

Optics

• Beam Angle: 15 degrees
• Field Angle: 27 degrees
• Illuminance: 7,441 lux at 2 m

Movement

• Tilt: 245 degrees

Control

• DMX Channels: 5, 6, 8, 10, 17, 32 or 36
• DMX Connectors: 3-pin XLR and 5-pin XLR
• Built-in RF receiver for RFC and RFC-XL remotes
• ILS compatible
• D-Fi USB compatible for wireless master/slave or DMX control (D-Fi USB sold separately)

Power

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 86 W, 1.2 A at 120 V, 60 Hz
• Power and Current: 84 W, 0.7 A at 230 V, 50 Hz
• Power Linking: 12 units at 120 V; 20 units at 230 V
• Power Connections: powerCON compatible input and output

Physical

• Size: 785 x 67 x 123 mm
• Weight: 3.7 kg
• Bracket Mounting Hole: 13 mm

Approvals

• Approvals: CE, UKCA, RoHS

Included Items

• Included: COLORband PiX M ILS
• Included: Power cord
• Included: powerCON to bare end (EU only)
• Included: Quick Reference Guide
