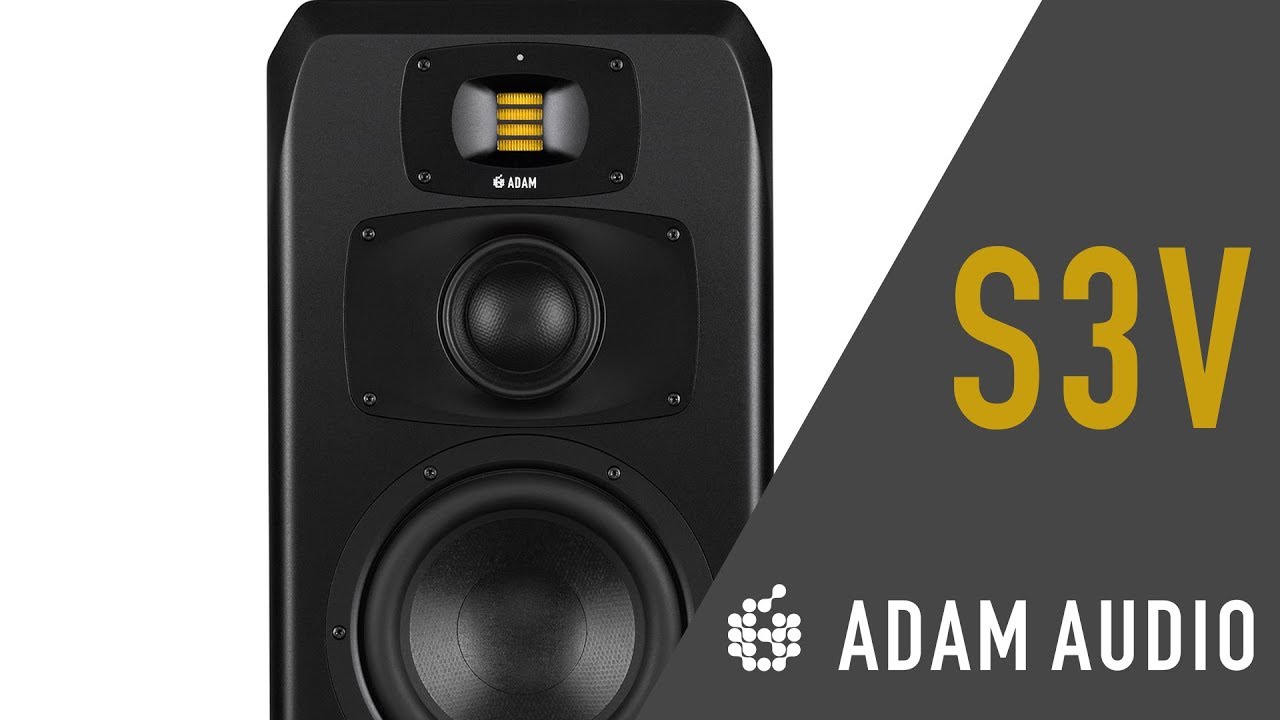

Adam S3V 9-Inch Three-Way Midfield Monitor

Here's What Adam Audio Say About the S3V

The S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments.

Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio’s entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company’s equally ground-breaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio’s newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

The S3V’s built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.

Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.

Key Features

• German Handmade Precision S-ART Tweeter with HPS Waveguide
• 4" Dome / Cone Hybrid (Carbon Composite)
• 9“ Woofer (Hexacone)
• Cumulated Amp. Power RMS: 850 W
• Frequency Response: 35 Hz - 50 kHz
• Max. SPL Per Pair at 1 m: ≥124 dB
• AES3 Digital Inputs And Various Expansion Options

Technical Data

Woofer

• Number: 1
• Basket Ø: 9" (223 mm)
• Voice Coil Ø: 2" (50 mm)
• Cone Material: HexaCone

Mid-Range

• Number: 1
• Type: Dome / Cone Hybrid
• Basket Ø: 4" (100 mm)
• Voice Coil Ø: 2.4" (60 mm)
• Cone Material: Carbon Composite

Tweeter

• Number: 1
• Type: S-ART
• Diaphragm Area: 4 inch² (2420 mm²)
• Equiv. Diaphragm Ø: 2" (56 mm)
• Velocity Transform Ratio: 4:1
• Diaphragm Weight: 0.17 g
• Waveguide: HPS

Built-In Amplifiers

• Number: 2
• Woofer: 1
• Type: PWM
• Amp. Power RMS: 500 W
• Tweeter: 1
• Type: A/B
• Amp. Power RMS: 50 W

Control Options

• Input Sensitivity: Adjustable
• Parametric EQs: 6
• Room Compensation High-Shelf EQ: 1
• Room Compensation Low-Shelf EQ: 1
• Preset Memories: 5
• Delay: 0 ms to 5 ms

Input Connectors

• Analog: XLR
• Input Impedance: 48 kOhm
• Max. Input Level: +24 dBu
• Digital: AES3

General Data

• Panel: Rear
• Frequency Response: 35 Hz - 50 kHz
• THD > 100 Hz: ≤0.4 %
• Max. SPL per pair at 1 m: ≥124 dB
• Crossover Frequencies: 250 Hz / 3 kHz
• Max. Power Consumption: 550 W
• Weight: 55.0 lb (25.0 kg)
• Height x Width x Depth: 21.1" (536 mm) x 11.5" (293 mm) x 15.0“ (380 mm)
• Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
• Delivery Contents: Power cord, Manual
