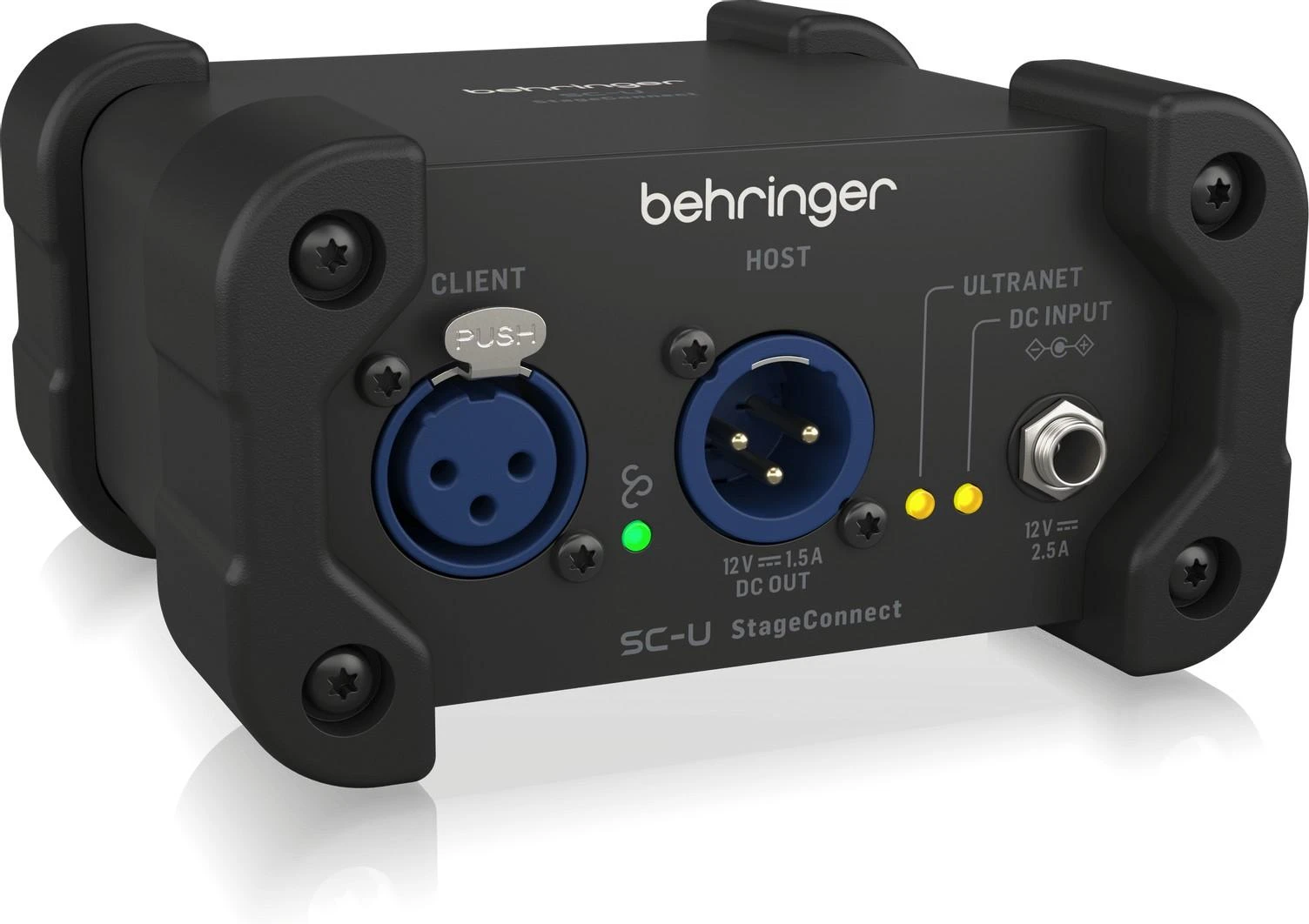

Behringer SC-U - StageConnect Interface Bridge to Multi-Channel USB I/O and Behringer Ultranet I/O
Di Boxed Sized Stage Connect Box
UK Delivery - From £2.99
Earn 109 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 0606-AEG86-UK1
You Might Also Like
Product Description
The Behringer SC-U is a compact StageConnect interface bridge that links your StageConnect ecosystem with multi-channel USB audio and Behringer Ultranet monitoring. Acting as a three-way hub, it lets you route up to 32 channels of audio between your mixer, computer and personal monitoring system with ultra-low latency and rock-solid sample rate conversion.
Perfect for modern stages, rehearsal rooms and compact studios, the SC-U keeps your setup tidy by running high-channel-count audio over a single standard XLR cable, while simultaneously feeding multitrack audio to and from your DAW via USB. At the same time, it integrates seamlessly with Ultranet systems such as Behringer P16 personal monitor mixers, so performers can enjoy flexible, independent headphone mixes without adding a separate interface or complex patching.
With asynchronous 32-channel sample rate conversion on board, the SC-U lets different parts of your system run at their own word clocks and sample rates without clicks, pops or dropouts. Its rugged, DI box sized enclosure is built to live on the stage or in a rack drawer, and the included external power supply keeps everything running reliably show after show.
Three-Way Digital Audio Bridge
The SC-U is designed as a three-way bridge between StageConnect, multi-channel USB audio and Ultranet. This means you can connect a StageConnect equipped mixer or stage box, send and receive multitrack audio to your computer, and feed an Ultranet monitoring system all from one compact unit. It simplifies complex digital routing into a single, easy to manage hub, saving time at setup and reducing the need for additional interfaces.
High-Capacity StageConnect Connectivity
StageConnect provides 32 channels of bidirectional audio at 44.1 or 48 kHz and 24 bit resolution, all over a single standard 3-pin XLR DMX or mic cable. With sub-millisecond latency, it is ideal for live sound where timing and phase coherence are critical. The SC-U lets you tap directly into this high-capacity bus, making it straightforward to move large channel counts between stage, front of house and recording devices without bulky analogue multicore looms.
Asynchronous Sample Rate Conversion
Built-in asynchronous 32-channel sample rate conversion allows different parts of your system to operate at independent word clocks and sample rates. With a quoted 0.4 ms latency and 140 dB dynamic range, the SC-U maintains audio integrity while preventing clocking issues between devices. This is particularly useful when integrating existing digital gear or running your DAW at a different sample rate to your live console.
USB and Ultranet Integration
The SC-U features a USB connection for multi-channel audio to and from a host computer, plus Ultranet I/O for direct connection to compatible Behringer systems such as P16 personal monitor mixers. This makes it easy to capture live multitracks, run virtual soundchecks or play back backing tracks, while simultaneously providing performers with flexible, low-latency monitor mixes over Ultranet.
Features
- Three-Way Digital Bridge - Acts as a central hub between StageConnect, multi-channel USB audio and Ultranet systems, allowing you to route up to 32 channels of audio between your mixer, computer and personal monitoring with minimal cabling and configuration.
- 32-Channel StageConnect Audio - Supports 32 channels of bidirectional 24 bit audio at 44.1 or 48 kHz over a single standard 3-pin XLR DMX or mic cable, delivering sub-millisecond latency and dramatically reducing stage clutter compared to traditional analogue multicore solutions.
- Asynchronous Sample Rate Conversion - Onboard 32-channel sample rate conversion with 0.4 ms latency and 140 dB dynamic range enables reliable communication between systems running at different word clocks and sample rates, helping to eliminate clicks, pops and sync issues.
- Compact, Rugged Form Factor - Housed in a sturdy, DI box sized enclosure, the SC-U is built to withstand life on stage or in a mobile rig, while the included external DC power supply ensures stable operation in demanding live and rehearsal environments.
Specifications
General
- Product Type: StageConnect interface bridge
- Function: Bridge between StageConnect, multi-channel USB audio and Behringer Ultranet
- Form Factor: Compact enclosure approximately the size of a DI box
- Power: External DC power supply (included)
StageConnect
- Audio Channels: 32-channel bidirectional transmission
- Sample Rates: 44.1 / 48 kHz
- Bit Depth: 24 bit
- Latency: Sub-millisecond
- Cable Type: Standard 3-pin XLR DMX or mic cable
- Additional Data: MIDI data transmission from USB host computer to StageConnect bus
Digital Audio and Conversion
- Sample Rate Conversion: Asynchronous 32-channel
- Latency (SRC): 0.4 ms
- Dynamic Range: 140 dB
- Word Clock Handling: Communication between systems with different word clocks and sample rates
Connectivity
- USB: Multi-channel audio connection to host computer
- Ultranet: Behringer Ultranet I/O for compatible systems (e.g. P16 products)
- StageConnect Host Connector: For multi-channel audio connections with other StageConnect devices
- StageConnect Client Connector: For daisy-chaining multiple StageConnect devices
