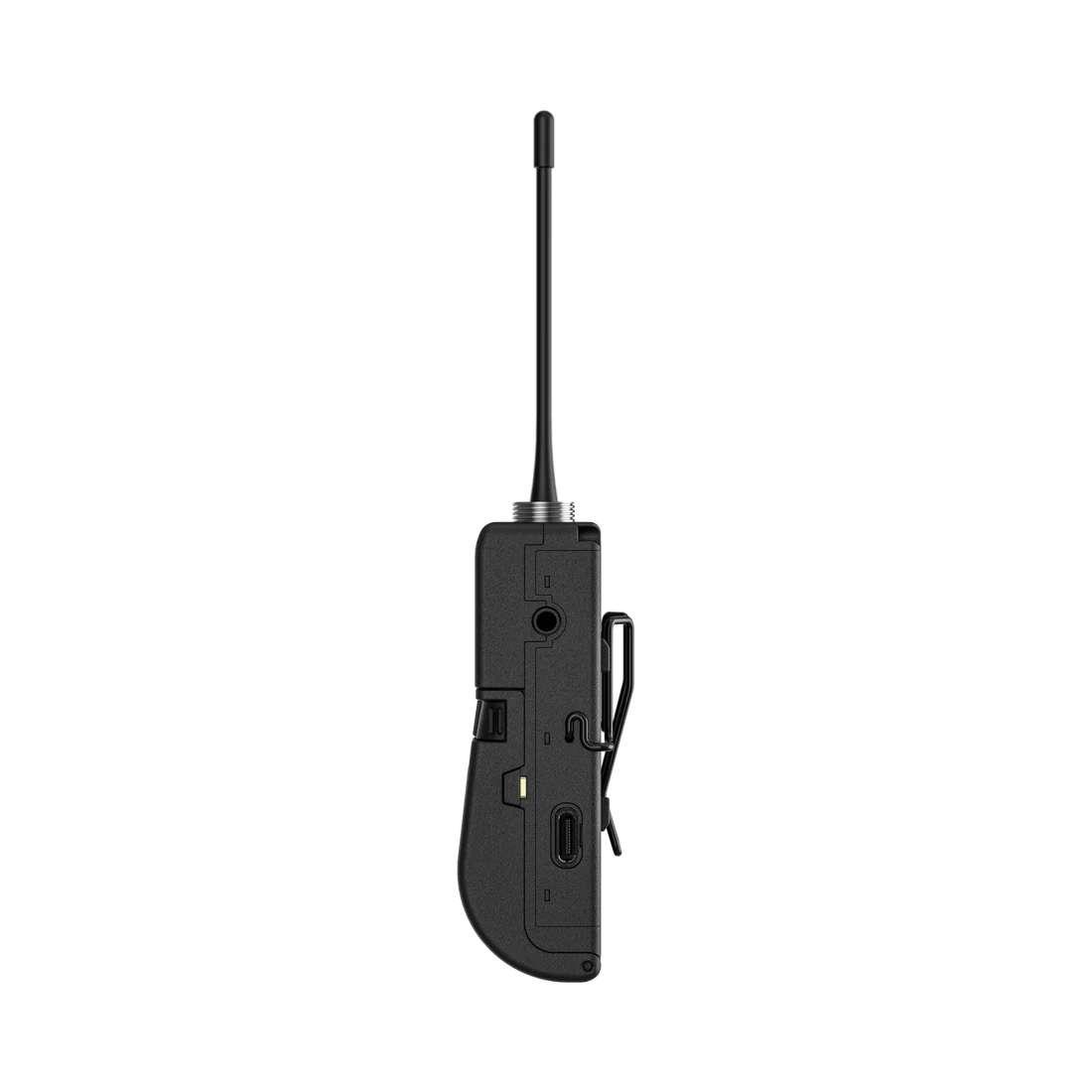

Audix NovaCore NCBP Body Pack Transmitter

The Audix NovaCore NCBP is a compact, professional UHF digital bodypack transmitter designed for presenters, performers, clergy and broadcast talent who need reliable, discreet and great-sounding wireless. With robust ABS and aluminium construction, AES-256 encrypted transmission and flexible power options, it is built to deliver clear, secure audio in demanding live and installed environments.

Featuring a TA3M mic input, the NCBP works seamlessly with a wide range of Audix lavalier and headset microphones, as well as any compatible third-party mic terminated with a TA3F connector. A dedicated 3.5 mm remote mute input makes it ideal for podiums and theatre stages where mute control needs to be handled from front-of-house or a fixed switch, while low latency and wide tuning ensure smooth integration into modern RF setups.

Professional, Discreet Wireless for Any Stage

The NovaCore NCBP is purpose-built for situations where you need to move freely and keep the technology out of sight. Its slim, lightweight bodypack clips easily to clothing or a belt, keeping the focus on the performance or message rather than the gear. With all primary controls on the exterior of the unit, day-to-day operation is quick and intuitive, whether you are on a festival stage, in a house of worship or in a broadcast studio.

Flexible Mic Compatibility

At the heart of the NCBP is a TA3M (3-pin mini) mic input that is compatible with popular Audix models including the ADX10, L5, L5O, HT5, HT7B3P and HT7BG3P. It also supports any third-party microphone terminated with a TA3F connector wired with Pin 2 hot, giving you the freedom to choose the capsule that best suits your voice, application and budget. This flexibility makes it a solid choice for venues and rental houses that need to accommodate different users and setups.

Secure, Low-Latency Digital Transmission

The NCBP uses AES-256 encrypted digital transmission for secure, interference-resistant performance. One-touch IR sync makes pairing with a compatible receiver fast and straightforward, so you can get up and running with minimal setup time. With a 48 MHz tuning range from 494 to 542 MHz and latency under 3 ms, it integrates smoothly into modern RF environments while keeping your audio in perfect time with the rest of your system.

Remote Mute Control for Installed Systems

A dedicated 3.5 mm TRS remote mute input allows you to connect a latching or momentary external switch for hardwired mute control. This is particularly useful for podium installations, conference rooms and theatre productions where an engineer or operator needs to handle muting from front-of-house or a control position. It adds a layer of control and confidence, helping to avoid unwanted noise or accidental live mics.

Long Runtime and Convenient Charging

The NovaCore NCBP offers over 9 hours of runtime using either two AA alkaline batteries or a single NCLB rechargeable lithium-ion battery. A built-in USB-C port supports direct cable charging, making it easy to top up power between events without removing the battery. For venues with multiple systems in regular use, the optional NCC2 charging station enables managed multi-unit charging, helping keep your wireless fleet ready for every show.

• TA3M Mic Input with Wide Mic Compatibility - The TA3M connector works with Audix lavalier and headset microphones such as ADX10, L5, L5O, HT5, HT7B3P and HT7BG3P, as well as any TA3F-terminated mic wired with Pin 2 hot. This lets you choose the ideal microphone for each presenter or performer while using the same robust bodypack platform.
• Dedicated 3.5 mm Remote Mute Input - A separate 3.5 mm TRS input accepts a latching or momentary external switch for remote muting. This is perfect for podiums, conference systems and theatre rigs where mute control needs to be handled from a fixed location, reducing the risk of handling noise or accidental live mics.
• Secure AES-256 Digital Transmission with Low Latency - AES-256 encryption protects your audio from interception, while a 48 MHz tuning range (494 to 542 MHz) and latency under 3 ms ensure reliable, time-accurate performance. One-touch IR sync speeds up setup, making it easy to deploy multiple systems quickly.
• Long Battery Life with Built-In USB-C Charging - With more than 9 hours of runtime on either 2 x AA alkaline batteries or 1 x NCLB rechargeable lithium-ion battery, the NCBP is ready for long services, shows and events. The integrated USB-C charging port allows convenient charging via the included cable, and it is compatible with the optional NCC2 charging station for streamlined multi-unit charging.

General

• Product Type: UHF digital bodypack transmitter
• Model: Audix NovaCore NCBP
• Construction: ABS and aluminium
• Application: Presenters, performers, clergy, broadcast talent, installed and live sound

Audio and RF

• Mic Input Connector: TA3M (3-pin mini)
• Mic Compatibility: Audix ADX10, L5, L5O, HT5, HT7B3P, HT7BG3P and any TA3F-terminated mic (Pin 2 hot)
• Remote Mute Input: 3.5 mm TRS for latching or momentary external switch
• Encryption: AES-256
• Tuning Range: 48 MHz (494 to 542 MHz)
• Latency: Less than 3 ms
• Input Gain: Variable from -12 dB to +18 dB in 6 dB steps
• Processing: Low-cut filter, limiter, phase invert

Controls and Sync

• Controls: Power button, mute button, SET/MODE buttons
• Sync Method: One-touch IR sync with compatible receiver

Power

• Power Options: 2 x AA alkaline batteries or 1 x NCLB rechargeable lithium-ion battery
• Runtime: 9+ hours (typical)
• Charging: Built-in USB-C port

Included Accessories

• NCBP NovaCore UHF digital bodypack transmitter
• NCBC belt clip
• NCCC 20 inch USB-A to USB-C charging cable
