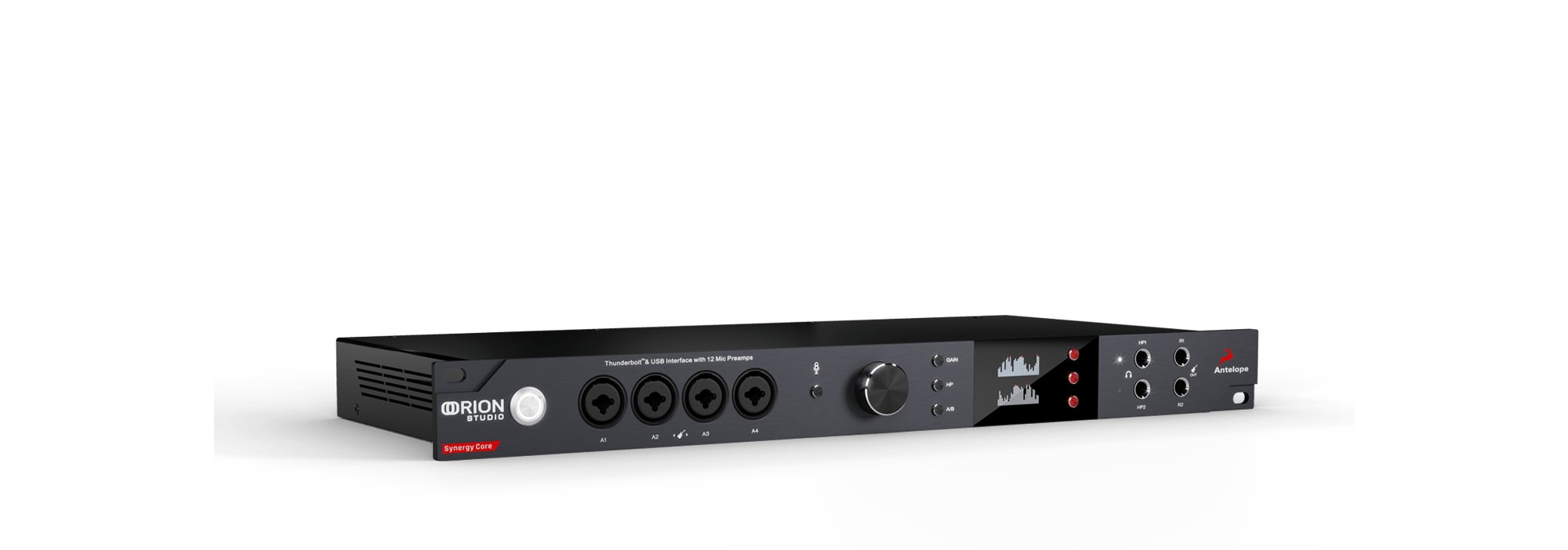

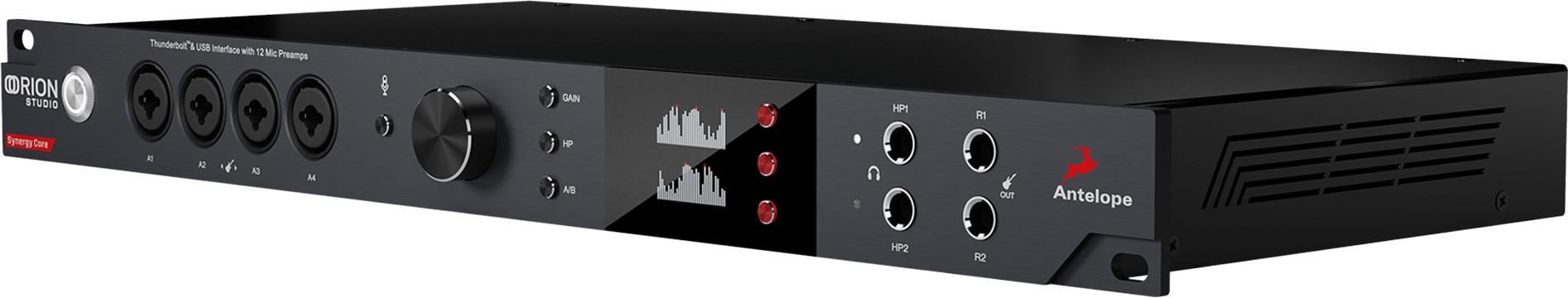

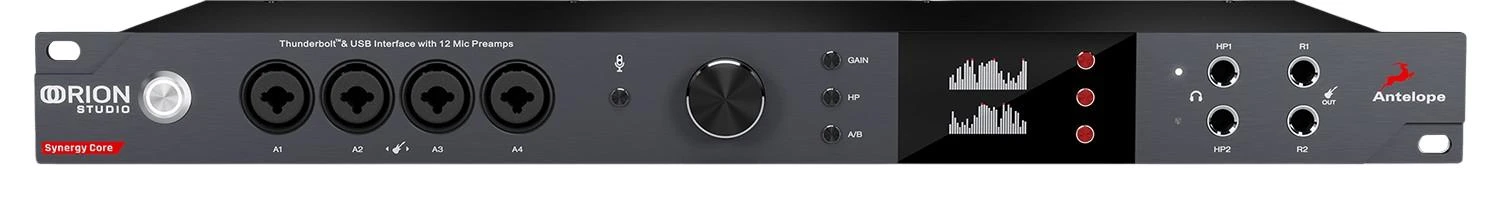

Antelope Audio Orion Studio Synergy Core Professional Thunderbolt 3 and USB 2 Interface

The Antelope Audio Orion Studio Synergy Core is an immensely powerful Thunderbolt 3 & USB audio interface that features 12 discrete preamps and 6 DSP/2 FPGA FX processors. Filled to the brim with modern features, this all-encompassing interface can easily become the centrepiece of your entire studio setup.

Boasting state-of-the-art AD/DA converters and Antelope Audio's acclaimed Synergy Core processing platform, this unit effortlessly crunches the numbers to ensure seamless, low-latency operation. Use more than 50 class-leading Synergy Core FX in real-time, modelled on legendary hardware studio units both past and present.

Key Features

• 6x DSP + 2x FPGA Synergy Core FX Processing
• Thunderbolt 3 & USB 2.0 Connectivity
• 12 discrete mic preamps with mic/line/instrument/direct recording
• State-of-the-art AD/DA converters
• 64-bit Acoustically Focused Clocking with oven-controlled crystal oscillator
• 2 mastering-grade Stereo monitor outputs
• 2 individual Stereo headphone outputs
• 2 Insert inputs and 2 ReAmp outputs
• 2x ADAT, S/PDIF, Word Clock digital I/O
• 16 line outputs on DB25 connectors
• Integrated Talkback microphone
• Intuitive software Control Panel with flexible signal routing

Here's what Antelope Audio say:

The FX Processing Beast

The new Orion Studio brings our recently pioneered Synergy Core FX processing platform to its next stage of evolution. With two proprietary Field Programmable Gate Aray (FPGA) chips and a whopping six ARM-based DSP processors on board, the sheer computing power contained in this interface is astounding! Leave CPU upgrades aside and let Synergy Core do the number-crunching.

6x DSP + 2x FPGA chips let the Orion Studio Synergy Core handle up to 32 FX channel strips X 8 FX slots each for a maximum of 256 FX instances, at any sample rate and over AFX2DAW. That's four times the processing power of the Orion Studio Rev. 2017.

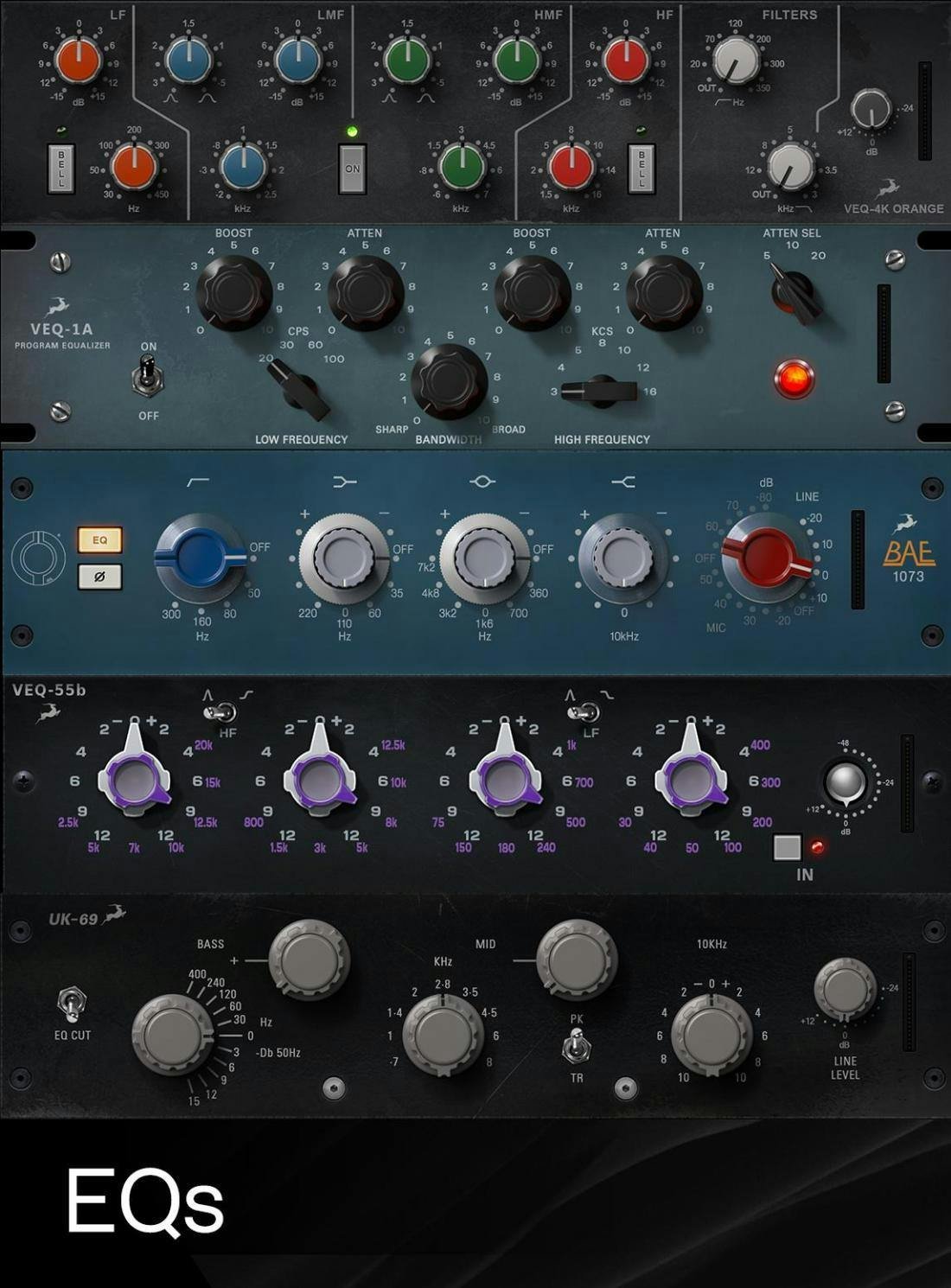

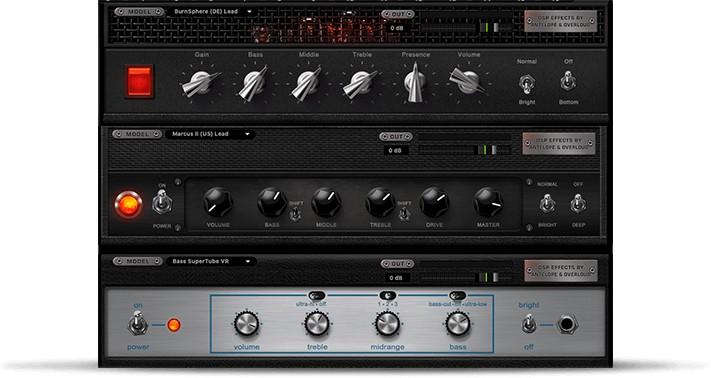

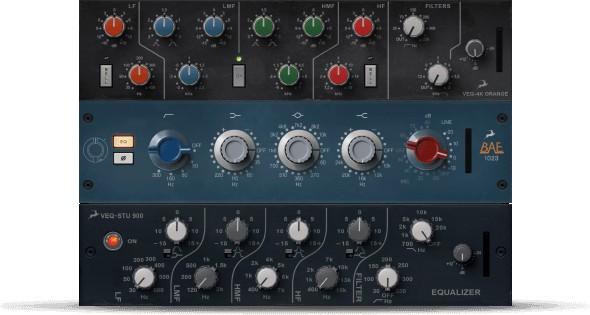

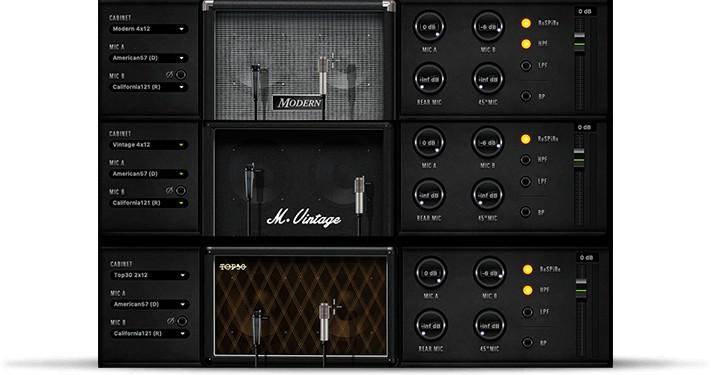

50 Synergy Core FX Included

Adding further value to your investment, the Оrion Studio Synergy Core includes a compelling library of 50 real-time studio effects, meticulously modelled after their hardware originals. It’s all happening inside your audio interface with the lowest latency possible thanks to FPGA’s massive parallel computing capabilities, DSP processing, and fast Thunderbolt connectivity. The library can be expanded to include any effects you choose from our web store.

Thunderbolt 3 Certified & USB Compatible

Thunderbolt 3 is the fastest, most versatile data connection available now. Orion Studio Synergy Core underwent a rigorious certification process to ensure operating system compatibility and stability. Not up to speed with Thunderbolt 3? Worry not, the interface is backwards-compatible with Thunderbolt 2, and we also left the USB 2.0 port intact – it’s right where you’d expect it to be. This way, the Orion Studio Synergy Core works with any DAW, on any modern Windows or macOS computer.

Forget Latency

Record and monitor with maxed-out effects chains at high sample rates and low buffer sizes without taxing your CPU! You can enjoy Latency-Free Direct Monitoring over 4 independent internal mixers with 32 assignable inputs and stereo outputs.

12 Discrete Preamps

The outcome of a long, hard look into iconic microphone preamp circuitry, our discrete transistor pres honor the finest audio engineering practices while sounding absolutely exceptional. They also bring out the best in our Edge & Verge modeling condenser microphones, for vocal and instrument recording that truly keeps up with the times.

Go Direct

All Orion Studio Synergy Core analog inputs have the Direct-In feature to let you bypass preamp controls and record line-in signals directly into the converters. Get ready to hear the truth!

Immense Analog & Digital Flexibility

There’s no task too big or too small for the Orion Studio Synergy Core. Record high-impedance instruments, such as the electric guitar, through four Hi-Z inputs and reamp DI tracks through the special purpose ReAmp outputs. Take advantage of all 16 line outputs (on DB25 connectors). Handle digital audio via S/PDIF and ADAT. Freely route all incoming and outgoing audio from an intuitive software Routing Matrix. Then hear the result from two pairs of headphones or studio monitors – simultaneously, if you need to.

Any Audio Anywhere

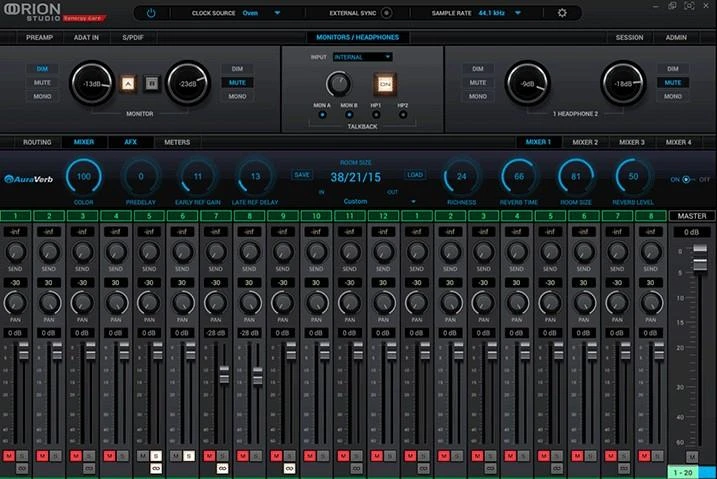

The Software Control Panel is the “mediator” between the Orion Studio Synergy Core and your DAW. Handle gain adjustments, signal routing, effects processing, mixing and metering from a single window. Route the resulting audio into your DAW for recording in formats of your choice, such as multi-track, stem, and two-channel stereo. Gone DAW-less? Route any audio to any output and take it to the recording medium of your choice.

• Immediate Access To Any Parameter
• Color-Coded Routing Matrix With User Labels and Undo/Redo Functions
• Four 32-Channel, Low-Latency Software Mixers
• Save and Load Custom Presets
• Single-Window Workflow

130 DB Dynamic Range

With an array of 12 audiophile-grade DACs, capable of up to 192kHz sample rates and 130dB dynamic range conversion each, Orion Studio Synergy Core is an AD/DA powerhouse! Capture your voice, instruments or mixing desk outputs exactly as they sound, with immaculate precision that’s as flawless as it’s unforgiving.

64-bit Acoustically Focused Clocking

The pioneer of atomic clocking in pro audio, Antelope Audio incorporates 20+ years of expertise in its audio interfaces. Our proprietary 64-bit Acoustically Focused Clocking jitter management algorithm helps deliver the kind of artifact-free audio once accessible only to the most prestigious studios. Furthermore, with the Word Clock outputs, you can distribute this highly stable clock signal across the rest of your digital gear to have everything running in smooth sync!

AFX2DAW In-DAW Effects Automation Over Thunderbolt

Taking advantage of high-speed Thunderbolt, the AFX2DAW plug-in lets you use Synergy Core effects as inserts inside your chosen DAW. This simplifies workflow and enables easy, immediate effects automation.

Reviews

"In the Orion Studio Synergy Core, Antelope Audio have produced a very well-thought-out combination of hardware features that will undoubtedly have wide appeal and, while it is still a significant investment, it represents good value for money." - Sound On Sound

"Studio operators who need both top-quality audio plus comprehensive i/o and routing will find much to like, and the included effects are the icing on the cake—OSSC is an especially strong entry in Antelope’s line." - Ask.Audio

In the Box

• Orion Studio Synergy Core Interface
• Quick Start Guide
• Inline External Power Supply Unit
• USB Cable

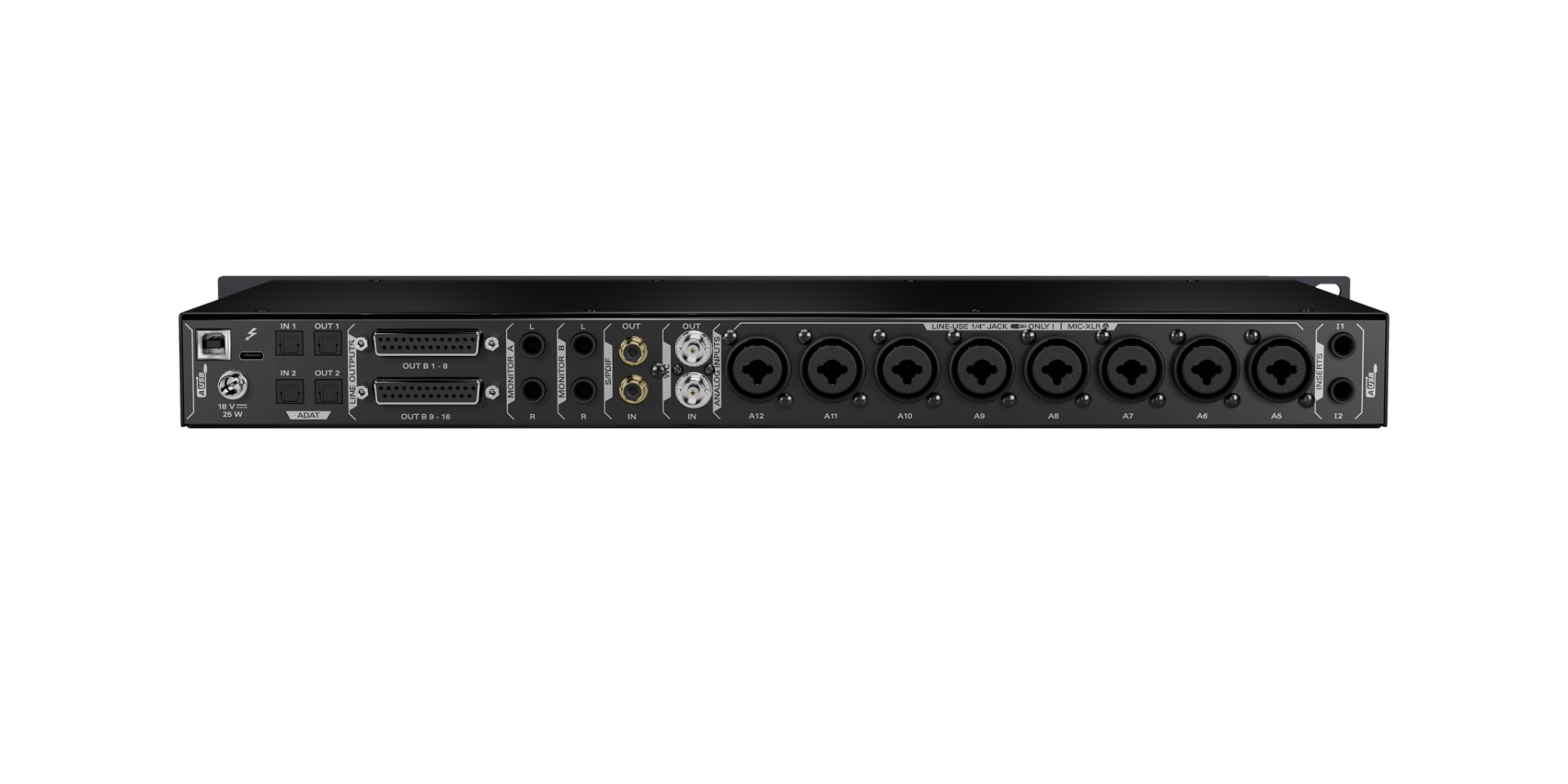

Specifications

Analog

Analog Inputs

• 8 x Mic / Line Inputs / Direct In
• 4 x Mic / Line / Hi-Z Inputs / Direct In
• 2 x Analog Inserts on TRS 1/4 Jacks

Analog Outputs

• 2 x Monitor Out (Pair) on TRS 1/4 Jacks: Can work both in parallel or in A/B mode
• 2 x ReAmp Out on TRS 1/4 Jacks
• 2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
• 2 x Stereo Headphone Outputs

Mic Preamp

• EIN: -128 dBu
• Dynamic Range: -121 dB
• THD: -106 dB
• Max input: +20 dBu
• Max Gain: 75 dB

D/A Monitor Converter

• Dynamic Range: 130 dB
• THD + N: -115 dB

A/D Converter

• Dynamic Range: 124 dB
• THD + N: -112 dB

D/A Converter

• Dynamic Range: 128dB
• TTHD + N: -115dB

Digital

Digital Inputs

• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF (up to 2 channels)

Digital Outputs

• 2 x ADAT (up to 16 channels)
• 1 x S/PDIF (up to 2 channels)

USB 2.0 I/O

• USB 2.0 Type B connector
• (up to 24 channels)

Thunderbolt

• Thunderbolt 3 connector
• (up to 32 channels)

Clocking

Word Clock Input

• 1 × Input @ 75 Ohms 3Vpp
• on BNC 32 – 192kHz

Word Clock Outputs

• 1 × Outputs @ 75 Ohms 3Vpp
• on BNC 32 – 192kHz

Clocking System

• 4th Generation Acoustically
• Focused Clocking
• 64-bit DDS

Sample Rates (kHz)

• 44.1, 48, 88.2, 96, 176.4, 192

Other

Operating Temperature

• 0-50°C, 32-122°F

 Weight (Approx)

• 3.1 kg/ 6.83 lbs

Dimensions (Approx)

• Width: 483 mm / 19”
• Height: 44 mm / 1.7”
• Depth: 220 mm /8.6”

Power Consumption

• 25 Watts
