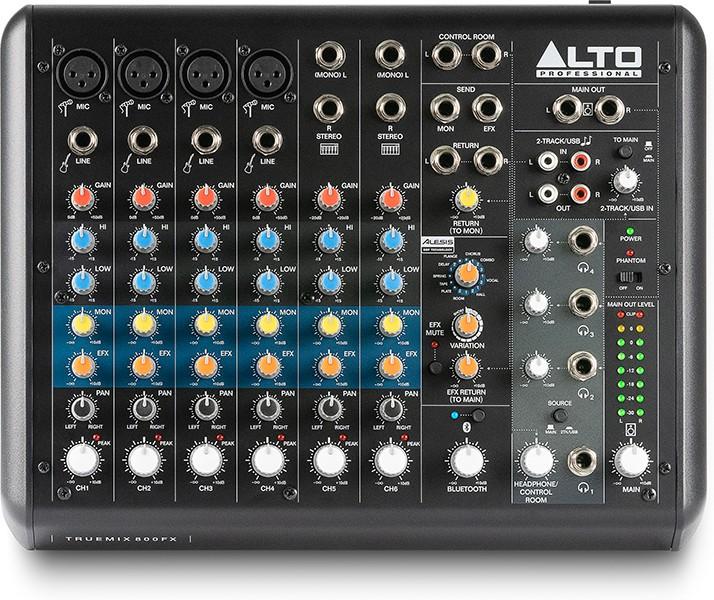

Alto TRUEMIX 800FX 8ch Analog Mixer With Alesis Multi FX, USB & Bluetooth

The Alto TrueMix 800 FX is a compact 8 channel analogue mixer designed to handle home recording, livestreaming, podcasting and small performances with ease. With USB connectivity, Bluetooth streaming, four independent headphone outputs and built in Alesis multi effects, it gives you flexible routing and polished sound in a portable, easy to use package.

Featuring four mic channels with phantom power, two stereo line channels, 16 onboard effects and intuitive two band EQ on every channel, the TrueMix 800 FX is built to keep your workflow fast and your audio clear. Whether you are tracking a band, running a live stream or recording a podcast with multiple guests, this mixer keeps everything connected and under control.

Compact Mixer for Recording, Streaming and Performance

The TrueMix 800 FX packs a full featured front end into a small footprint, making it ideal for desktop studios, rehearsal spaces and mobile rigs. Eight analogue inputs with high headroom circuitry minimise noise and clipping, so your mics, instruments and line sources all sound clean and detailed. With simple, clearly laid out controls, it is quick to get up and running, even if you are new to mixing.

Built In Alesis Multi Effects

With 16 onboard Alesis effects including chorus, flange, delays and reverbs, you can add space, depth and character without needing external processors. A dedicated effects return channel lets you balance the overall effect level precisely in your mix, keeping vocals, instruments and ambience sitting just right.

USB and Bluetooth Connectivity

USB I/O makes it easy to connect the TrueMix 800 FX to a Windows or macOS computer for stereo recording and playback. The dedicated Bluetooth channel lets you stream backing tracks or reference music straight from your phone or tablet, and mix minus technology provides feedback free phone pairing, perfect for taking calls or remote guests in podcasts and streams.

Flexible Monitoring and Routing

Four headphone outputs, each with their own volume control, mean everyone can have a personal monitoring level without extra headphone amps. 2 track inputs with assignable routing allow you to send external audio either to the main mix or just to the headphones, while main, tape and aux outputs give you multiple options for feeding speakers, recorders or outboard gear.

Simple, Effective Tone Shaping

Every channel on the TrueMix 800 FX features a two band EQ, letting you quickly tidy low end or add clarity to vocals and instruments. Colour coded knobs make it easy to see what you are adjusting, even in low light, and the included extra knob caps allow you to customise the look of your mixer to suit your setup.

• 8 Channel Analogue Mixer with USB - Four mic channels with phantom power, two stereo line channels and USB I/O give you all the core connections you need for recording, streaming and small live setups, keeping your rig compact while still offering plenty of inputs.
• 16 Alesis Multi Effects with Dedicated Return - Built in chorus, flange, delays and reverbs let you enhance vocals and instruments without extra hardware, and the dedicated effects return channel gives you precise control over how much processing sits in the final mix.
• Bluetooth Channel with Mix Minus - Stream audio wirelessly from your phone or tablet and use mix minus technology for feedback free phone pairing, ideal for bringing in callers or remote guests during podcasts, interviews and livestreams.
• Four Independent Headphone Outputs - Each headphone output has its own volume control, so multiple performers, presenters or guests can monitor comfortably at their preferred level without affecting the main mix or each other.

General

• Product: Alto TrueMix 800 FX
• Type: 8 channel compact analogue mixer with USB, Bluetooth and Alesis multi effects

Inputs

• Mic Inputs: 4 x XLR (with 48 V phantom power)
• Mic Gain Range (Channels 1 to 2): 0 dB to 50 dB
• Line Inputs (Channels 1 to 2): 4 dBu nominal, 15 dBu to 35 dBu gain range
• Line Inputs (Channels 3 to 6): 1/4 inch TRS, 20 dBu to +20 dBu gain range
• Stereo Inputs: 2 x stereo channels, each with dual balanced 1/4 inch TRS jacks
• 2 Track Input: 1 x RCA L/R
• USB Input: 1 x USB type B
• Bluetooth: Profile A2DP, Bluetooth 5.0

Outputs

• Main Outputs: 1/4 inch TRS (stereo L/R)
• Tape Output: 1 x RCA L/R
• AUX Outputs: 1/4 inch TRS
• Headphone Outputs: 4 x 1/4 inch TRS, each with independent volume control
• USB Output: Stereo copy of main outputs

Performance

• Frequency Response: 20 Hz to 22 kHz (±1 dB, all inputs)
• THD+N: Less than 0.005 percent (@ 4 dBu, 1 kHz, all inputs)
• Maximum Voltage Gain: 70 dB (mic input to main mix output)
• Maximum Voltage Gain: 80 dB (mic input to control room or phones output)
• Maximum Voltage Gain: 60 dB (mic input to monitor send)
• SNR (Signal to Noise Ratio): Greater than 110 dBu (all inputs)
• Crosstalk Adjacent Inputs: Less than 80 dB @ 1 kHz
• Crosstalk Inputs to Outputs: Less than 75 dB @ 1 kHz (stereo L/R, channels 1 to 2, panned hard left or right)

Equalisation

• High: ±15 dB @ 12 kHz
• Low: ±15 dB @ 80 Hz
• EQ: Two band EQ on all channels

Impedance and Phantom Power

• Mic Input Impedance: 3.9 kΩ
• All Other Input Impedances: Greater than 10 kΩ
• AUX Output Impedance: 1 kΩ
• All Output Impedances: 120 Ω
• Phantom Power: +45 V to +49 V with switch control

Controls and Indicators

• Volume Control Knobs: 15 (1 per input, 1 return, 1 effects return, 1 2 track or USB in, 4 headphone outs, 1 Bluetooth, 1 main)
• Stereo Pan Control Knobs: 6 (1 per input)
• Monitor Volume Control Knobs: 6 (1 per input)
• EQ Low Control Knobs: 6 (1 per input)
• EQ High Control Knobs: 6 (1 per input)
• Gain Control Knobs: 6 (1 per input)
• Buttons: 4 (effects mute, Bluetooth, 2 x source select)
• Switches: 1 x horizontal sliding switch
• Power LED: 1
• Peak LEDs: 6
• Phantom Power LED: 1
• Main Out Meter LEDs: 16 segment LED VU meter
• Bluetooth LED: 1

Bluetooth

• Profile: A2DP
• Version: Bluetooth 5.0
• Operating Frequency: 2402 MHz to 2480 MHz
• Range: Up to 100 ft / 30.5 m

Power

• Connection: DC power input
• Voltage: 18 V, 1.2 A
• Power Consumption: 18 W

Physical

• Dimensions (W x D x H): 305 x 238.5 x 79 mm
• Weight: 2.04 kg
