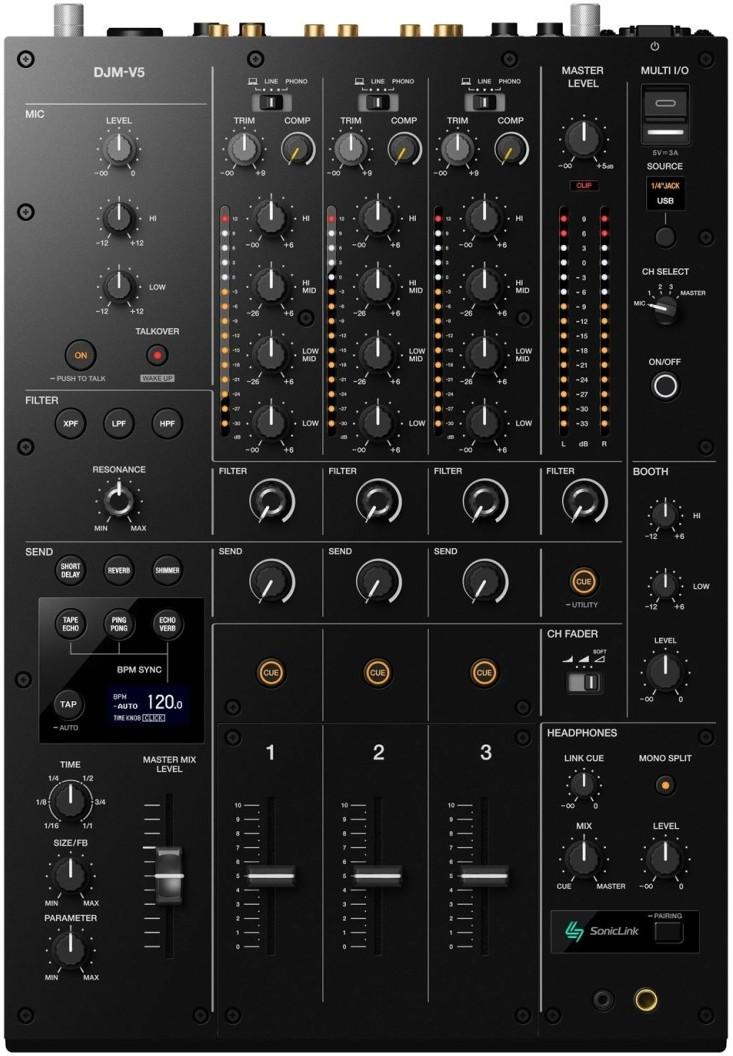

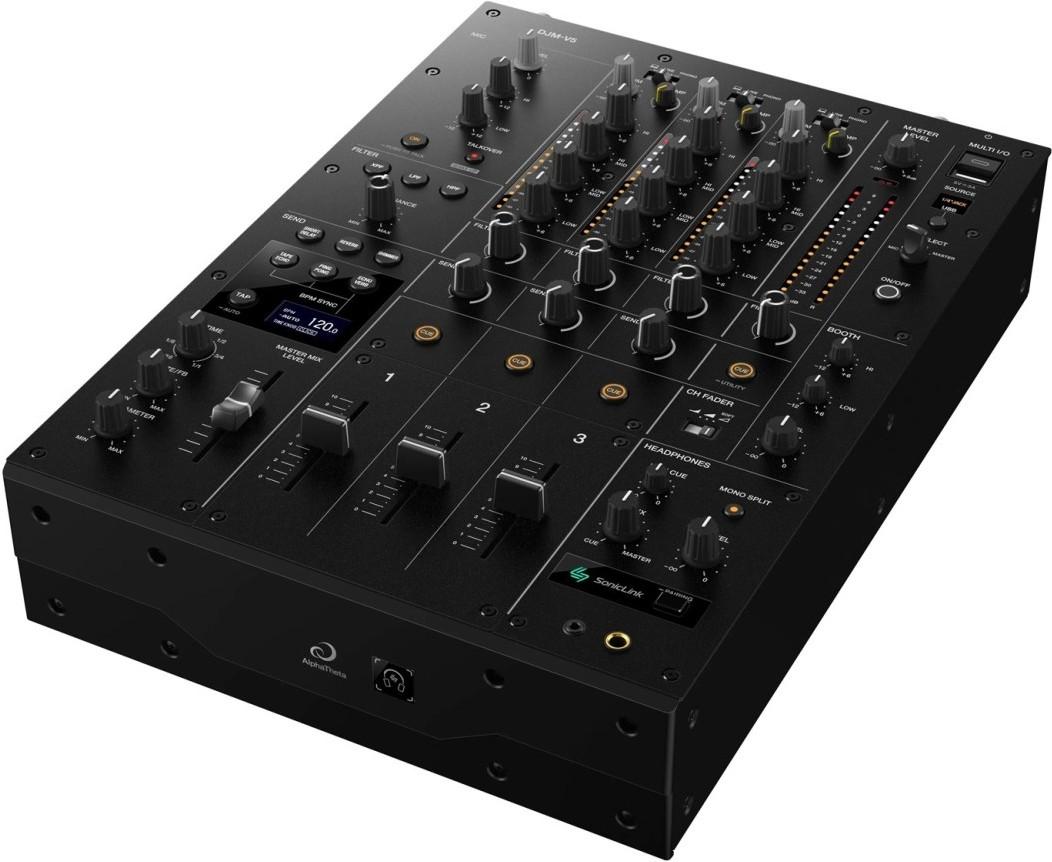

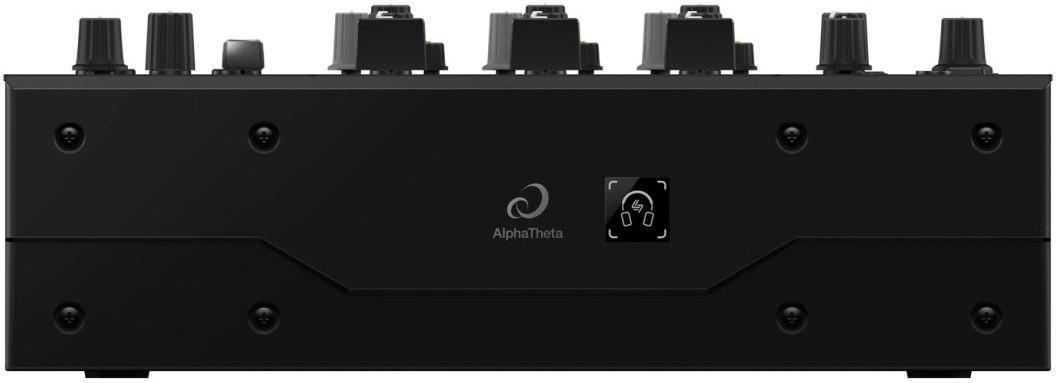

AlphaTheta DJM-V5 3 Channel Professional DJ Mixer 96-Bit / 4-Band EQ

The AlphaTheta DJM-V5 is a 3-channel professional DJ mixer built for detailed, layered mixing in modern digital setups. With a musical 4-band EQ on every channel, long-throw faders, hands-on BPM-aware send effects and advanced connectivity including SonicLink, PRO DJ LINK and dual USB-C, it gives you precise control over every part of your sound while keeping your workflow fast and intuitive.

Whether you are building long, evolving blends, running multiple decks and stems, or integrating external effects and software, the DJM-V5 is designed to stay clean, controlled and musical. Its 96 kHz / 32-bit audio path keeps your mixes sounding open and detailed, while the monitoring and cue options help you make confident decisions in the booth or studio.

4-Band EQ For Surgical Yet Musical Control

The DJM-V5 equips each of its three channels with a 4-band EQ inherited from the flagship DJM-V10, splitting the spectrum into low, low-mid, high-mid and high. This lets you target problem frequencies or emphasise key elements without upsetting the rest of the mix. You can gently tuck low mids out of the way of a vocal, or lift high mids to bring a lead to the front, all while keeping the overall tone balanced and musical rather than extreme.

Long-Throw Faders And Soft Mix Curve

Each channel features a 60 mm long-throw fader, giving you more physical travel for precise level control. This extra length makes slow blends and detailed transitions feel smoother and more controlled, especially when you are working across multiple layers. The Soft Mix Curve subtly shapes high frequencies as you bring in the next track, helping to avoid harsh overlaps and making your transitions sound more natural and refined.

Creative, BPM-Aware Send Effects

Six dedicated send effects are available directly from each channel via individual knobs, so you can add movement and space exactly where you want it rather than across the whole mix. Delay-style and reverb-style effects are time-aware, with controls that adapt to the selected effect and support BPM-synchronised operation. This keeps your echoes and ambience locked to the groove while still allowing manual tweaks, making it easy to build tension, create breakdowns or add subtle texture on the fly.

Modern Connectivity And Wireless Monitoring

With SonicLink support, the DJM-V5 enables ultra-low-latency wireless monitoring to compatible devices, helping to keep your booth tidy and flexible. PRO DJ LINK integration allows tight communication with supported CDJs and rekordbox, unlocking BPM-synced effects and Link Cue so you can preview sections without loading them to a deck. Dual USB Type-C ports support rekordbox, Serato DJ Pro, mobile devices and external effect units, giving you a central hub for performance, streaming and recording workflows.

• 4-Band Channel EQ For Precision Shaping - Separate low, low-mid, high-mid and high controls on every channel let you fine-tune your mix with far more accuracy than a standard 3-band EQ. You can carve space for vocals, tighten low mids or brighten a lead without disturbing the rest of the spectrum, helping layered sets stay clear and intentional.
• 60 mm Long-Throw Faders With Soft Mix Curve - Extended 60 mm channel faders give you more room for subtle level moves, ideal for long blends and nuanced transitions. The Soft Mix Curve gently smooths high frequencies as you introduce new tracks, reducing harshness and making your mixes sound more polished and controlled.
• Six BPM-Aware Send Effects Per Channel - Dedicated send knobs on each channel feed six built-in effects, including delay and reverb-style options. With BPM-synchronised timing and effect-specific time controls, you can add rhythmic echoes, spacious tails or creative swells that stay locked to the beat and enhance individual elements rather than washing over the entire output.
• SonicLink, PRO DJ LINK And Dual USB-C Connectivity - SonicLink wireless monitoring delivers ultra-low-latency audio to compatible devices, while PRO DJ LINK integrates the mixer with supported CDJs and rekordbox for tight BPM and Link Cue control. Two USB Type-C ports provide flexible connections for software, mobile devices and external gear, making the DJM-V5 a powerful centrepiece for modern hybrid and digital setups.

General

• Product: AlphaTheta DJM-V5 3 Channel Professional DJ Mixer
• Sampling Rate: 96 kHz
• A/D Converter: 32 Bit
• D/A Converter: 32 Bit
• EQ: 4 Band
• Product Code: DJM-V5

Dimensions And Weight

• Max External Dimensions (W × D × H): 302.0 × 437.5 × 107.9 mm / 11.89″ × 17.22″ × 4.25″
• Main Unit Weight: 8.0 kg / 17.6 lbs

Inputs

• Phono Inputs: 3 × RCA
• Line Inputs: 3 × RCA
• Mic Inputs: 1 × XLR / 1/4-Inch TRS jack

Outputs

• Master Out: 1 × XLR
• Booth Out: 1 × 1/4-Inch TRS jack
• REC Out: 1 × RCA
• Headphone Outputs: 2 (1/4-Inch / 3.5 mm)

Send / Return

• Send: 1 × 1/4-Inch TS jack
• Return: 1 × 1/4-Inch TS jack

Connectivity

• LAN: 1 × LAN port
• USB: 2 × USB Type-C (Multi I/O ×1, PC/Mac ×1)

Performance Audio

• S/N Ratio (Line): 105 dB
• S/N Ratio (Phono): 88 dB
• S/N Ratio (Mic): 79 dB
