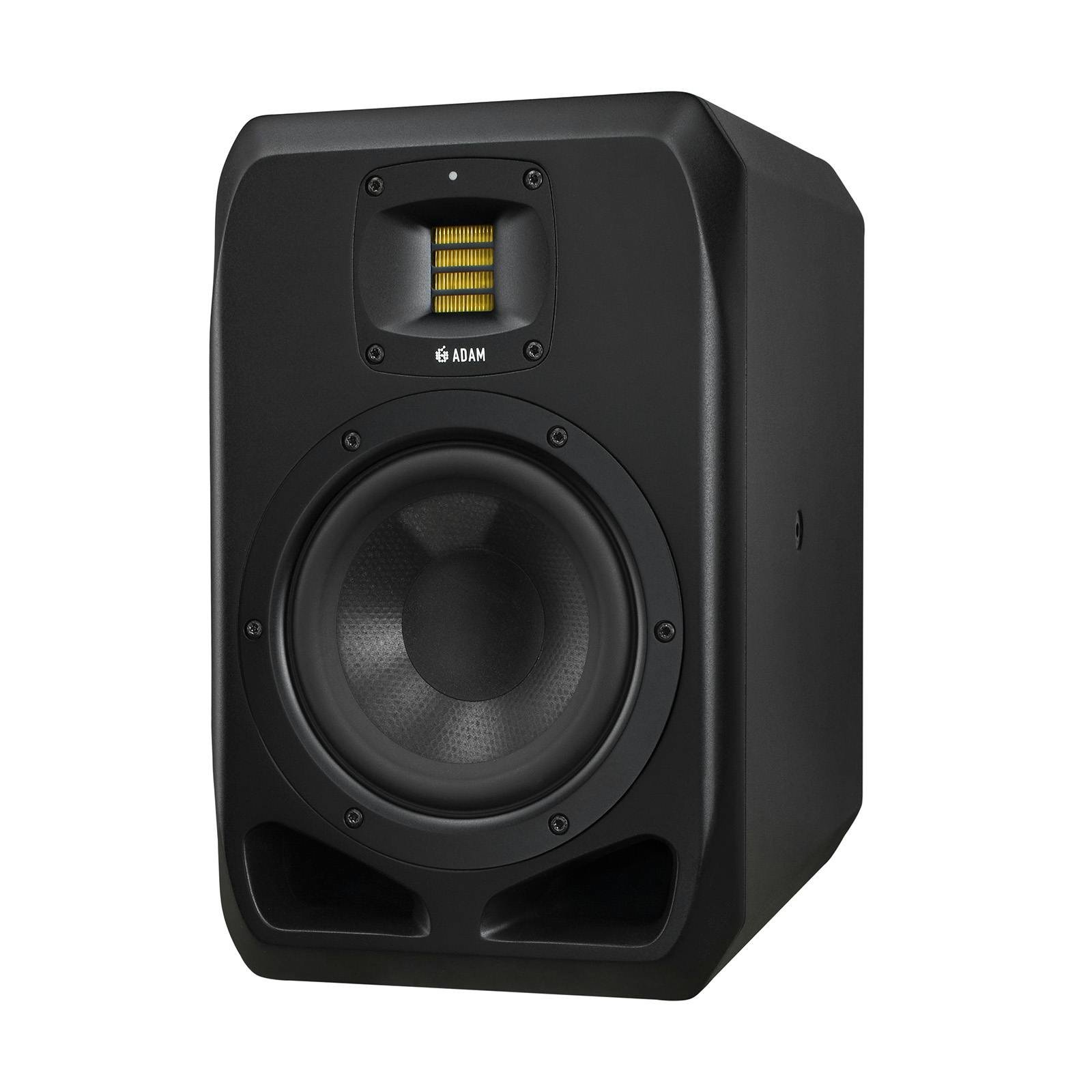

ADAM Audio S2V 7-Inch Two-Way Nearfield Monitor
FREE UK Delivery
Earn 1200 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: S2V
You might also need
Product Description
Here's What ADAM Audio Say About the S2V
The S2V is a classic two-way nearfield monitor designed for use in small-to-medium-sized control rooms.
The 7-inch bass driver, newly created from the ground up for the S Series, covers frequencies ranging from 35 Hz to 3 kHz and delivers a powerful, distortion-free low-end with a wide dynamic range. The carefully refined S-ART tweeter, hand built as ever at the ADAM Audio factory in Berlin, works seamlessly in tandem with the newly developed HPS waveguide, creating absolutely precise imaging within a generously proportioned sweet spot.
The S2V’s compact dimensions belie its impressive power. A 300 W Class D amplifier drives the woofer while a 50 W Class A/B unit handles the S-ART tweeter; the combined output produces SPLs of up to 120dB per pair.
The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.
With its highly accurate frequency response and balanced, razor-sharp imaging, the S2V allows users to pinpoint even the most subtle audio details, making it an ideal choice for use in demanding studio environments.
Key Features
- German Handmade Precision S-ART Tweeter with HPS Waveguide
- 7“ Woofer (Hexacone)
- Cumulated Amp. Power RMS: 350 W
- Frequency Response: 35 Hz - 50 kHz
- Max. SPL Per Pair at 1 m: ≥120 dB
- AES3 Digital Inputs And Various Expansion Options
Technical Data
Woofer
- Number: 1
- Basket Ø: 7" (178 mm)
- Voice Coil Ø: 1.5" (39 mm)
- Cone Material: HexaCone
Tweeter
- Number: 1
- Type: S-ART
- Diaphragm Area: 4 inch² (2420 mm²)
- Equiv. Diaphragm Ø: 2" (56 mm)
- Velocity Transform Ratio: 4:1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS
Built-In Amplifiers
- Number: 2
- Woofer: 1
- Type: PWM
- Amp. Power RMS: 300 W
- Tweeter: 1
- Type: A/B
- Amp. Power RMS: 50 W
Control Options
- Input Sensitivity: Adjustable
- Parametric EQs: 6
- Room Compensation High-Shelf EQ: 1
- Room Compensation Low-Shelf EQ: 1
- Preset Memories: 5
- Delay: 0 ms to 5 ms
Input Connectors
- Analog: XLR
- Input Impedance: 48 kOhm
- Max. Input Level: +24 dBu
- Digital: AES3
General Data
- Panel: Rear
- Frequency Response: 35 Hz - 50 kHz
- THD > 100 Hz: ≤0.4 %
- Max. SPL per pair at 1 m: ≥120 dB
- Crossover Frequencies: 3 kHz
- Max. Power Consumption: 230 W
- Weight: 24.2 lb (11.0 kg)
- Height x Width x Depth: 13,6" (346 mm) x 8,7" (222 mm) x 13,3“ (338 mm )
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents: Power cord, Manual
