Warwick Amps DS 800 - Double Stage Bass Amp Head 800 Watt

The Warwick DS 800 Double Stage Bass Amp Head is a compact, modern powerhouse that delivers 800 watts of articulate, studio-ready bass tone in a gig-friendly package. With dual channels, a flexible 4-band EQ, built-in compressor, cab emulation, Bluetooth and USB connectivity, it is designed to cover everything from silent practice and home recording to full-scale live shows with ease.

At its heart, the DS 800 is a solid-state, Class D design that offers huge headroom and fast, punchy response, keeping your low end tight and controlled at any volume. The intuitive front panel layout gives you instant access to gain, EQ, compression and channel switching, while the rear panel is loaded with professional connections including DI out, FX loop, bi-amp line out and selectable cab emulation. Whether you are a session player, gigging pro or home recording enthusiast, this head gives your bass a clear, powerful voice in any scenario.

Powerful, Portable Performance

Delivering up to 800 watts at 4 ohms (480 watts at 8 ohms), the DS 800 has more than enough power for loud stages and demanding rehearsals, yet remains compact and lightweight at just 3.63 kg. The Class D power section keeps things efficient and cool-running, so you get consistent performance night after night without lugging around a heavy rack rig.

Dual Channel Flexibility

The double stage design gives you two fully controllable channels with stacked controls for gain, EQ and volume. This makes it easy to set up a clean, articulate sound on one channel and a more driven or mid-forward tone on the other, then switch between them instantly from the front panel or via an optional footswitch. It is ideal for players who cover multiple styles in a single set.

Deep Tone Shaping and Compression

A 4-band EQ with selectable low-mid and high-mid frequency points lets you dial in your sound precisely for any bass, cab or room. The onboard compressor, with separate amount and level controls, helps even out your dynamics, add punch and protect against unwanted peaks. With clear LED indication for clipping, channel status and compression, you can see exactly what your signal is doing at a glance.

Modern Connectivity for Stage and Studio

The DS 800 is built to integrate seamlessly into modern setups. Bluetooth and aux inputs allow you to play along with tracks, while the headphone output and tuner function make silent practice simple. On the rear, a balanced XLR DI with pre/post EQ and ground lift, selectable cab emulator, FX loop with level controls, USB-B port and bi-amp capable line out give you all the tools you need for professional live and recording environments.

• 800 Watt Class D Power - With 800 watts at 4 ohms and 480 watts at 8 ohms, the DS 800 delivers massive headroom and punch while staying lightweight and efficient. You get tight, controlled lows and clear highs at any volume, making it suitable for everything from small clubs to large stages.
• Dual Channel Double Stage Design - Two independent channels with stacked controls for gain, EQ and volume let you store contrasting sounds and switch between them instantly. Set up a pristine clean and a more aggressive tone, or tailor separate sounds for different basses, all within one compact head.
• Comprehensive Tone Shaping and Compression - A 4-band EQ with mid frequency presets, plus an onboard compressor with amount and level controls, gives you detailed control over your sound. Shape your mids to cut through the mix, tighten the low end and smooth out your dynamics without needing extra pedals.
• Full Connectivity with Cab Emulator, DI and USB - Bluetooth and aux in for playback, headphone out for silent practice, balanced DI with pre/post and ground lift, selectable cab emulation, FX loop, bi-amp line out and USB-B connectivity mean the DS 800 slots straight into any modern rig. It is equally at home on stage, in the studio or on the desk for practice and recording.

General

• Product: Warwick DS 800 Double Stage Bass Amp Head
• Amplifier Type: Solid-state, Class D
• Channels: Dual channel double stage design
• Power Output: 800 W at 4 ohms / 480 W at 8 ohms

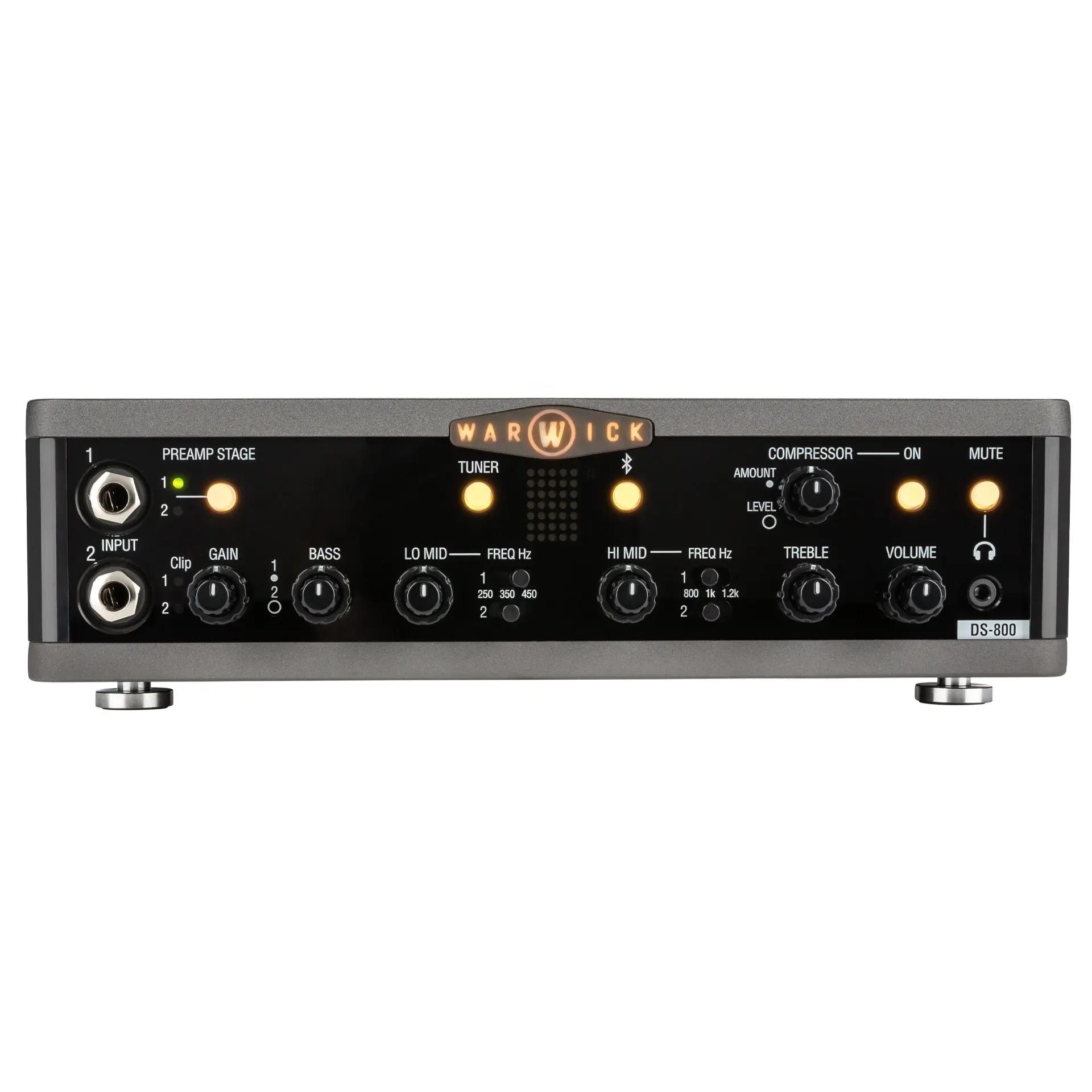

Front Panel Controls and Features

• Stacked 2-channel controls for Gain, Bass, Lo Mid, Hi Mid, Treble, Volume
• 2-channel frequency selector switches for Lo Mid and Hi Mid
• 4-band EQ with mid presets
• Compressor controls: Amount / Level (stacked)
• Compressor on/off switch
• Channel selector switch
• Bluetooth switch
• Tuner switch
• Tuner indication
• LED clip indication
• LED channel indication
• Mute switch
• Headphone output: 3.5 mm stereo
• 2 x input jacks: 6.35 mm mono

Rear Panel Connections

• Power on/off switch
• Aux in: 3.5 mm stereo
• FX loop send and return: 6.35 mm mono, with separate level controls
• Balanced XLR DI output with pre/post EQ switch and ground lift switch
• Cab emulator selector switch: Off + 3 modes
• 2 x speaker outputs: Speaker twist jacks
• Line-out jack: 6.35 mm mono with fullrange/bi-amp switch
• USB-B port
• Footswitch jack for channel and compressor
• Mains connection: IEC socket
• Voltage select switch: 120/240 VAC

Power and Dimensions

• Input Voltage: 120 - 240 VAC, 50-60 Hz
• Power Consumption: 100 W
• Dimensions (W x D x H): 250 x 270 x 74 mm
• Weight: 3.63 kg
• Version: 230 V EU version
• Included: Power cord with EU plug
• Usage Note: Device can only be used in countries with 120-230 V mains voltage
