DPA Microphones 4099 CORE+ Classic Touring Microphone Kit

The DPA 4099 CORE+ Classic Touring Microphone Kit is a complete, road-ready solution for close-miking acoustic instruments on stage or in the studio. Centred around four 4099 CORE+ supercardioid instrument microphones, this kit delivers pristine, natural sound with exceptional isolation, high SPL handling and a flexible clip system that lets you move seamlessly between bass, cello, guitar, piano and violin.

With upgraded CORE+ technology, improved off-axis rejection and the robust MicroLock connector system, the 4099 CORE+ is built to handle demanding touring schedules and critical recording sessions alike. The included DAD9001 XLR adapters and selection of dedicated instrument clips make it easy to deploy consistent, world-class sound across your backline with minimal setup time.

Natural, Detailed Instrument Sound

The 4099 CORE+ captures instruments with a clear, open and highly natural character, preserving the nuance of your playing without harshness. Its carefully tuned frequency response from 20 Hz to 20 kHz, with a gentle presence lift around 10-12 kHz, helps your instrument sit in the mix while still sounding authentic and uncoloured.

Supercardioid Control and High SPL Handling

A tight supercardioid pattern and impressive off-axis rejection give you superior gain before feedback, even on loud stages. With the ability to handle up to 145 dB SPL peak (10% THD) and a wide 118 dB dynamic range, the 4099 CORE+ comfortably manages everything from delicate passages to aggressive playing without distortion.

Flexible Clip System for Multiple Instruments

This Classic Touring Kit includes a comprehensive selection of instrument-specific clips for bass, cello, guitar, piano and violin. Each clip is designed to hold the microphone securely while allowing precise positioning on the instrument, so you can achieve consistent, repeatable results across a range of setups.

Tour-Ready Connectivity with MicroLock

The MicroLock connector and extension cables provide a compact, secure connection that is ideal for touring rigs and quick changeovers. The included DAD9001 MicroLock to 3-pin XLR adapters with belt clips integrate easily into standard stage and studio workflows, offering signal-balanced output and long cable runs up to 300 m when required.

• 4099 CORE+ Instrument Microphones - Four high-performance 4099 CORE+ microphones deliver consistent, natural sound across your instrument lineup. CORE+ technology reduces distortion and improves clarity, so every detail of your performance is captured with precision.
• Supercardioid Pattern with High Isolation - The tight supercardioid pickup pattern focuses on the source and rejects spill from nearby instruments and monitors. This gives you excellent gain before feedback and cleaner mixes, particularly in loud live environments.
• Comprehensive Touring Clip Set - Dedicated clips for bass, cello, guitar, piano and violin provide stable mounting and accurate placement on each instrument. This saves setup time and ensures consistent mic positioning from show to show.
• MicroLock and DAD9001 XLR Adapters - MicroLock connectors and extension cables offer a compact, secure connection, while the DAD9001 adapters provide phantom-powered XLR output. This combination integrates smoothly with professional stage boxes and consoles, supporting long cable runs without signal loss.

Microphone

• Model: 4099 CORE+ Instrument Microphone, Loud SPL

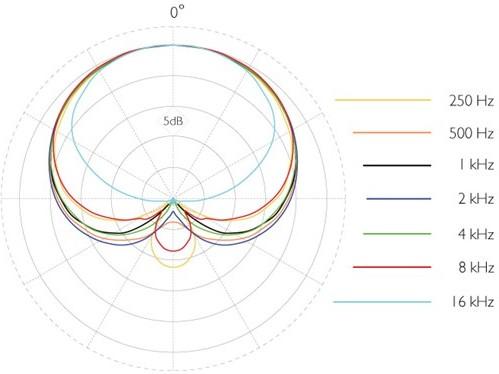

• Directional Pattern: Supercardioid
• Principle of Operation: Pressure gradient
• Cartridge Type: Pre-polarised condenser

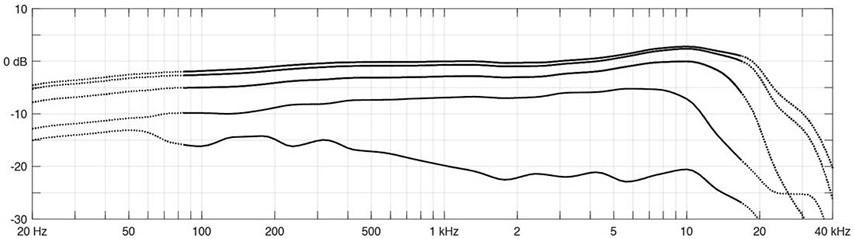

• Frequency Response: 20 Hz - 20 kHz
• Effective Frequency Range (±2 dB, at 20 cm): 80 Hz - 17 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity (nominal, ±3 dB at 1 kHz): 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent Noise Level, A-weighted: Typ. 23 dB(A) re. 20 μPa (max. 26 dB(A))
• Distortion, THD < 0.5%: 135 dB SPL RMS, 138 dB SPL peak
• Distortion, THD < 1%: 138 dB SPL RMS, 141 dB SPL peak
• Dynamic Range: Typ. 118 dB
• Max. SPL, THD 10%: 145 dB SPL peak
• Rated Output Impedance: From MicroLock: 30 - 40 Ω; from DAD9099 or DAD9001: 100 Ω
• Cable Drive Capability: Up to 300 m (984 ft) with DAD9001/DAD9099 XLR adapter
• Output Balance Principle: Signal balanced with DAD9099 or DAD9001 XLR adapter
• Power Supply (for full performance, wireless): Min. 5 V - max. 10 V through DPA adapter
• Power Supply with DAD9001 or DAD9099: P48 phantom power; will work from 12 V
• Current Consumption: Typ. 1.5 mA (microphone); 3.5 mA with DAD9099 or DAD9001 XLR adapter
• Connector: MicroLock
• Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)

Physical

• Microphone Diameter: 5.7 mm (0.22 in)
• Microphone Length: 50 mm (1.97 in)
• Gooseneck Length: 140 mm (5.5 in)
• Cable Length: 1.8 m (5.9 ft)
• Cable Diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
• Microphone Weight: 18 g (0.63 oz)

Environmental

• Temperature Range: -40°C to 45°C (-40°F to 113°F)
• Relative Humidity: Up to 90% RH

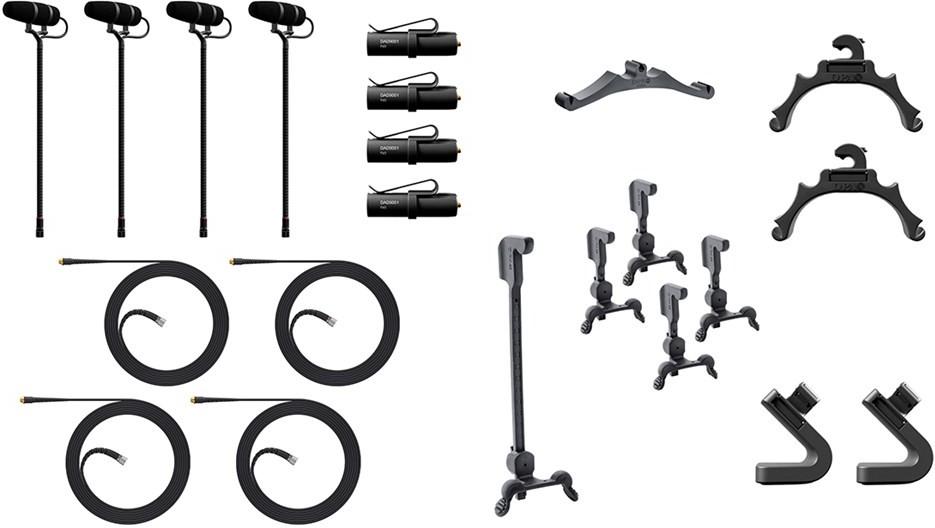

Included Clips and Accessories

• 4099-DP-1 Instrument Microphone, Loud SPL: 4 pcs
• MicroLock Extension Cable, 1.6 mm: 4 pcs
• DAD9001 MicroLock to 3-pin XLR with Belt Clip: 4 pcs
• Microphone Clip for Bass (BC4099): 1 pc
• Microphone Clip for Cello (C-CLIP): 2 pcs
• Microphone Clip for Guitar (GC4099): 1 pc
• Microphone Clip for Piano (P-CLIP): 2 pcs
• Microphone Clip for Violin (VC4099): 4 pcs
