DPA 4099 CORE+ Condenser Mic With Extreme SPL

The DPA 4099 CORE+ Extreme SPL is a premium clip-on instrument microphone designed for the loudest stages and studios. With a supercardioid pattern, ultra-high SPL handling and DPA’s CORE+ preamp technology, it delivers a pristine, natural sound with exceptional isolation and off-axis rejection, even in punishingly loud environments.

Built around a compact pre-polarised condenser capsule and a flexible gooseneck, the 4099 CORE+ Extreme SPL lets you position the mic exactly where you want it on almost any acoustic or amplified instrument. The updated MicroLock connector and upgraded clip system provide rock-solid stability and quick, repeatable setups, while full backwards compatibility with existing DPA clips and MicroDot accessories makes it easy to integrate into your current rig.

With a wide 20 Hz to 20 kHz frequency response, low distortion and a huge dynamic range, this mic captures every nuance of your playing without breaking up, even at extreme sound pressure levels. Whether you are close-miking brass, drums, percussion or other high-SPL sources, the 4099 CORE+ Extreme SPL keeps your tone clean, controlled and consistent from gig to gig.

Natural, Detailed Instrument Sound

The 4099 CORE+ Extreme SPL uses a pre-polarised condenser capsule with DPA’s CORE+ technology to deliver a clear, open and highly detailed sound. Its effective frequency range of 80 Hz to 17 kHz, with a gentle presence lift around 10 to 12 kHz, helps instruments cut through a mix without sounding harsh or artificial, making it ideal for both live reinforcement and studio recording.

Extreme SPL Handling with Low Distortion

Engineered for the loudest sources, the 4099 CORE+ maintains low distortion figures even at extremely high levels. With less than 0.5% THD at up to 135 dB SPL RMS and a maximum SPL of 145 dB SPL peak at 10% THD, it can comfortably handle aggressive brass, percussion and amplified instruments while preserving dynamics and transient detail.

Exceptional Isolation and Off-axis Rejection

The supercardioid polar pattern offers tight focus on the source with excellent rejection of bleed from neighbouring instruments and stage monitors. This high level of isolation makes it easier to achieve clean, controllable mixes in challenging live environments and reduces the need for heavy EQ or gating.

Flexible Mounting with MicroLock Connectivity

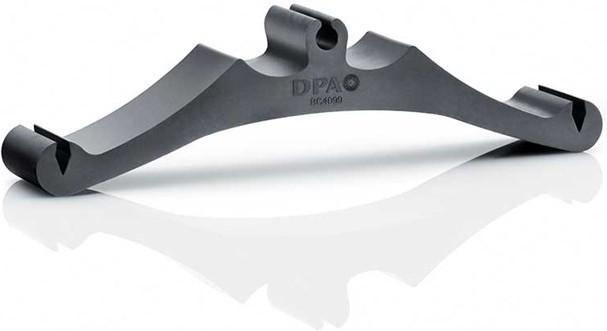

The integrated gooseneck and compact capsule allow precise placement on a wide variety of instruments, while the MicroLock connector ensures a secure, reliable connection. The 4099 CORE+ is fully backwards compatible with all generations of DPA instrument clips and MicroDot-based accessories, so you can reuse existing mounts and adaptors across your microphone collection.

• CORE+ Instrument Microphone - The latest CORE+ preamp technology delivers an exceptionally clean, natural and undistorted sound, preserving the true character of your instrument in both live and studio applications.
• Extreme SPL Capability - Designed for very high sound pressure levels, the Extreme SPL version offers robust performance on loud brass, drums and amplified sources, maintaining clarity and punch where lesser mics would compress or distort.
• Supercardioid Directional Pattern - A tight supercardioid pickup pattern provides strong isolation and off-axis rejection, helping to minimise bleed and feedback on crowded stages and in close-miking setups.
• MicroLock Connector and Backwards Compatibility - The MicroLock connector offers a secure, low-profile connection, and full backwards compatibility with existing DPA clips and MicroDot accessories ensures seamless integration into established workflows.

General

• Product: DPA 4099 CORE+ Extreme SPL Instrument Microphone
• Microphone type: Pre-polarised condenser
• Principle of operation: Pressure gradient

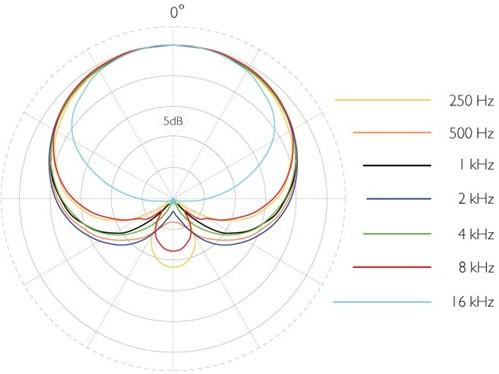

• Directional pattern: Supercardioid
• Colour: Black

Acoustic Performance

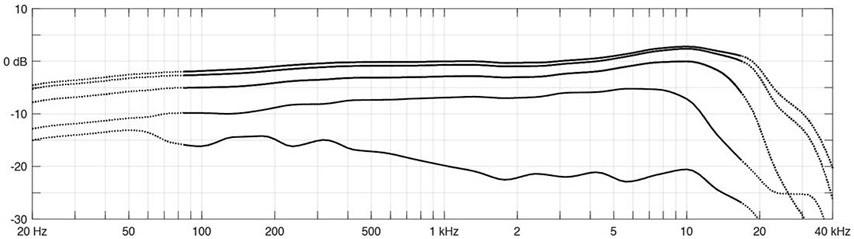

• Frequency response: 20 Hz to 20 kHz
• Effective frequency range (±2 dB, at 20 cm): 80 Hz to 17 kHz with 2 dB soft boost at 10 to 12 kHz
• Sensitivity, nominal (1 kHz): 2 mV/Pa (Extreme SPL version)
• Equivalent noise level, A-weighted: Typical 23 dB(A) re. 20 μPa (max. 26 dB(A))
• THD < 0.5 percent: 135 dB SPL RMS, 138 dB SPL peak
• THD < 1 percent: 138 dB SPL RMS, 141 dB SPL peak
• Dynamic range: Typical 118 dB
• Max. SPL, THD 10 percent: 145 dB SPL peak

Electrical

• Rated output impedance: From MicroLock 30 to 40 Ω
• Rated output impedance (with DAD9099 or DAD9001): 100 Ω
• Cable drive capability: Up to 300 m with DAD9001 or DAD9099 XLR adapter
• Output balance principle: Signal balanced with DAD9099 or DAD9001 XLR adapter
• Common mode rejection ratio: > 60 dB from 50 Hz to 15 kHz with DAD9099 or DAD9001 XLR adapter
• Power supply for wireless systems: Min. 5 V to max. 10 V through DPA adapter
• Power supply with DAD9001 or DAD9099: P48 phantom power, will work from 12 V
• Current consumption: Typical 1.5 mA (microphone), 3.5 mA with DAD9099 or DAD9001 XLR adapter
• Polarity: +V at MicroLock pin for positive sound pressure (and pin 2 on DAD9099 or DAD9001 XLR adapter)

Mechanical

• Connector: MicroLock
• Microphone diameter: 5.7 mm
• Microphone length: 50 mm
• Gooseneck length: 140 mm
• Cable length: 1.8 m (not included with 4099-DP-1 and 4099-DP-2)
• Cable diameter: 1.6 mm / 2.2 mm
• Microphone weight: 18 g

Environmental

• Operating temperature range: -40°C to 45°C
• Relative humidity: Up to 90 percent
