Tascam SB-16D - 16 In / 16 Out Dante Stage Box with built in 32-bit ADC & Class 1 HDIA mic-preamps
Tough and reliable stagebox
FREE UK Delivery
Earn 2390 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: SB-16D
You might also need
Product Description
The SB-16D is a Dante-enabled active stage box with 16 analogue inputs and 16 analogue outputs. As an analogue interface equipped with 32-bit A/D converters and Class 1 HDIA microphone preamps, the SB-16D captures your audio in the highest quality right at the beginning of the signal path. You can use multiple devices simultaneously in a Dante network, placed on the floor or mounted in a rack.
Having the same performance and hardware quality as Tascam Sonicview live recording consoles, the SB-16D offers all the advantages of Dante networking, combined with seamless integration with Sonicview mixers and other Dante-enabled products from Tascam and other manufacturers.
Key Features:
- Seamless Integration with Sonicview Mixers.

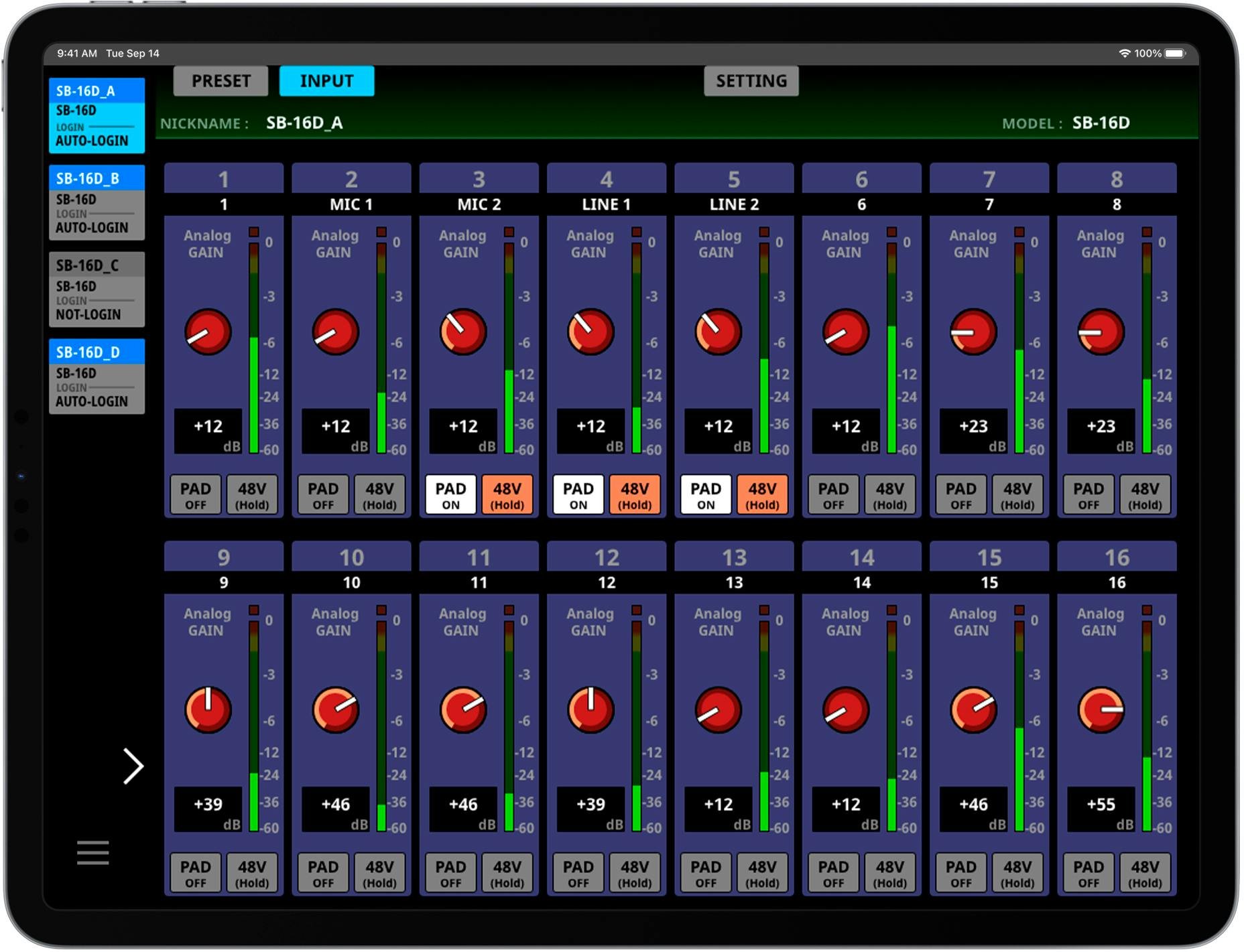

When an SB-16D stage box is connected to a Tascam Sonicview, microphone gain can be remotely controlled from the mixing console, and all inputs and outputs come up on the touchscreens for hassle-free ease of use. In addition, the SB-16D is equipped with a GPIO interface with eight inputs and outputs. These expand to 16 GPIO ins and outs when connected to a Sonicview mixer, facilitating parallel control. - Dante-Enabled For Superior Networking:
dante audio-over-IP networks integrate thousands of concert touring systems, as well as installed systems in recording studios, radio stations, corporate boardrooms, houses of worship, and much more.Sonicview consoles can serve as the audio center of these systems, thanks to a built-in 64-in/64-out Dante interface that supports Dante Domain Manager and have AES67 and SMPTE ST 2110 interoperability. Two Dante ports enable redundant streams. - Flexible Positioning on the Floor or in a 19-Inch Rack
Whether you want a networked floor box for stage use, or rack-mounted inputs and outputs for recording and broadcast studios and commercial installs, the SB-16D provides the flexibility you need. It can be installed in an EIA rack (3U) with the included brackets, which offer two angle options. Mount the jack panel on the front of the rack and take advantage of the SB-16D’s cable hole to conveniently and safely route connected cables in the back. Large rubber feet maintain stability, even with cables connected, when the SB-16D is used as a floor box. Multiple stage boxes can be stacked for ease of transportation and stability during installation. And a handle makes the SB-16D easy to carry. - A complete package with all the features you need:
Easily accommodate large ensembles and extensive installed Dante systems using 16 XLR mic/line inputs and 16 XLR line outputs. Need more I/O? Simply network multiple SB-16Ds. The mic/line inputs are extremely quiet, achieving –128 dBu EIN and allowing a maximum input level of +32 dBu. Each input channel offers switchable 48-volt phantom power with indicator as well as signal and overload LEDs for monitoring the input level. Level indicators on the line outputs show the presence of signals.
Specifications:
- Analogue inputs:
- 16 XLR Male (Balanced) - Analogue Outputs:
- 16 XLR Female Outputs (Balanced) - Digital Audio Inputs and Outputs:
- Dante: EtherCON Cat5e compatible
- 64 Channels (48kHz) / 32 Channels (96kHz) - Dimensions:
- Width: Feet attached: 454mm / Rack ears attached: 483mm
- Height: Feet attached: 140mm / Rack ears attached: 132mm
- Depth: Feet attached: 180mm / Rack ears attached: 120mm
- Weight: 4.5Kg - Permissible operating Temperature range: 0–40 °C
- Power:
- AC power supply: AC 100-240V, 50/60 Hz
-DC power supply: DC 11V/4A to DC 27V/2A
