Proel EIKON J&M V2 Handheld Wireless Microphone System

The Proel EIKON J&M V2 is a compact handheld UHF wireless microphone system designed for performers, presenters and venues that need reliable, cable-free operation in seconds. With a quartz-locked UHF link, built-in rechargeable batteries and a plug-in receiver that connects straight to your mixer or amp, it delivers clear, stable audio without the usual wireless faff.

Supplied as a complete system with handheld transmitter, connector-style receiver and USB charging cable, the EIKON J&M V2 is ideal for small stages, rehearsal rooms, houses of worship, schools and mobile entertainers. Up to six systems can be used in the same location, and with up to 30 metres operating range you are free to move naturally while keeping your sound consistent and controlled.

Reliable UHF Wireless Performance

The EIKON J&M V2 operates in professional UHF bands (512 - 541 MHz or 863 - 865 MHz), using quartz-locked PLL technology for rock-solid frequency stability. This helps to minimise dropouts and interference, so your voice stays clear and intelligible even in busy RF environments. With wideband FM stereo modulation and a dynamic range up to 106 dB, the system is built to deliver a clean, full-range signal that sits comfortably in any mix.

Compact Connector-Style Receiver

The ultra-light receiver plugs directly into a 6.3 mm mono jack input on your mixer, powered speaker or amp. There is no separate base station to carry or wire up, which keeps your setup tidy and fast. Despite its small size, the receiver offers up to 400 mW continuous output power and a receiving sensitivity better than -98 dBm, ensuring strong, stable reception across a working distance of 15 to 30 metres depending on conditions.

Rechargeable Convenience

Both the handheld transmitter and the receiver feature built-in 3.7 V / 500 mA lithium batteries, charged via the included 5 V USB to USB-C cable. With up to 5 hours of operating time (and up to 8 hours on the transmitter depending on volume level), the system is ready for rehearsals, events and short sets without constant battery changes. Simple USB charging makes it easy to top up power from common chargers or power banks between uses.

Flexible Multi-System Use

With 16 selectable frequency presets (or 50 on the 512 - 541 MHz version), the EIKON J&M V2 can be used alongside other wireless systems without clashes. Up to six systems can operate in the same location, making it a practical choice for multi-mic setups such as bands with several vocalists, conference panels, school productions or worship teams. Channel selection is straightforward, helping you quickly find a clear frequency and get on with the performance.

• UHF Quartz-Locked Transmission - Operates in stable UHF bands with quartz-locked PLL circuitry for excellent frequency accuracy and reduced interference. This gives you a more dependable wireless link, so you can focus on your performance rather than RF issues.
• Connector-Style Receiver with 6.3 mm Output - The compact receiver plugs straight into a standard 6.3 mm mono jack input, removing the need for a bulky base station and extra cables. Ideal for quick setups with powered speakers, small mixers or combo amps.
• Built-In Rechargeable Lithium Batteries - Integrated 3.7 V / 500 mA lithium batteries in both transmitter and receiver provide up to 5 hours of use, with USB charging for easy power management. You save on disposable batteries and always know you can recharge from common USB sources.
• Multi-Channel, Multi-System Capability - With 16 (or 50) selectable channels and support for up to six systems in the same space, the EIKON J&M V2 scales from solo use to full multi-mic setups. This flexibility makes it suitable for bands, schools, venues and event companies that need several wireless lines running together.

General

• System Type: UHF handheld wireless microphone system
• Components Included: EKJ&M handheld transmitter, EKJ&M connector-style receiver, USB to USB-C charging cable
• Frequency Channels: 16 presets (50 presets for 512 - 541 MHz model)
• Usable Systems in Same Location: Up to 6
• Operating Range: Up to 30 metres (15 to 30 metres depending on band and conditions)

RF

• RF Frequency Bands: UHF 512 - 541 MHz or 863 - 865 MHz
• RF Modulation Type: Wideband FM stereo
• RF Oscillation Mode: Quartz locked

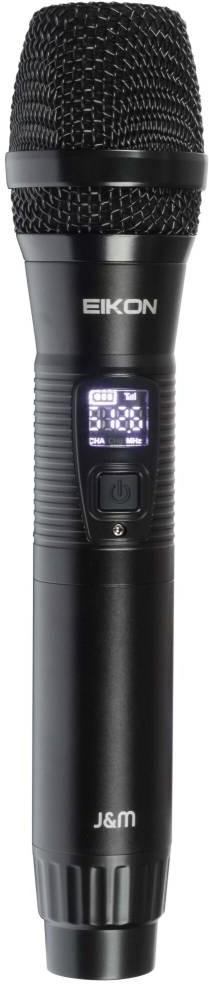

Transmitter (EKJ&M UHF PLL)

• RF Channels: 16 frequency presets (50 for 512 - 541 MHz model)
• RF Frequency Band: UHF 512 - 541 MHz or 863 - 865 MHz
• RF Frequency Stability: ±0.002%
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM stereo
• RF Output Power: 10 mW
• Sub-Harmonic: < 40 dB
• Operating Current: 130 mA
• Operating Time: 5 to 8 hours (depending on volume level)
• Power Supply: 3.7 V / 500 mA built-in lithium battery
• Charging Mode: USB charging 5 V, USB mini connector
• Charging Time: 5 hours
• Weight: 0.30 kg

Receiver (EKJ&M UHF PLL)

• RF Channels: 16 frequency presets (50 for 512 - 541 MHz model)
• RF Frequency Band: UHF 512 - 541 MHz or 863 - 865 MHz
• RF Frequency Stability: ±0.005%
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM stereo
• RF Receiving Sensitivity: < -98 dBm
• RF Receiving Range: 15 to 30 metres depending on band conditions
• Audio Dynamic Range: 106 dB
• THD Distortion: < 0.5%
• S/N Ratio: > 102 dBA
• Audio Output Connector: 6.3 mm mono jack
• Maximum Continuous Output Power: 400 mW
• Operating Current: 80 mA
• Operating Time: 5 hours
• Power Supply: 3.7 V / 500 mA built-in lithium battery
• Charging Mode: USB charging 5 V, USB mini connector
• Charging Time: 3 hours
• Weight: 0.05 kg
