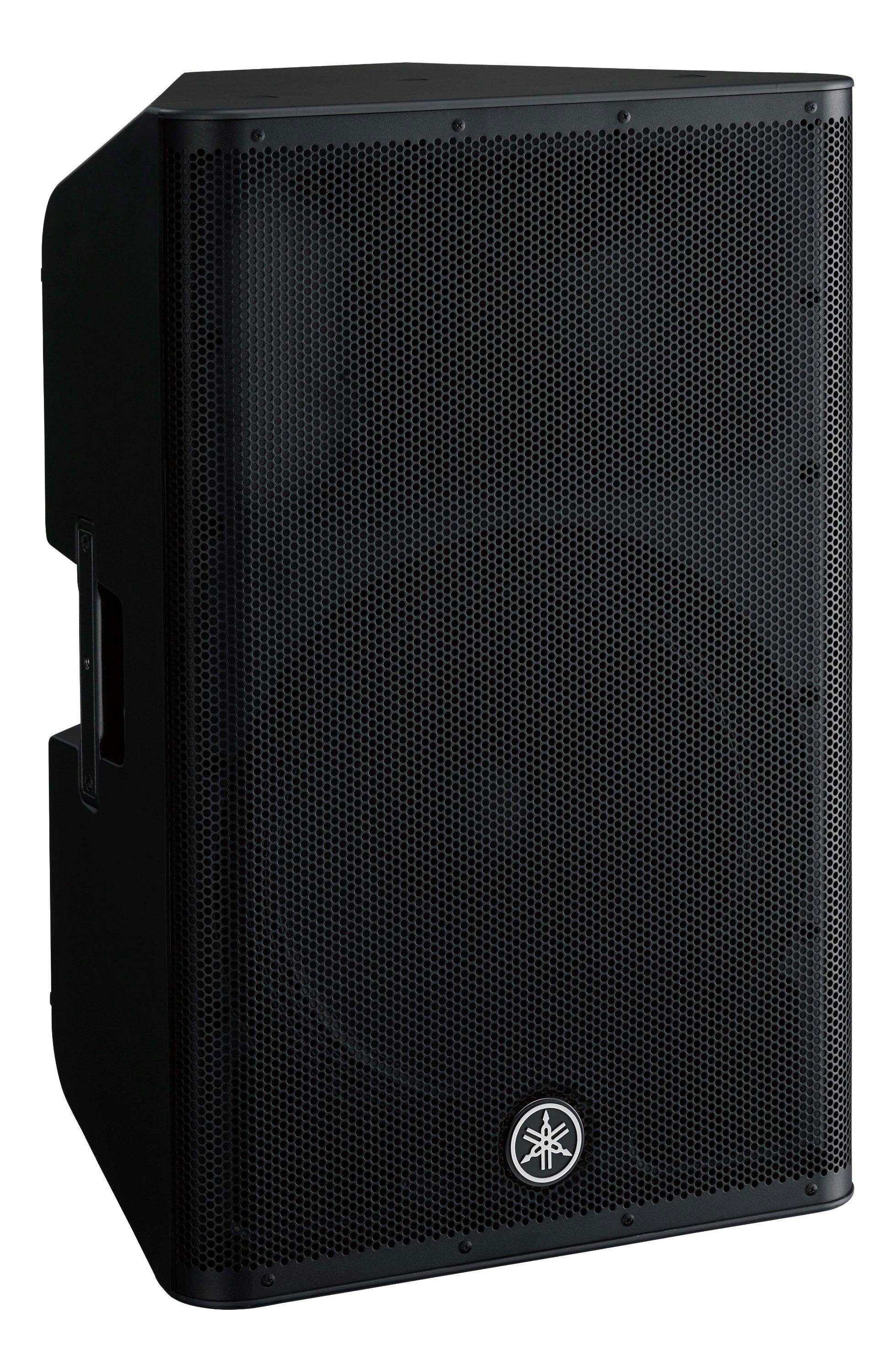

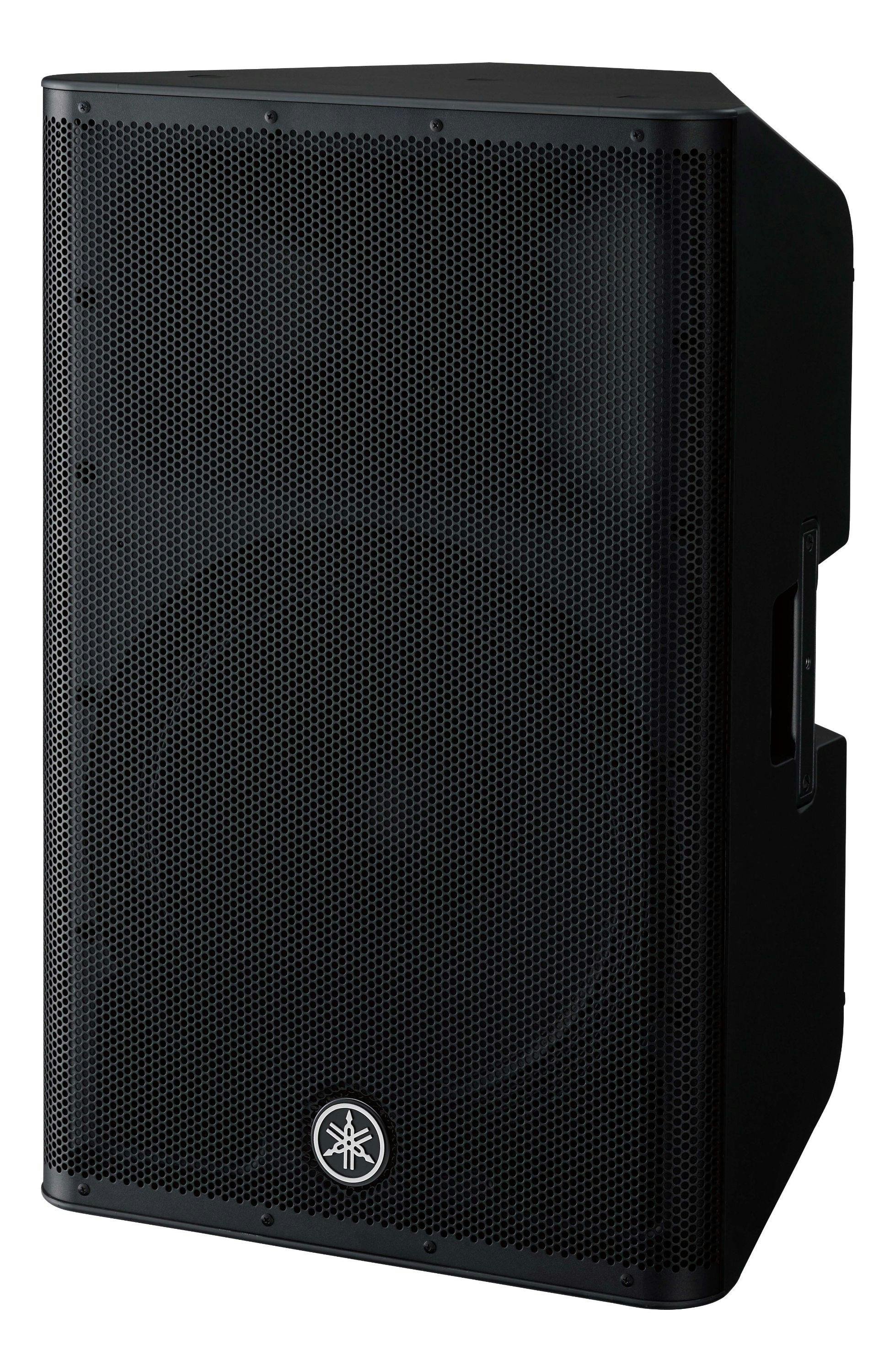

Yamaha DXR15 MkII 1100W Powered 1x15" PA Speaker

The Yamaha DHR15 MK II is a professional grade 2 way powered loudspeaker engineered to deliver exceptional performance across various sound reinforcement applications. It features a 15 inch woofer and a 1.4 inch high frequency driver, producing powerful, clear sound with an extended frequency range of 44 Hz to 20 kHz. The integrated 1000W Class-D amplifier ensures dynamic audio delivery, achieving a peak SPL of 131 dB. Advanced DSP functions, including FIR X tuning and comprehensive protection mechanisms, optimize sound quality and safeguard components. Housed in a robust plywood enclosure with a polyurea coating, the DHR15 MK II is built for durability and reliability in demanding environments. Its compact design, versatile rigging options, and dual angle pole mounting make it an ideal choice for both professional audio setups and live sound applications.

• High Performance 2 Way Design:
  The 15 inch woofer and 1.4 inch HF driver deliver powerful sound and exceptional clarity, suitable for both high volume and detailed audio applications.
• Integrated 1000W Class-D Amplifier:
  The lightweight amplifier produces up to 1000W (800W LF + 200W HF), achieving a peak SPL of 131 dB with remarkable clarity and dynamic range.
• Advanced DSP with FIR X Tuning:
  FIR X filtering and corrective EQ minimize phase distortion, ensuring clear, natural sound reproduction. Extensive DSP protection functions monitor and protect all components, maintaining reliable operation under demanding conditions.

Professional Sound for Live Events:

The Yamaha DHR15 MK II excels in live sound settings, delivering clarity, power, and durability. Its advanced DSP features, such as FIR X tuning, enhance audio quality by reducing distortion and optimizing sound output. Whether used as the main speaker or in a larger system, the DHR15 MK II handles high pressure audio situations while maintaining consistent performance. Its versatility and compact size make it easy to integrate into various live sound scenarios, delivering clear and dynamic sound at any volume.

Rugged Construction for Demanding Environments:

Built with robust plywood and reinforced with a polyurea coating, the DHR15 MK II is designed to withstand tough environments. This construction ensures the speaker maintains its integrity over time, even in high stress conditions like touring, outdoor events, or high volume installations. The sturdy design helps reduce vibrations, ensuring optimal performance without compromising sound quality. Additionally, the DHR15 MK II is lightweight and easy to transport, making it a dependable choice for both temporary and permanent installations.

Versatile Mounting and Rigging Options:

The DHR15 MK II offers multiple mounting and rigging options, including dual angle pole sockets (0° and 7° down tilt) and built in rigging points for M10 eyebolts. This versatility allows for optimal speaker positioning in various settings. Whether used on a pole for stage setups or rigged for permanent installations, the DHR15 MK II provides excellent flexibility in sound direction and placement, making it suitable for a wide range of professional audio applications.

• Type: 2-way bi-amp powered loudspeaker
• Amplifier Power: 1000W (800W LF + 200W HF)
• Frequency Range: 44 Hz - 20 kHz (-10 dB)
• Coverage Angle: 90° x 60° (H x V, rotatable)
• Maximum SPL: 131 dB
• DSP: Signal processor with multiple presets and protection functions

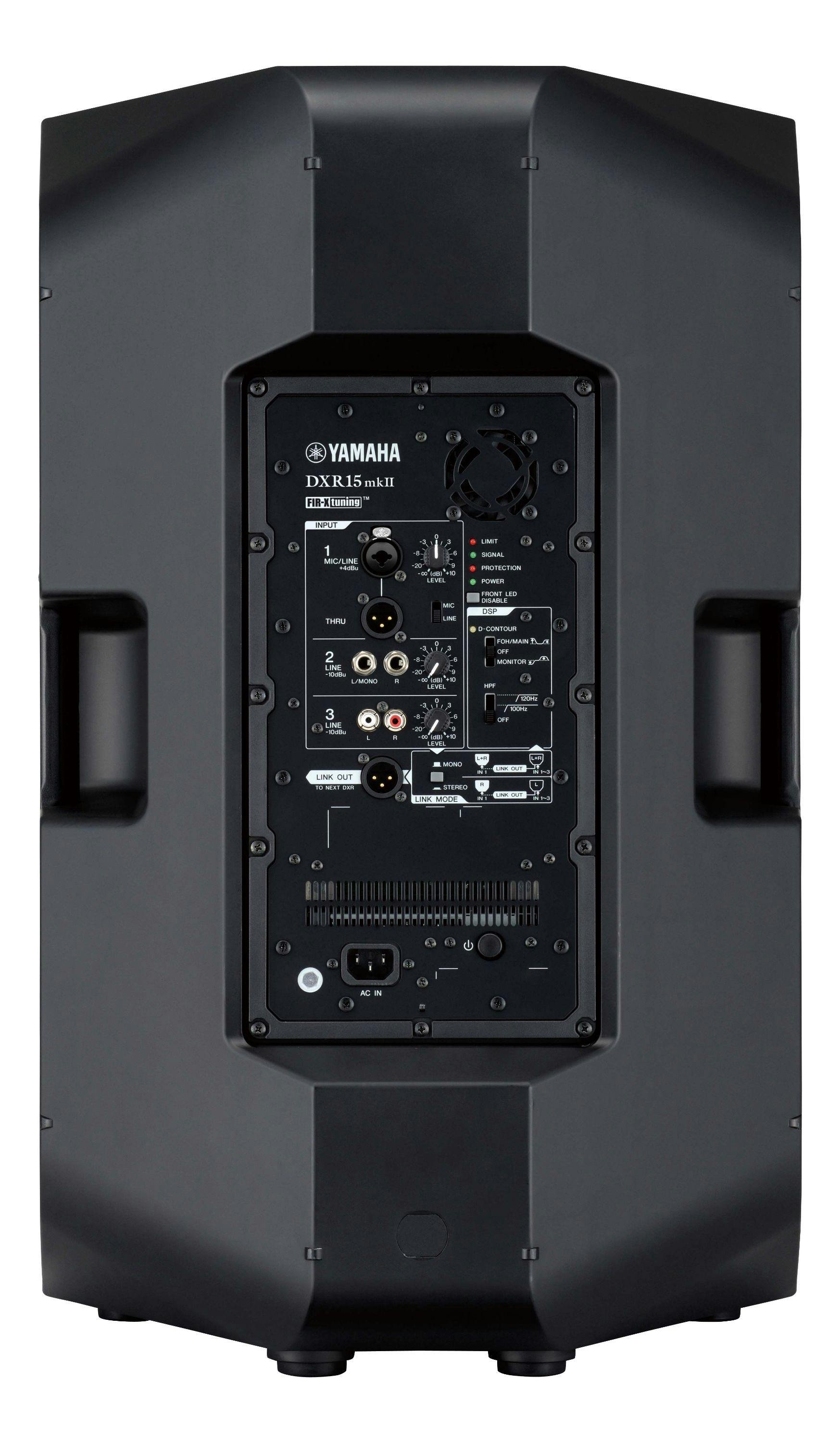

• Inputs: Combo XLR Mic/Line input (x2), RCA pin jacks (x2)
• Outputs: XLR Line Link out (male)
• Cabinet Construction: Plywood with polyurea coating, scratch-resistant
• Pole Mounting: Dual-angle pole sockets (0° and -7° down tilt)
• Rigging: M10 rigging points for eyebolts
• Dimensions (W x H x D): 432 mm x 692 mm x 405 mm
• Weight: 24.2 kg
