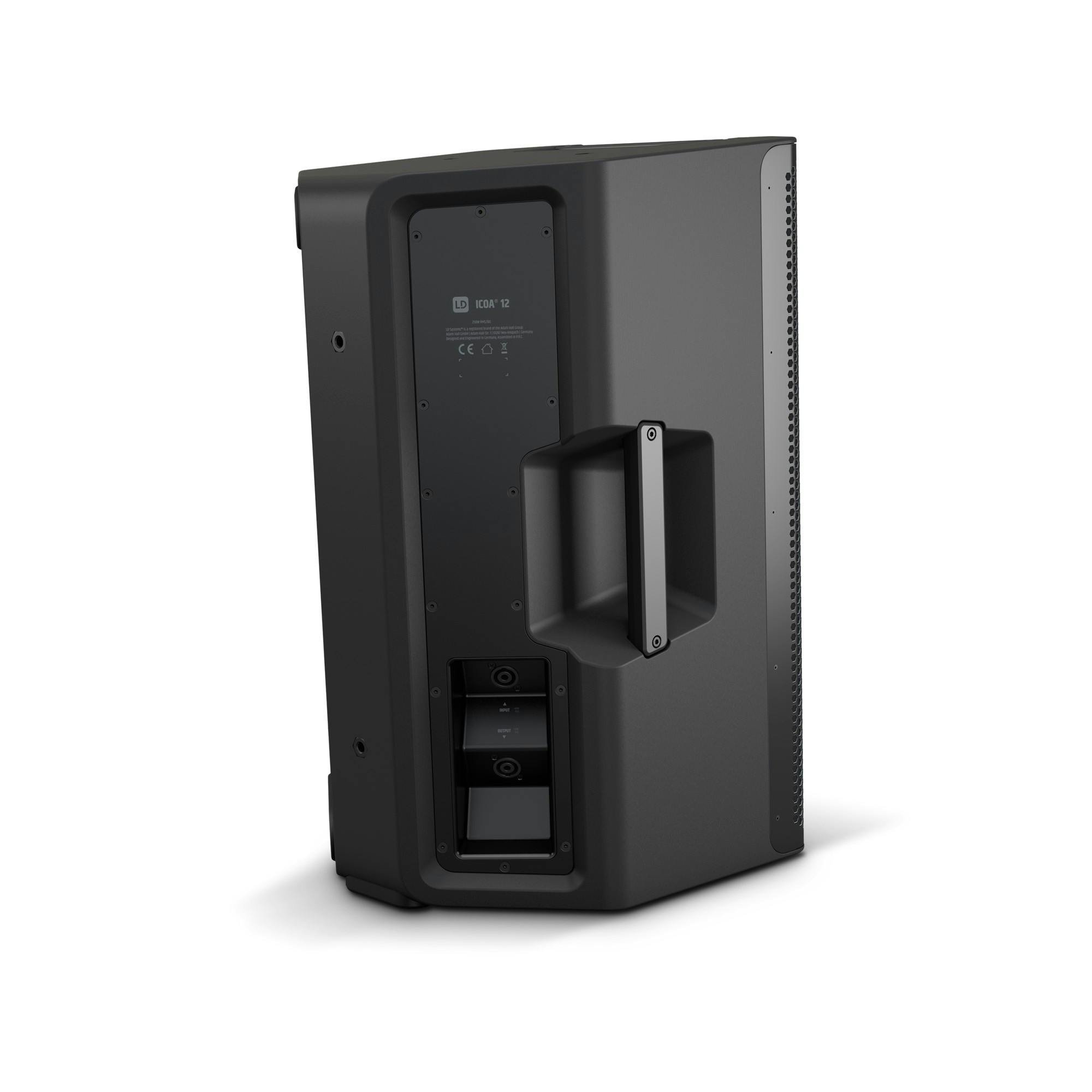

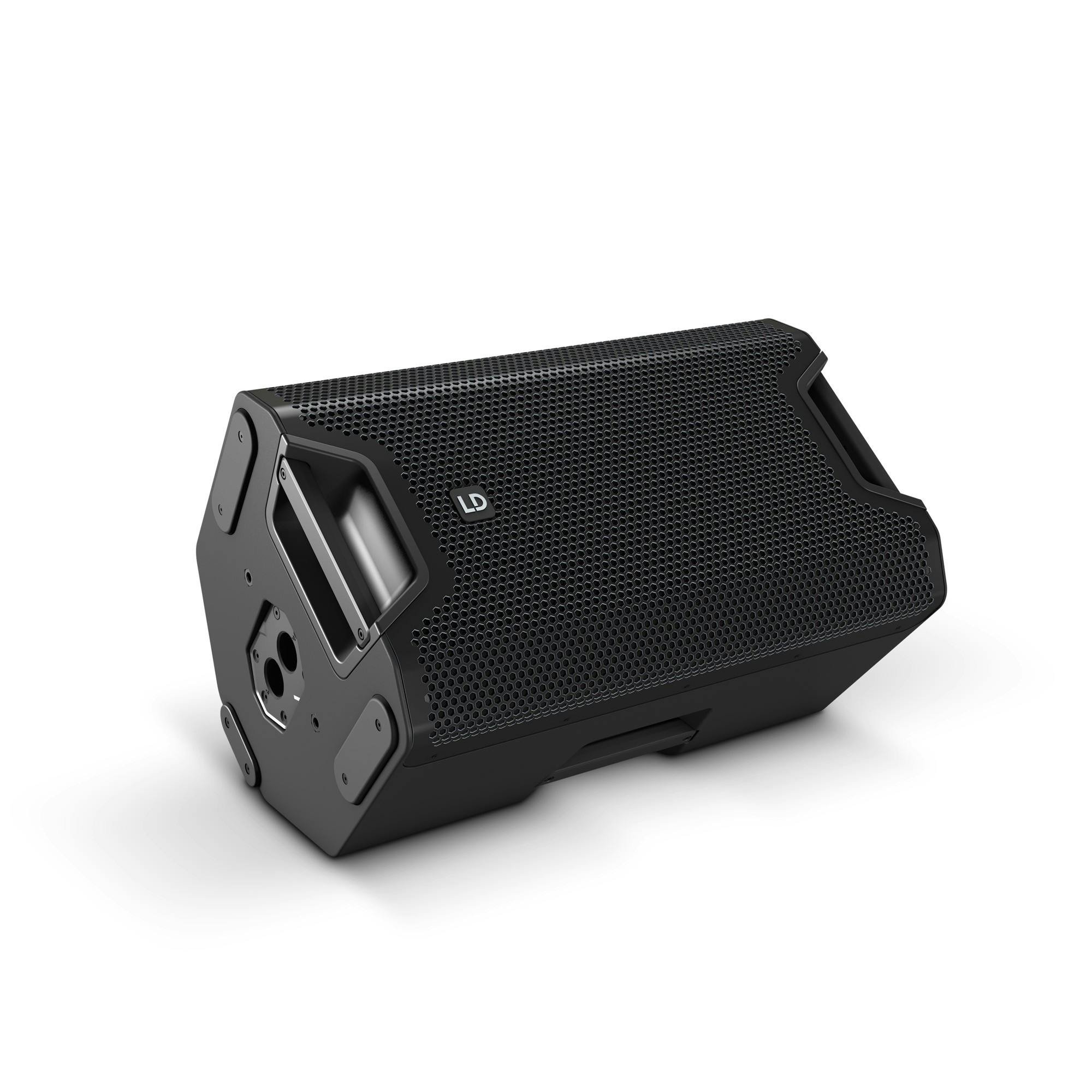

LD Systems ICOA 12 - 12" Passive Coaxial PA Speaker
FREE UK Delivery
Earn 299 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: LDICOA12
You might also need
Product Description
This 12" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.
The horn-loaded woofer's outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility.
Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.
Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
Specifications
- Product type PA loudspeaker
- Type Passive
- Low/mid driver dimensions 12 "
- Woofer size 304.8 mm
- Woofer magnet Ferrite
- Woofer brand Custom-made
- Horn BEM optimized CD Horn
- HF driver dimensions 1 "
- HF driver size 25.4 mm
- HF driver magnet Ferrite
- HF driver brand Custom-made
- HF driver voice coil 1.4 "
- HF driver voice coil 35 mm
- Dispersion (H x V) 90° x 50° °
- Load rating (RMS) 250 W
- Dispersion (H x V) 90° x 50°
- Peak power 1000 W
- Frequency response 55 - 20000 Hz
- Crossover frequency 2000 Hz
- SPL (1W/1m) 93 dB
- Max. SPL 123 dB
- Impedance 8 Ohm(s)
- Loudspeaker inputs 1
- Speaker input connections Speakon compatible
- Loudspeaker outputs 1
- Speaker output connections Speakon compatible
- Cabinet material Polypropylene
- Cabinet construction Bass Reflex
- Mounting 36mm flange (0°, 5°), 6 x M10 flying points
- Monitor angle 55 °
- Width 375 mm
- Height 635 mm
- Depth 396 mm
- Weight 19,8 kg
