Kali Studio SM5 C 5inch Monitor with coincidenty 4" midrange and 1" metaldome tweeter

Kali’s finest speaker yet combines their proven 3-way architecture with uncompromising components and craftsmanship. The SM-Series delivers unrivalled imaging, accuracy, and detail for the most critical applications.

The key to the SM-Series’ high performance is its 3-way coincident architecture. This design allows for the ultra-lifelike imaging of a coaxial speaker, while delivering the low distortion and midrange clarity that only a 3-way can achieve.

Not only are the midrange and tweeter coaxial, they are also coincident, meaning that they are physically time aligned and thus phase coherent from all angles.

The SM-Series speakers are acoustic point sources, and particular care has been given to the transition from the midrange to the baffle. This transition is seamless to the edge of the speaker, resulting in an engrossing stereo image where details are lifelike and crisp.

• Mounting:
  The SM–5-C features mounting holes on both the top and bottom of the loudspeaker. Kali recommends using a speaker specific U-bracket from Triad-Orbit, but any speaker mount with a 4.25 x 2-Inch bolt pattern that is capable of holding the SM-5-C’s 21 lbs weight will also work.
• Crossover Network
  Since the SM-5-C uses amplifier tuning to handle frequency response optimization, the crossover network can be purely optimized for its use in directivity transition. This level of optimization allows for premium components to be used, including ultra-low dissipation polypropylene capacitors, air-core inductors, and ultra-low inductance resistors.

• Drivers:
  HF- 1” Metal Dome Tweeter
  Mid- 4” Optimized Profile Paper Cone
  LF- 5” Optimized Paper Woofer
  Crossover 1500Hz
• Frequency response: 39Hz – 28kHz
• Recommended Listening Distance: 4m
• Max SPL: 117dB (Peak at 1m)

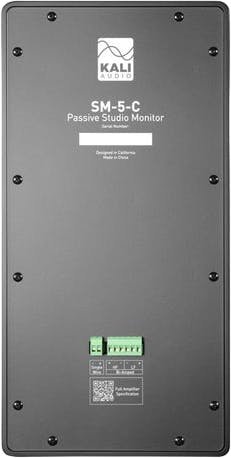

• Inputs:
  Single Wire Phoenix Connector
  Bi-Wire Phoenix Connector
• Powered: No, SM5-C requires an Amp
• Dimensions:
  Height- 15.6” / 39.6 cm
  Width- 7.9” / 20 cm
  Depth- 9.8 Inches / 24.8 cm
  Weight- 21 lbs / 9.5 kg
