Intellijel Triplatt Triple Attenuator Eurorack Module

£99.00
Out of Stock

UK Delivery - From £2.99

Free & Next Day delivery to most UK locations when spending over £199

Earn 99 Loyalty Points

Earn one point for every £1 you spend.
stock availability
0 at our Guildford Store
0 at our off-site Warehouse
Want to Click and Collect or try items at our Guildford Store?

The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.

The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.

Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.

If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.

Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.

If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.

Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.

SKU: IJEL-TRIPLATT

You might also need

Product Description

Here's What Intellijel Say About the Triplatt

Triple the control

Sometimes you just need a quick audio mixer; a voltage offset; a CV mixer; an attenuator; an attenuverter; or just a voltage. Mix and match to your needs.

Wrangle those signals and dial in those voltages.

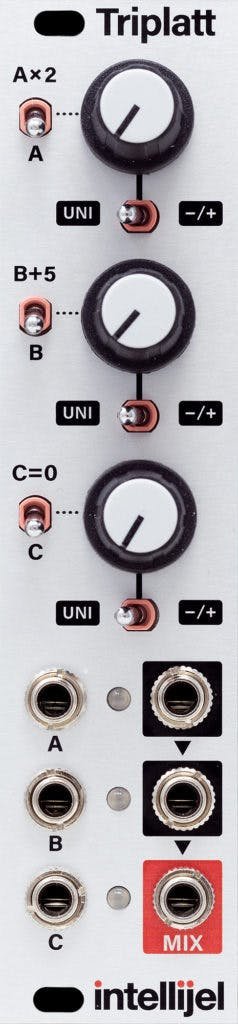

Triplatt is a three-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. It’s a versatile and super handy utility module that will find its way into almost any patch you make!

Each input is normalled to a built-in +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.

Each output is normalled to mix into the output of the channel below, making it possible to do sub mixes in groups of two or three.

In addition, each channel has a “special function” switch to alter its input voltage in a specific way. Channel A has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A. Channel B has a +5V switch, allowing you to add 5V to whatever voltage is sent into Channel B. Channel C has a mute switch, allowing you to completely turn off the signal being sent into Channel C.

Features

  • Triple Attenuator / Inverter / Attenuverter / Multiplier / Adder / Mixer / DC Voltage Source
  • Two Modes for each channel (Positive or Bipolar)
  • Additional “special function” for each channel
  • Precision 5v source normalling to all three inputs
  • Dual color led for monitoring each individual output
  • Skiff  / Palette friendly

Specifications

  • Width: 6HP
  • Depth: 21mm
  • Power: 49mA @ +12V; 25mA @ -12V
