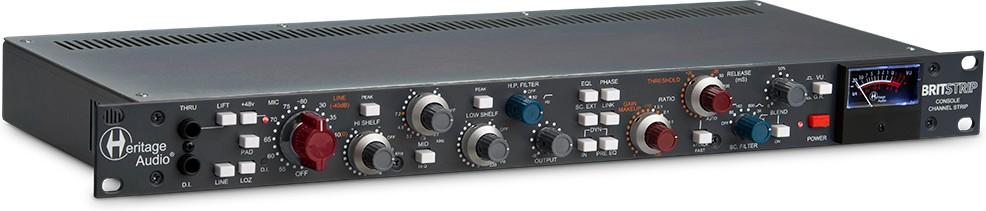

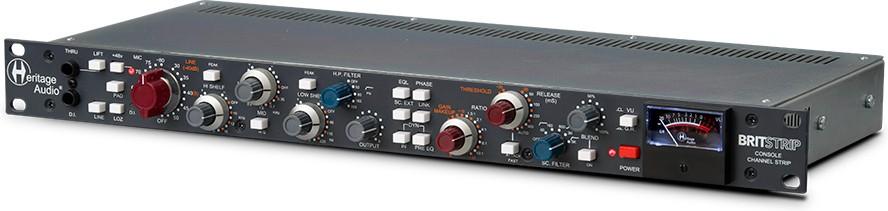

Heritage Britstrip - British-spec Channel Strip with Diode Bridge compressor
British-spec Channel Strip With Diode Bridge Compressor
FREE UK Delivery
Earn 4497 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: HERITAGEBRITSTRIP
You Might Also Like
Product Description
The Heritage Audio BritStrip draws together five decades of analogue excellence into just one rack space. This mono channel strip unites a genuine 73-style microphone preamplifier, an extended 73-style equaliser, a discrete Class A DI, and the renowned diode-bridge compressor from the Successor. It delivers the unmistakable character of classic British recordings, yet with modern routing flexibility and added all-in-one convenience. Designed for professional engineers, the BritStrip offers rich warmth, punch and tonal control, all with craftsmanship born in Heritage Audio’s St Ives factory.
Features
- All-discrete Class A preamp and DI:
Features transformer-coupled inputs and outputs with 80 dB of gain, pad, phase reversal, impedance switching, and pass-through DI routing. - Expanded 73-style equaliser:
Inductor-based mid, shelving and high-pass sections deliver musical boosts without phase issues or headroom loss at extreme settings. - Diode-bridge compressor with blend and sidechain:
Offers tracking-friendly compression with blend control, side-chain filtering, external side-chain and stereo linking capabilities.
Analogue Heritage with Modern Routing:
The BritStrip permits flexible signal flow by allowing you to insert the EQ before or after the compressor. EQ-before-compression sharpens response to boosted frequencies, while EQ-after-compression keeps the side-chain less sensitive to EQ adjustments. This flexibility gives engineers creative control over tone and dynamics.
Studio-grade Sound and Performance:
Its Carnhill-designed input and output transformers, all-discrete Class A three-gain-stage preamp and custom-wound coils ensure a rich, authentic ‘73 sound. With noise under –125 dBu EIN, THD less than 0.025 %, and frequency response from 20 Hz to 20 kHz, the BritStrip delivers pristine, character-filled performance.
Compact and Rugged Design:
All the components, preamplifier, equaliser, compressor and DI, are packed into a single 1-U rack unit (482 × 44 × 184 mm). It’s a streamlined, robust solution for modern studios seeking vintage tone without compromising space or versatility.
Specifications
- Transformer-coupled balanced mic, line and DI inputs and outputs
- Mic input impedance: 1 200 Ω / 300 Ω; Line: 10 kΩ; DI: > 2 MΩ
- Maximum output: > +26 dBu into 600 Ω
- Gain: > 80 dB; Pad: 20 dB; Phase reverse; Impedance switch
- Frequency response: 20 Hz (+0.3 dB) to 20 kHz (–0.2 dB)
- THD: < 0.025 % at 1 kHz; < 0.05 % at 100 Hz; EIN: < -125 dBu
- Equaliser: 73-style high & low shelving with bell-mode; mid-band inductor-based; high-pass (low-pass) filter
- Compressor: Diode-bridge, ultra-fast attack/release, blend control, five side-chain filters, external side-chain, stereo link
- Dimensions: 482 × 44 × 184 mm (1 U rack unit)
- Routing: EQ pre- or post-compression flexibility
