DPA 4099 CORE Mic Extreme SPL with Clip for Brass

The DPA 4099 CORE Instrument Microphone for Extreme SPL is engineered to handle the most powerful instruments without distortion or loss of detail. Designed for close-miking high-SPL sources such as drums, brass, and amplified instruments, this supercardioid condenser microphone delivers exceptional clarity, even under intense sound pressure. Featuring CORE by DPA technology, it captures an incredibly natural and open sound, offering superior dynamic range and reduced distortion. The enhanced shock mount and IP58 certification make it highly durable and reliable, ideal for touring and demanding stage environments. The detachable cable system and extensive range of instrument-specific mounting clips allow seamless transitions between instruments, with no compromise on placement or sound quality. Built for professional musicians, engineers and technicians, this microphone ensures your performance is captured just as it was intended, full of power, nuance and clarity, even at extreme volumes.

Key Features:

• Designed for extreme SPL sources:
  Handles sound pressure levels up to 152 dB peak, making it ideal for close-miking drums, brass and other powerful instruments without distortion.
• CORE by DPA clarity and detail:
  Delivers enhanced audio fidelity across the full dynamic range with reduced distortion, capturing every nuance even at the loudest volumes.
• Versatile, non-invasive mounting:
  Mounts securely using a wide range of instrument-specific clips, ensuring stability and ease without damaging your instrument's finish.

Unmatched Sound Performance for Loud Instruments:

Specially tailored for extremely loud instruments, this version of the 4099 captures the intense dynamics of drums, brass, and electric instruments with exceptional control. It withstands SPLs up to 152 dB without losing clarity or detail. Thanks to the refined supercardioid pattern, the mic achieves focused isolation with excellent feedback rejection, ideal for loud stage environments. Combined with DPA’s CORE technology, it ensures that your sound is both powerful and precise, without harshness or distortion, no matter how energetic the performance.

Built to Withstand the Stage:

From rehearsal room to stage to studio, this mic is ready for the demands of professional use. The 4099 Extreme SPL variant is IP58 certified for water and dust resistance, featuring a rugged build and sealed internal components. The updated shock mount and reinforced gooseneck design reduce handling noise and vibration, while the detachable cables offer long-term flexibility and easy maintenance. Whether mounted on a snare drum or brass bell, the microphone stays secure and consistent throughout the performance.

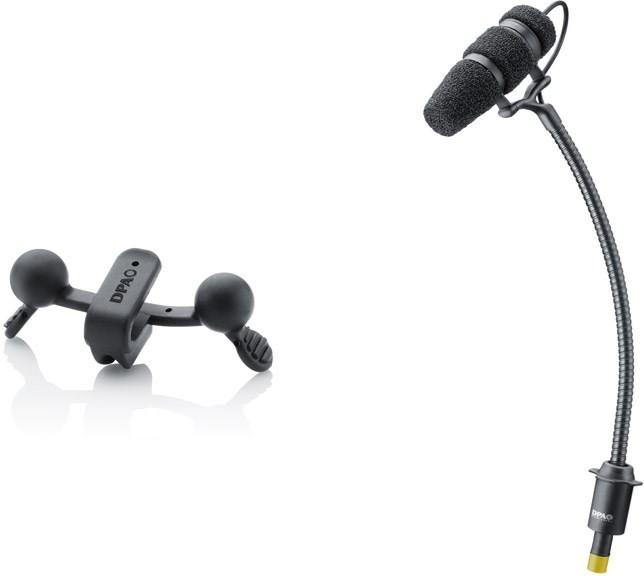

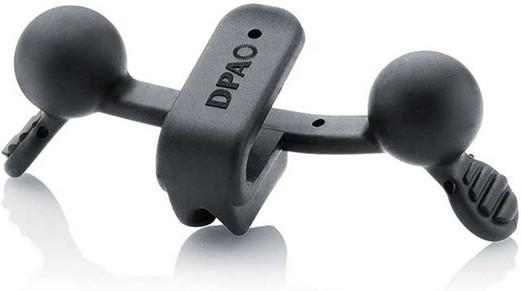

Flexible and Adaptable Mounting System:

The 4099’s adaptable design supports a wide array of instruments and applications. With the appropriate clip, the mic can be securely mounted to any compatible instrument without adhesives or damaging fixtures. A range of clip options allows musicians and engineers to switch between instruments quickly and efficiently, making this mic an ideal solution for orchestras, ensembles, and touring professionals alike. The integrated gooseneck allows for repeatable precision in positioning, ensuring consistent sound capture every time.

Specifications:

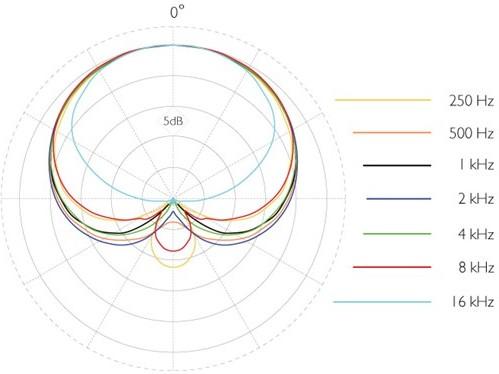

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre polarised condenser
• Frequency response: 20 Hz to 20 kHz
• Effective frequency range: 80 Hz to 15 kHz ±2 dB, with 2 dB soft boost at 10 to 12 kHz
• Sensitivity: 2 mV/Pa; -54 dB re. 1 V/Pa
• Equivalent noise level: Typical 28 dB(A), max 31 dB(A)
• Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
• Dynamic range: Typical 109 dB
• Max SPL (THD 10%): 152 dB SPL peak
• Rated output impedance: 30 to 40 Ω from MicroDot, 100 Ω from XLR adapters
• Cable drive capability: Up to 300 m with XLR adapter
• Output balance: Signal balanced with XLR adapter
• CMRR: > 60 dB from 50 Hz to 15 kHz
• Power supply: 5 V to 10 V (wireless), or P48 phantom power (XLR adapter)
• Current consumption: Typical 1.5 mA (mic only), 3.5 mA with XLR adapter
• Connector: MicroDot
• Microphone weight: 17 g
• Gooseneck length: 140 mm
• Microphone length: 45 mm
• Microphone diameter: 5.7 mm
• Cable length: 1.8 m
• Cable diameter: 1.6 mm to 2.2 mm
• Polarity: Positive voltage at MicroDot pin for positive sound pressure
• Temperature range: -40°C to 45°C
• Relative humidity: Up to 90%
• Available clip mounts: Violin, cello, guitar, piano, bass, accordion, saxophone, trumpet, drum and universal
• Colours: Black
• IP Rating: IP58 certified
