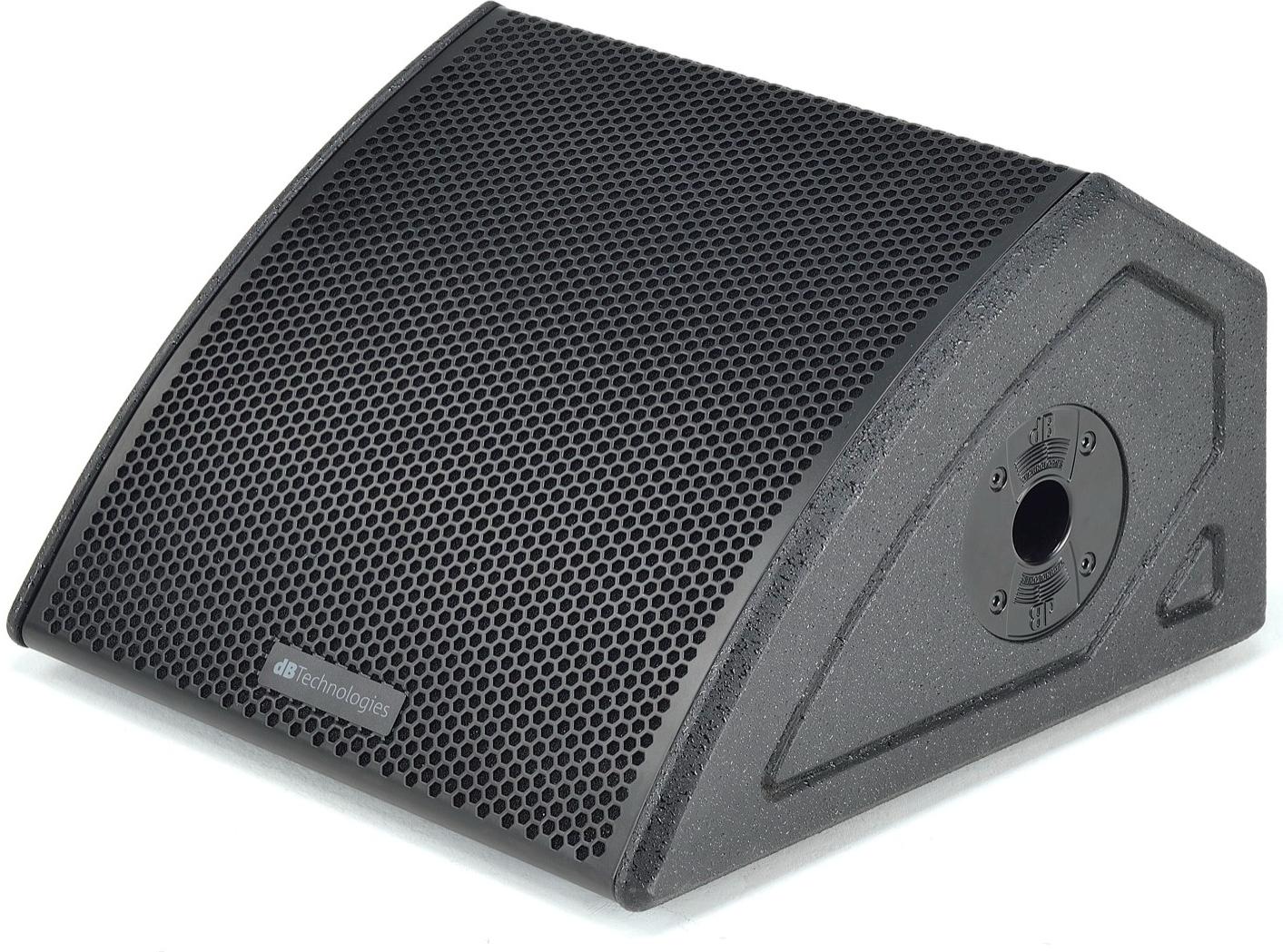

DB Technologies FMX10 - Coaxial Active 10"/1" Stage Monitor

The dB Technologies FMX10 is a compact, coaxial active stage monitor designed to deliver clear, powerful sound for performers who need to hear every nuance. With a 10 inch woofer, 1 inch compression driver and a powerful onboard DSP, it offers impressive volume, extended bass response and excellent vocal intelligibility in a portable, easy to place wedge.

Whether you are a singer, keyboard player or multi-instrumentalist, the FMX10 provides a focused, full range monitoring solution that helps you perform with confidence. Its coaxial design keeps your sound coherent and controlled, while flexible DSP presets let you quickly tailor the response for different instruments and playback needs.

Compact Full Range Monitoring

The FMX10 is built around a 2 way coaxial speaker configuration, combining a 10 inch low frequency driver with a 1 inch compression driver. This design delivers a wide frequency response from 72 Hz up to 20 kHz, so vocals, instruments and keyboards are reproduced with clarity and authority. Despite its compact footprint, the FMX10 can comfortably act as a full range monitor, making it ideal for smaller stages or setups where space is at a premium.

Powerful, Controlled Performance

With 400 watts of programme power and up to 800 watts peak on tap, the FMX10 has more than enough headroom to cut through loud stage environments. The integrated DSP manages crossover points and multiband limiting, helping to keep the sound tight and controlled even at higher volumes. This means you get the level you need without sacrificing detail or risking unwanted distortion.

Optimised For Vocals And Keyboards

dB Technologies have voiced the FMX10 to excel with vocals and keyboards, offering strong midrange presence and extended low end. Singers benefit from a monitor that translates dynamics and articulation accurately, while keyboard players get a fuller, more satisfying representation of their patches and layers. The result is a monitor mix that feels natural and inspiring, helping you lock in with the rest of the band.

Flexible DSP Presets

The onboard DSP offers eight variable presets that adapt the FMX10 to a range of real world applications. Dedicated voicings for different instruments and playback scenarios allow you to quickly dial in a sound that suits the performance, without needing external processing. Phase correction and carefully tuned filters ensure consistent, reliable monitoring from gig to gig.

• 2 Way Coaxial Design - The 10 inch woofer and 1 inch compression driver share the same axis, improving phase coherence and providing a more focused, accurate sound on stage. This helps you hear yourself clearly from different positions around the wedge.
• Wide Frequency Response - With a usable range from 72 Hz to 20 kHz, the FMX10 reproduces everything from low keyboard notes to vocal air and detail. This wide bandwidth makes it suitable for a variety of sources, reducing the need for multiple monitor types.
• Integrated DSP With Presets - The built in digital signal processing includes crossover management, multiband limiting and phase correction, along with eight selectable presets. These tools keep your sound clean and consistent while allowing quick adaptation to different performers and styles.
• Portable Yet Powerful - Delivering 400 watts of programme power and up to 800 watts peak, the FMX10 offers serious output in a compact enclosure. Its manageable size and weight make it easy to transport and position, while still providing the volume and punch required for demanding live situations.

General

• Speaker Type: 2 Way Coaxial Stage Monitor
• Frequency Response (±3 dB): 72 Hz to 20,000 Hz

Drivers

• High Frequency Driver: 1 inch compression driver
• Low Frequency Driver: 10 inch

Power

• Programme Power: 400 W
• Peak Power: 800 W

Physical

• Dimensions (H x W x D): 290 mm x 370 mm x 410 mm
• Weight: 12.8 kg
