Audix NovaCore NCBX10 Body Pack System - ADX10

The Audix NovaCore NCBX10 Body Pack System is a complete single-channel digital wireless lavalier solution for presenters, clergy, performers and broadcast talent. Combining the compact NCR1 receiver, NCBP bodypack transmitter and ADX10 cardioid lavalier microphone, it delivers discreet, natural-sounding speech with professional AES-256 encrypted UHF performance in one ready-to-go package.

Designed for modern installed and portable sound systems, the NCBX10 offers rock-solid RF performance, ultra-low latency and flexible gain staging, all wrapped in a simple, fast-to-set-up workflow. With a generous 48 MHz tuning range, long battery life and USB-C charging on the transmitter, it is equally at home in houses of worship, conference venues, theatres and production environments where reliability and intelligibility are critical.

Natural, Focused Speech Capture

At the heart of the system is the ADX10 miniature cardioid lavalier condenser microphone. Its tailored response provides clear, natural vocal reproduction that keeps speech intelligible even in challenging acoustic spaces. The cardioid pattern offers strong off-axis rejection, helping to reduce ambient noise and room reflections so the listener hears the voice, not the room.

Discreet and Versatile for Stage, Worship and Broadcast

The compact ADX10 capsule and bodypack transmitter allow for clean, unobtrusive placement on clothing, robes or costumes, making it ideal for podium work, theatrical productions and worship leaders. The low-profile design keeps attention on the performance or message, while the consistent pickup pattern helps maintain level and tone as the talent moves naturally.

Secure, Low-Latency Digital Wireless

Operating on the Novacore UHF digital platform, the NCBX10 provides AES-256 encrypted transmission for secure, interference-resistant audio. With less than 3 ms of latency, it keeps audio tightly locked to on-stage action, which is especially important for live performance, broadcast and video applications where timing and lip-sync matter.

Flexible Gain and Remote Control for Installed Systems

The NCBP bodypack transmitter offers variable input gain from -12 to +18 dB, making it easy to match different speaking styles and microphone types without overloading your mixer. A dedicated 3.5 mm remote mute input allows connection of an external latching or momentary switch, giving presenters or technicians convenient control over muting in conference, worship or theatre installs.

Expandable Novacore Ecosystem

The NCBX10 is pre-matched out of the box, with one-touch IR sync between the NCBP transmitter and NCR1 receiver for fast, fuss-free setup. As your requirements grow, the system can be expanded within the Novacore ecosystem by adding extra channels, transmitters or receivers. The NCBP is also compatible with other Audix lavalier and headset microphones, as well as third-party TA3F-terminated mics, so your investment can adapt to new applications over time.

• Complete Digital Wireless Lavalier System - Includes the NCR1 single-channel digital receiver, NCBP bodypack transmitter and ADX10 cardioid lavalier microphone, giving you a fully matched, professional wireless solution that is ready to use straight out of the box.
• ADX10 Cardioid Lavalier for Clear, Controlled Audio - The miniature ADX10 condenser capsule delivers natural vocal clarity with strong off-axis rejection, helping to minimise background noise and feedback in podium, stage and worship environments.
• Secure, Low-Latency Novacore UHF Platform - AES-256 encryption, a 48 MHz tuning range (494–542 MHz) and less than 3 ms latency provide robust, secure wireless performance that keeps audio in time with live action and video.
• Flexible Gain, Remote Mute and Ecosystem Expansion - Variable input gain on the NCBP transmitter and a dedicated 3.5 mm remote mute input make the system easy to integrate into installed rigs, while compatibility with other Novacore components and TA3F microphones allows your setup to grow and evolve.

System

• System Type: Novacore single-channel digital bodypack wireless system
• Included Components: NCR1 receiver, NCBP bodypack transmitter, ADX10 lavalier microphone
• Operating Mode: UHF digital wireless
• Encryption: AES-256
• Tuning Range: 48 MHz (494–542 MHz)
• Latency: Less than 3 ms

NCBP Digital Bodypack Transmitter

• Transmitter Type: UHF digital bodypack
• Input Gain Range: -12 to +18 dB (variable)
• Remote Mute: 3.5 mm input for external latching or momentary switch
• Battery Life: 9+ hours (2 × AA alkaline or 1 × NCLB rechargeable lithium-ion)
• Charging: Built-in USB-C charging
• Microphone Connectivity: TA3F input, compatible with Audix lavalier and headset mics and third-party TA3F-terminated microphones
• Accessories: NCBC belt clip, NCCC 20" USB-A to USB-C charging cable

NCR1 Single-Channel Digital Receiver

• Model: NCR1 Novacore single-channel digital receiver
• RF Platform: Novacore UHF digital
• Sync Method: One-touch IR sync with NCBP transmitter
• Antennas: 2 × BNC detachable antennas
• Power Supply: PS12V 12 VDC external power supply (100–240 VAC / 50/60 Hz universal)

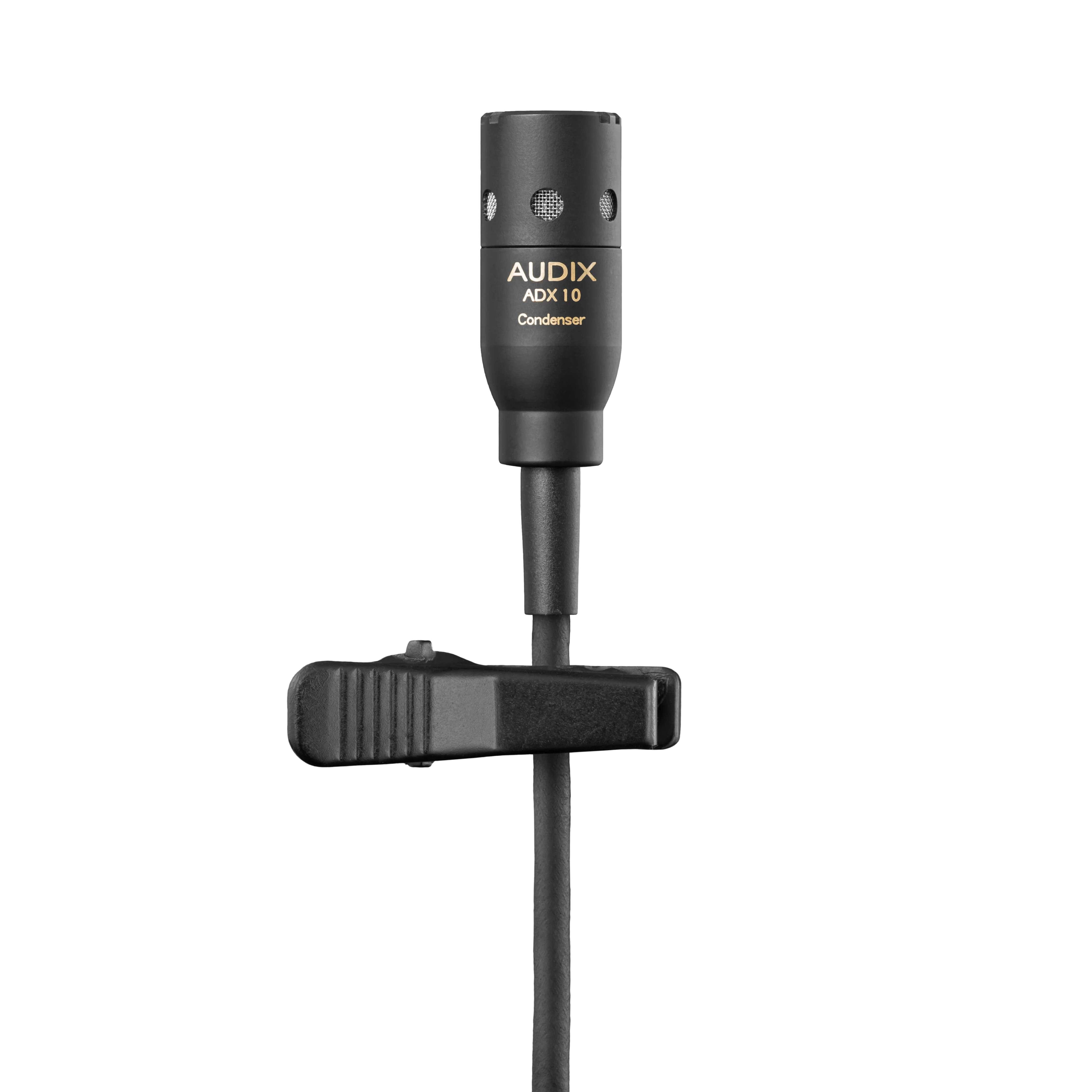

ADX10 Lavalier Microphone

• Model: ADX10
• Type: Miniature cardioid lavalier condenser microphone
• Polar Pattern: Cardioid
• Application: Podium, theatrical, worship and presentation use

Included Accessories

• 2 × BNC detachable antennas

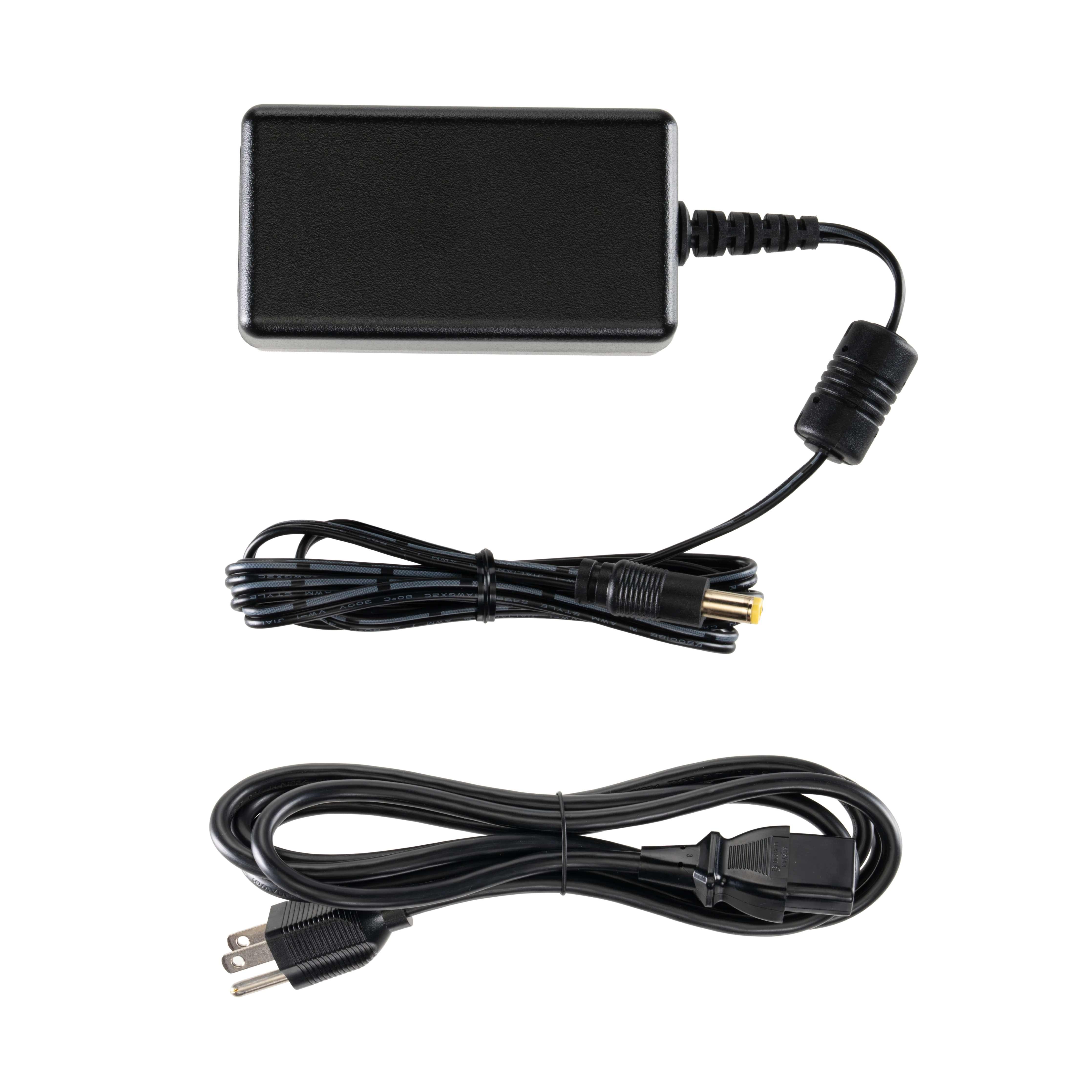

• PS12V 12 VDC external power supply
• NCBC belt clip

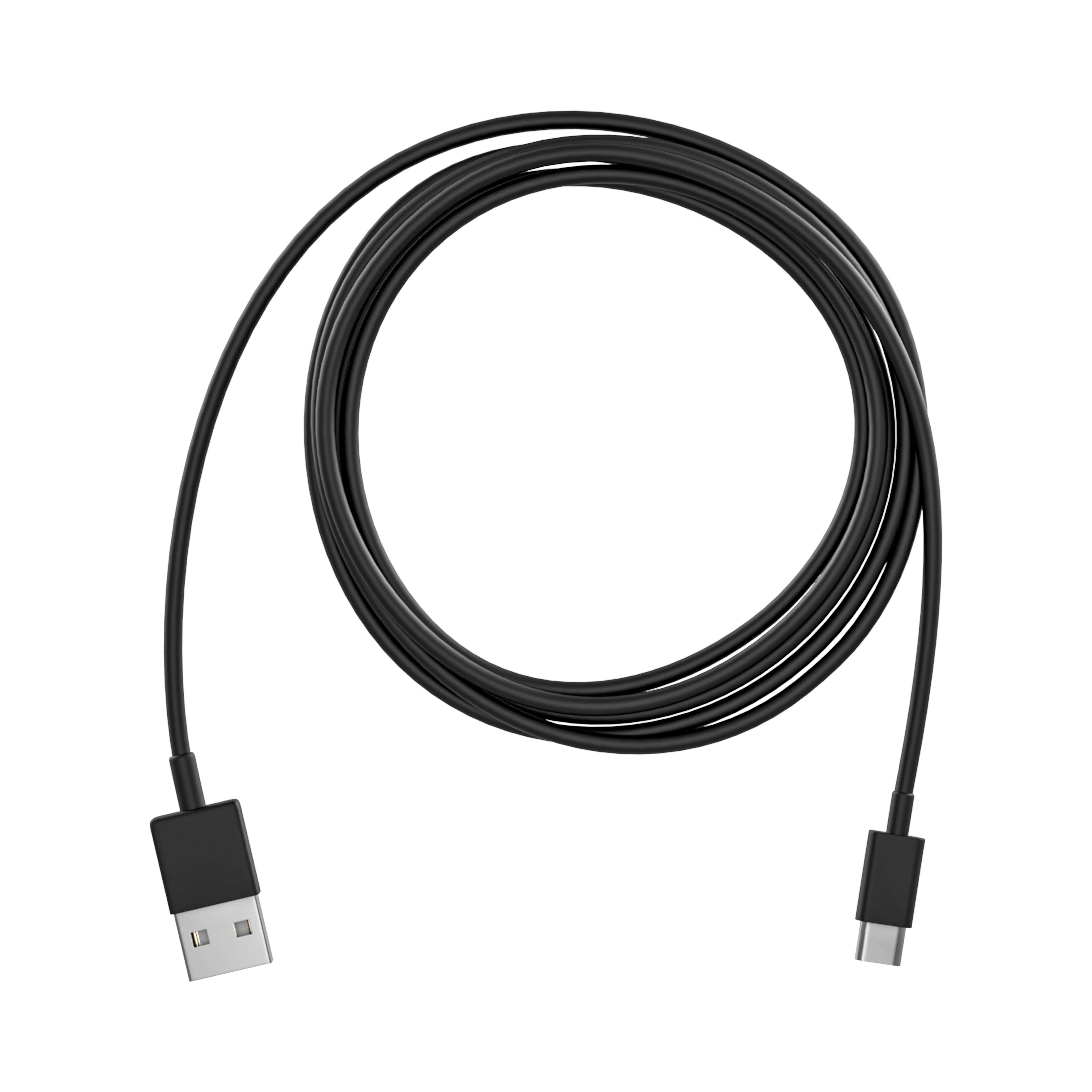

• NCCC 20" USB-A to USB-C charging cable
