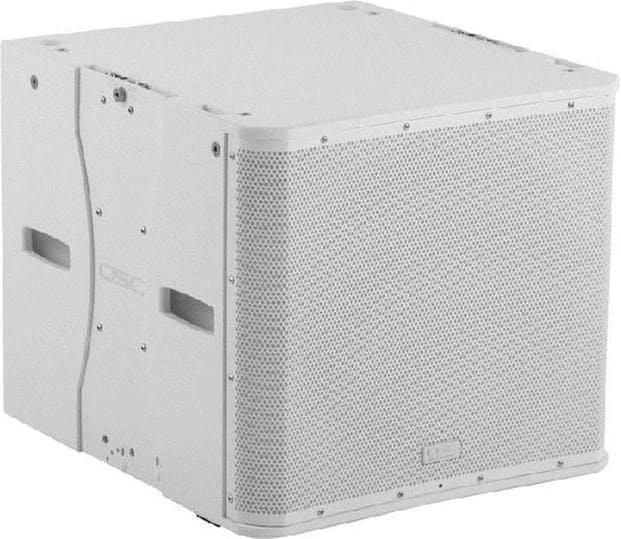

QSC KLA181 1000W Active Subwoofer 18-Inch Woofer in White
FREE UK Delivery
Earn 2399 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: KLA181-WH
You might also need
Product Description
Here's what QSC say...
The KLA Series brings the power and sophistication of a line array system into an easy-to-use product significantly redefining the line array product category. With its simple Lift, Click and Play approach, KLA can be deployed in a fraction of the time required by comparable line array products. This fixed arcuate, active line array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line array system is desired
The KLA Series is comprised of two models: the KLA12 12-inch, 2-way loudspeaker and the KLA181 18-inch subwoofer. The KLA12 features a highly efficient 500 W x 500 W power amp module and the KLA181 offers the same highly efficient power amp module in a 1000 W configuration. This efficient design enables up to five KLA models (any combination of KLA12 and KLA181) to be driven off of a single 15 amp/120V (8A / 230V) electrical circuit. KLA loudspeakers incorporate QSC's DEEP DSP algorithm, providing extended bass response by actively managing potentially damaging low-frequency transients, and GuardRail circuitry protection which prevents the amplifier module from unnatural and destructive clipping. As an energy saving feature, the Auto Standby mode automatically engages after five minutes of inactivity but upon resumption of audio signal, the power module on the KLA will awaken instantly for immediate output.
In an installed application, multiple KLA Series loudspeakers can be "daisy-chained" for total gain control from a single remote pot wired to the on-board Phoenix-style connector. Additional power module characteristics on KLA include a balanced, line-level XLR input in parallel with an XLR "Thru" connector, powerCON In and Thru connectors, Attenuation Control and LED indicators for Signal and Limit, as well as discrete LED indicators for Power/Standby status.
Housed in a rugged ABS enclosure that results in both light weight and long-term durability, the KLA12 features a 12-inch low-frequency transducer coupled with a 1.75-inch compression driver housed on a multiple difraction aperture waveguide. This waveguide design is based upon similar principles found on our patented WideLine Series waveguides and the waveguides found on our K Series products. Designed to be used exclusively as a fixed arcuate line array, each KLA12 is configured for a 90 ̊ x 18 ̊ coverage angle, allowing 90 ̊ vertical arrays to be configured using only five boxes (most other solutions require six). KLA's unique self-contained SOLO (Single-Operator Logistics) Rigging System enables users to quickly assemble (and disassemble) the line array in a fraction of the time without the need for special tools or external hardware.
KLA12's Ar-Q (Arcuate Equalization) processing enables users to quickly tune and configure the array, making appropriate frequency adjustments based on the number of boxes. With the click of a dial, the user can select the total number of boxes deployed in the array resulting in an evenly balanced and accurate tonal curve. QSC's proprietary Intrinsic Correction actively adjusts time, frequency and amplitude response to achieve a maximally flat bandpass target.
In addition to DEEP DSP algorithm, GuardRail, Auto Standby, balanced line-level XLR input with an XLR "Thru" connector, Attenuation Control and LED indicators, the KLA181 subwoofer also includes a polarity switch.
Features
- 1,000 watt power module
- 18-inch vented subwoofer
- High acoustic output (135 dB SPL peak)
- Frequency range down to 33 Hz (-10 dB)
- Extensive DSP further enhances and protects performance
- powerCON® Input and Thru connections
- Threaded pole receptacle for free-standing applications (black models only)
- Suspension made possible via M10 fittings or KLA12AF Array Frame
- Integrated threaded pole mount supports up to two KLA12 enclosures (black models only)
Specifications
- Configuration 18-inch subwoofer
- Transducers High Frequency Low Frequency 18-inch cone transducer
- Frequency Response (-6 dB) 38 Hz
- Frequency Range (-10 dB) 33 Hz
- Nominal Coverage -
- Maximum SPL (1 meter) 135 dB peak
Amplifiers
- Power Output 1000 W Class D continuous
- Input Impedance XLR: 40 kΩ balanced / 20 kΩ unbalanced
- Controls Power, Attenuation, LF Mode (Normal/DEEP™), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)
- Indicators Power, Signal, Standby, Limit
- Connectors Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON® power connector AC Out
- Cooling On demand, 50 mm variable speed fan
- Amplifier Protection Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
- Transducer Protection Thermal limiting, excursion limiting
- AC Power Input Universal power supply 100–240 VAC, 50 to 60 Hz
- AC Power Consumption
- (1/8 Power) 100 VAC, 2.3 A
- 120 VAC, 2.01 A
- 230 VAC, 1.13 A
Enclosure
- Material Painted birch plywood
- Finish Black or white textured paint
- Grille Black or white powder coated 16 gauge steel
- Dimensions (HWD) inches 30 x 28 x 24
- Dimensions (HWD) mm 760 x 710 x 610
- Net Weight 47.2 kg / 104 lb
- Shipping Weight 54.4 kg / 119.9 lb
