Proel EIKON J&J V2 Wireless Jack System For Guitar And Bass

The Proel EIKON J&J V2 is a compact UHF wireless jack system designed for guitar, bass and other instruments, giving you cable free freedom without compromising your tone. With plug in transmitter and receiver units, simple USB charging and up to 30 metres of range, it is an easy way to tidy up your rig and move more freely on stage, in the studio or at home.

Using a quartz locked UHF PLL design, the EIKON J&J V2 delivers stable, high quality audio with low noise and impressive dynamic range. Sixteen selectable channels (with up to fifty on the 512 to 541 MHz version) let you run multiple systems in the same space and integrate with other wireless gear, while built in lithium batteries provide several hours of continuous use per charge.

Compact Plug In Wireless System

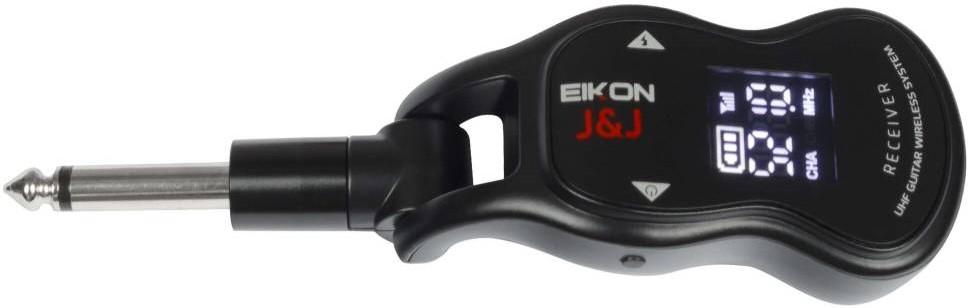

The EIKON J&J V2 keeps things as simple as possible, with both the transmitter and receiver built into compact plug in units. Just connect the transmitter to your guitar or bass, plug the receiver into your amp or pedalboard input, select a channel and you are ready to play. There is no need for belt packs, extra leads or bulky receivers, making it ideal for players who want a clean, clutter free setup.

Stable UHF Transmission

Operating in the UHF band with quartz locked PLL circuitry, this system offers reliable transmission and consistent performance. Wideband FM stereo modulation, tight frequency stability and high sensitivity reception help preserve your tone and playing dynamics, so your sound stays clear and articulate across the full operating range.

Multiple Channels For Flexible Use

With 16 frequency presets (and up to 50 on the 512 to 541 MHz model), the EIKON J&J V2 can be used alongside other wireless systems without clashes. Up to six systems can run simultaneously in the same location, making it a practical choice for bands, rehearsal rooms, small venues or teaching studios where several players need wireless at once.

Rechargeable Power On Board

Both the transmitter and receiver feature built in 3.7 V lithium batteries, charged via the included USB to USB C cable. Typical operating times range from 3 to 5 hours depending on the unit, with a full charge taking around 3 hours. This keeps running costs low and removes the hassle of constantly replacing disposable batteries.

• Plug In Transmitter and Receiver - Compact jack mounted units plug directly into your instrument and amp input, keeping your rig tidy and eliminating the need for belt packs and extra patch cables.
• UHF Quartz Locked Wireless - Quartz controlled UHF PLL technology with wideband FM stereo modulation provides stable, low noise transmission and helps maintain your instrument tone over distance.
• Multi Channel Operation - Sixteen selectable channels (up to fifty on the 512 to 541 MHz version) let you avoid interference and run up to six systems in the same space, ideal for bands and busy stages.
• Rechargeable Lithium Batteries - Built in 3.7 V / 500 mA lithium batteries in both units offer several hours of use per charge, with convenient 5 V USB charging to keep you ready for rehearsals and gigs.

System

• Type: UHF wireless jack system for guitar and instruments
• Frequency Bands: UHF 512 to 541 MHz or 863 to 865 MHz
• Channels: 16 frequency presets (up to 50 on 512 to 541 MHz model)
• Operating Range: Up to 30 m (15 to 30 m depending on band and conditions)
• Maximum Number of Systems: Up to 6 usable in the same location

Transmitter (EKJ&J UHF PLL Transmitter)

• RF Channels: 16 frequency presets (50 for 512 to 541 MHz model)
• RF Frequency Band: UHF 512 to 541 MHz or 863 to 865 MHz
• RF Frequency Stability: ±0.002 %
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM stereo
• RF Output Power: 10 mW
• Sub harmonic: < 40 dB
• Operating Current: 120 mA
• Operating Time: 3 to 5 hours
• Power Supply: Built in 3.7 V / 500 mA lithium battery
• Charging Mode: 5 V USB charging, USB mini connector
• Charging Time: 3 hours
• Weight: 0.05 kg

Receiver (EKJ&J UHF PLL Receiver)

• RF Channels: 16 frequency presets (50 for 512 to 541 MHz model)
• RF Frequency Band: UHF 512 to 541 MHz or 863 to 865 MHz
• RF Frequency Stability: ±0.005 %
• RF Oscillation Mode: Quartz locked
• RF Modulation Type: Wideband FM stereo
• RF Receiving Sensitivity: < -98 dBm
• RF Receiving Range: 15 to 30 m depending on band conditions
• Audio Dynamic Range: 106 dB
• THD Distortion: < 0.5 %
• S/N Ratio: > 102 dBA
• Audio Output Connector: 6.3 mm mono jack
• Output Power (Max Continuous): 400 mW
• Operating Current: 80 mA
• Operating Time: Up to 5 hours
• Power Supply: Built in 3.7 V / 500 mA lithium battery
• Charging Mode: 5 V USB charging, USB mini connector
• Charging Time: 3 hours
• Weight: 0.05 kg

Included

• EKJ&J plug in transmitter
• EKJ&J plug in receiver
• USB to USB C charging cable
