Free The Tone CW-1Y Cosmic Wave Multiple Filtering Delay Pedal
Built-in multiple filter effects, 128 user presets, newly-developed reverse delay, high-speed effect DSP processing & more!
FREE UK Delivery
Earn 209 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: CW-1Y
You might also need
Product Description

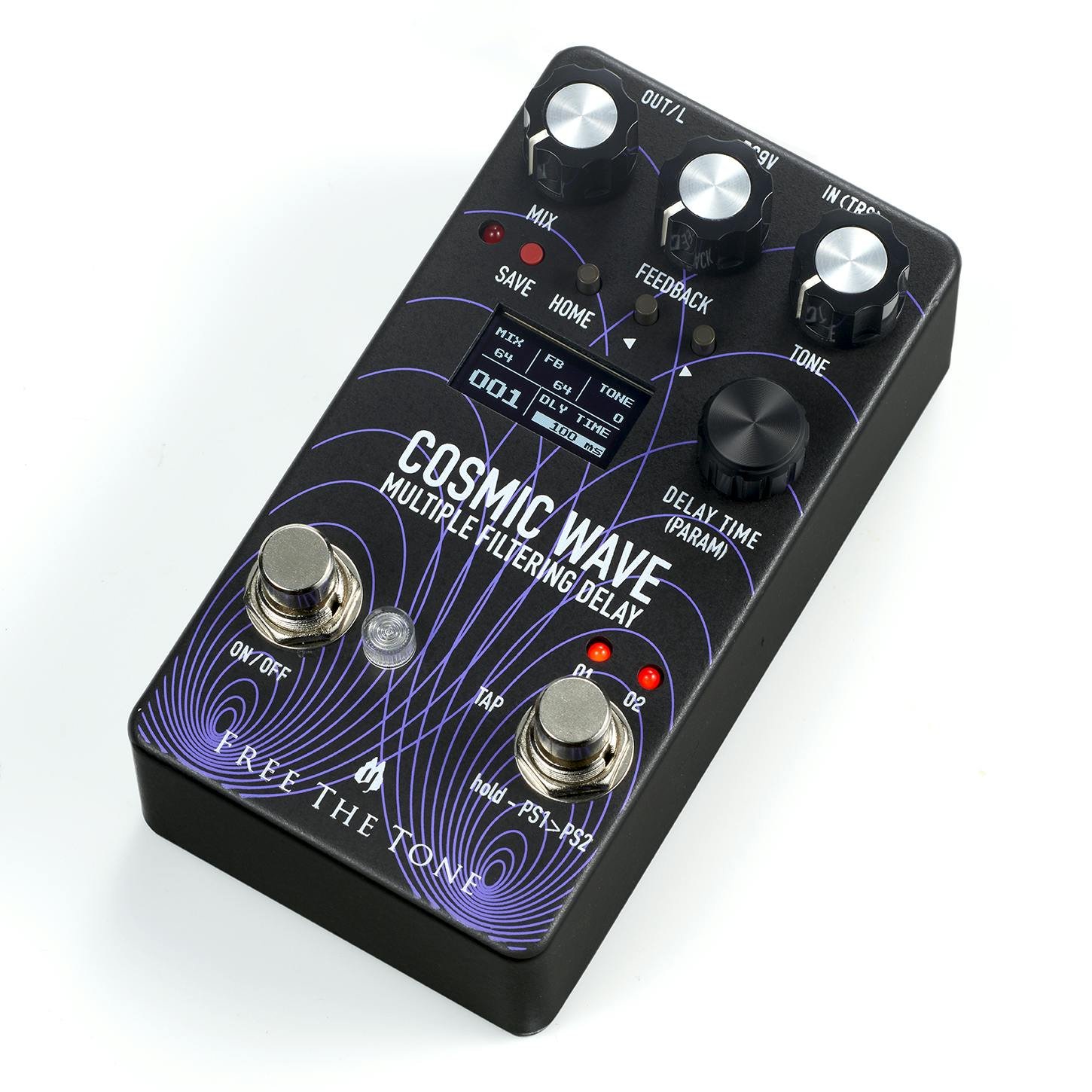

Free The Tone's Cosmic Wave is a compact, but epoch-making digital delay pedal with multiple filter functions. Using high-speed signal processing with a dedicated DSP and analogue/digital audio circuits perfected over time, this pedalboard-friendly unit attains high sound quality equal to Free The Tone's acclaimed FT-2Y Flight Time Digital Delay and FF-1Y Future Factory RF Phase Modulation Delay pedals.
The Cosmic Wave's tone filter can process the delay sound to have a rich sound or conversely adjust it to be far from the original tone. The proprietary Cosmic filter creates an ethereal effect reminiscent of outer space — adding a new colour to your delay sounds. Utilising a new method, the newly-developed reverse delay succeeds in producing a smoother, more musical reverse sound.
In addition, Free The Tone have added a new function to adjust the number of output bits of the delay sound in 1-bit units, from smooth and high-quality 24-bit to rough 8-bit sound that contains distorted noise when the volume is lowered. You can reproduce the nuances of the delay sound used in the 1980s and '90s, and even the delay sound with the bit-crusher effect applied!
Key Features
- Built-in multiple filter effects, including equalizer function. It's possible to apply multiple filters at the same time (Cosmic Filter, Bandpass Filter, 3-Band EQ, Tone).
- Equipped with a newly-developed reverse delay.
- Features output bit number adjustment function (8–24 bits).
- Small display for dramatically improved operability.
- High-speed effect processing performed by a dedicated DSP.
- Combination of high-speed arithmetic processing with 32-bit fixed-point arithmetic and high-precision arithmetic processing with 32-bit floating-point arithmetic achieves both high-quality sound and high processing speed, and provides the best performance.
- Delay time can be indicated in milliseconds or BPM.
- Tempo can be tap-entered via the footswitch.
- Presets 1 and 2 can be easily switched via the footswitch.
- Feedback Level Limit function.
- Kill Dry function.
- Trail On/Off function.
- Delay Phase Inversion function.
Specifications
- Number of Presets: 128 (Users), 11 (Factory)
- Input Impedance: 1 MΩ
- Output Load Impedance: Min. 10 kΩ
- Maximum Input Level: +10 dBm

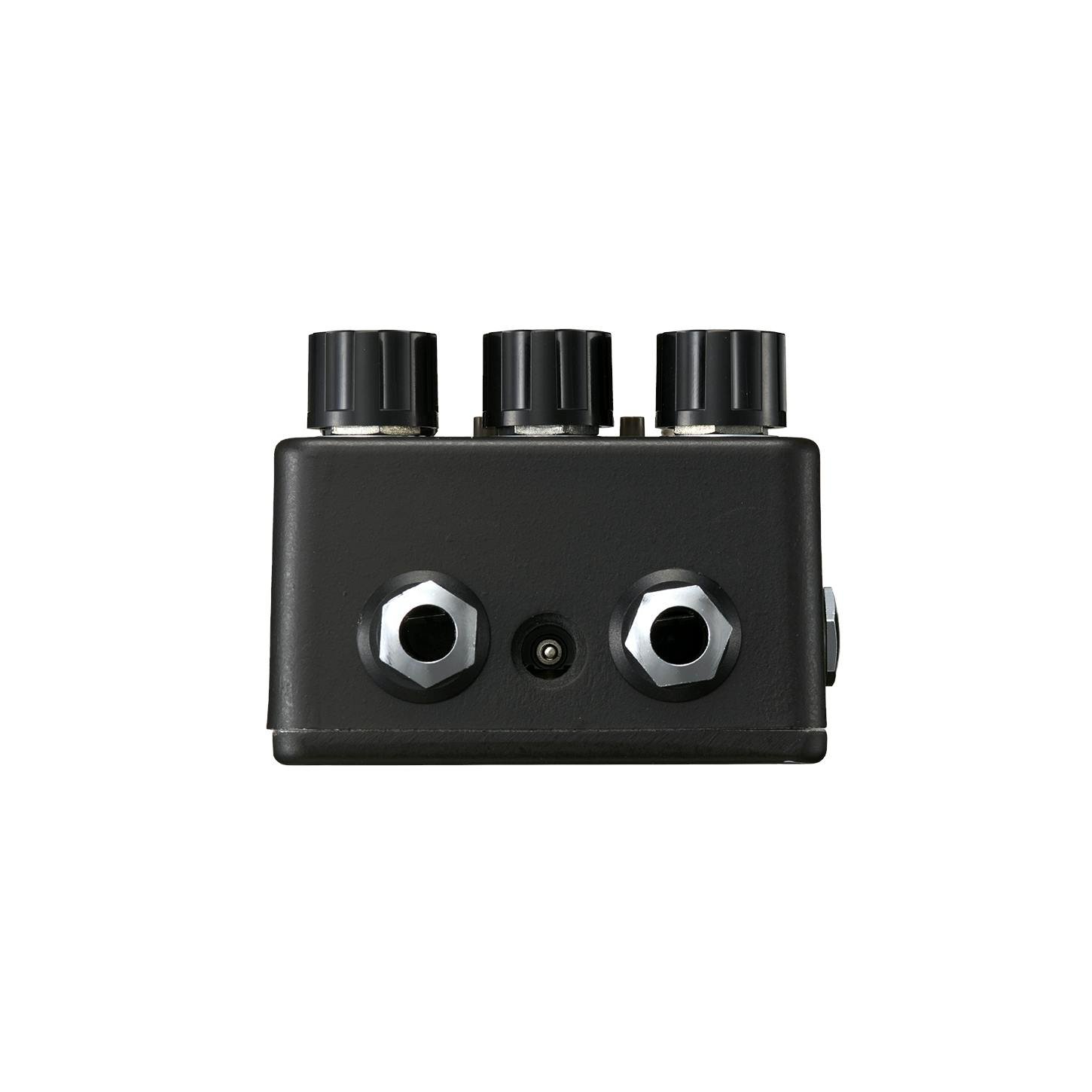

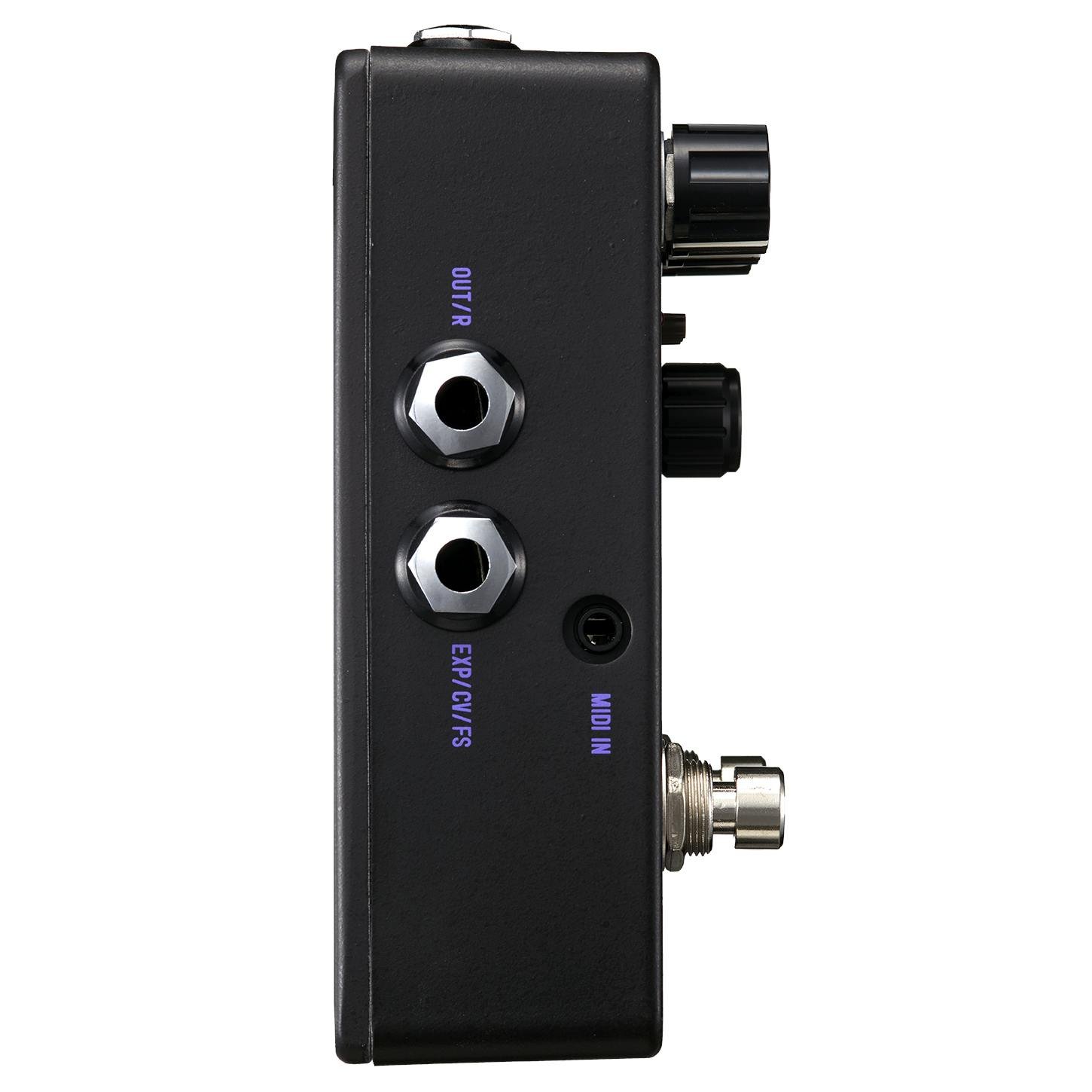

- Terminals: 1 x 1/4" Standard TRS Phone Jack (IN(TRS)), 3 x 1/4" Standard TS Phone Jacks (OUT/L, OUT/R, EXP/CV/FS), DC 9V Input Jack (for AC-DC Adapter), 3.5 mm Stereo Mini Phone Jack (MIDI IN)
- Power: 6F22 Battery (Alkaline Type), DC 9V AC-DC Adapter
- Current Consumption: Approx. 185 mA
- Dimensions: 66 (W) x 125 (D)x 54 (H) mm
- Weight Approx: 335 g
- Accessories: Warranty Card, Web Access Card, Safety Instructions, Rubber Foot
