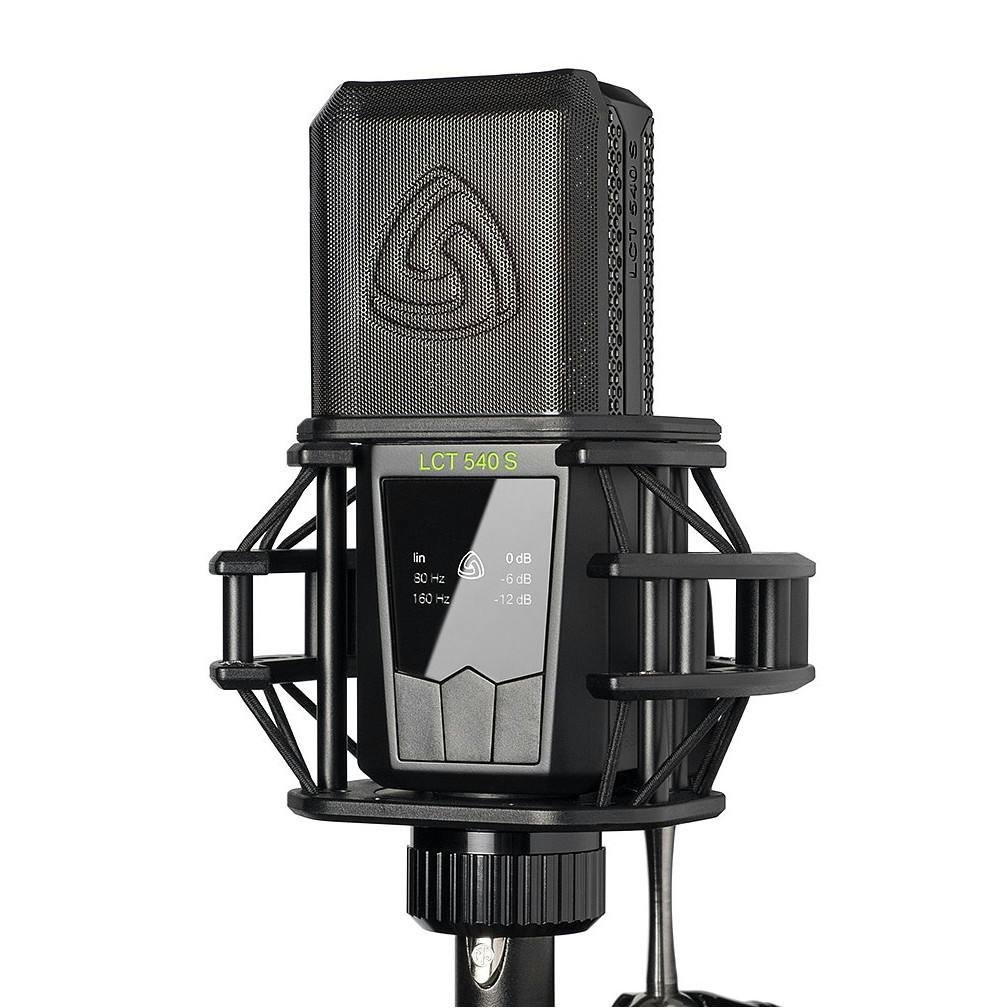

Lewitt LCT540S Large-Diaphragm Condenser Microphone
With 0dB Self-Noise!
FREE UK Delivery
Earn 466 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: LCT540S
You might also need
Product Description
The engineering of this particular piece of cutting-edge audio technology asked for a forward-thinking approach towards capsule and circuit design. As a result, a way of experiencing sound at infinite depth and absolute precision came to life; its name, the LCT 540S.
Get involved with tone and sound in ways unheard and bring your recordings to perfection by capturing all the fine-grained characteristics that constitute each moment of your performance. Rediscover your instrument and voice on a whole new level of musical detail.
- 1" true condenser studio microphone with cardioid polar pattern
- Developed in close cooperation with world-renowned producers and audio engineers
- First and foremost designed to be an outstanding vocal microphone.
- Naturally, thanks to its specifications, it is suitable for almost any application.
0dB Self-Noise Architecture
Better than Human Hearing
To see how good our hearing is in a purely technical way we can look at the threshold of hearing. Bear in mind that our hearing threshold is very frequency dependent. Human hearing is less sensitive towards low and very high frequencies and most sensitive around 2 – 5 kHz. Comparing the hearing threshold to the self-noise values of the LCT 540S, you can clearly see that our microphone is always below the threshold of hearing. The entire frequency spectrum is important, here, because looking at a microphone’s self-noise as a single value just isn’t detailed enough when discussing high-end sound transducers.
9900 Pounds of Measurement
The better the microphone, the more difficult self-noise measurement gets. You need a place where no outside noise will interfere with the measurement result. This is especially difficult for lower frequencies. To measure the self-noise of the LCT 540S, we needed to build a unique measurement device that is more than ten times more massive than conventional ones, weighing over 4500 kg or 9900 pounds in total. It heavily dampens frequencies up to a 1/10,000th of their sound pressure. The whole frequency range of a microphone from 20 Hz to 20,000 Hz is dampened by 60 dB, up to 80 dB on the higher frequencies.
Why is low self noise important?
When you climb a mountain, and the weather is clear, your reward is a fantastic view. If it is partly cloudy or foggy, the payoff is profoundly reduced. The same goes for recording. Some peaks stick out of the noise floor (fog), but if you remove as much noise as possible, you will be rewarded with details that were buried before.
This microphone can pick up the subtlest details in vocals or instruments, an almost inaudible whispering can be pushed up and sound crystal clear. Many noise issues only reveal themselves in post-production. Once you start compressing the signals a previously inaudible noise floor can appear; not with the LCT 540S.
- 0dB self-noise circuit design
- Dynamic range of 132 dB, Max SPL of 136 dB
- Ultra-resolution sonic images
- Excellent transient response
The 540S Capsule
The LCT 540S captures every sound source with absolute precision - because it is built with absolute precision; not even the tiniest detail of your recorded source will get lost. To guarantee its ultra-resolution sound and first-class sonic imaging, every 3 μm gold-sputtered, 1" Mylar diaphragm underlies the strictest quality controls.
Useful Features, Great Flexibility.
- Integrated Clipping Indicator
- Automatic Attenuation
- Clipping History
- Low-cut filters
- Pre-attenuations
Perfect Match Technology
Every single LCT 540S undergoes a series of measurements followed by adjustment of the polarization voltage to achieve the same sensitivity in every LCT 540S we will ever produce.

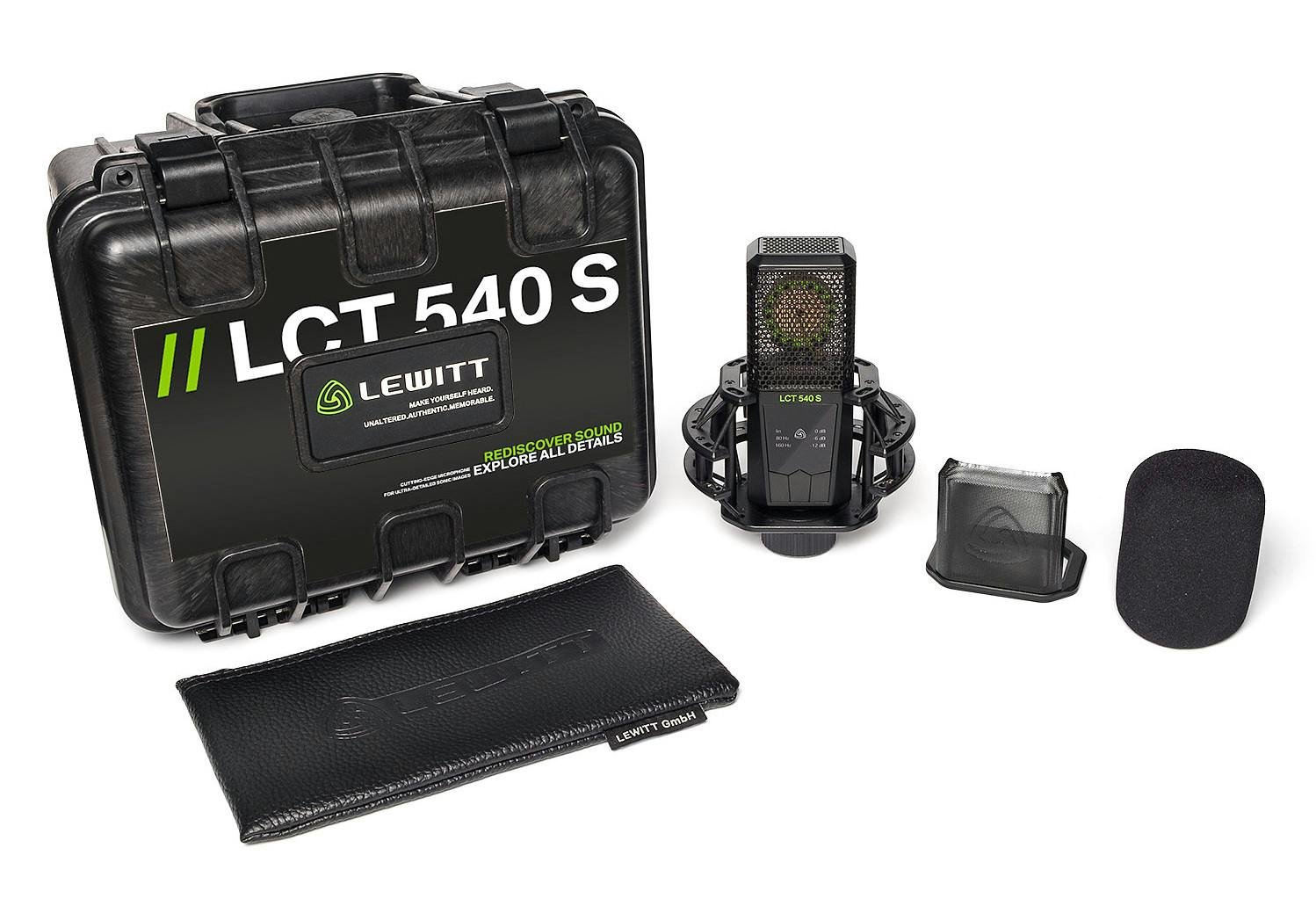

Whats in the Box

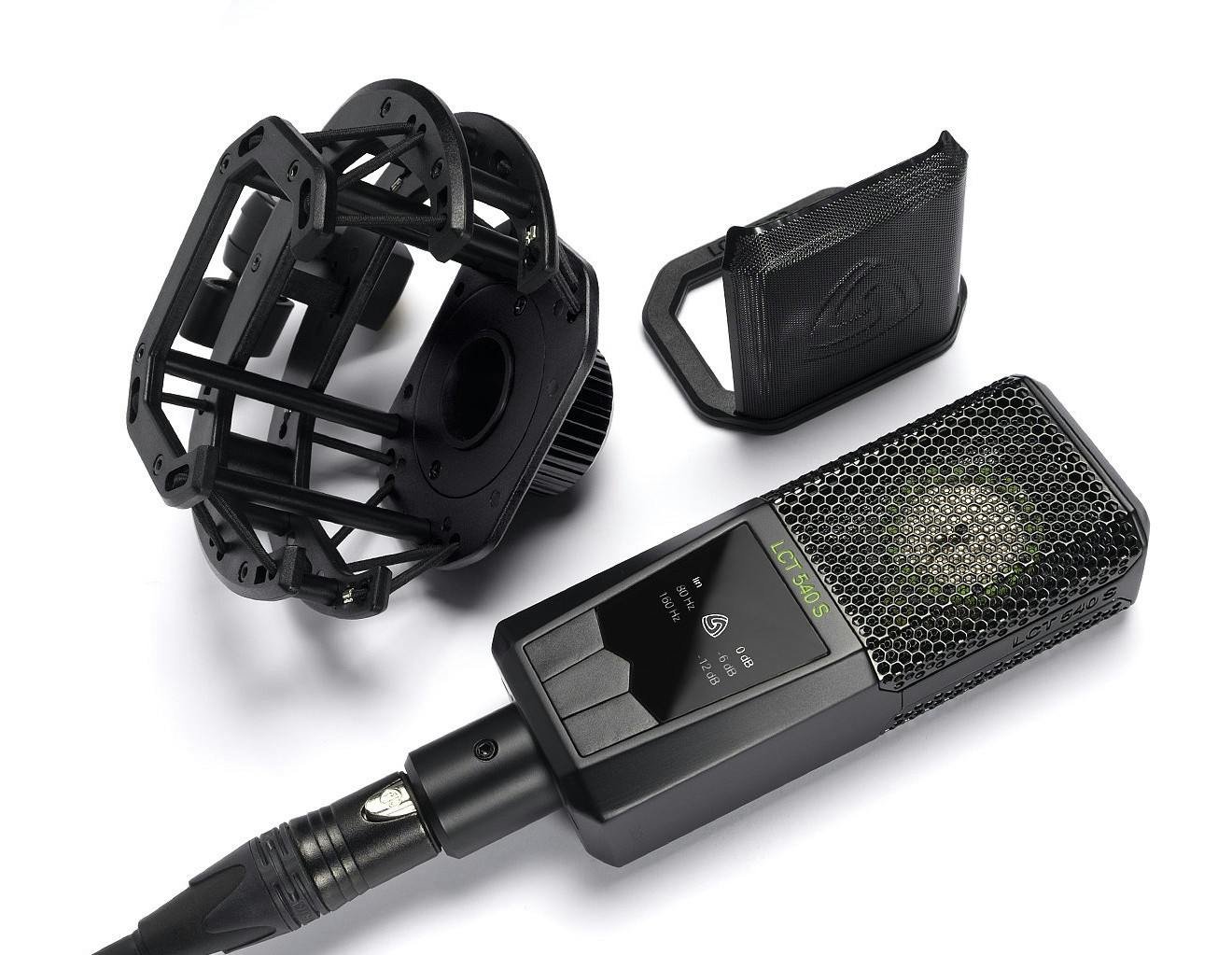

The LCT 540S comes in a military-grade protective case, with a shock mount that reduces structure-borne noise to a minimum, and a magnetic pop-filter that integrates perfectly with the design of the microphone.
