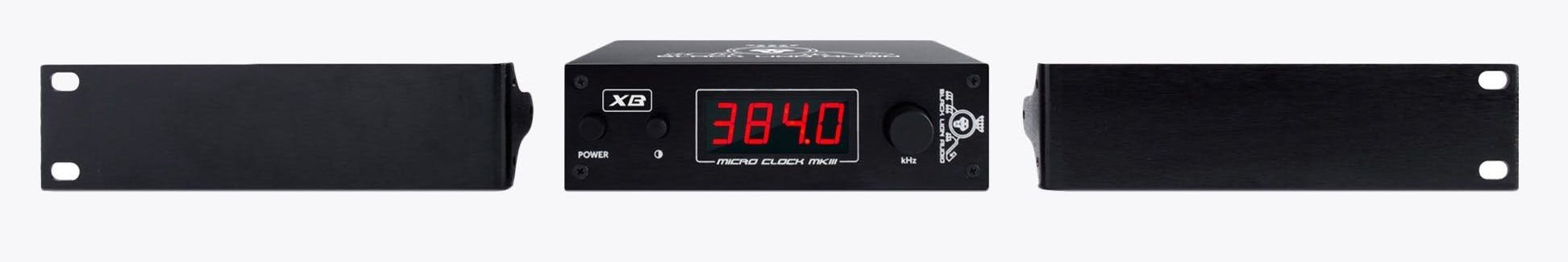

Black Lion Audio Micro Clock MkIII XB Master Clock
Ultra-low jitter 6-out master clock
FREE UK Delivery
Earn 1050 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: BLMCLKMK3XB
You might also need
Product Description
Here’s what Black Lion say:
The Micro Clock MKIII XB is the most accurate word clock we’ve developed to date. With only 0.6pS RMS of jitter at the BNC outputs, it has less than one third of the jitter of the standard Micro Clock MKIII! It boasts incredibly accurate crystal oscillators and superior quality galvanic isolation, both of which contribute to the extraordinarily low jitter measurement.
We spent the better part of a year field-testing the Micro Clock MKIII XB prior to its release, and got a lot of positive feedback on the impact it made in a wide variety of setups. Its small form factor and its ability to drive up to 1,000 feet of coaxial cable make it not only the perfect solution for improving the conversion quality of an audio interface, but also for re-clocking digital mixing consoles at live shows or houses of worship, and as the master word clock in large post-production or broadcast facilities. It can easily sync all of your digital gear together, even if it’s located in different rooms, or different buildings!
Specifications
- Ultra-low jitter, harmonically-enhanced word clock signal generation
- Dimmable frequency display
- 8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 384kHz)
- 6 BNC outputs with dedicated output drivers for maximum isolation
- RCA S/PDIF output
- Optical S/PDIF output
- AES output
- Full & 1/2 rack removable rack ears
- Locking frequency selector knob
- Jitter: 0.6pS RMS (BNC outputs)

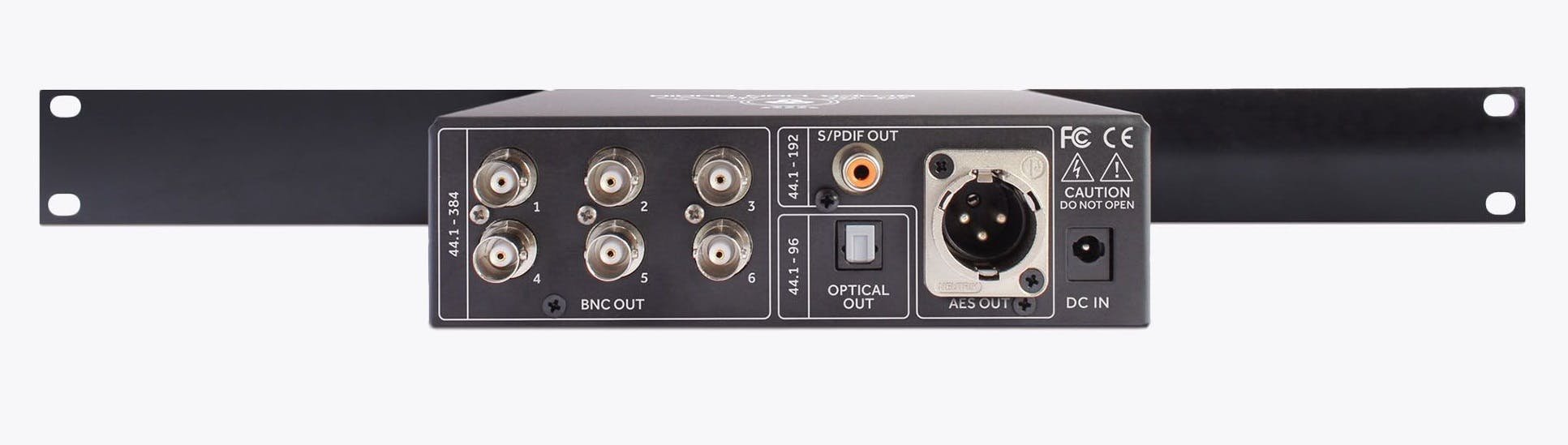

Outputs
- 6 BNC, 1 XLR AES, 1 RCA S/PDIF, 1 Optical S/PDIF (recommended max. cable length = 1,000ft of high quality, 75Ω coaxial cable)
- BNC: 75Ω, 5V unterminated
- RCA S/PDIF: 75 Ω, unbalanced
- AES XLR: 110 Ω, balanced
Clock Frequencies
- BNC (kHz) – 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384
- RCA S/PDIF & AES (kHz) – 44.1, 48, 88.2, 96, 176.4, 192
- Optical S/PDIF (kHz) – 44.1, 48, 88.2, 96
