Klark Teknik DN32-MADI MADI Expansion Module with up to 32 Bidirectional-Channels
UK Delivery - From £2.99
Earn 160 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: 000-BIU00-00010
You might also need
Product Description
Here's what Klark Technik say about the DN32-MADI

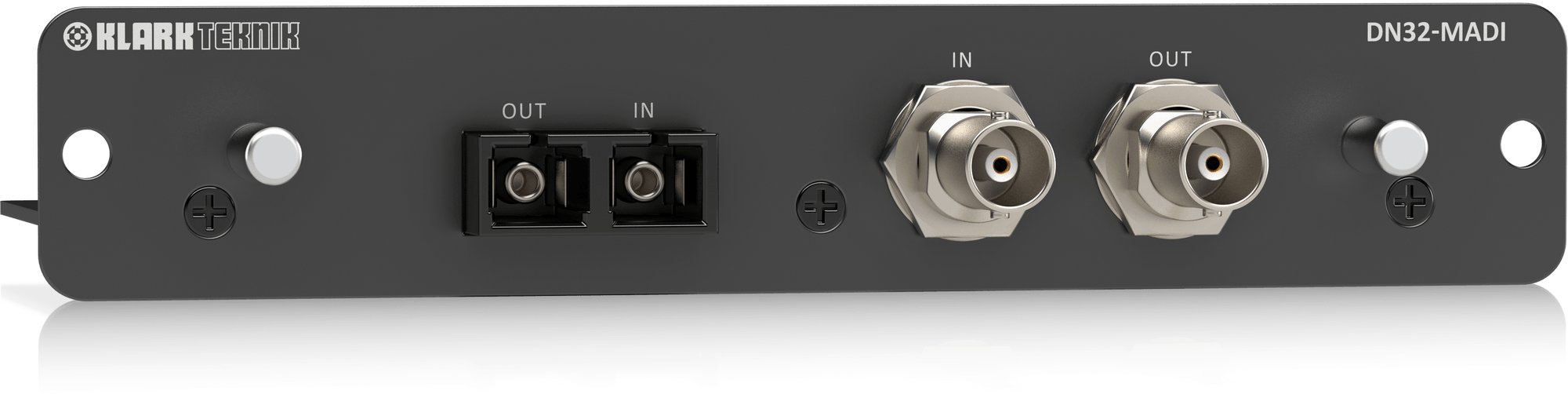

MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.
Connectivity and Redundancy
DN32-MADI features optical duplex SC-plugs (IEC874-19) to connect with MADI devices using multimode optical-fibre cable. Klark Teknik has tested multimode cable connections of 500 metres in length successfully, and distances of up to 2 km may be possible.
Dual BNC connectors are also provided for transmission on standard 75-Ohm coaxial cables up to 100 metres in length. When both the optical and coaxial interfaces are utilised, the coaxial I/O serves as a redundant connection, and is automatically activated should the optical connection become unavailable.
Clock Synchronisation and Routing
Both the BNC coaxial and optical-fibre inputs can also function as the word clock source for your mixing console. Alternately, the coaxial and optical outputs can transmit the console’s internal word clock to external devices.
The DN32-MADI card’s input stream can accommodate up to 64 channels, 32 of which can be used inside your console. Likewise, 32 of these internal signals can be transmitted on the MADI output stream, replacing those of the corresponding input channels. This also means the MADI output channels not allocated to the console signals simply pass their corresponding input channels through. This convenient feature allows two consoles to be easily combined via their DN32-MADI cards to provide a total of 64 channels for live sound or recording.
Features
- MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles
- Up to 32 bidirectional channels @ 48 kHz sample rate
- Operates up to 500 m over optical fibre link and 100 m over coaxial copper link
- Optical transmission on SC-Duplex connector
- Copper transmission on 75 ohm coaxial BNC connectors
- Dual-redundant operation with failover from optical to copper connections
- Operates as either MADI clock master or MADI clock slave
- Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels
- 10-Year Warranty Program
- Designed and engineered in the U.K.
