Product Description

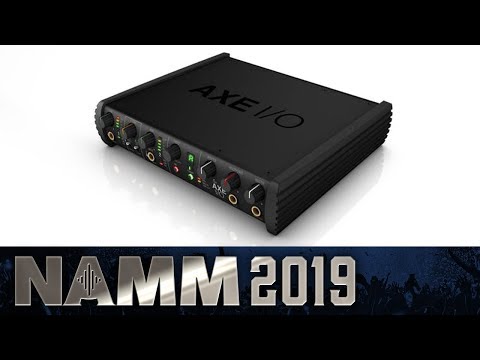

IK Multimedia specialise in technology, from their cutting-edge synths to their hugely popular software releases. For 2019, they’ve introduced the Axe I/O to the family. This stunning audio interface offers new levels of versatility, while being squarely aimed at the tone-wary guitarist. Built-in tuner, amplifier out, active & passive inputs and even Amplitube 5 MAX and TONEX MAX thrown in; it doesn’t get much better than this.
Game-changing guitar recording
The Pure circuit delivers completely transparent and ultra-accurate sound, with 117 dB (A) dynamic range. JFET adds subtle harmonic enhancement for a rounder, warmer sound without sacrificing dynamic range.
Active bypasses unneeded stages for completely transparent sound when used with active pickups. While patent-pending Z-Tone variable impedance Hi-Z input re-shapes the sound of instruments to dramatically reshape the tone of your guitar, or precisely match the impedance of a virtual gear model.
Powerful features

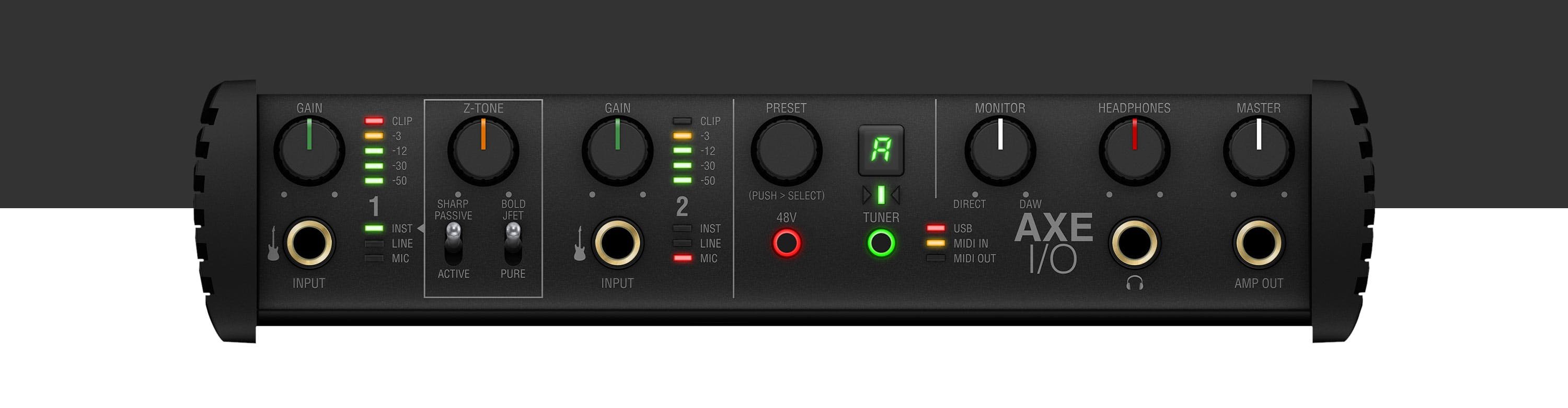

Front-panel Amp output for easy re-amping, with no need for a direct box and no ground loops or noise. The front-panel 1/4” return lets you add external pedal FX without the need to re-wire rear inputs.
You’ve also got a built-in tuner to keep your instrument in tune throughout recording sessions – handy eh? Finally, 2 inputs for expression pedals or single/switches gives you real-time control over virtual rigs.
Includes over £1000 worth of software
Over 140 ultra-realistic models of iconic guitar amps, cabs, FX and more thanks to AmpliTube 5 and its expansive library. You’ve also got 10 T-RackS Singles for mixing instruments, including EQ, compressors, reverb, delays, mic modelling and more.
Access over 1000 tone models with TONEX MAX, with 100 amps and 50 pedals available!. Model amps, cabinets, combos and pedals (distortion, overdrive, fuzz, EQ or boost) using regular studio gear in as little as 5 minutes per model!
Finally, you’ll get a copy of Ableton’s Live 10 Lite recording software, a go-to in the industry among live performers and electronic music artists.
Specifications
Common
- Conversion: 24-bit A/D, 24-bit D/A
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
- Power: DC IN
- Device Connection: USB B-Type 2.0
- Enclosure: metal sheet
Line Outputs 1-2 (Monitor)
- Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
- Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
- Output Level: 0 dBFS corresponds to +21 dBu
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -106 dB(A) at -1 dBFS
- Channels 1-2 crosstalk: 115 dB(A)
Line Outputs 3-4
- Configuration: Unbalanced
- Output impedance: 75 Ohms
- Output Level: 0 dBFS corresponds to +16 dBu
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 115 dB(A)
- THD+N: -102 dB(A)
- Channels 3-4 crosstalk: 112 dB(A)
Output 5 (Amp output)
- Configuration: Unbalanced, floating, with selectable ground lift
- Output impedance: 100 Ohms
- Output Level: 0 dBFS corresponds to -6 dBu
- Frequency response: From 10 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 110 dB(A)
- THD+N: -104 dB(A)
Headphones Out
- Output impedance: Virtually ideal source (zero Ohms) until clipping
- Maximum Output level: +12 dBu into 50 Ohms load (approx 180 mW)
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 112 dB(A)
- THD+N: -100 dB(A)
Mic Inputs 1-2
- Configuration: Class-A discrete differential microphone preamp, pin 2 hot
- Input impedance: 4 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +12 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -37 dBu signal at the XLR input
- Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -106 dB(A) at -10 dBFS
Line Inputs 1-2
- Configuration: Class-A discrete differential line receiver, tip hot
- Input impedance: 20 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
- Input level, max gain: 0 dBFS is obtained with a -24 dBu signal at the TRS input
- Frequency response: From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -106 dB(A) at -10 dBFS
Instrument Inputs 1
- Configuration: Multiple topology instrument preamp
- Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
- Input impedance, ACTIVE mode: 10 kOhms
- Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD, PURE mode: 0.0015 %
- THD, JFET mode: 0.5 %
Instrument Inputs 2
- Configuration: Hi-Z instrument preamp
- Input impedance: 1 MOhms
- Input level, min gain: 0 dBFS is obtained with a +14 dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -17 dBu signal at the TS input
- Frequency response: From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD: 0.006%
Here's What IK Multimedia say:
AmpliTube 5 MAX
Legendary guitar/bass gear on your Mac/PC - Captures the sound, feel and vibe of over 400 of the most sought-after guitar & bass gear ever.
Developed with top brands & artists - Official gear from icons like Fender®, Mesa/Boogie®, Orange®, Slash, Brian May, Joe Satriani and many more.
Covers the entire signal chain - Stomps, amps, cabs, speakers, mics, rooms and rack FX all in one interface, all routed the way you want.
All-in-one recording & performance studio - With an 8-track recorder + DAW, looper, tuner, practice tools and live features all in one.
Powerful recording in your favourite DAW - Works as an AAX / VST / AU plug-in to create killer guitar tracks anywhere.
The most realistic tones ever - IK’s DIM™ and VIR™ technology ensures AmpliTube nails the tone and feel of every piece of gear like never before.
TONEX
A revolutionary concept in rig modelling, and the core of the TONEX ecosystem, TONEX software uses breakthrough AI Machine Modeling™ technology to let you model the sound of any amp, cabinet, combo or pedal, and turn it into a plug-in, all with a sonic accuracy that’s virtually indistinguishable from the real thing. You can instantly play up to 1,000+ Tone Models already available plus browse, demo and download the growing number of Tone Models available on TONEX in ToneNET.
From rare one-of-a-kind vintage amps to modern rigs, TONEX makes it possible and affordable to own the most sought-after gear in the world.
In the Box
- Axe I/O Interface
- Amplitube 5 Max
- USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
- DC power supply
