Shure PSM300 Premium Wireless IEM System with SE215 Earphones
With Metal Casings and Premium SE 215 Earphones
FREE UK Delivery
Earn 815 Loyalty Points
Want to Click and Collect or try items at our Guildford Store?
The store is open 10am - 6pm Monday to Saturday and 11am - 5pm Sunday and bank holidays.
The stock information shows the quantity of units that are available to purchase at the Guildford store and the quantity of units that are available at our off-site Guildford warehouse. These stock levels are updated in real time.
Our Click and Collect service is available at our Guildford store from 10am - 6pm Monday to Saturday, and 11am - 5pm on Sunday. You can either choose click and collect as your delivery option online or, during store opening hours, call our sales team at 01483 456777 to place a 10% deposit.
If you have placed your order online, you will receive a confirmation email of your order and a separate follow-up text or email to confirm when your item is ready for collection.
Please do not come to the store before you have received the follow-up message, as your order may not yet be ready at the store.
If the only available stock is in our off-site warehouse it can be brought to the store location for you to try - you just need to contact the store within opening hours. Please note any requests received after 3.30pm will not arrive at the store until the following morning.
Please be aware that, unless you have paid a deposit to reserve the item, it will continue to be free, both online and in-store, for another customer to buy. Therefore we would advise you to place a 10% deposit by either using the on-line click and collect service or calling us 01483 456777.
SKU: P3TRA215CL
You might also need
Product Description
The PSM 300 Premium system offers the perfect in ear monitoring system to give you the sound you need anywhere on the stage. The system comes with the P3RA Premium wireless bodypack receiver and P3T Wireless Transmitter, delivering detailed 24-bit digital audio processing and a range of great features. This system also comes with the SE215 earphones that are discrete and offer the audio clarity needed when you're out on stage.
Key Features
PSM®300 Stereo Wireless Personal Monitor Systems
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analogue RF connection over a 90 meter range
- Create a personal mix from the bodypack with MixMode® technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- Comes with SE215 Earphones

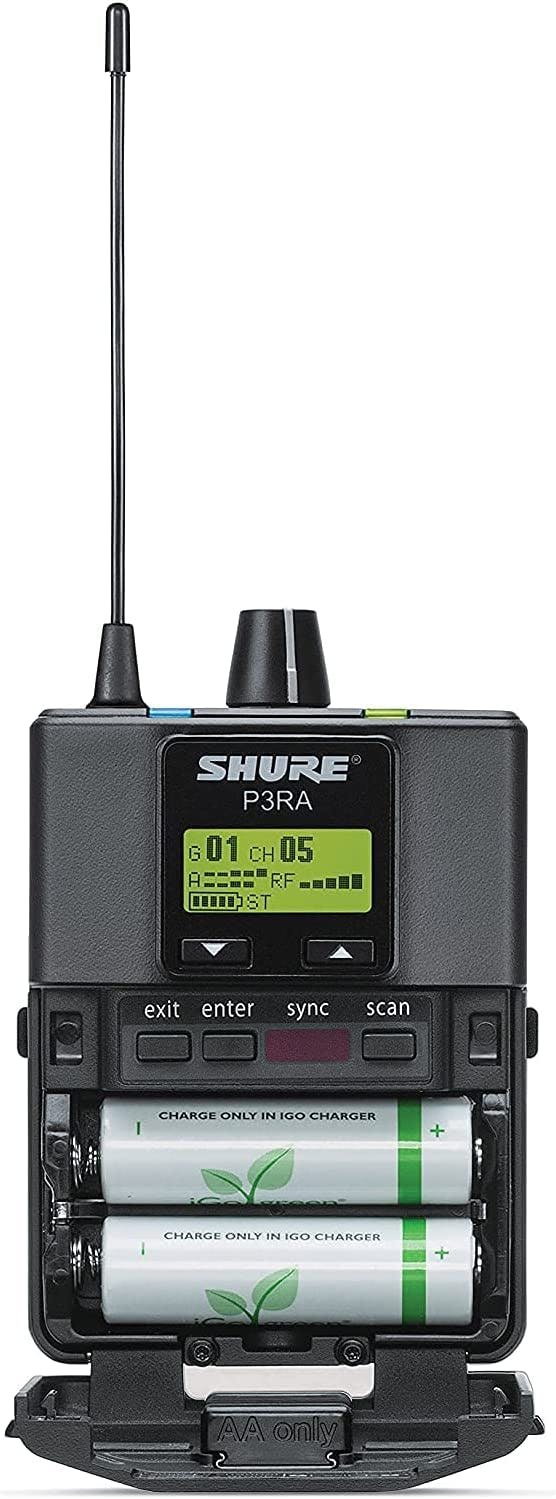

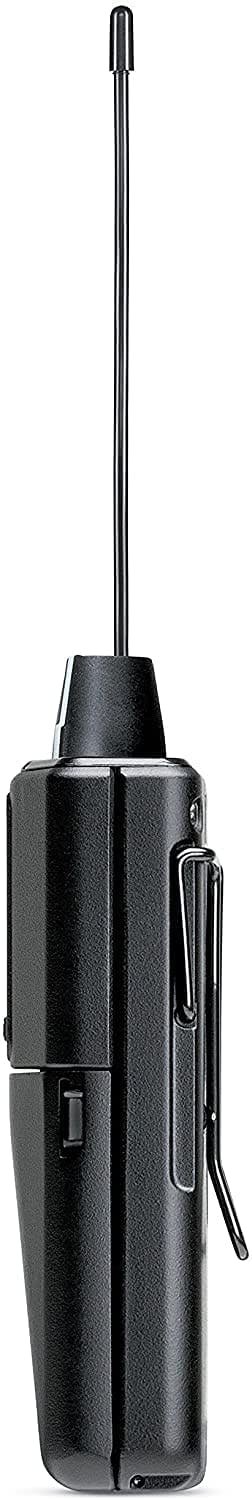

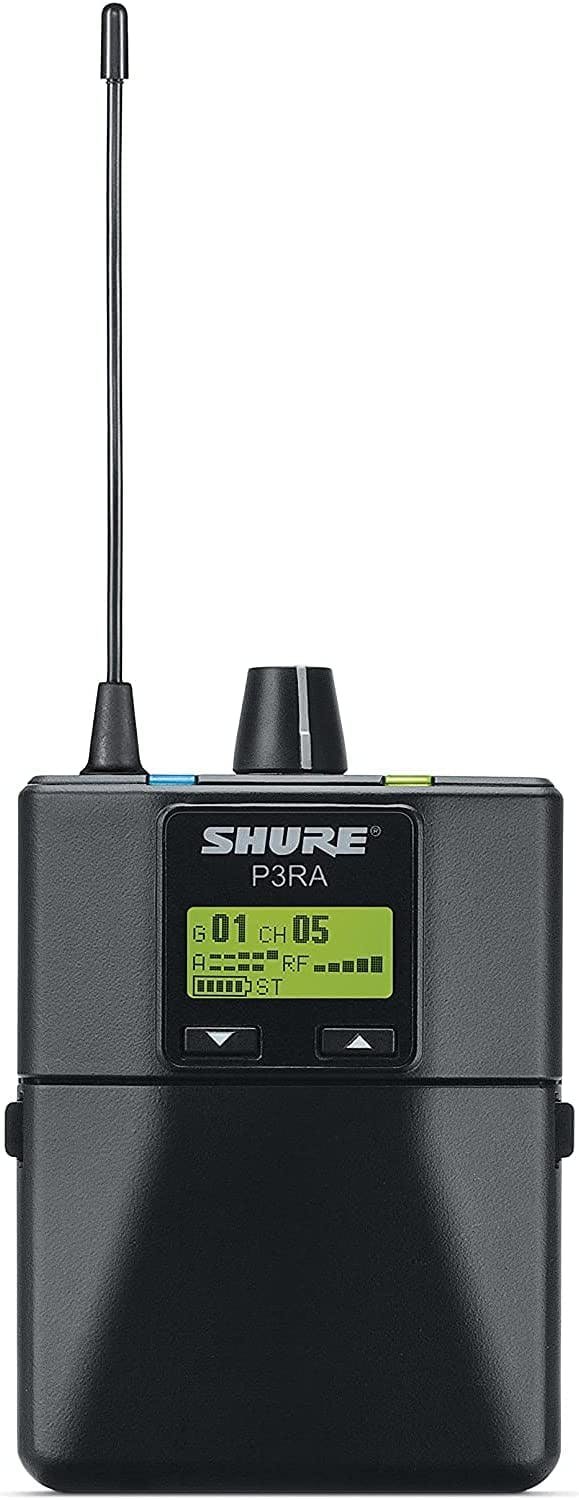

P3RA Premium Wireless Bodypack Receiver
- Rugged, all-metal construction
- High-contrast LCD screen with menu-based navigation
- 2-band shelving EQ with high and low boost
- Volume limiter sets the maximum gain level range for the volume knob
- MixMode® technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Frequency scan and IR sync quickly finds and assigns a clean channel
- 2 AA batteries provide up to 7 hours of continuous use
- Optional Shure SB900 lithium-ion rechargeable battery provides extended runtime
- Power and battery status LED
- 5-segment battery life meter
- Power save mode preserves battery life when earphones are not connected

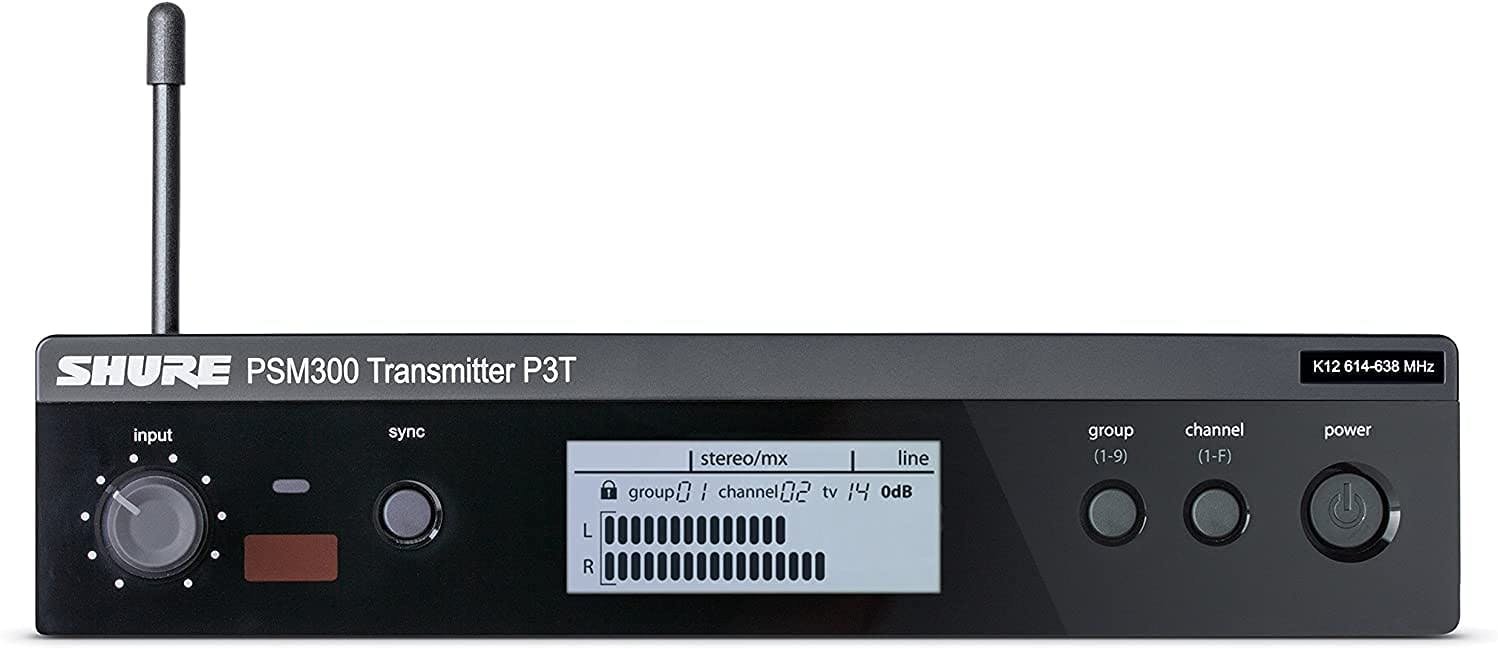

P3T Wireless Transmitter
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to PSM300 receivers over a 300 90 meter range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- Up to 24 MHz tuning range (region dependent)
- ¼” (6.3 mm) TRS balanced inputs and loop outputs
- High-contrast LCD screen with left/right audio output meters
- Detachable ¼ wave antenna
- Selectable line/aux level
Included in the Box
- PSM®300 Premium Stereo Wireless Personal Monitor System
- P3RA Premium Wireless Bodypack Receiver
- P3T Wireless Transmitter
- Premium SE 215 Earphones
Technical Specifications
- RF Carrier Range: 488- 937.5 MHz
- Compatible Frequencies: Per band, up to 15
- Tuning Bandwidth: 24 MHz Maximum
- Operating Range (environment dependent): 90 m ( 300 ft)
- Audio Frequency Response: 38 Hz–15 kHz
- Signal-To-Noise Ratio: A-Weighted, 90 dB (typical)
- Total Harmonic Distortion: ref. ±34 kHz deviation @1 kHz <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection: ref. 12dB SINAD, >80 dB (typical)
- Latency: <0.7 ms
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±1 Hz)
- Modulation: FM, MPX Stereo
- Operating Temperature: -18°C to +63°C
P3T
- RF Output Power: 10, 20, 30 mW
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 783 g(27.6 oz.)
- Dimensions: 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D
- Power Requirement: 12-15V DC, 260 mA Maximum
Audio Input
- Connector Type: 6.35 mm (1/4") TRS
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40 kΩ (actual)
- Nominal Input Level: switchable: +4 dBu, –10 dBV
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
Audio Output
- Connector Type: 6.35 mm (1/4") TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
P3R
- Active RF Sensitivity: at 20 dB SINAD, 2.2 µV
- Image Rejection: >90 dB
- Adjacent Channel Rejection: >60 dB
- Intermodulation Attenuation: >50 dB
- Blocking: >60 dB
- Audio Output Power: 1kHz @ <1% distortion, peak power, @32Ω, 40 mW + 40 mW
- Minimum Load Impedance: 4 Ω
- Headphone Output: 3.5 mm (1/8″) stereo
- Output Impedance: <2.5 Ω
- Net Weight: 98 g(3.5 oz.) (without batteries)
- Dimensions: 110 x 64 x 21 mm H x W x D
- Battery Life: 5–7 hours (continuous use) AA batteries
